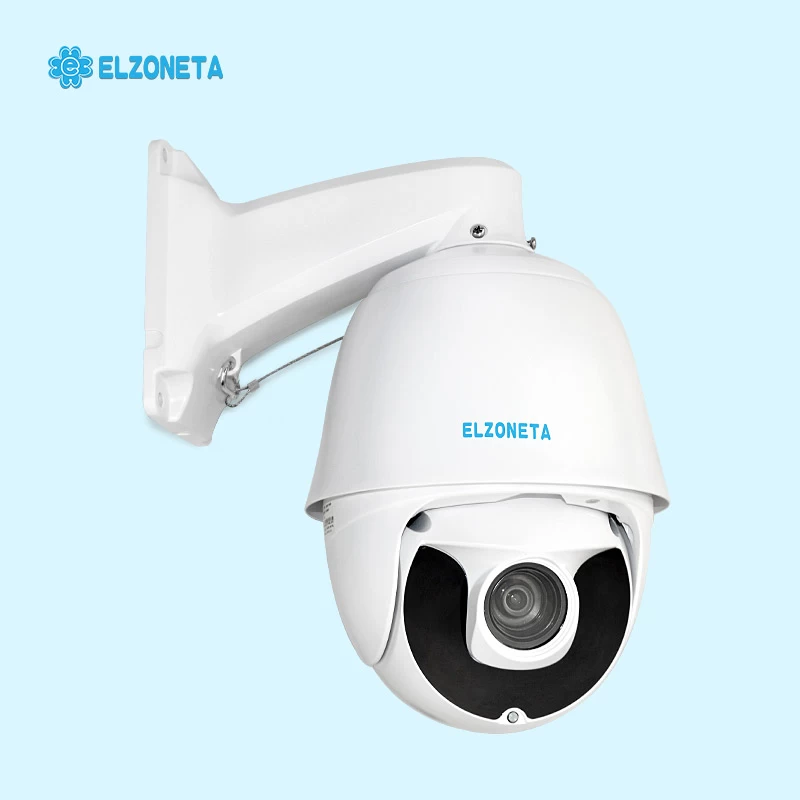

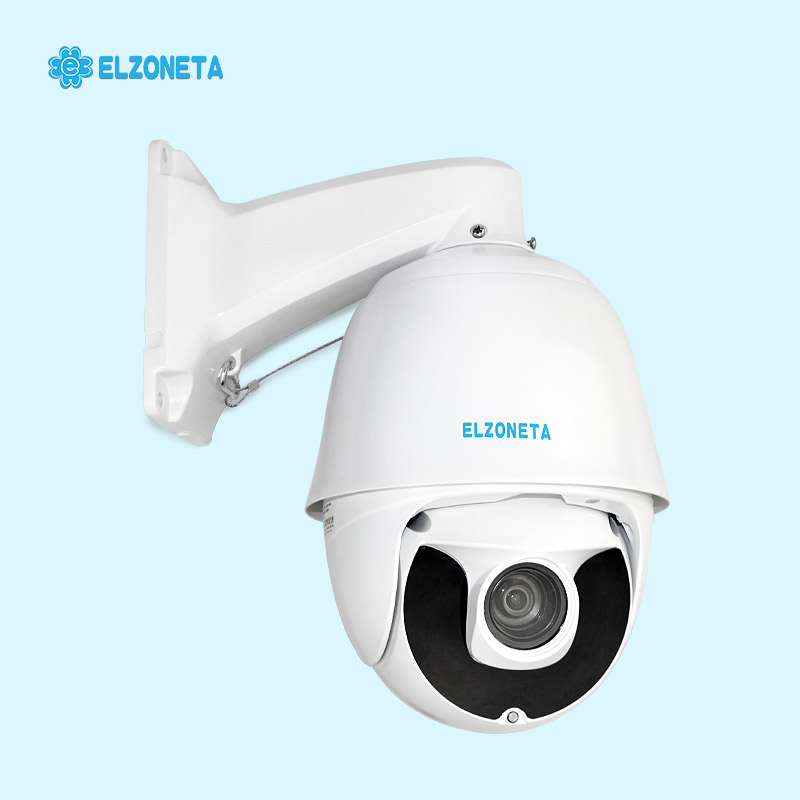

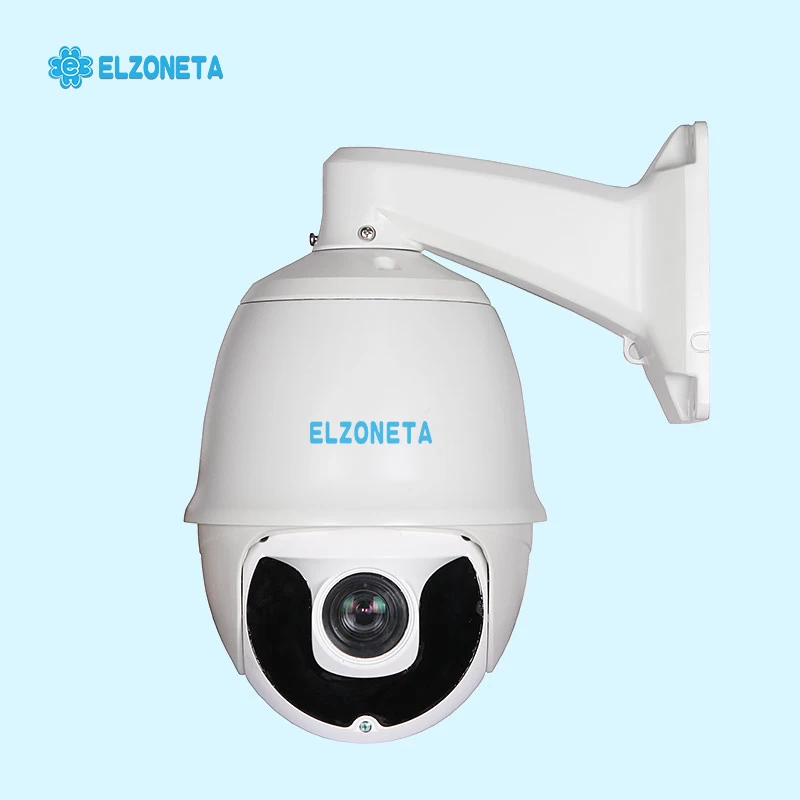

EC-H07 IR PTZ IP High Speed Dome Camera
Features:
* Support P2P function
* 7" half metal body construction, IP66
* Optional function: Alarm,Audio,SD Card slot
* 11pcs Array 42Mil Led+4PCS Laser Led,IR range up to 240M
* ONVIF2.4 ; Compatible with HIKVISION, DAHUA, XM, Video park NVR .etc
* Compatible with CMS, UC2, Milestone, NUUO and AXXON platform.etc
* Intelligent IR illumination & power consumption is variable, dependent the zoom factor
* Product Guarantee for 2 years
Specification:
|
Camera
|
|
Sensor
|
1/3" CMOS 2MP Sony323
|
1/3" CMOS 5MP AR0521
|
1/3" CMOS 2MP Panasonic34229
|
|
Output pixel
|
1920*1080@30fps 1920*1080@25fps
|
2592x1944/15fps
2592x1520/22fps
|
1920*1080p/30fps
1920*1080p/25-60fps
|
|
Lens
|
20X f=4.7mm~94mm
|
36X f=4.6~165.6mm
|
|
BLC
|
Support
|
|
AGC
|
Auto/Manual
|
|
WB
|
Indoor/Outdoor/Auto/Manual
|
|
DNR
|
2DNR,3DNR
|
|
WDR
|
DWDR
|
WDR≥79dB
|
|
S/N Ratio
|
≥50dB
|
|
Dome
|
|
Communications Protocol
|
TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, HTTPS, P2P
|
|
Software Control
|
IE, CMS, Management Platform, P2P
|
|
Mobile View(optional)
|
Android , iPhone
|
|
Rotation range
|
Pan:0~360°,Tilt:0~93º
|
|
Rotation speed
|
Pan:0~200°/s, Tilt:0~100°/s
|
|
Medium rotation speed for optional
|
Pan:0~80°/s, Tilt:0~40°/s
|
|
Auto Flip
|
Horizontal 180º,Vertical 93º
|
|
Preset Points
|
220pcs presets（dwell time 01-60s interval available）
|
|
A-B scan
|
User programmabel(scan speed 1-64 levels setting available)
|
|
Guard Tours
|
3 groups( Max.16 points, dwell time user selectable)
|
|
video compression
|
H.264/H.265M-JPEG
|
|
audio compression
|
G711~PCM
|
|
Operating temperature
|
-40℃~+60℃
|
|
Operation menu
|
English
|
|
Power
|
DC 12V 4A
|
|
Consumption
|
≤25W
|
|
Lightning Protection
|
Transient voltage 6000V
|
|
Related validation
|
IP66,CE,FCC,RoHs
|
|
IR parameters
|
|
Auto Control IR LED
|
PWM
|
|
LEDs
|
11pcs Array 42Mil IR Led+4PCS Laser Led
|
|
IR distance
|
Up to 240 meters
|
