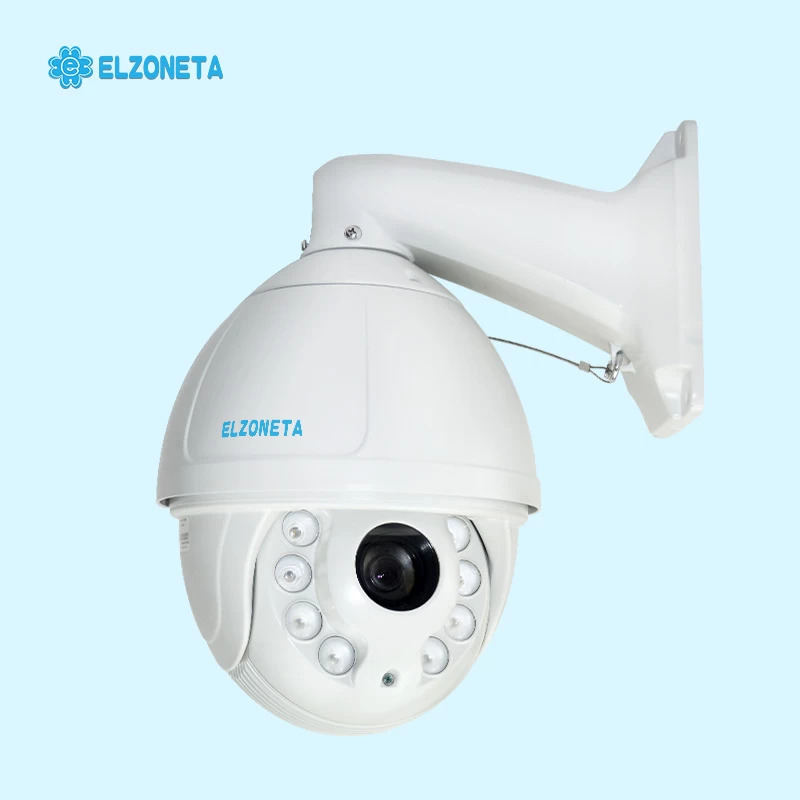

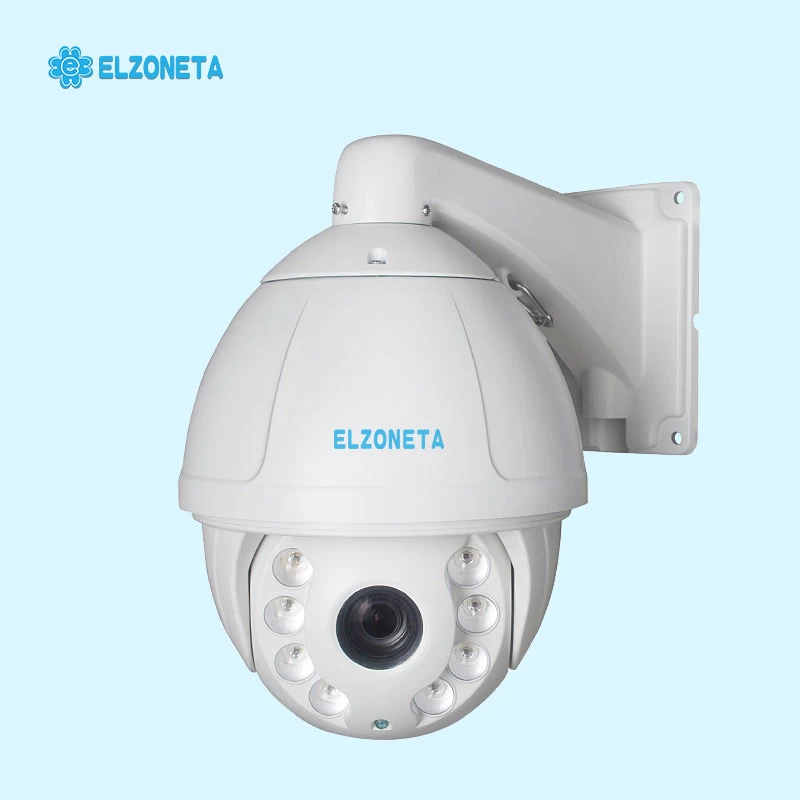

EC-HS05 IP Security CCTV PTZ Speed Dome Camera
What is PTZ Speed Dome Camera? PTZ stands for Pan, Tilt, Zoom. So it means this kinds of CCTV security camera can rotate horizontally and vertically and make optical zoom. Due to its special features, more and more CCTV cameras customers would like to select and purchase for some big projects like shopping mall projects, warehouse projects and so on. So PTZ Speed Dome Camera Wholesale becomes necessary and popular all over the world.
PTZ speed dome camera Features:
* Support P2P function
* All 8 Pcs Laser LED, IR range up to 300M
* Optional function: Alarm,Audio,SD Card slot
* 7" full metal body construction, IP66 rate protection
* ONVIF2.4 ; Compatible with HIKVISION, DAHUA, XM, Video park NVR .etc
* Compatible with CMS,UC2, Milestone, NUUO and AXXON platform.etc
* Smart movable LED board , IR LED angle variable dependent on the zoom factor
* Intelligent IR illumination & power consumption is variable, dependant the zoom factor
* Product Guarantee for 2 years
Specification:
|
Camera
|
|
Sensor
|
1/3" CMOS 2MP Sony323
|
1/3" CMOS 4MP OV4689
|
1/3" CMOS 2MP Panasonic34229
|
|
Output pixel
|
1920*1080@30fps 1920*1080@25fps
|
2592x1520/30fps
2592x1520/25fps
|
1920*1080p/30fps
1920*1080p/25-60fps
|
|
Lens
|
20X f=4.7mm~94mm
|
36X f=4.6~ 165.6mm
|
|
BLC
|
Support
|
|
AGC
|
Auto/Manual
|
|
WB
|
Indoor/Outdoor/Auto/Manual
|
|
DNR
|
2DNR,3DNR
|
|
WDR
|
DWDR
|
WDR≥79dB
|
|
S/N Ratio
|
≥50dB
|
|
Dome
|
|
Communications Protocol
|
TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, HTTPS, P2P
|
|
Rotation range
|
Pan:0~360°,Tilt:0~93º
|
|
Rotation speed
|
Pan:0~480°/s,Tilt:0~240°/s
|
|
Auto Flip
|
Horizontal 180º,Vertical 93º
|
|
Preset Points
|
220pcs presets（dwell time 01-60s interval available）
|
|
A-B scan
|
User programmabel(scan speed 1-64 levels setting available)
|
|
Guard Tours
|
8 groups( Max.16 points, dwell time user selectable)
|
|
Pattern Scan
|
4 pcs(Max 15 minutes.max.512 commands)
|
|
Time scheduling Function
|
6 tasks
|
|
PWR On Action
|
Memory/Pattern 1/Tour 1/360° scan/A-B scan/Park 1/None
|
|
Park Mode
|
Pattern 1/Tour 1/360° scan/A-B scan/Park 1/None
|
|
Park Time
|
1-60mins setting available
|
|
video compression
|
H.264/H.265M-JPEG
|
|
audio compression
|
G711, PCM
|
|
Operating temperature
|
-40℃~+60℃
|
|
Operation menu
|
Mutiple languages:English,Italian,Spanish etc.
|
|
Power
|
DC12V 4A / (AC24V 3A optional )
|
|
Consumption
|
≤25W
|
|
Lightning Protection
|
Transient voltage 6000V
|
|
Related validation
|
IP66,CE,FCC,RoHs
|
|
IR parameters
|
|
Auto Control IR LED
|
PWM
|
|
IR distance
|
300 meters
|
|
LEDs
|
8 Pcs laser LED
|
