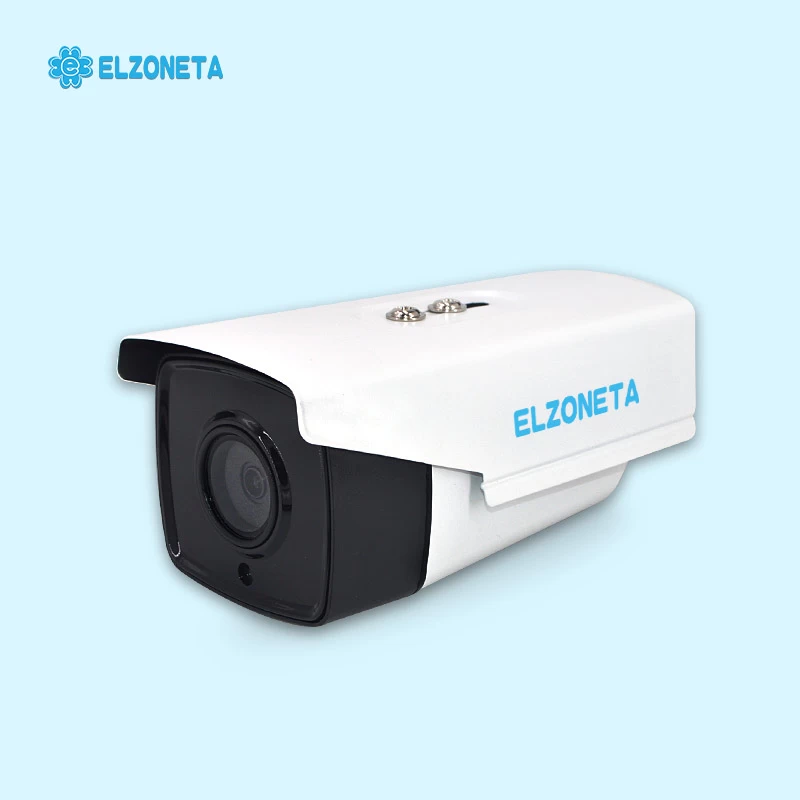

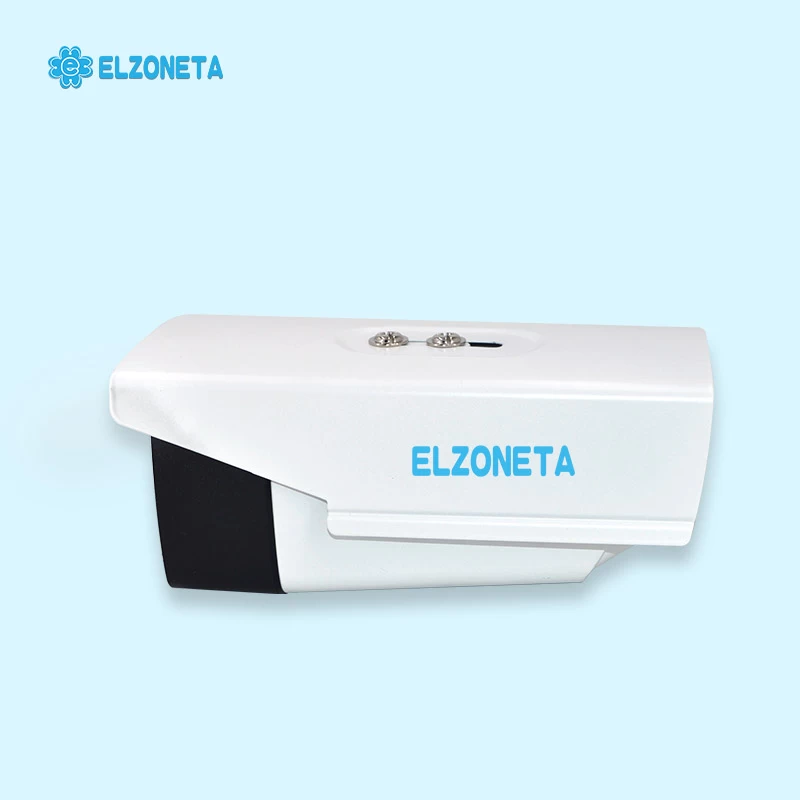

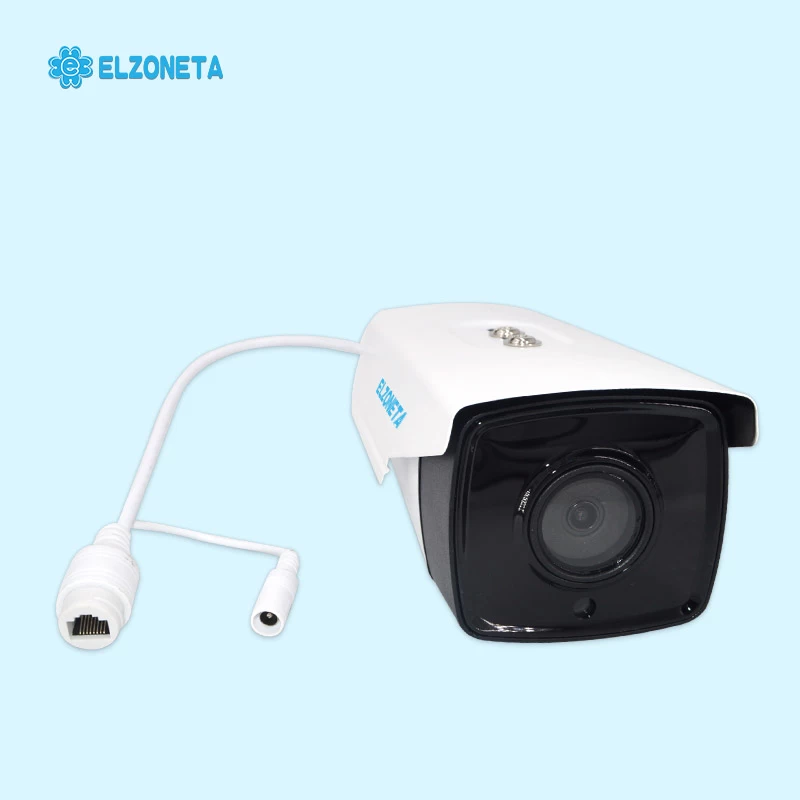

EC-G05S5-SD H.265 Security Camera
H.265 outdoor bullet security camera use the latest compression technology to store more information using less storage space.
Product information
Image sensor:1/2.7″CMOS
Video resolution:1920×1080
Pixel:2.0MP
Compression:H.265+/H.264/JPEG
Frame rate:up to 25fps
Video bit rate:204Kbps～6Mbps adjustable
Lens
Viewing angle
4mm:horizontal 91.4°vertical 47.7°diagonal 107.3°
6mm:horizontal 56.1°vertical 30.8°diagonal 65.4°
8mm:horizontal 43.2°vertical 23.5°diagonal 50.0°
Features
Auto exposure:Support
Auto gain control:Support
Auto white balance:Support
3D DNR:Support
OSD information setting:Support OSD big font function , OSD and time can be set separately
Network timing:Support
QR code scan:Support to create the QR code and scan to add equipment
Timing restart:Support
Intelligent fog removal:Support
ROI coding:Support ROI enhancement coding and enhancement exposure
Privacy masking:Can mask 4 areas at the same time
Motion detection:Support
Image setting:Contrast, Brightness, Saturation, Acutance are adjustable
Scene switching:Support 4 scene switches: indoor, outdoor, default and soft
Day and night function:ICR auto switch
Screen setting:Support exposure time setting
Night vision optimization:Support
Software WDR:Support
Picture setting:Mirror image, reversal image
IP adaptive technology:Support automatically adapt IP address optional function
Detection alarm:Email alarm push, clients alarm push
Remote control:System management, Bit stream management, User management, Network management
External extended interface:Audio Input
Network
Network:1 RJ45 10M/100Mbps self-adaptable Ethernet port
Video coding:1080P, 720P, Internet
Network Protocol:HTTP,TCP/IP,ICMP.RTSP,RTP,UDP,RTCP,SMTP,FTP,DHCP,DNS,PPPOE
Control protocol:ONVIF
Web Browser:Support IE8+,Chrome18+,Firefox5.0+,Safari5.02+ . Support Chinese and English
Preview video:32 CH at the same time
User rights:Administrator, Ordinary user, Visitor
Other Features
Infrared light:4pcs Array Light
IR distance:20-40M
Level of Protection:IP66
Power supply:DC 12V
Operating Temperature:-20℃~+60℃
Operating Humidity:10%~90%
Power consumption:Daytime: ＜3W; Night: ＜6W
Color / Material:Aluminium alloy
Size(W×H×D)(mm):85 × 75 × 160
Weight:500g
