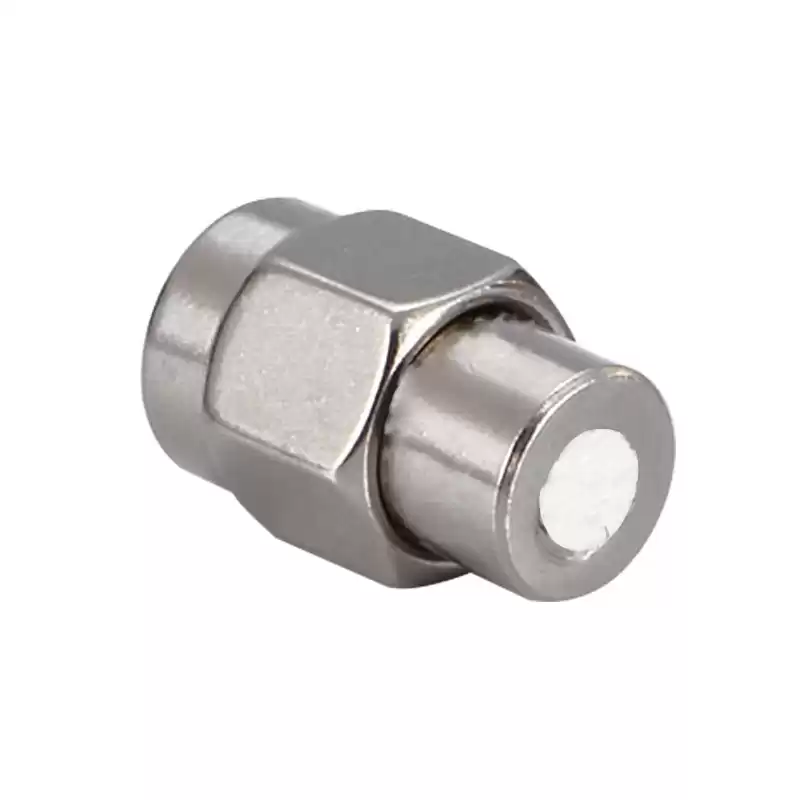

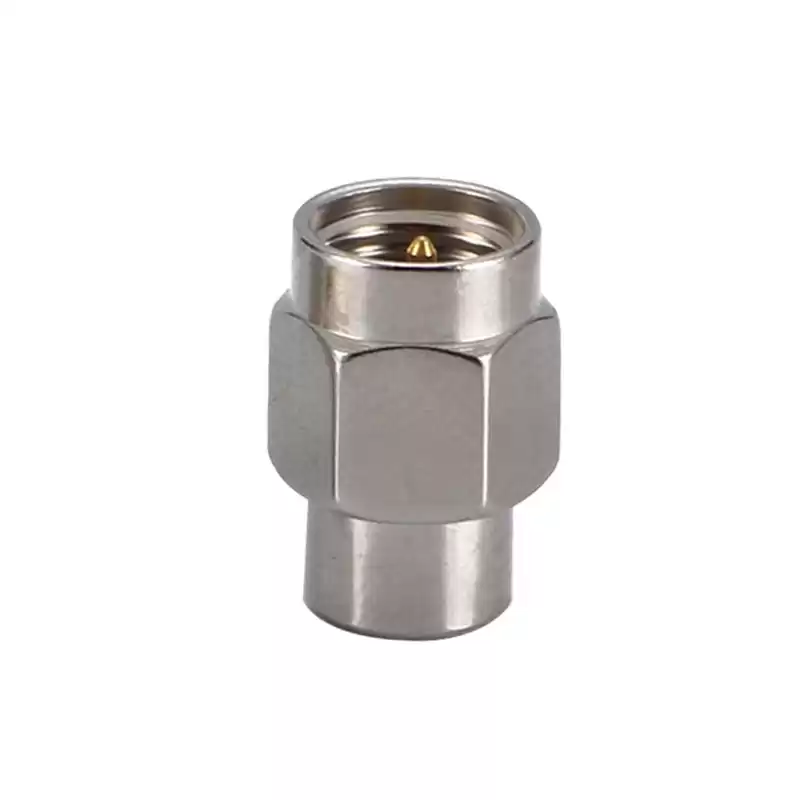

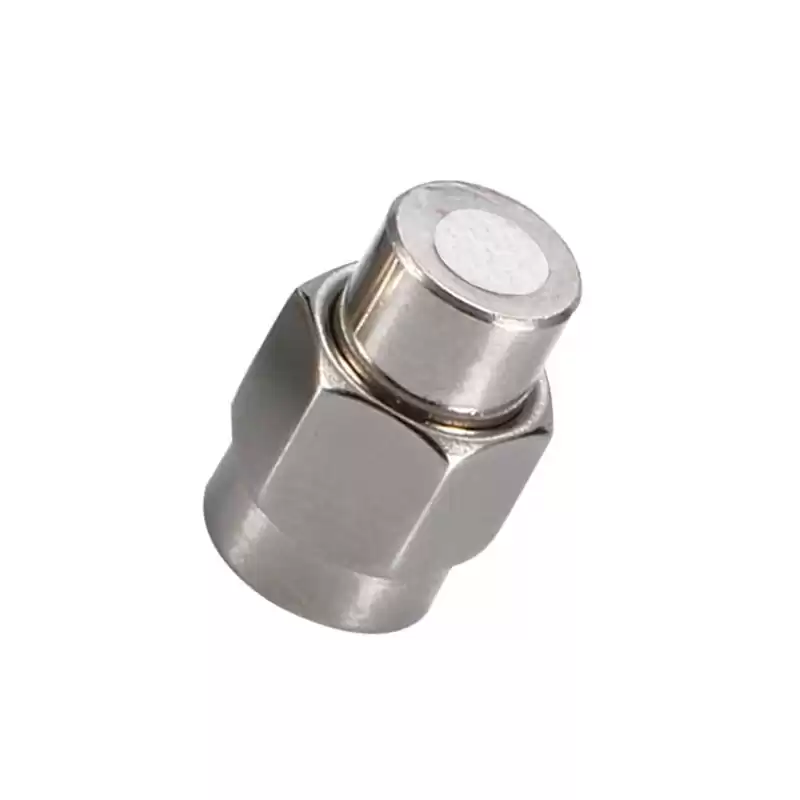

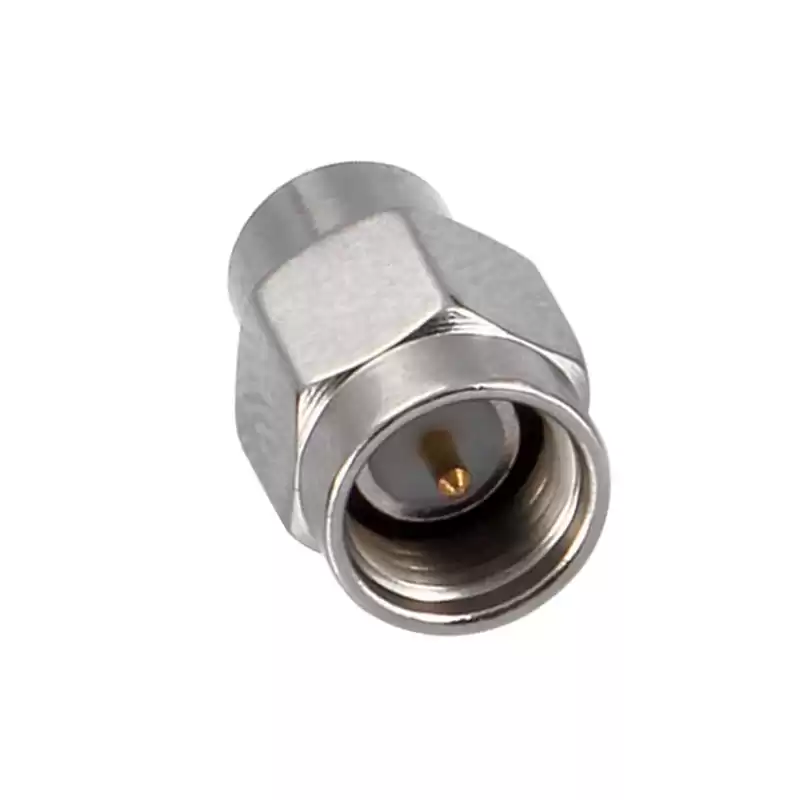

2W DC-6GHz Up to 26.5GHz SMA Male RF Load Terminator 50ohm Dummy Load
The 2W SMA dummy load (also known as 2W SMA termination or 2W SMA RF load ) has a SMA connector that is male. This 2W SMA male load / termination is rated for a maximum frequency of 26.5GHz. ROHO's SMA male termination load is a rf load termination with a 50ohm impedance; The SMA coaxial termination / load has an average maximum VSWR of 1.2:1. 2W SMA male load termination is one of RF, microwave and millimeter wave components. ROHO also could do SMA,DIN,4.3-10,N or other Connector for this product,All specification we can be customized.
Specifications
| ELECTRICAL DATA |
|
| Frequency |
DC~6GHz,up to 26.5GHz |
| Connector |
SMA Male |
| VSWR |
≤1.2 |
| Power |
2W |
| Impedance |
50Ω |
| Temperature Range |
-55℃～+125℃ |
| MATERIAL DATA |
|
| Connector body |
Stainless Steel,Passivate or Brass,Plating Ni |
| Insulator |
PTFE |
| Inner Conductor |
Phosphor Bronze ,Plating Au |
Applications
- Measurement systems
- Multi-port microwave device
- Directional couplers
- Isolators
