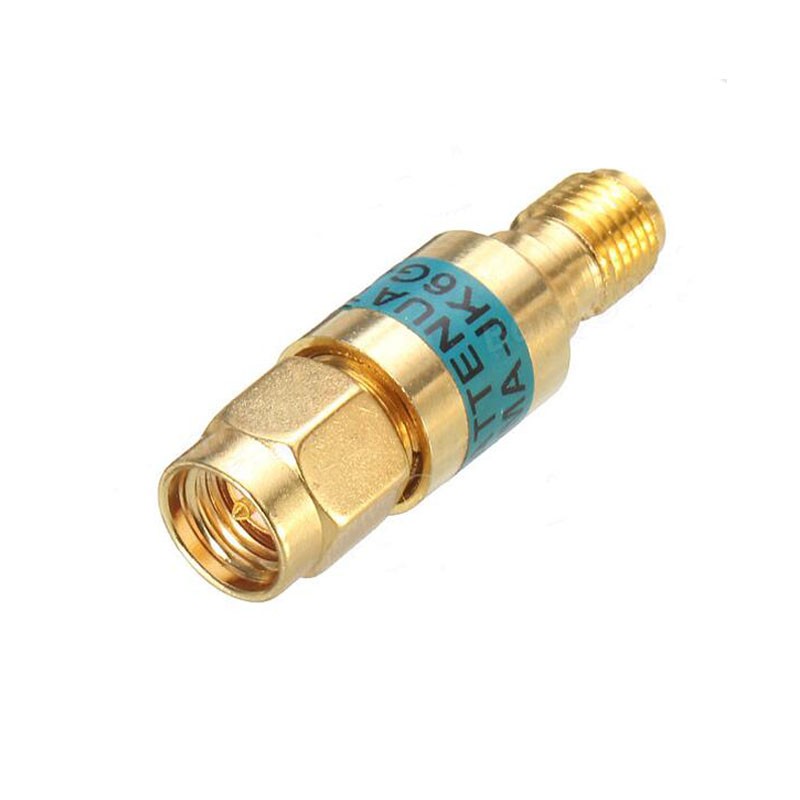

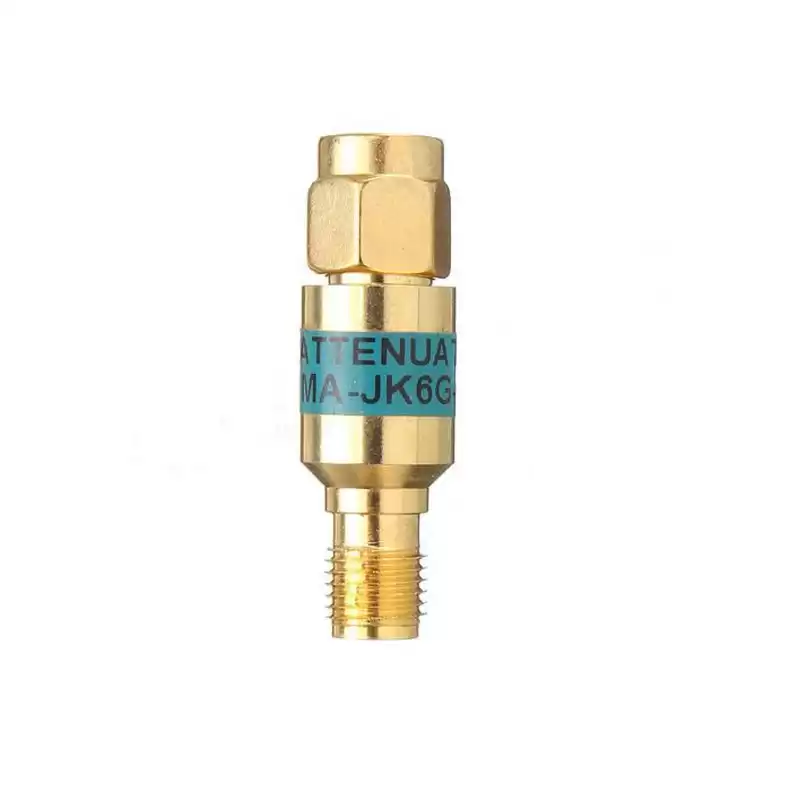

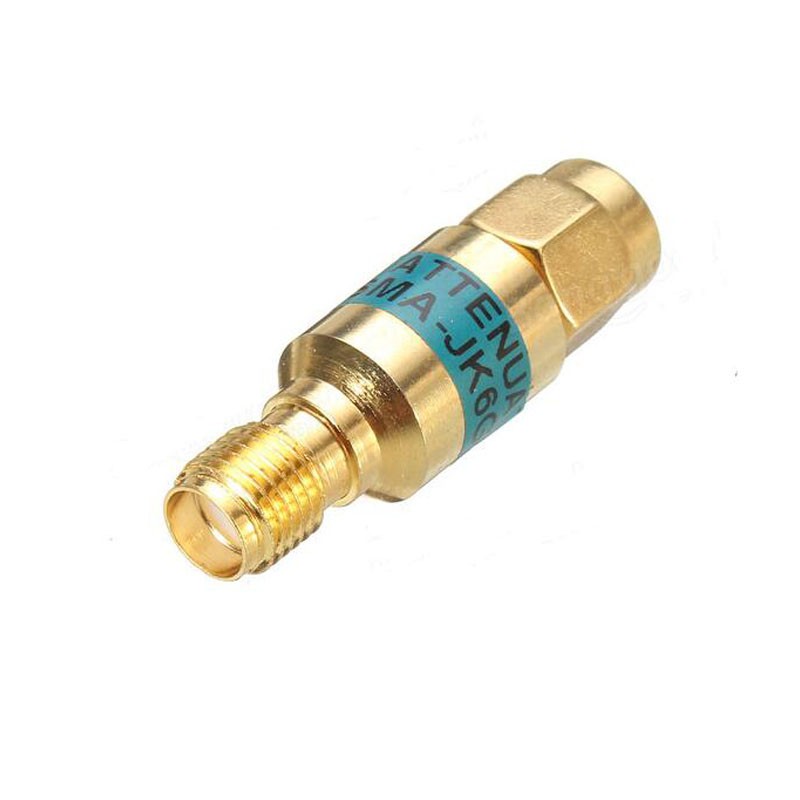

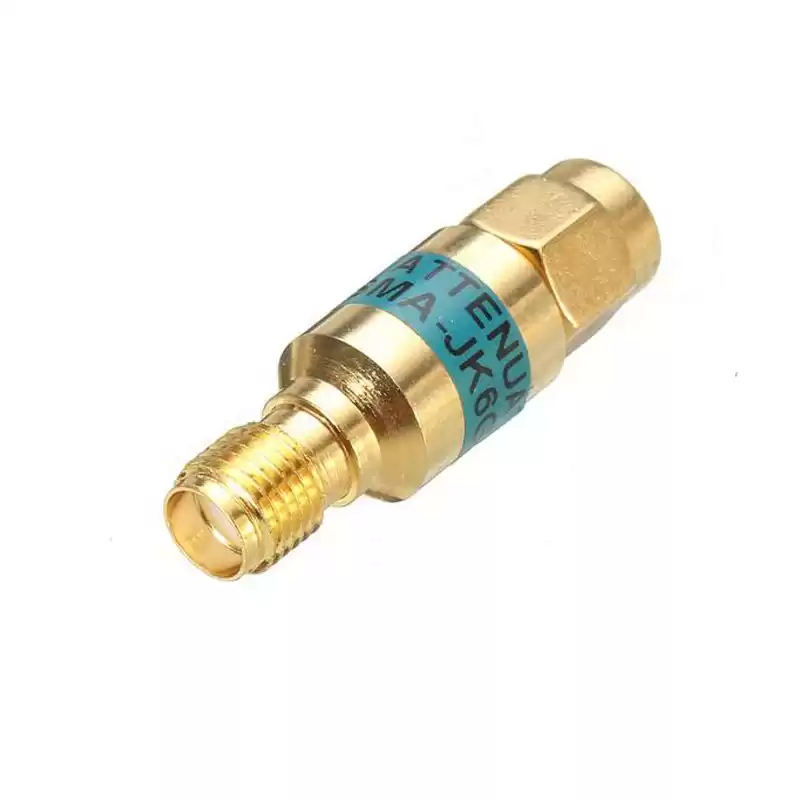

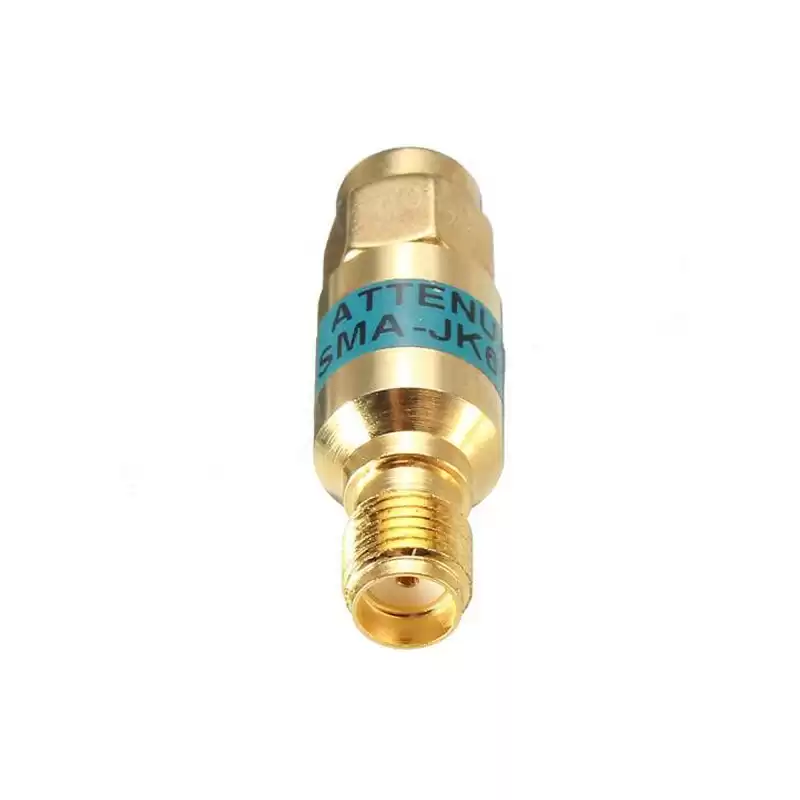

2W SMA Fixed Attenuator Male to Female RF Coaxial DC-6GHz 50ohm 1-30dB Gold
The RF Attenuator are manufactured to precise industry specifications and the bodies are constructed of an aluminum finned heatsink, stainless steel or nickel plated brass. ROHO's SMA Attenautor is a High Power Coaxial Attenuator from 1 to 100W, and we offer 50ohm loads terminations male and female type. This 2W SMA to SMA Attenuator has a SMA male gender on side 1 and a SMA female connector on side 2. attenuation Max value is 40dB, frequency Max is 26GHz.
Specifications
| ELECTRICAL DATA |
|
| Frequency |
DC~6GHz |
| Connector |
SMA Male to Female |
| VSWR |
≤1.2 |
| Power |
2W |
| Impedance |
50Ω |
| Attenuation value |
1-30dB |
| Attenuation |
1, 3, 5, 6, 10, 15, 20, 30dB is available
1-10dB.±0.5dB,15-30dB±1dB |
| Temperature Range |
-55℃～+125℃ |
| MATERIAL DATA |
|
| Connector body |
Brass,Plating Ternary alloy or Nickel |
| Insulator |
PTFE |
| Inner Conductor |
Phosphor Bronze ,Plating Au |
Applications
- Mobile Communication Network Optimization
- In-door distribution system
- Cluster communication
- Satellite communication
- Shortwave communication
- Aerospace equipment systems
