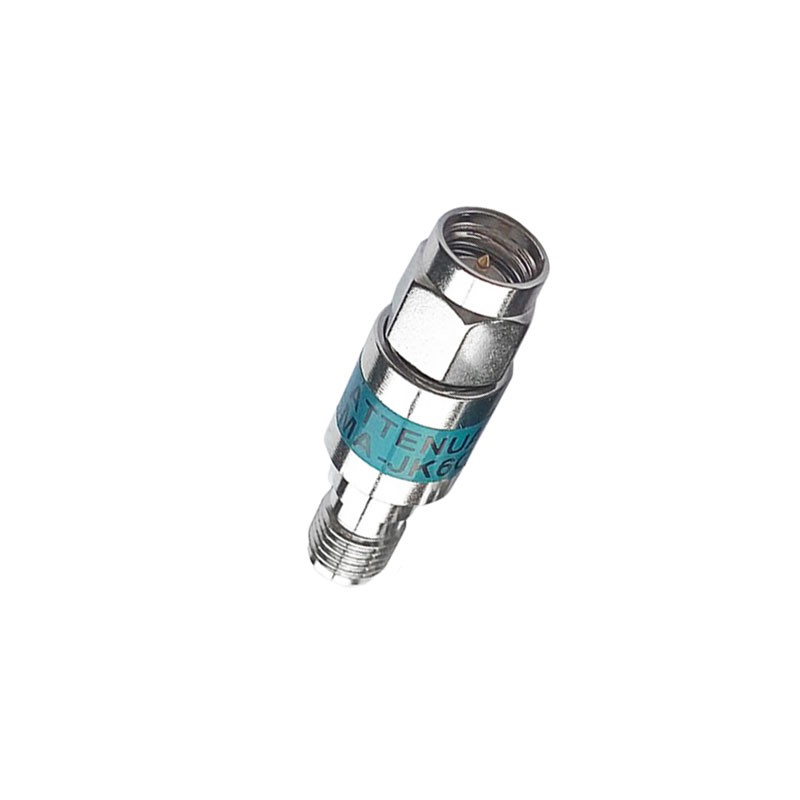

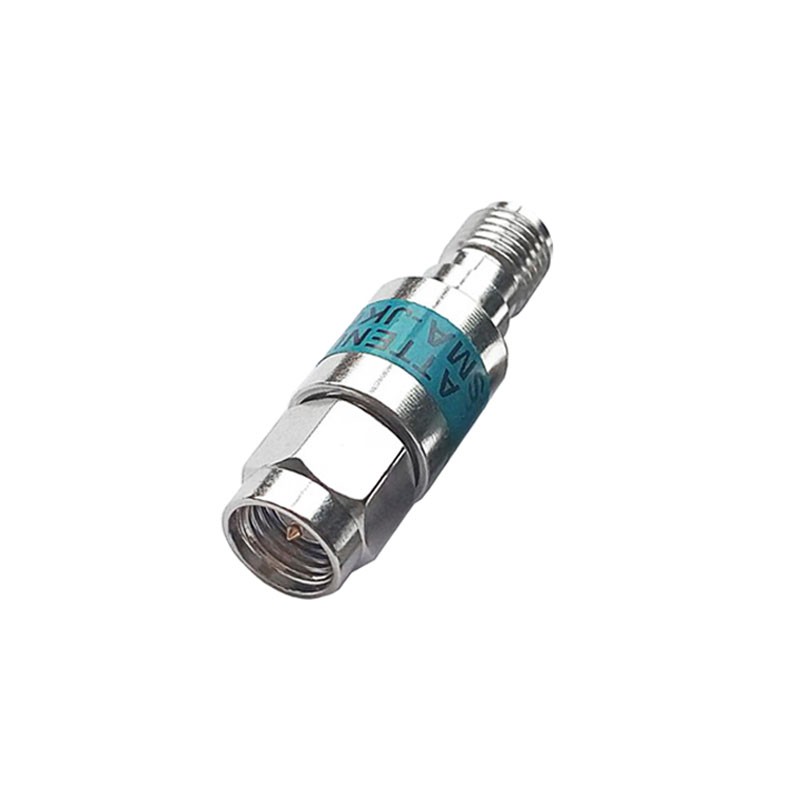

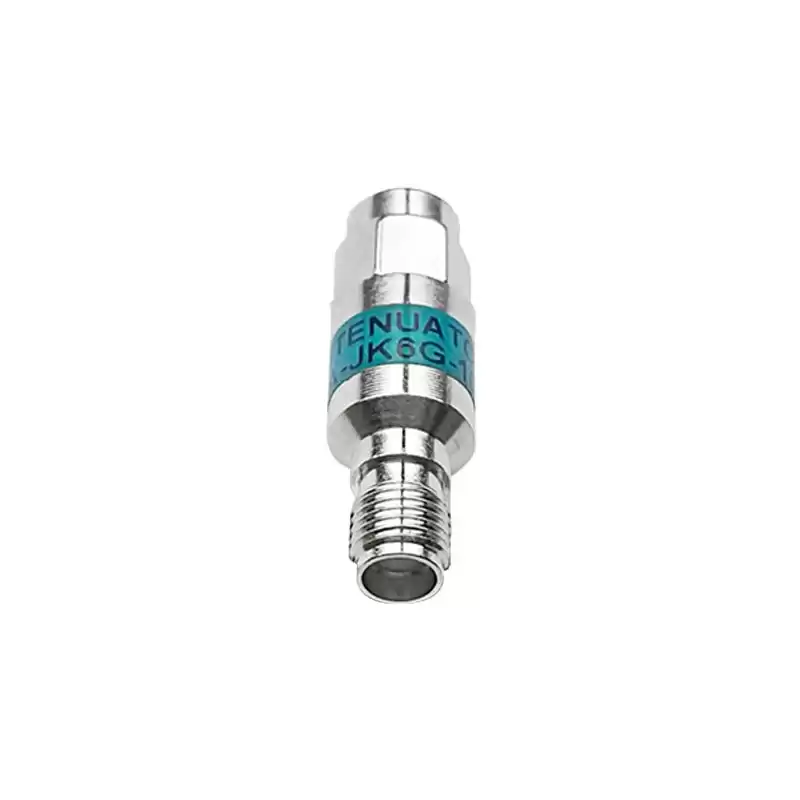

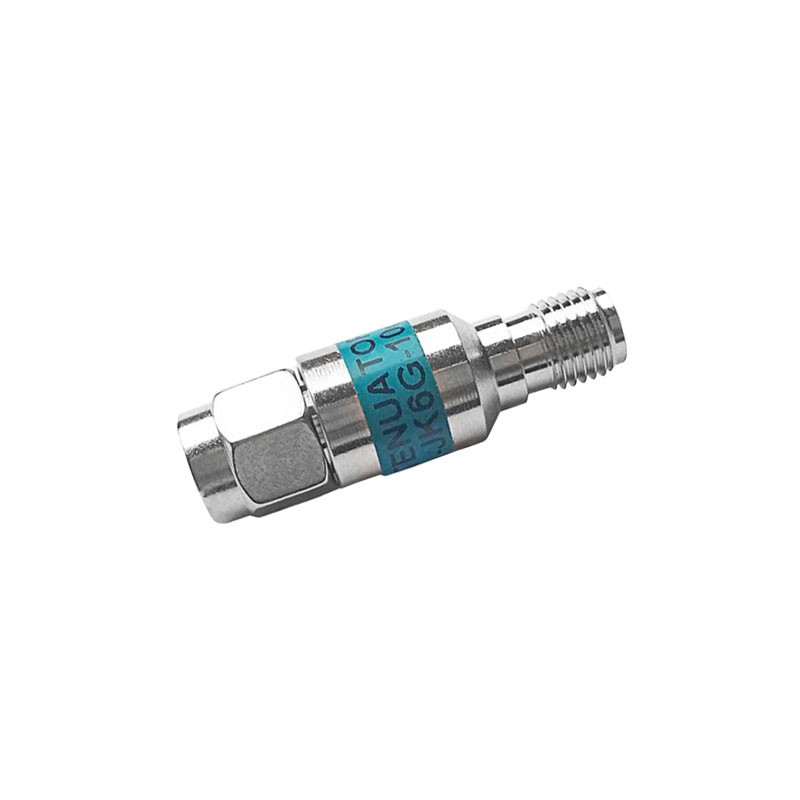

Plating Nickel 2W SMA Male to Female Attenuator 1-30dB Avaliable DC-6GHZ 50ohm RF Coaxial Power

SMA attenuator Features:

  • SMA connector input, out connector can be N or SMA;
  • Maximum frequency of 26GHz;
  • A female gender in and a female or male gender out;
  • Attenuation values range from 1dB to 60dB.



Plating Nickel 2W SMA Male to Female Attenuator 1-30dB Avaliable DC-6GHZ 50ohm RF Coaxial Power



The RF Attenuator are manufactured to precise industry specifications and the bodies are constructed of an aluminum finned heatsink, stainless steel or nickel plated brass. ROHO's SMA Attenautor is a High Power Coaxial Attenuator from 1 to 100W, and we offer 50ohm loads terminations male and female type. This 2W SMA to SMA Attenuator has a SMA male gender on side 1 and a SMA female connector on side 2. attenuation Max value is 40dB, frequency Max is 26GHz.



Specifications

ELECTRICAL DATA
Frequency DC~6GHz
Connector SMA Male to Female
VSWR ≤1.2
Power 2W
Impedance 50Ω
Attenuation value 1-30dB
Attenuation 1, 3, 5, 6, 10, 15, 20, 30dB is available
1-10dB.±0.5dB,15-30dB±1dB
Temperature Range -55℃~+125℃
MATERIAL DATA
Connector body Brass,Plating Ternary alloy or Nickel
Insulator  PTFE
Inner Conductor  Phosphor Bronze ,Plating Au



Applications

  • Mobile Communication Network Optimization
  • In-door distribution system
  • Cluster communication
  • Satellite communication
  • Shortwave communication
  • Aerospace equipment systems
