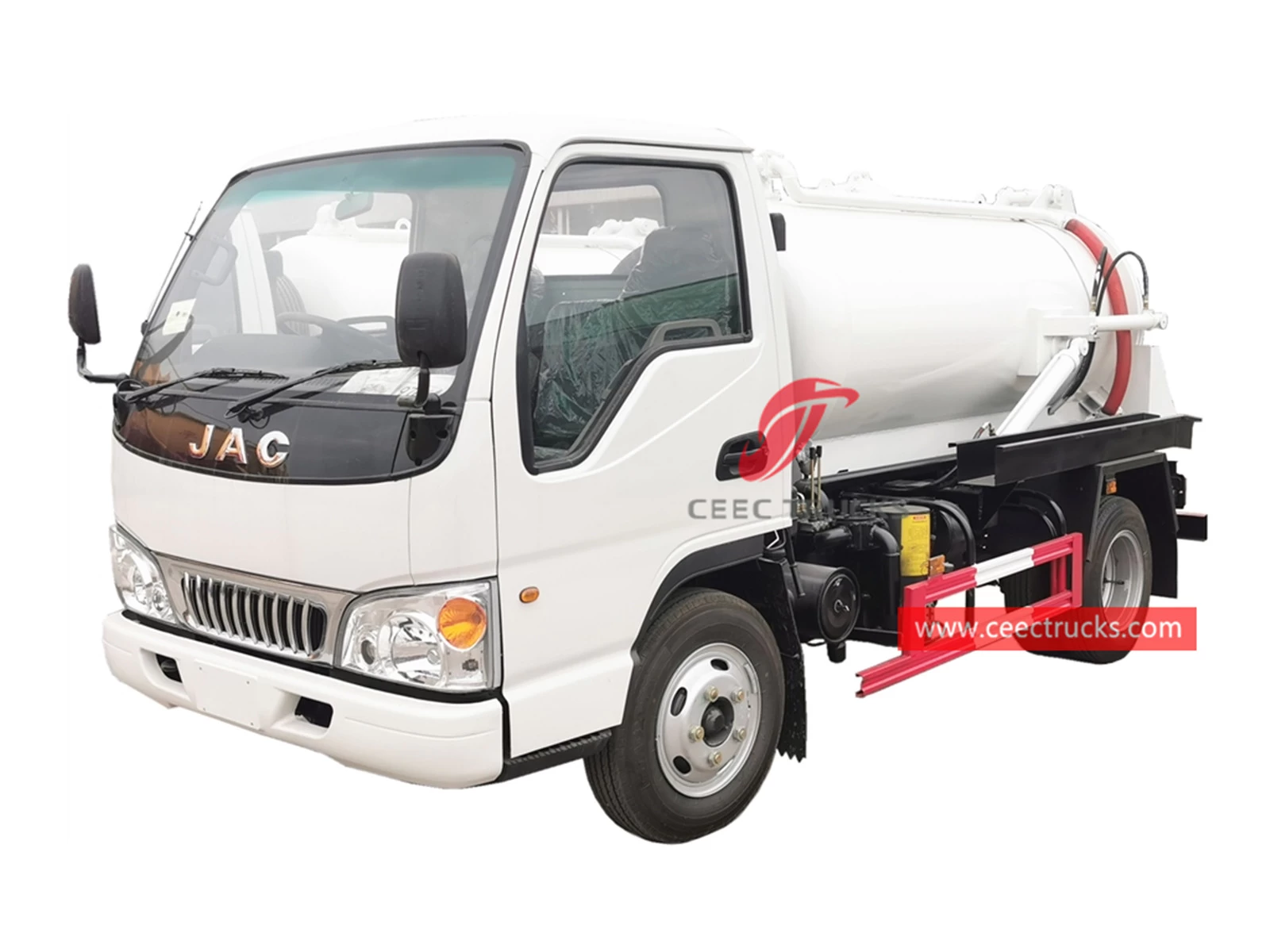

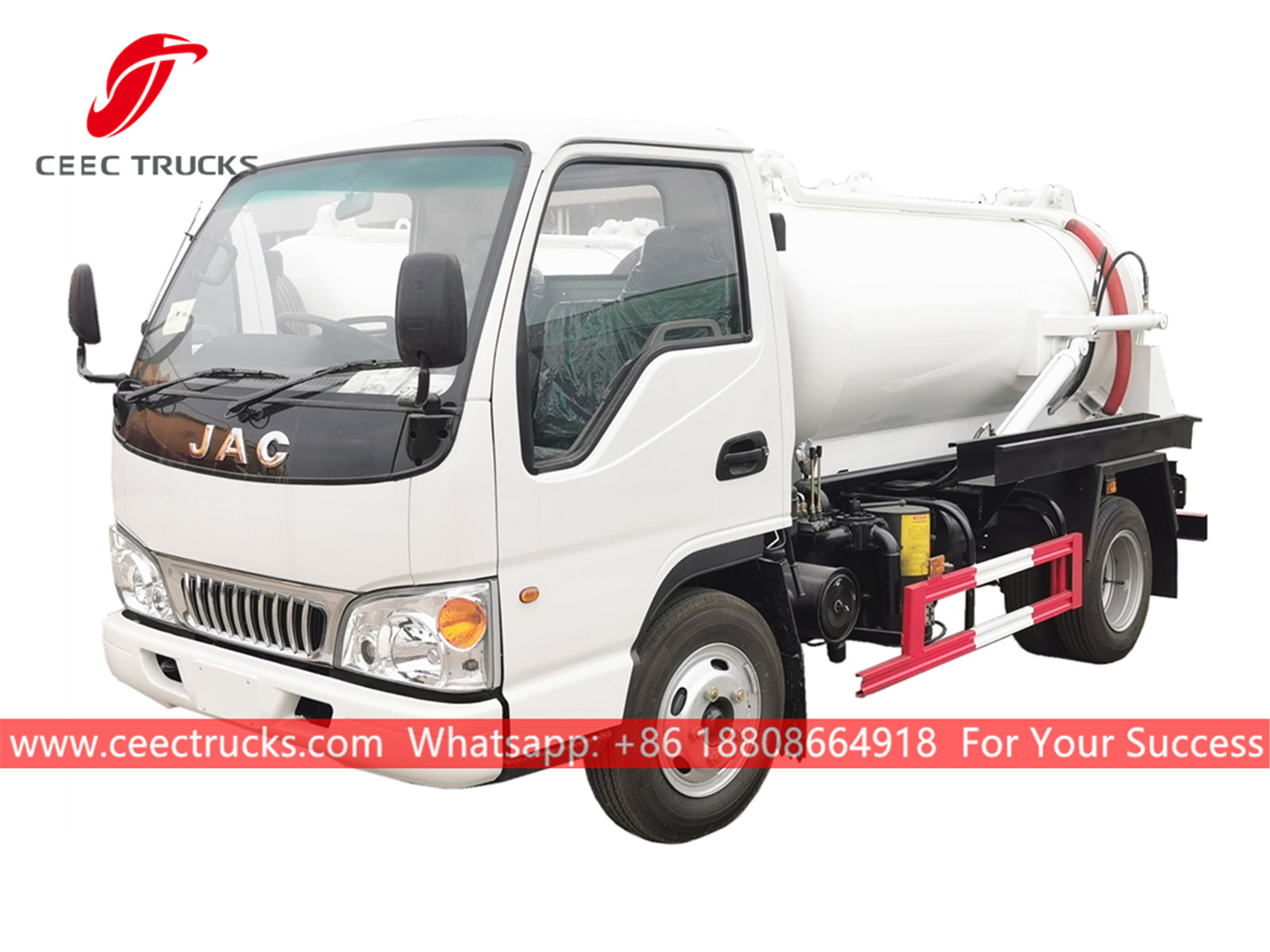

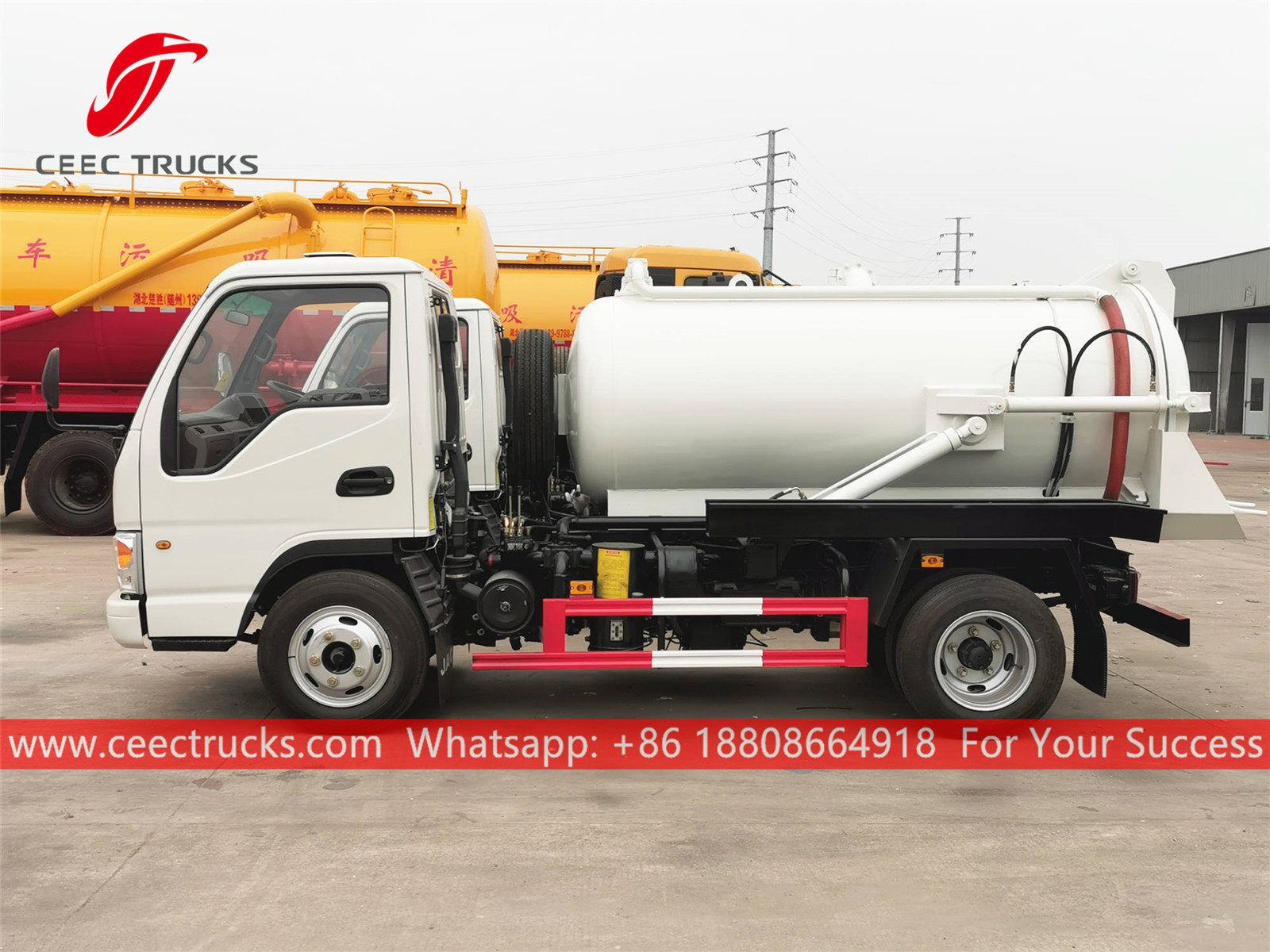

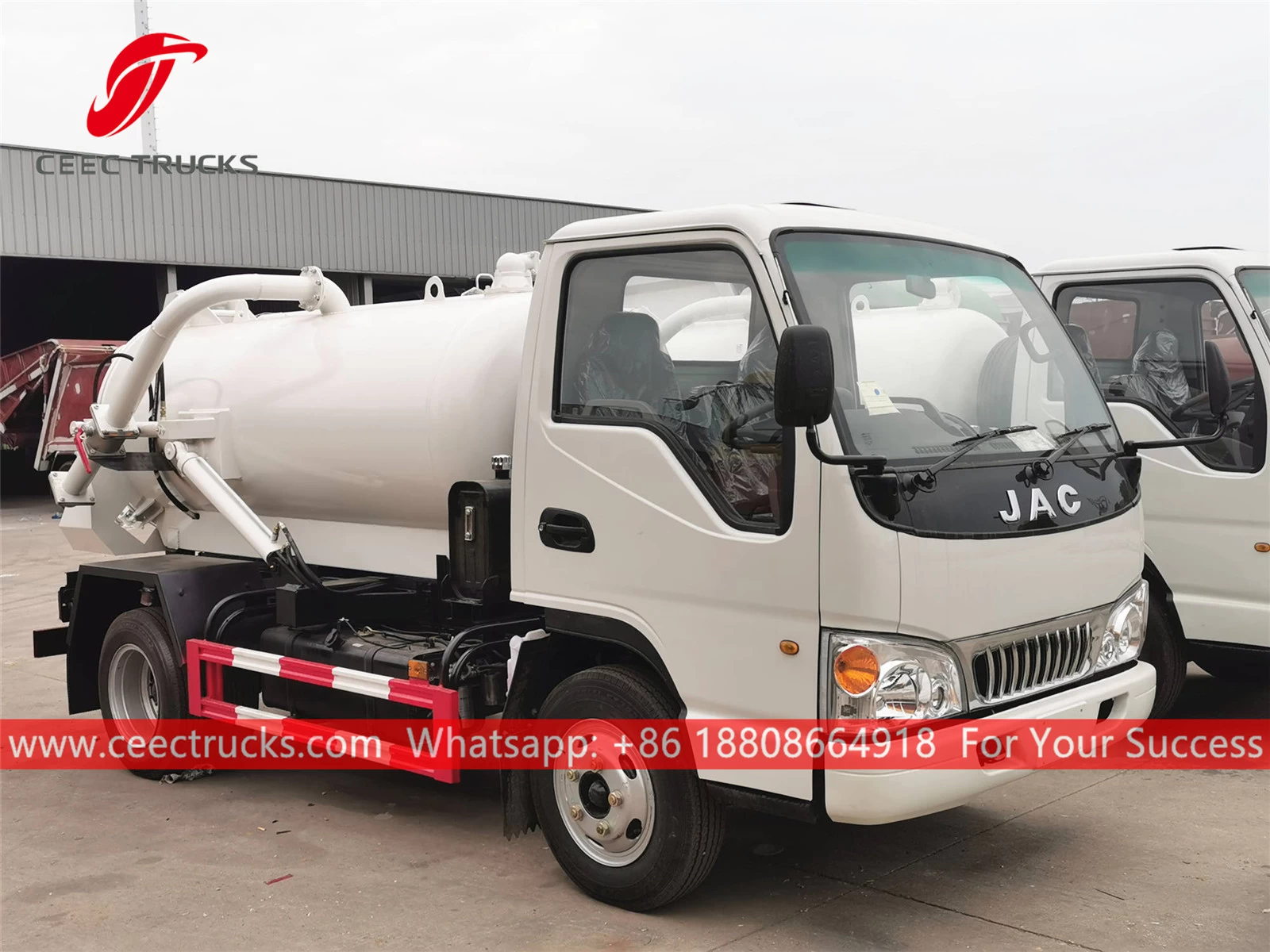

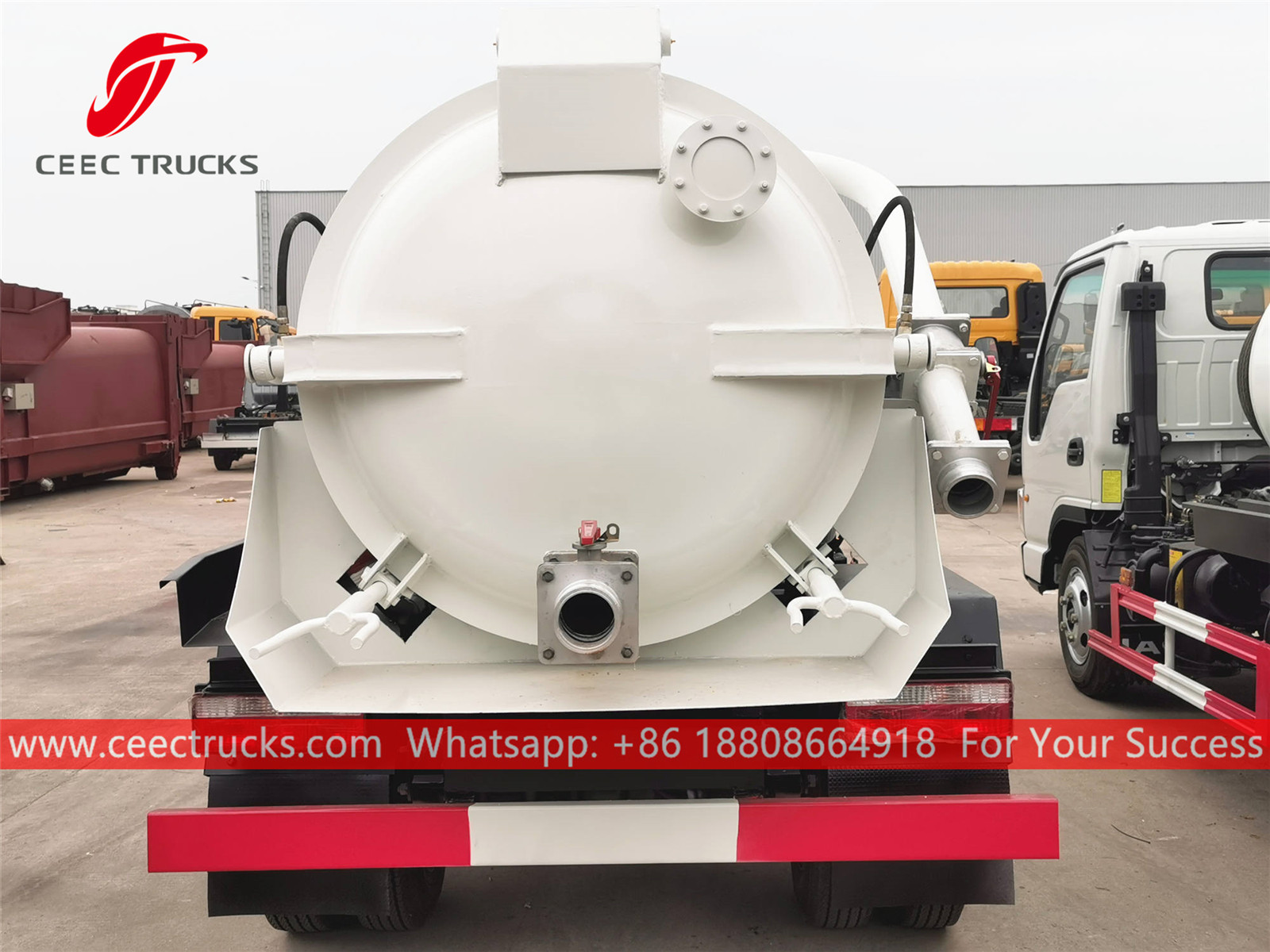

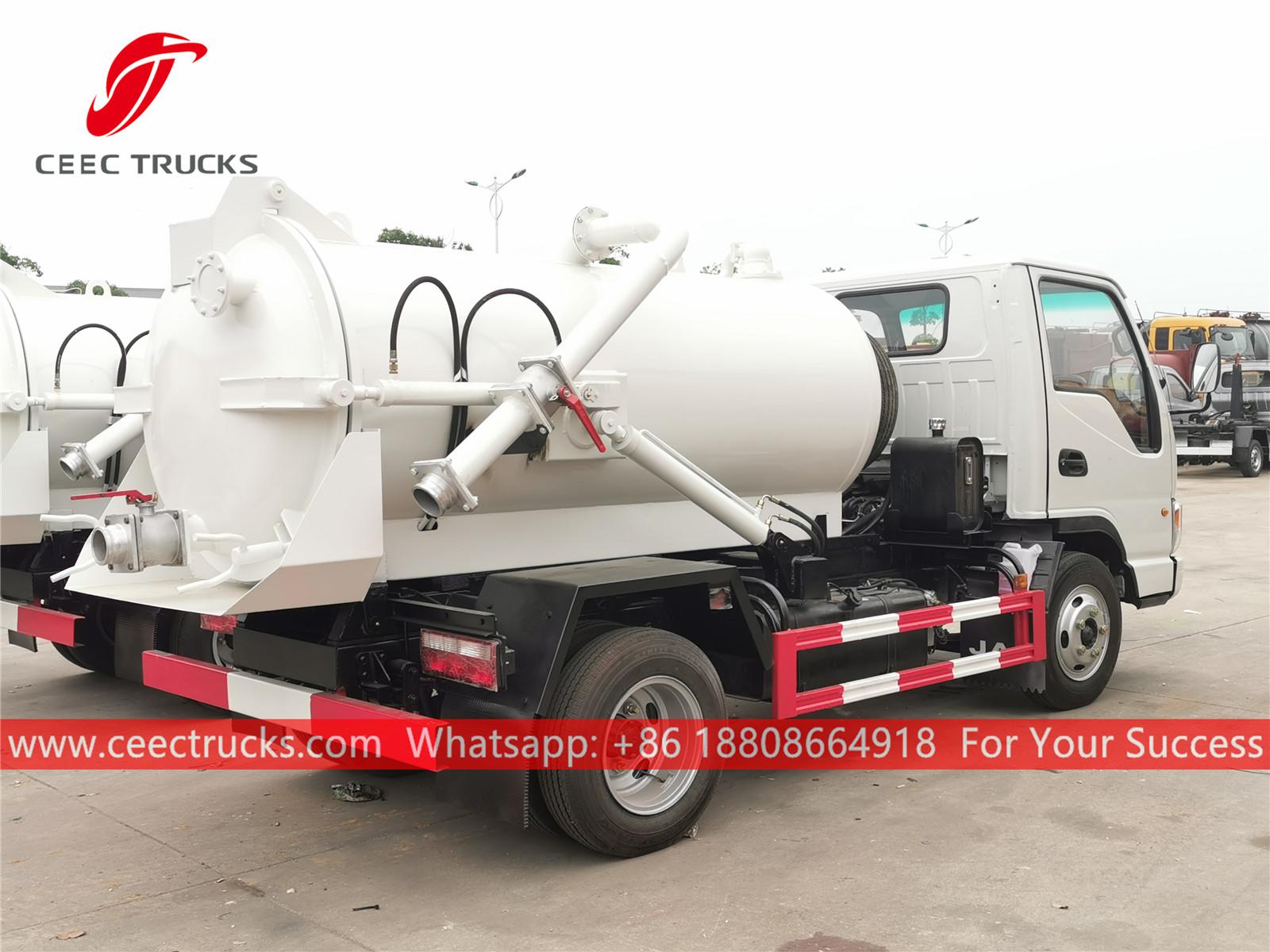

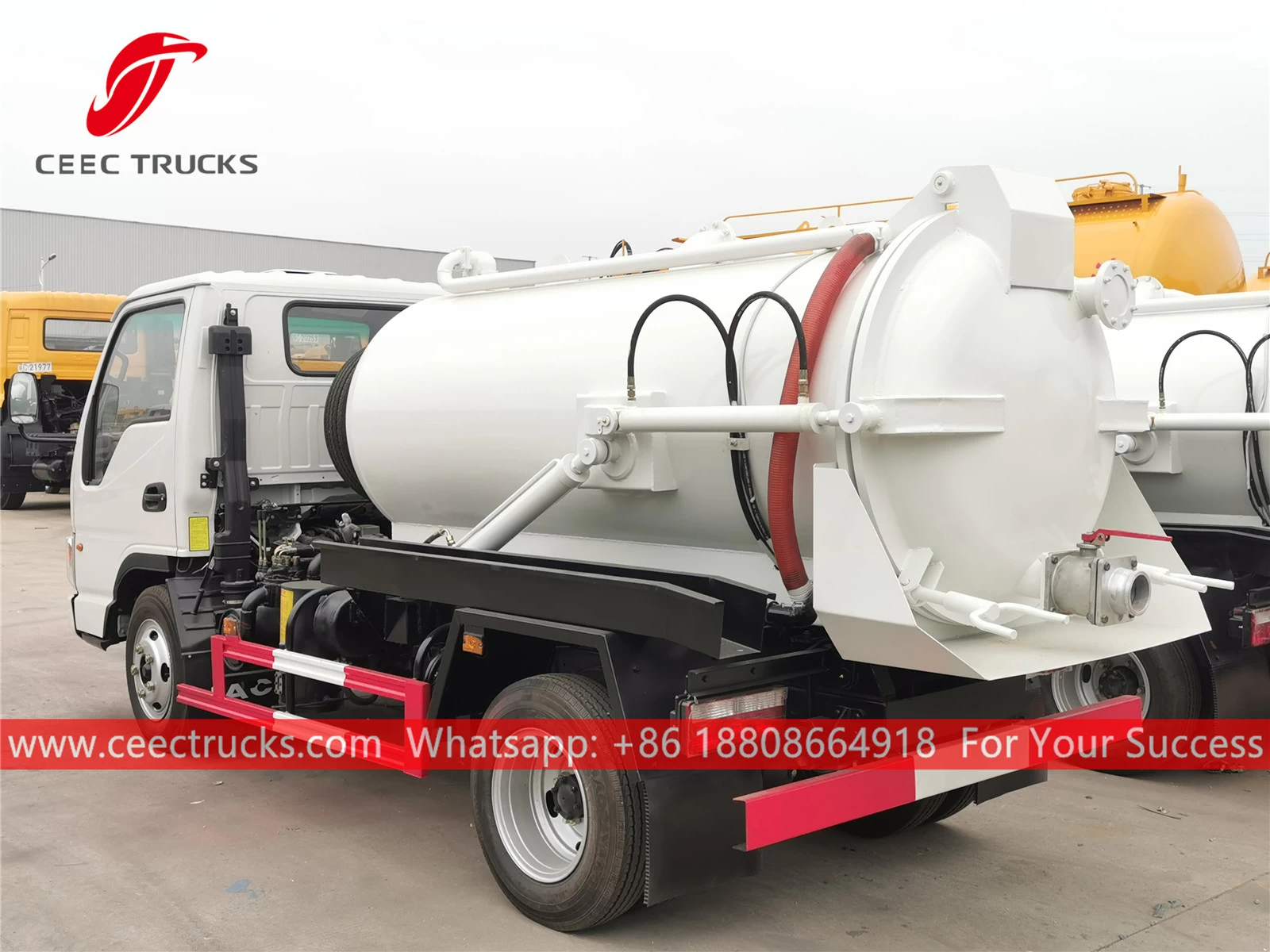

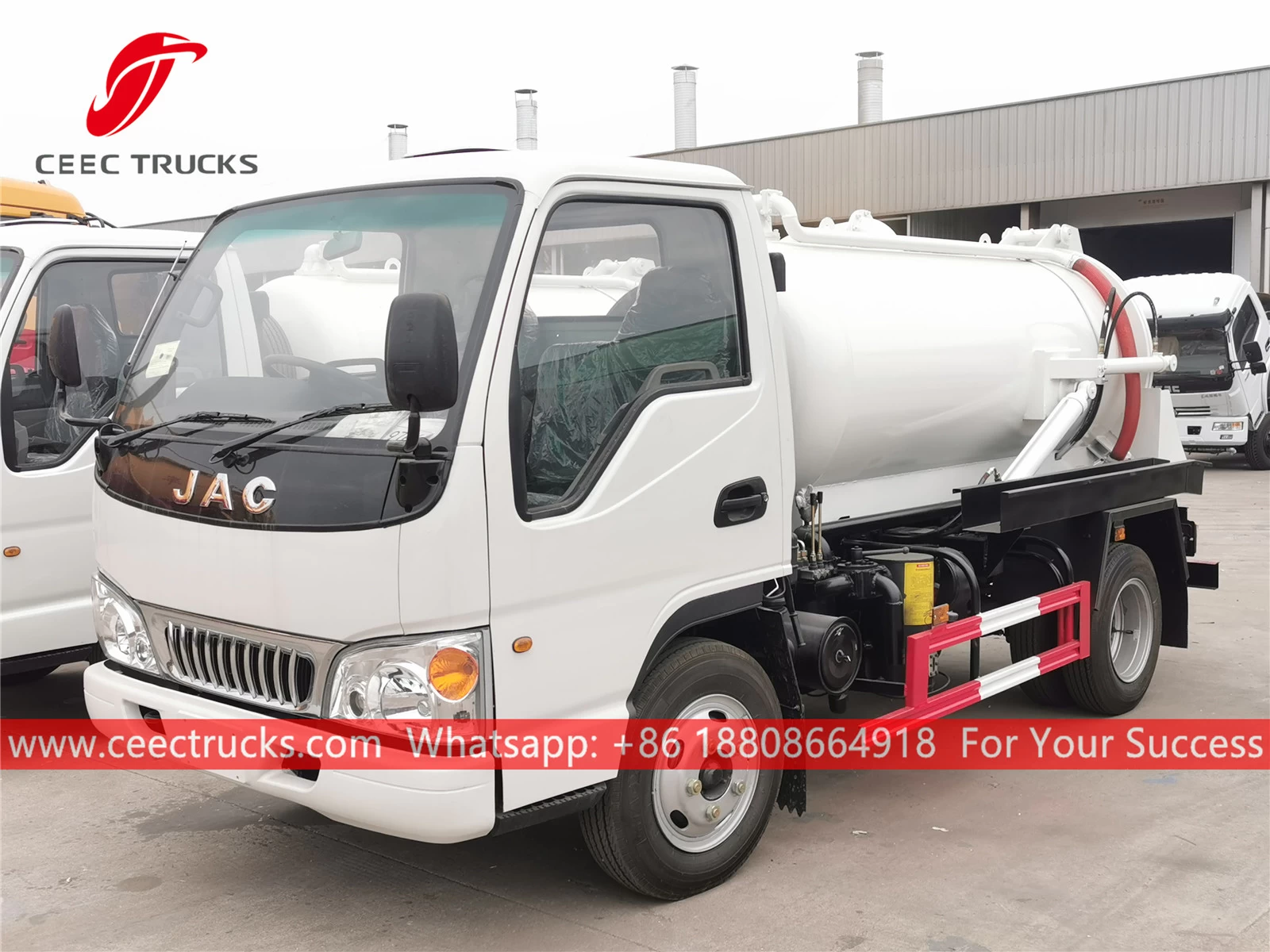

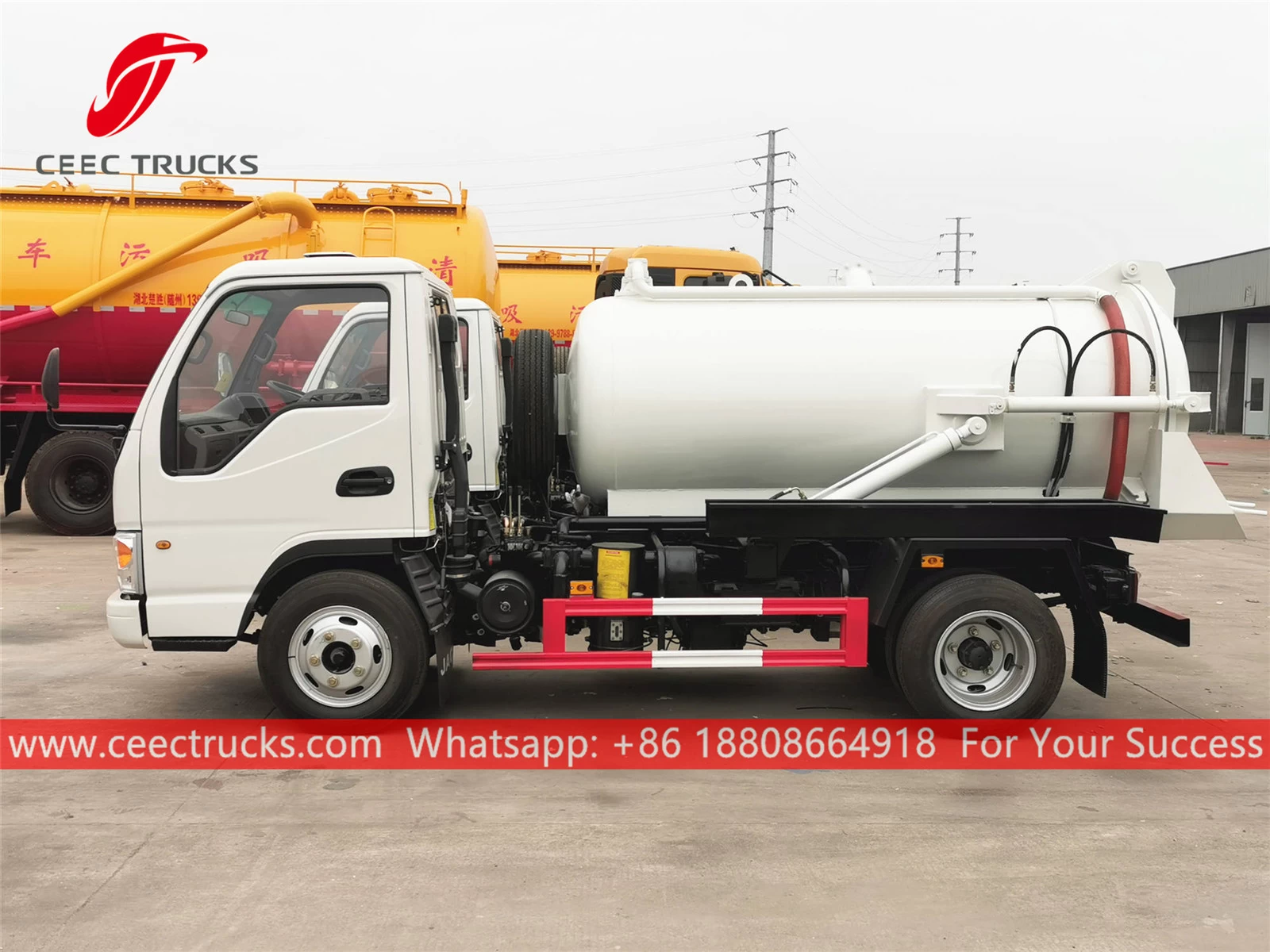

3,000 Litres Sewage Suction Truck JAC

JAC 3cbm vacuum tanker truck, Left Hand Drive model 4x2 chassis, 5-shift manual gearbox, WEICHAI 130HP diesel engine, painting and logos depend on requirement.



 Applications:



Vacuum Suction Truck JAC (also called ceptic vacuum truck, JAC sewage treatment truck, good price sewage suction tanker, sewege sucker truck, 4x2 Sewage Suction Tanker Truck, gully bowser, vacuum tanker truck, sewage cleaner truck) is used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.



CEEC TRUCKS Vacuum suction trucks use WEILONG or Italy BP vacuum pump, for 10CBM or more recommend Double Pump for efficiently working.



The septic pump truck can be equipped with cabin Pneumatic Control for easy operation.


 Key Features:



---- JAC chassis, perfect performance

---- WEICHAI technology engine option, super powerful, no overhaul within 100,000 km.

---- Vacuum Tanker body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Virious types of refuse container lifter are available.


 Specifications:



Vacuum Sewage Treatment truck JAC (3 cbm)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

JAC

Overall Dimension

6200 * 2200 * 2650 mm

GVW / Kerb Weight

8,280kg / 5,785kg

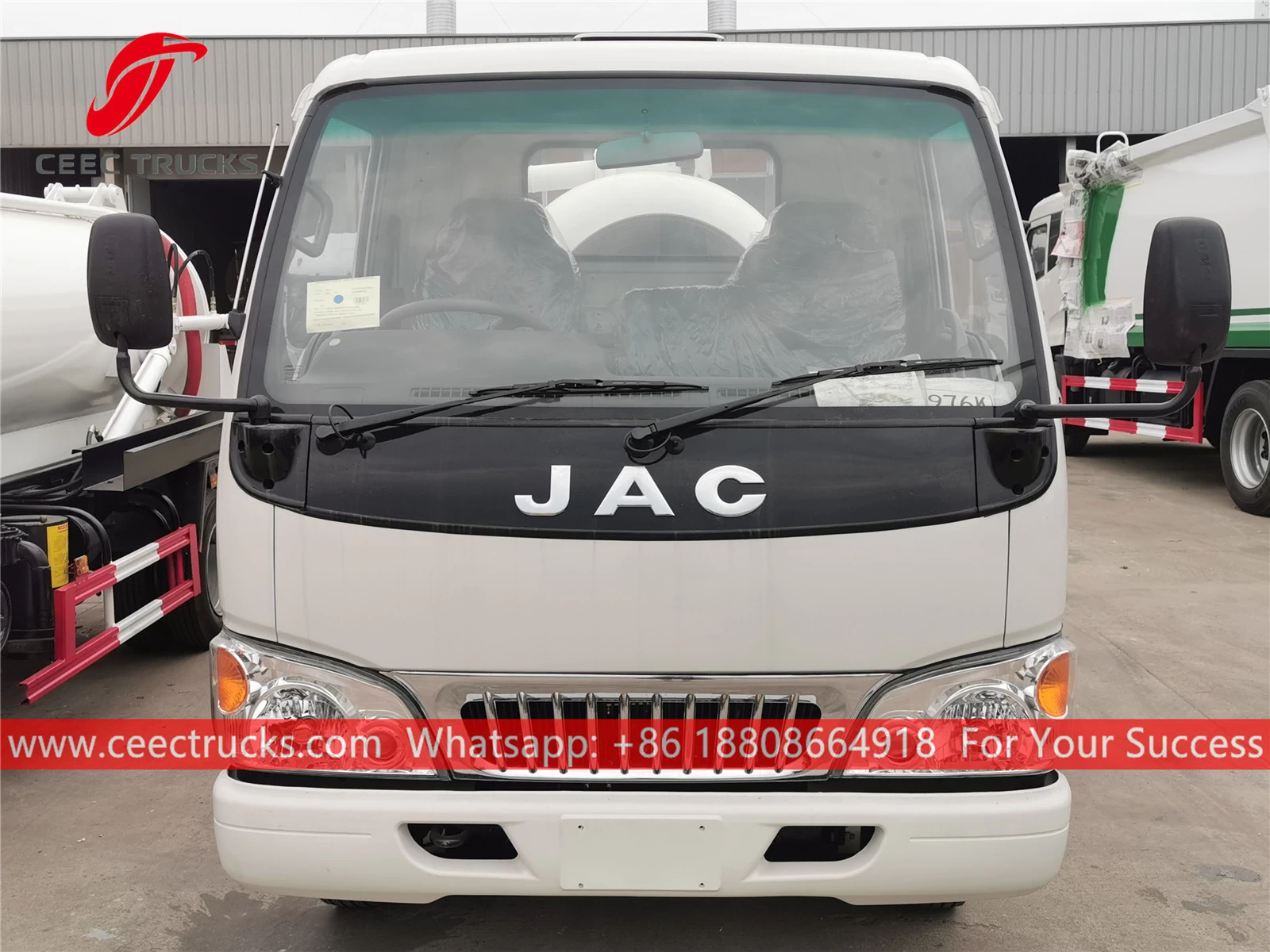

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

WEICHAI

Power

130 HP (96 KW)

Displacement

2970 ml

Emission Standard

Euro 4 or 5

Chassis

Drive Type

4X2, (left hand drive)

Transmission

Manual 5-shift speed levers with 1 reverse

Wheelbase/No. of axle

3815 mm / 2

Tire Specification

6.50R16

Tire Number

6 tires and 1 spare tire

Max Speed

100 km/h

Paint

Metallic paint

Superstructure

Body capacity

3,000 Litres

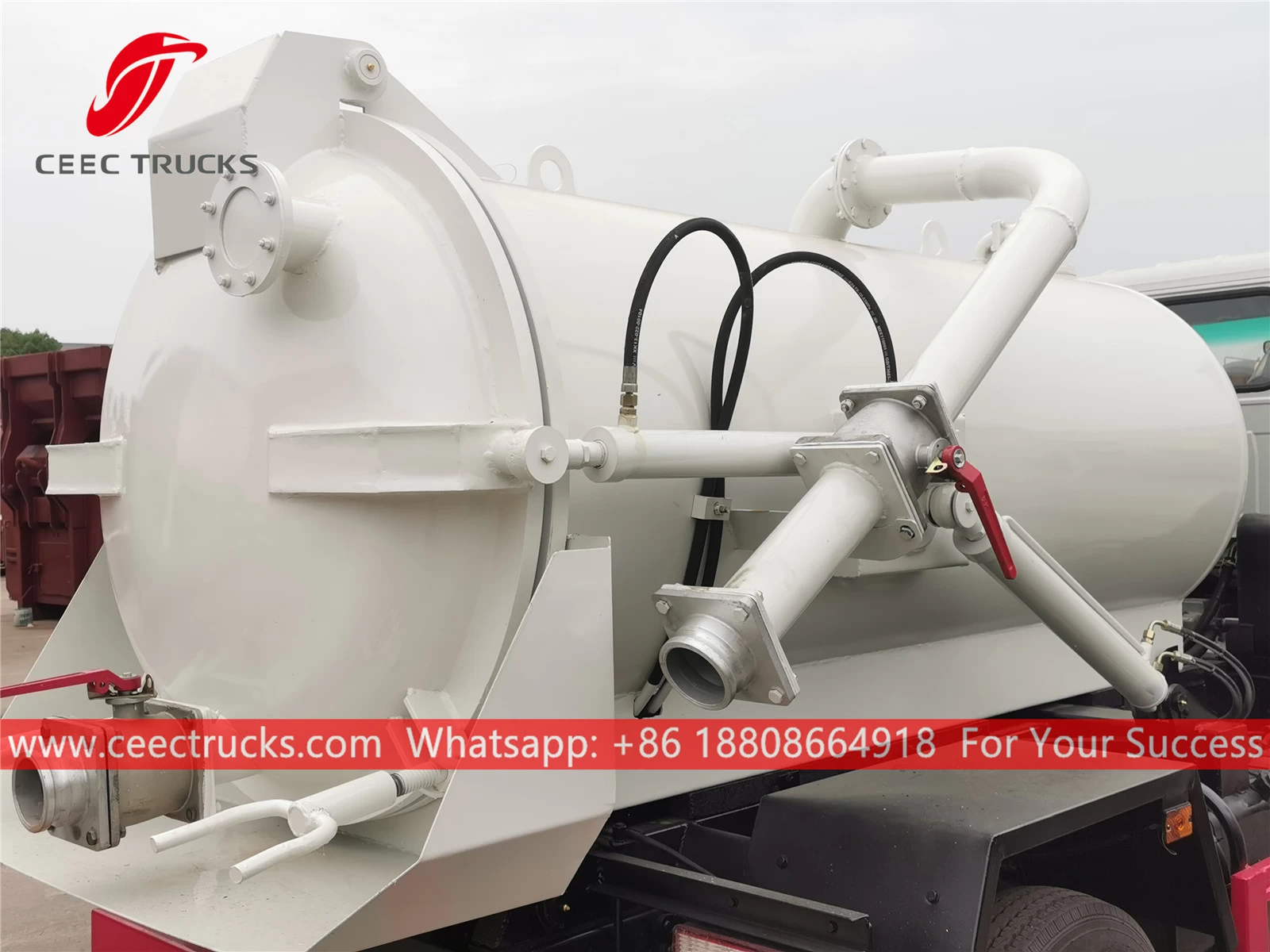

Tanker Material

Carbon Steel

Suction Head pipeline

7 m

Vacuum Pump brand

WEILONG / Italy BP / Domestic Pump

Vacuum Pump advantage

High efficient, vacuum rate 93%,

quick suction and discharge, suction lift 6m

Hose

High quality, wire strengthened hose

Control panel

English or Your language

All standard accessories: Inlet pipeline, discharge nozzle, cabin pneumatic control box, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Standard carbon steel, stainless steel optional.

** Standard WEILONG vacuum pump, Italy vacuum pump optional
