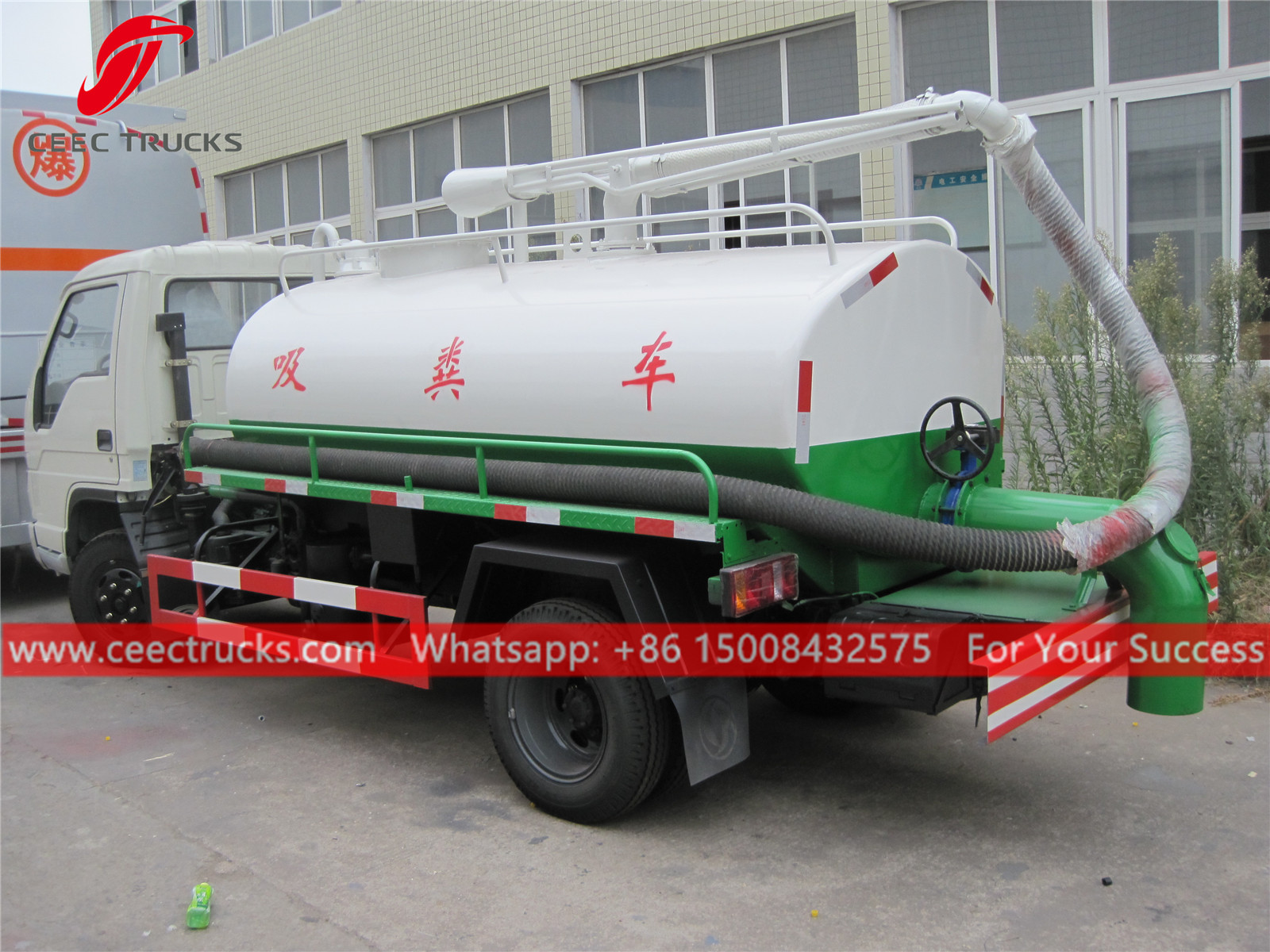

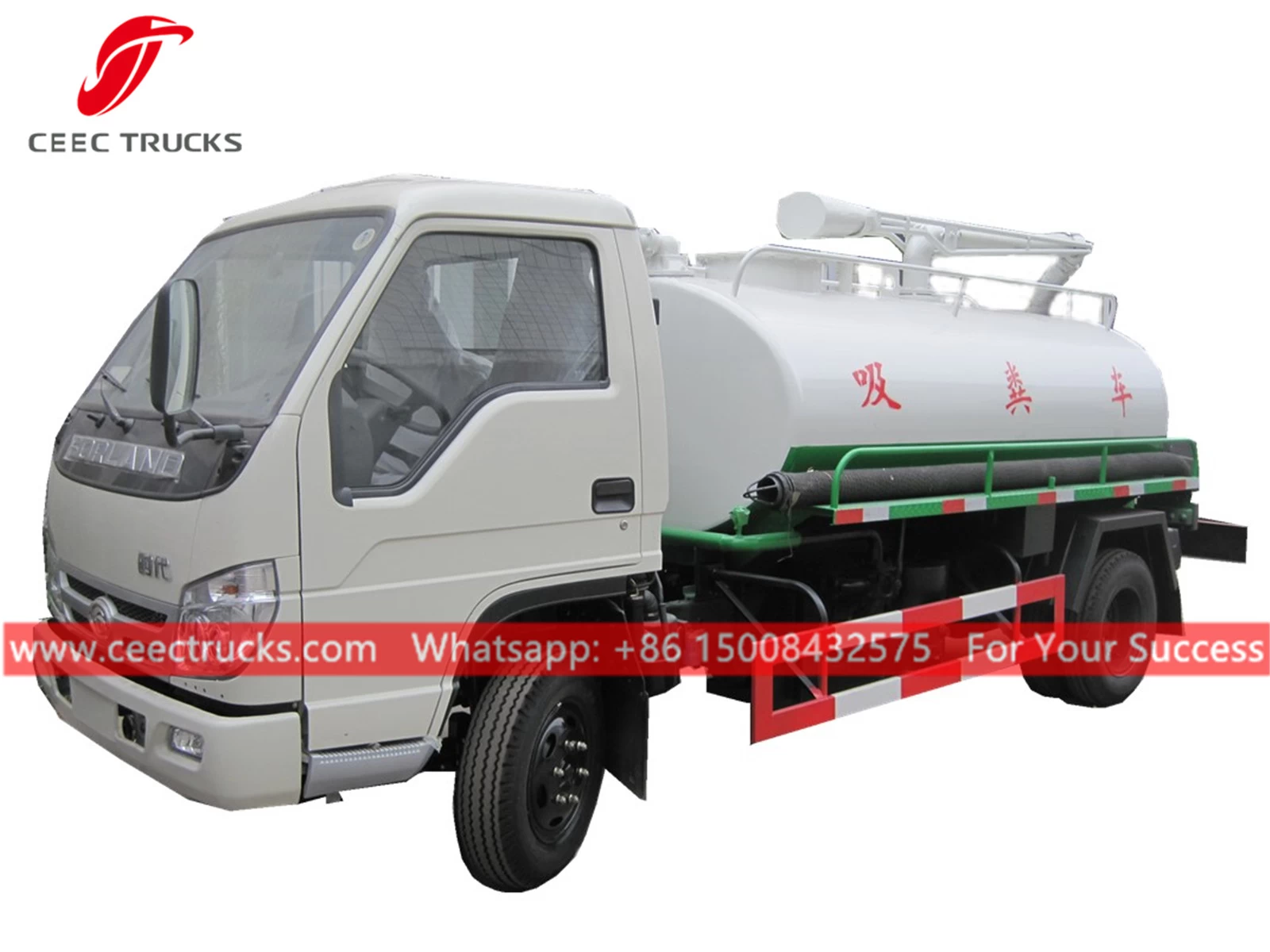

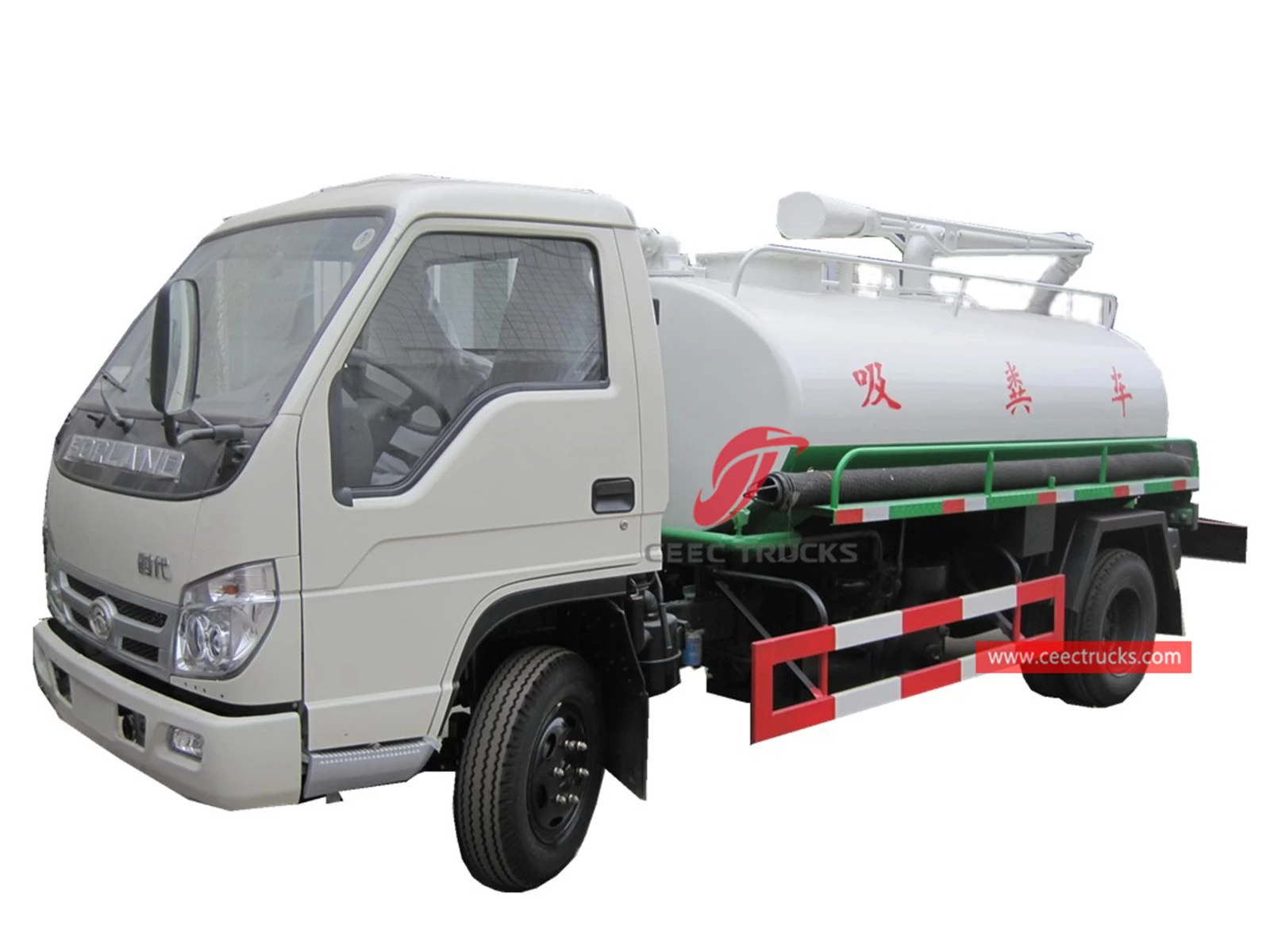

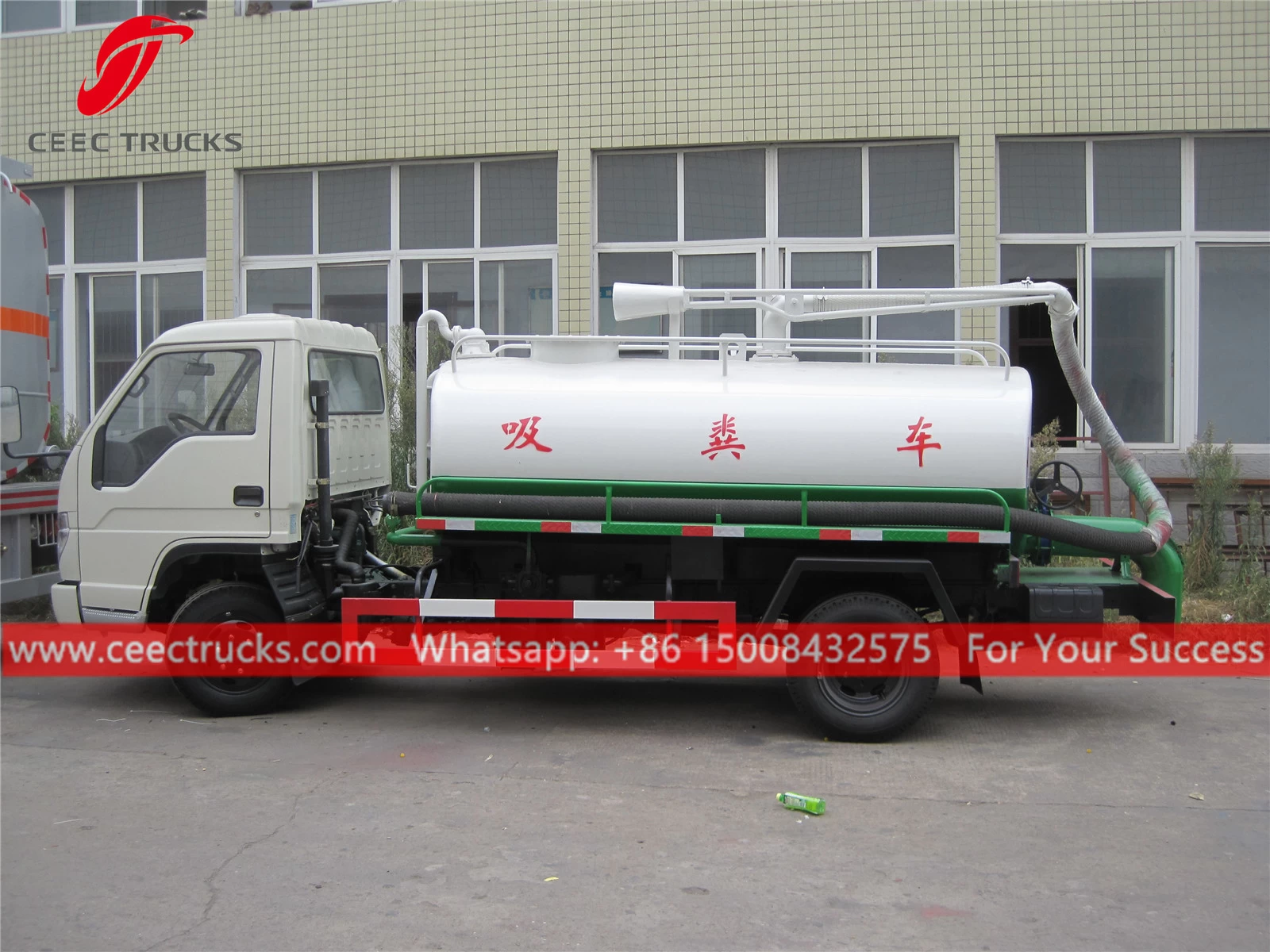

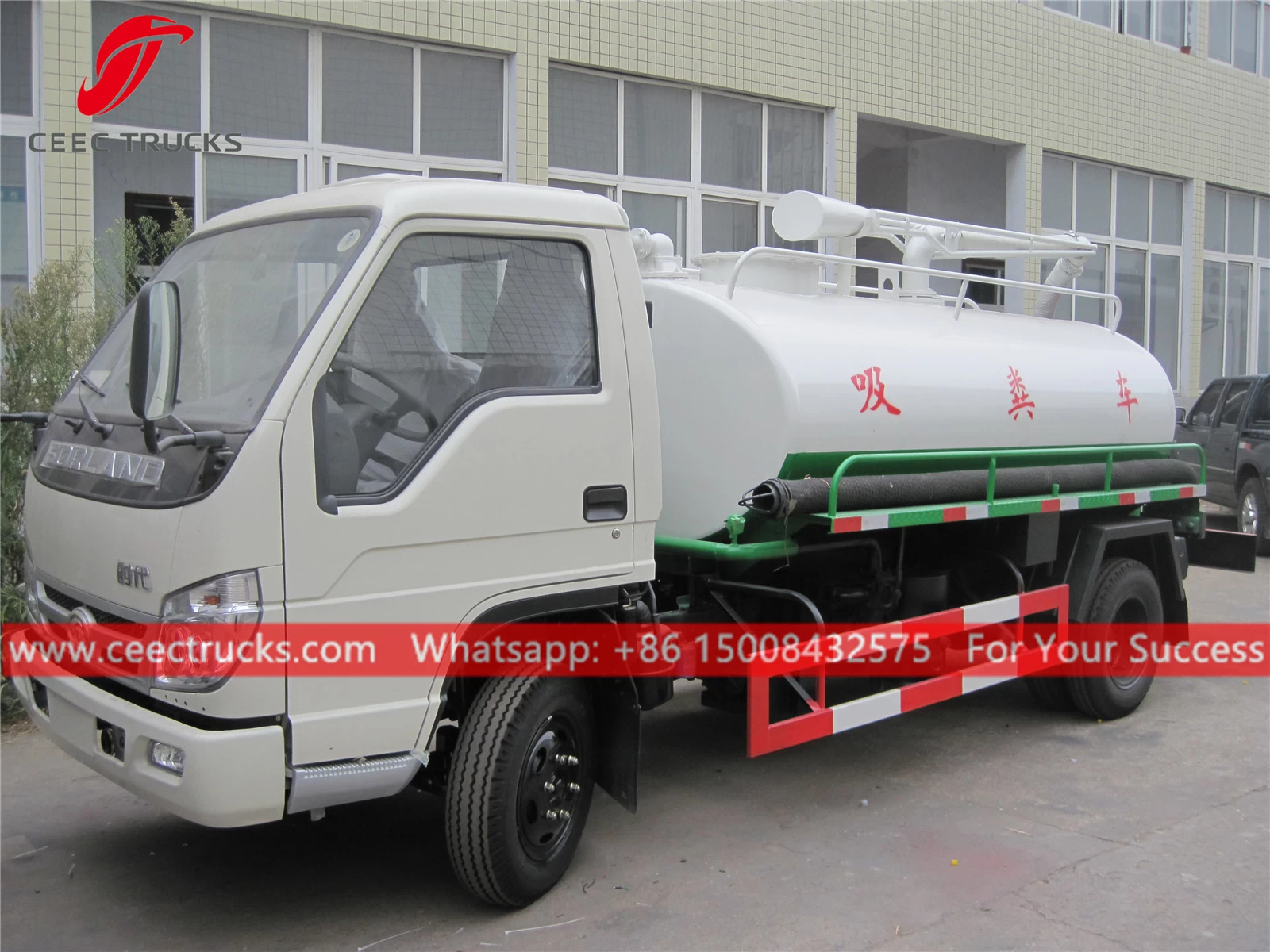

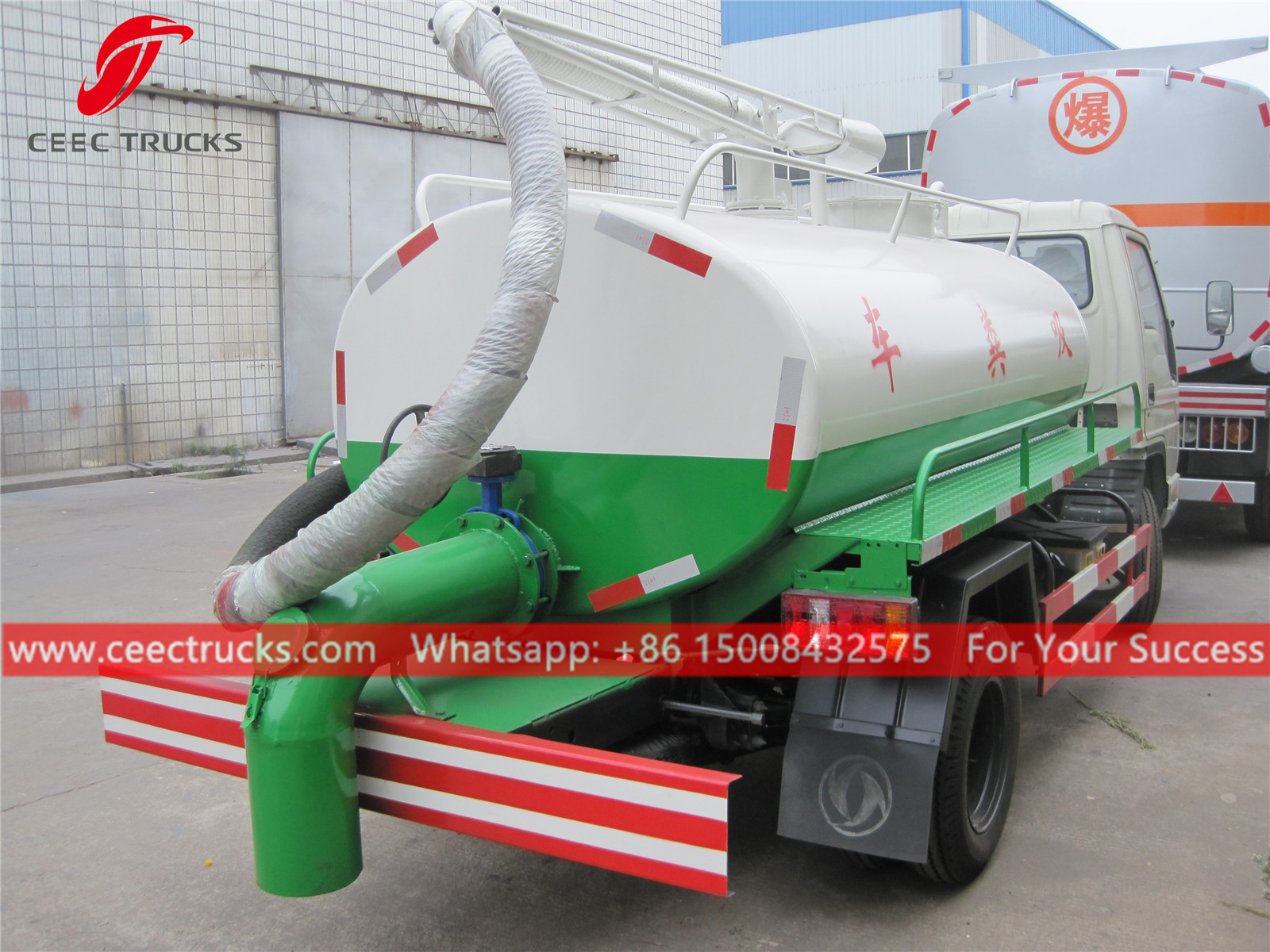

3,000 Litres Vacuum truck FOTON

Best 3cbm sewage suction truck, FOTON 4x2 chassis, 5-shift manual gearbox, WEICHAI 82HP diesel engine, vacuum suction pump can be Italy brand, painting and logos depend on requirement.





 Applications:



Vacuum Truck FOTON (also called cesspit emptier vehicle, sewer cleaning truck, sewage tanker, sewer truck, cesspit emptier, gully emptier, vacuum truck, gully emptier, waste vacuum tanker, vacuum tanker, sewage truck) is used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.



CEEC TRUCKS sewage truck which use WEILONG or Italy BP vacuum pump, for 10CBM or more recommend Double Pump for efficiently working.



The septic pump truck can be equipped with cabin Pneumatic Control for easy operation.


 Key Features:



---- FOTON chassis, perfect performance

---- CUMMINS technology engine option, super powerful, no overhaul within 100,000 km.

---- Vacuum Tanker body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Virious types of refuse container lifter are available.


 Specifications:



Sewer suction truck FOTON (3 cbm)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

FOTON

Overall Dimension

5450 * 1720 * 2240 mm

GVW / Kerb Weight

4,155kg / 2,225kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

WEICHAI

Power

82HP (60 KW)

Displacement

2160 ml

Emission Standard

Euro 4

Chassis

Drive Type

4X2 (left hand drive)

Transmission

Manual 5-shift speed levers with 1 reverse

Wheelbase/No. of axle

2600 mm / 2

Tire Specification

7.00-16

Tire Number

6 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Body capacity

3,000 Litres

Tanker Material

Carbon Steel

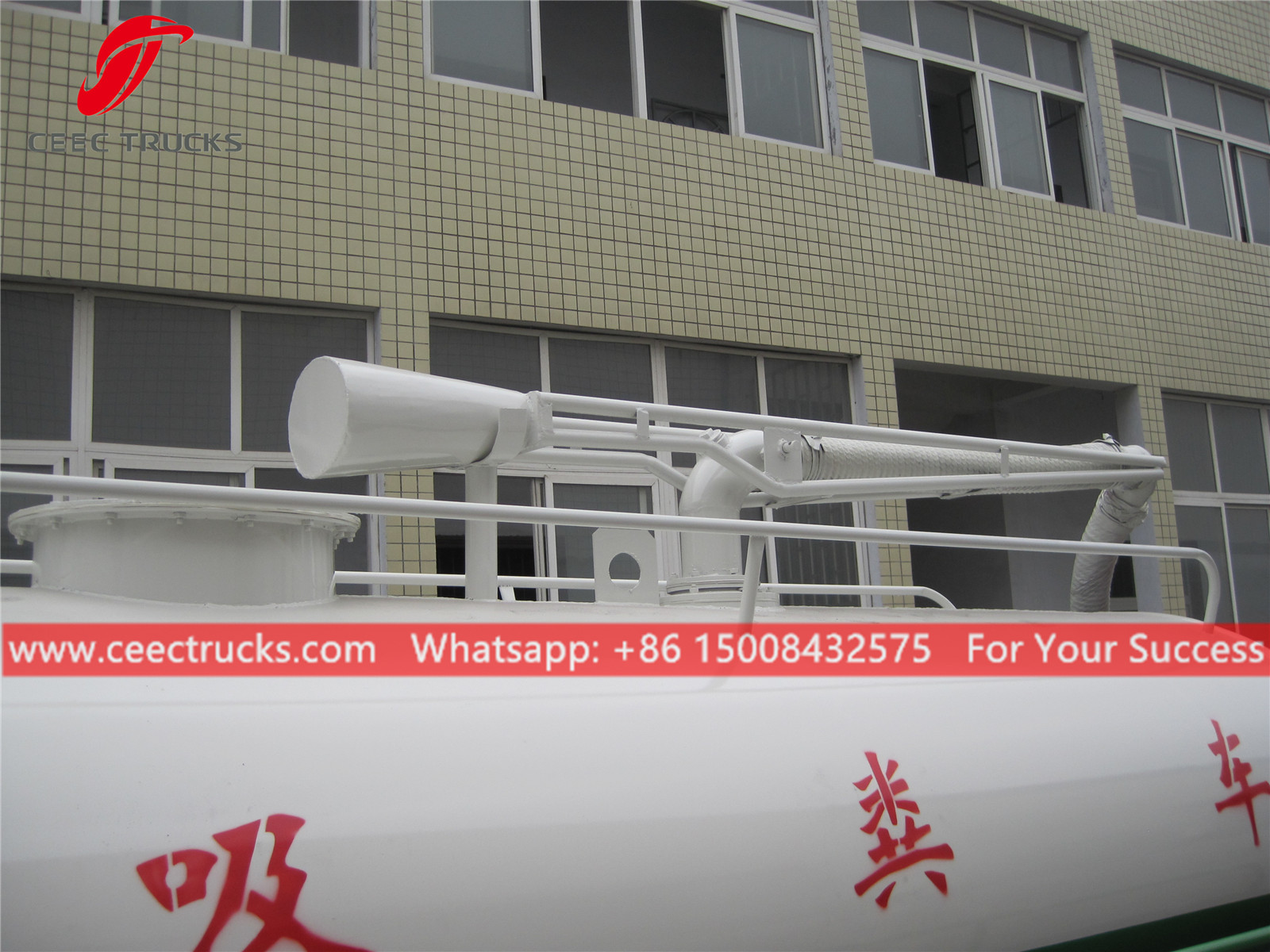

Suction Head pipeline

7 m

Vacuum Pump brand

WEILONG / Italy BP / Domestic Pump

Vacuum Pump advantage

High efficient, vacuum rate 93%,

quick suction and discharge, suction lift 6m

Hose

High quality, wire strengthened hose

Control panel

English or Your language

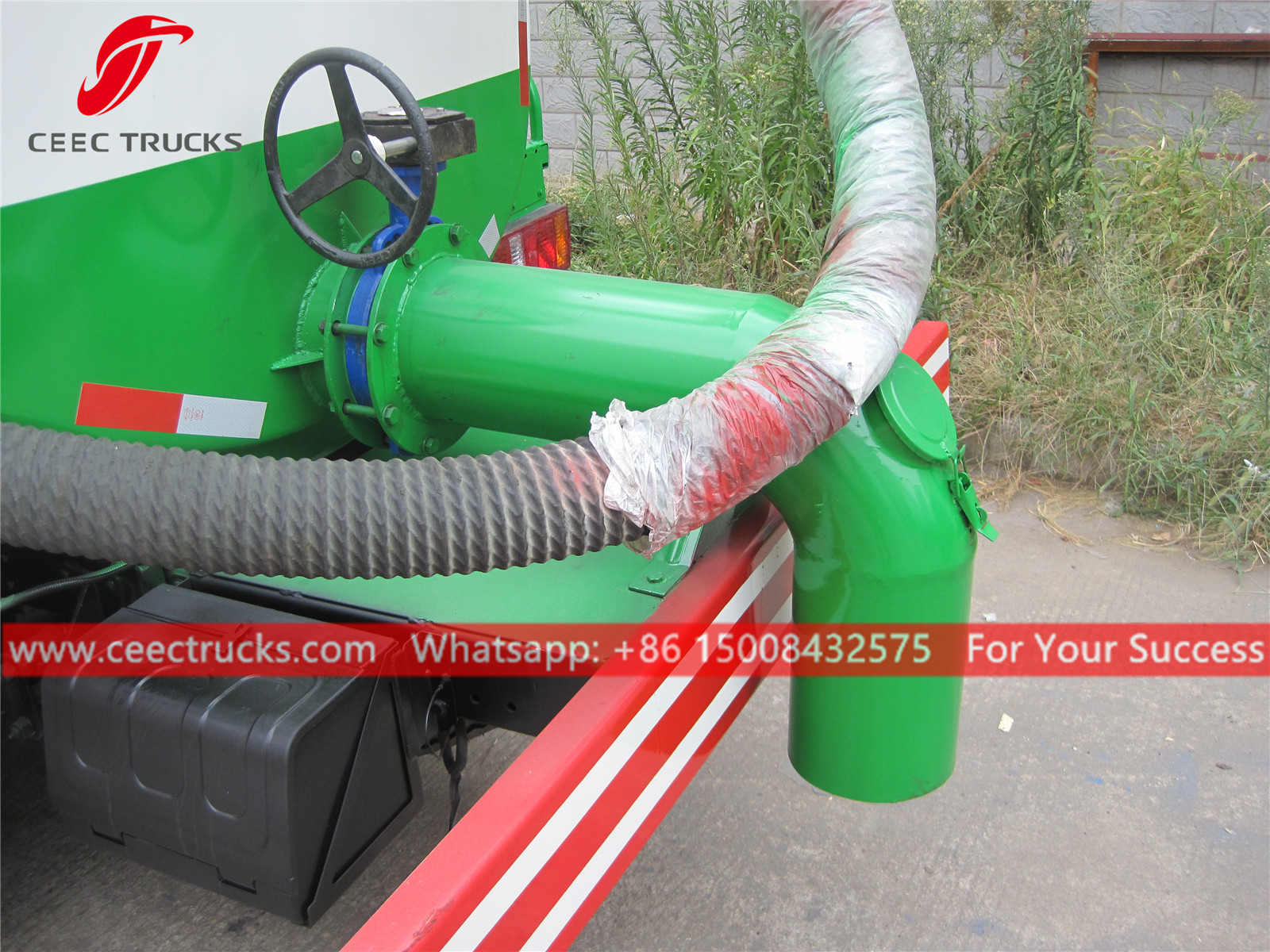

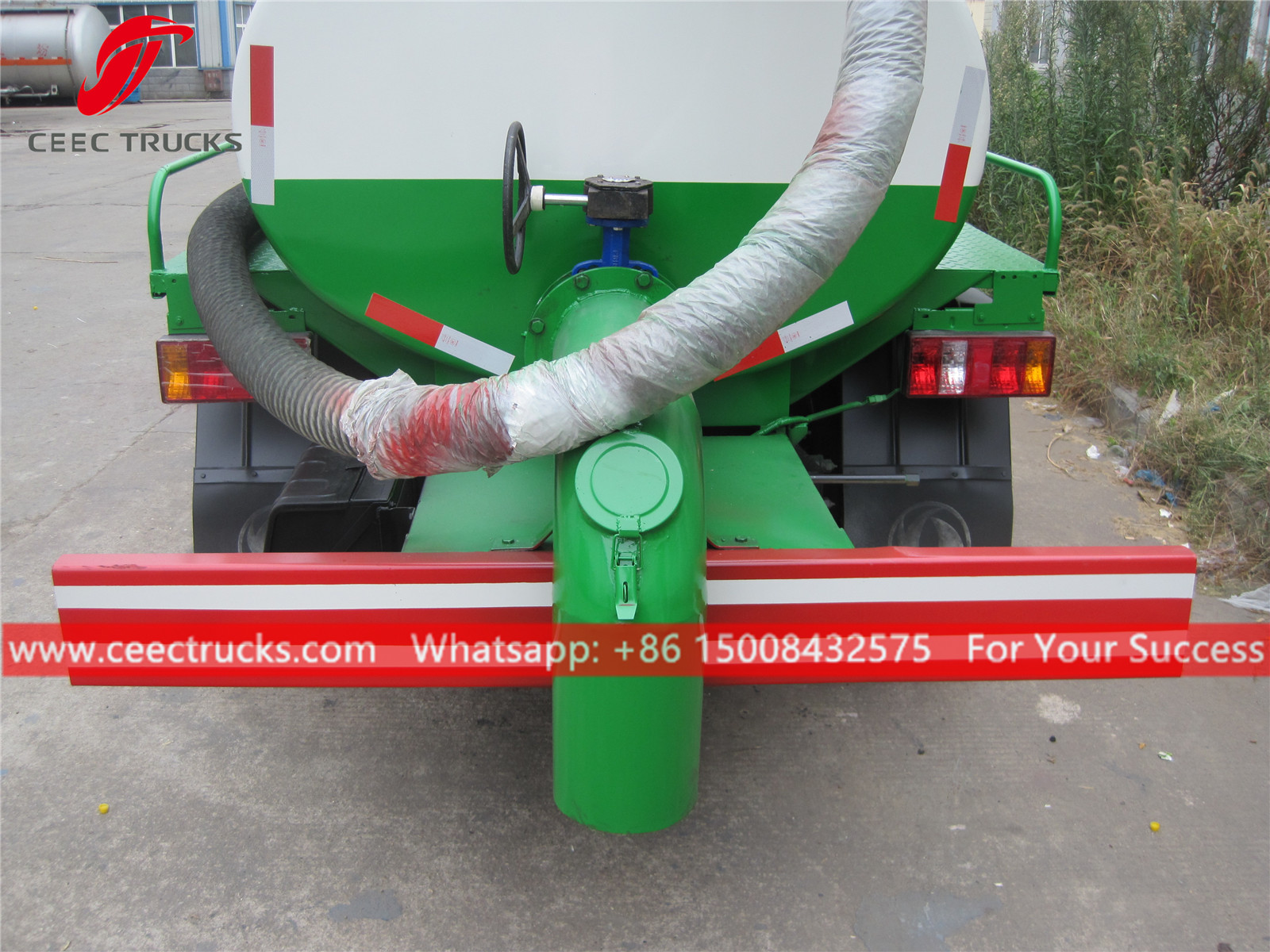

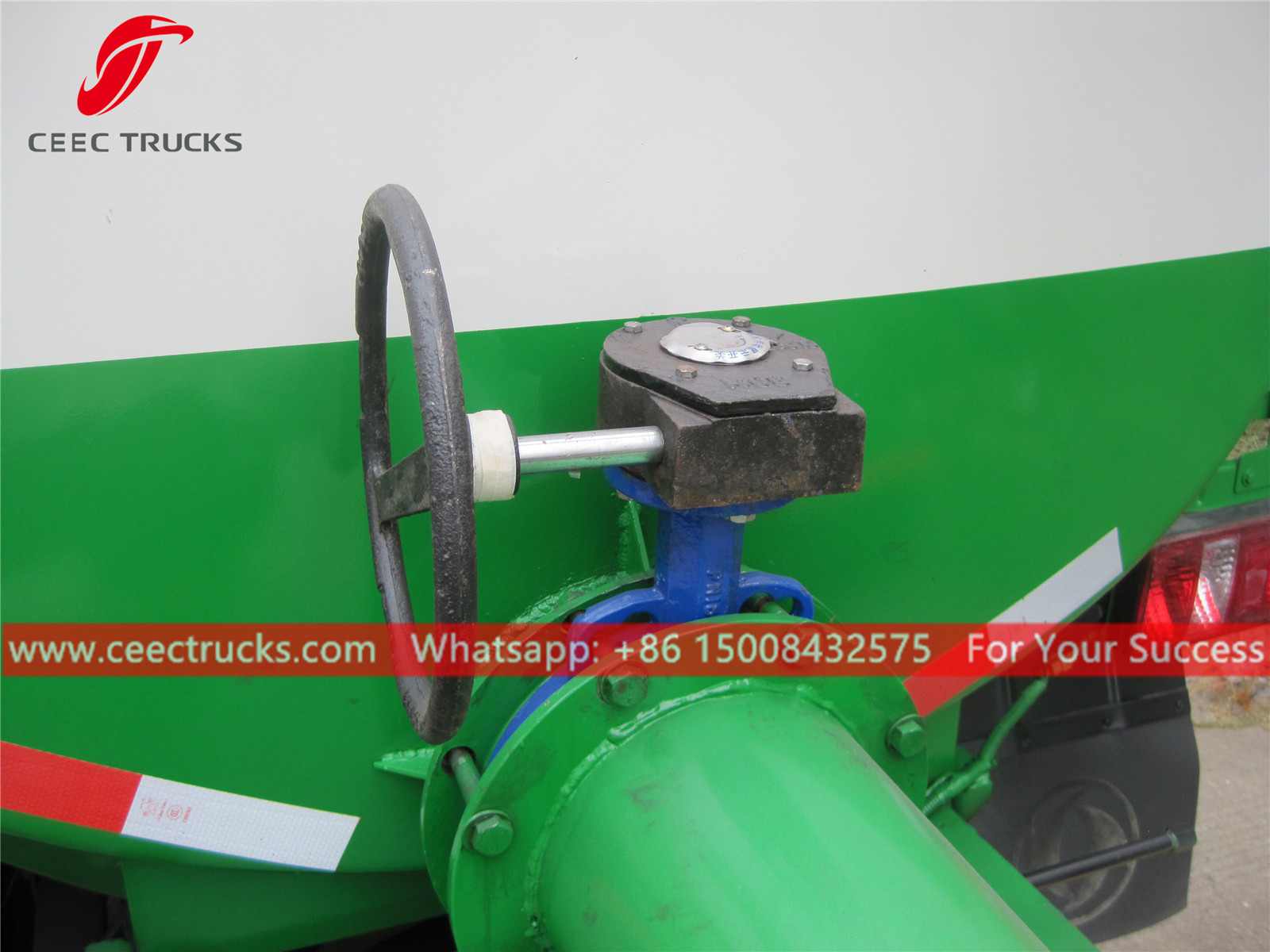

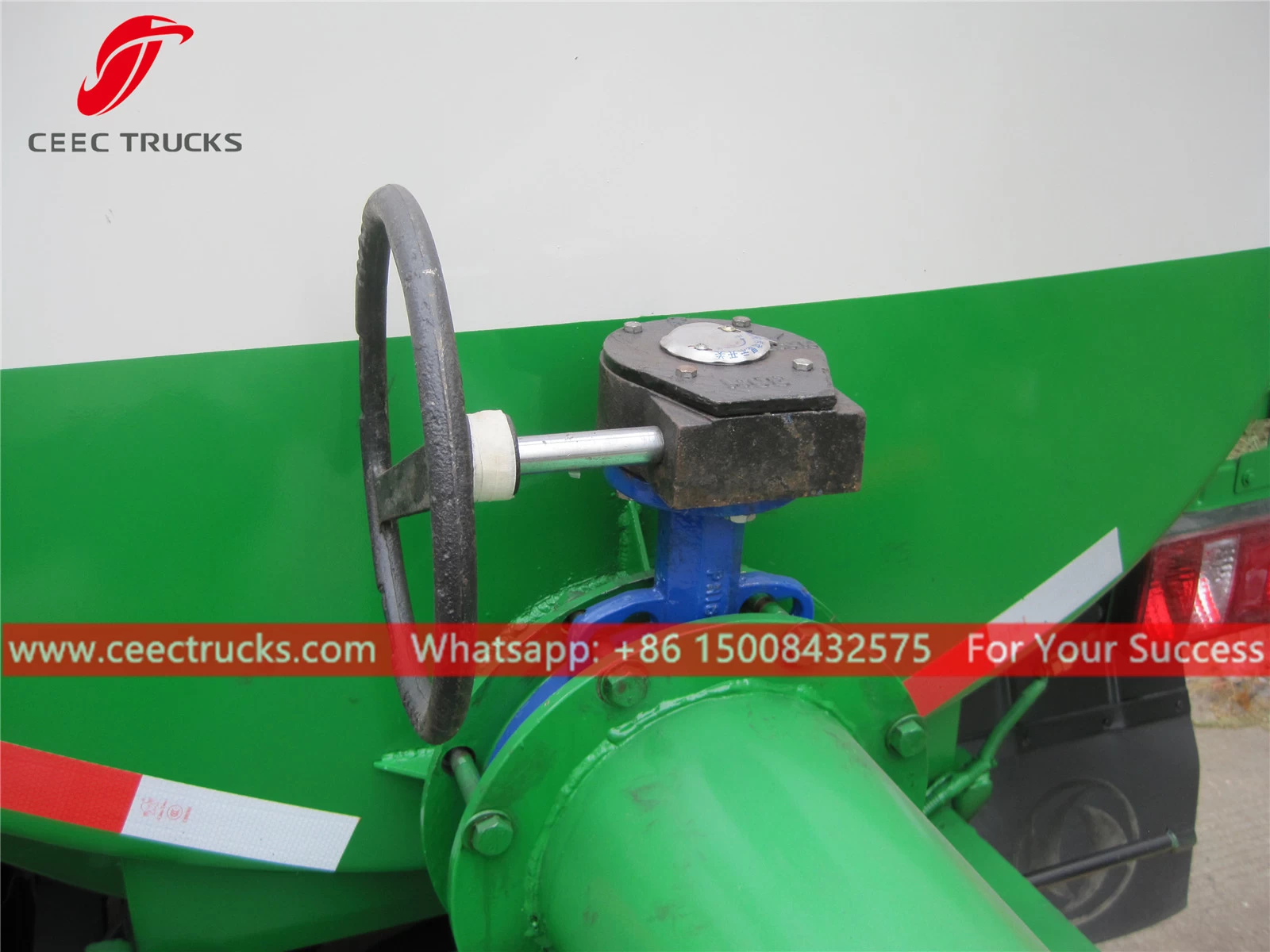

All standard accessories: Inlet pipeline, discharge nozzle, cabin pneumatic control box, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Standard carbon steel, stainless steel optional.

** Standard WEILONG vacuum pump, Italy vacuum pump optional
