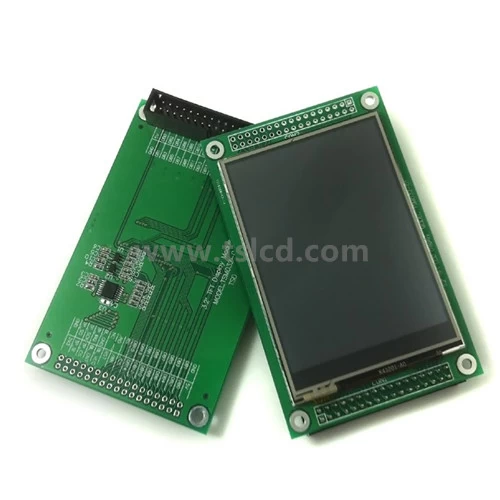

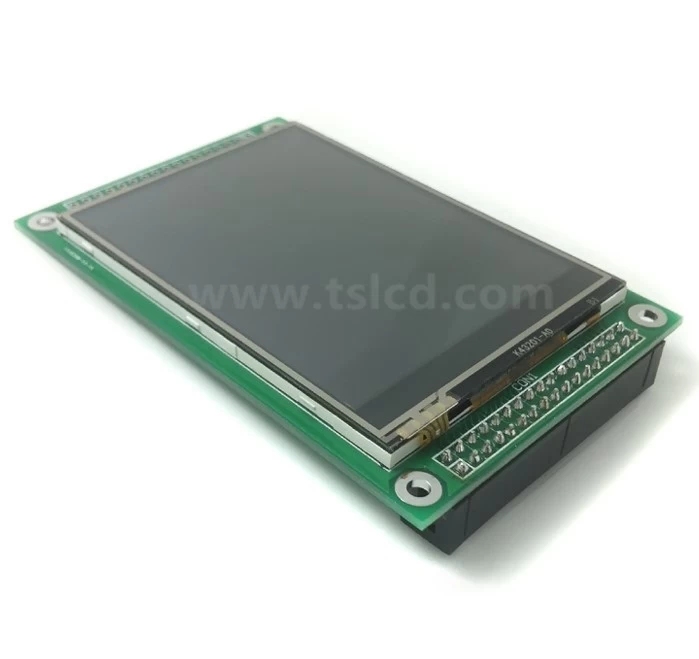

- 3.2 inch, 240 * 320 resolution with TFT touch screen, with a touch controller in it.
- TFT driver is ILI9341, touch panel driver is XPT2046;
- 16bit/ 8bit parallel MCU interface.
- Touch panel with SPI interface. Touch interface included in the 34 pins.
- Compatible with 5V and 3.3V power supply;
- TFT with extremely wide view angle. Support horizontal and vertical display.
- Support 65K-color.
- SMT production machines, the hardware is stable and reliable;
|
Specification
|
|
LCD type
|
3.2 inch TFT,Transmissive
|
|
Display type
|
3.2 inch TFT, 262k color, normal white
|
|
Description
|
3.2 inch tft lcd ili9341 with touch panel
|
|
Driver element
|
a-si TFT Active matrix
|
|
Outline Dimension(mm)
|
55.04x77.7x4.45 (with touch panel)
|
|
A.A.(mm)
|
48.6x64.8
|
|
Driver IC
|
ILI9341
|
|
Resolution
|
QVGA 240*RGB*320
|
|
Viewing Direction
|
12H
|
|
Operating temperature(°C)
|
-20-70
|
|
Storage temperature(°C)
|
-30-80
|
|
Operating Voltage
|
2.8v
|
|
Pixel arrangement
|
RGB Vertical Stripe
|
|
Display mode
|
Normally white
|
|
Surface treatment
|
Antiglare, Hard-Coating(3H)
|
|
Weight(g)
|
TBD
|
|
Backlight
|
5 LEDs, White
|
|
Weight(g)
|
TBD
|
