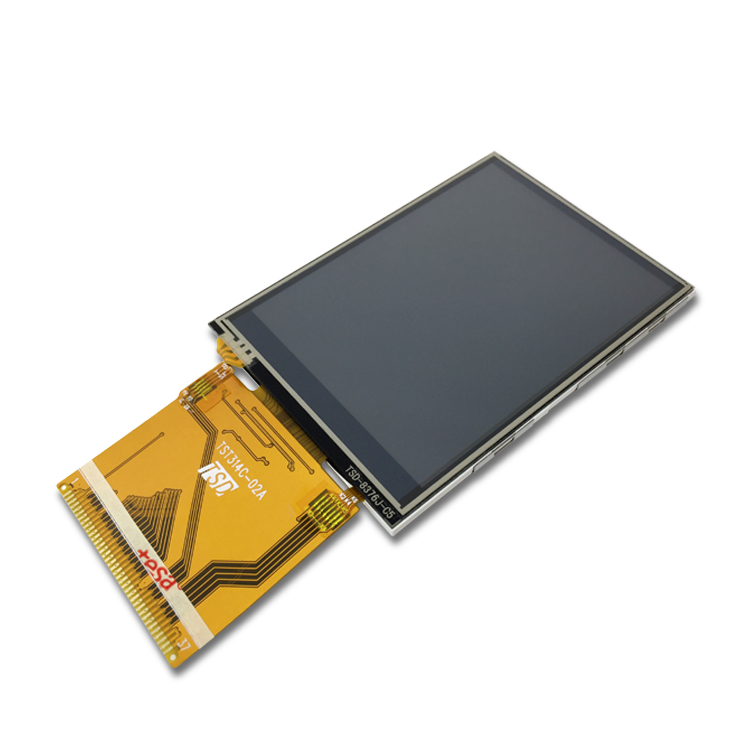

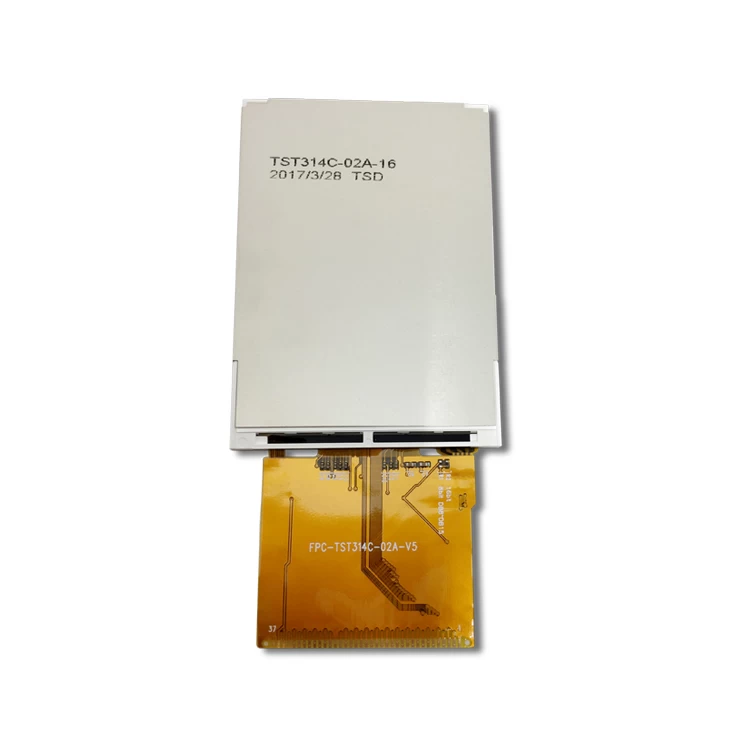

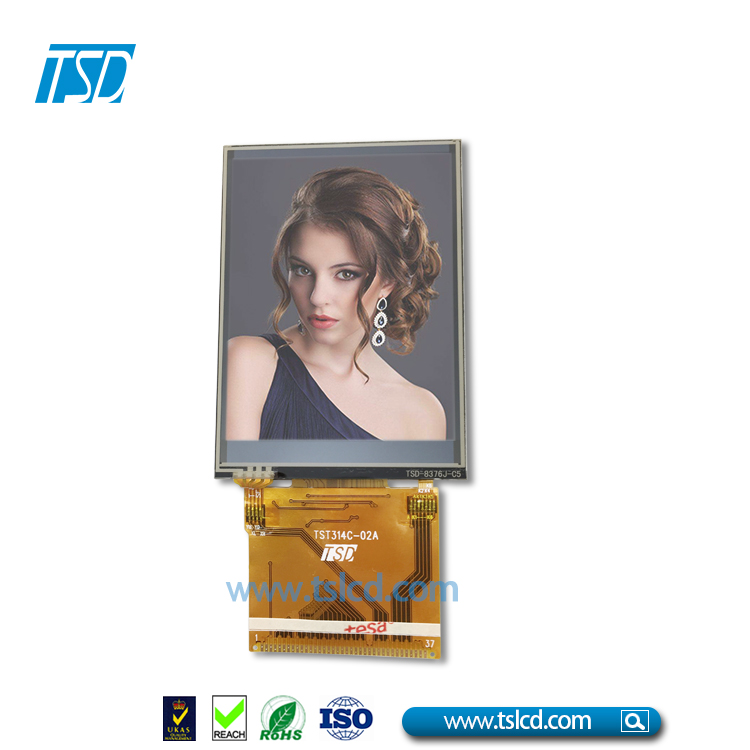

Color TFT 3.2 inch 240x320 LCD display with Resistive touch panel

Color TFT 3.2 inch 240x320 LCD display with Resistive touch panel


Facebook Twitter Pinterest LinkedIn 分享
Specification
LCD type 3.2 inch TFT,Transmissive
Display type 3.2 inch TFT, 262k color, normal white
Description 3.2 inch tft lcd
Driver element a-si TFT Active matrix
Outline Dimension(mm) 55.04x77.7x3.65
A.A.(mm) 47.87*63.84
Driver IC ST7789V
Resolution QVGA 240*RGB*320
Viewing Direction 12H
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Operating Voltage 2.8v
Pixel arrangement RGB Vertical Stripe
Display mode Normally white
Surface treatment Antiglare, Hard-Coating(3H)
Weight(g) TBD
Backlight 6 LEDs, White
Weight(g) TBD
Interface  MCU 16 bit
Touch panel 4 wire resistive TP
Module lifetime(Hours) 50,000-100,000
