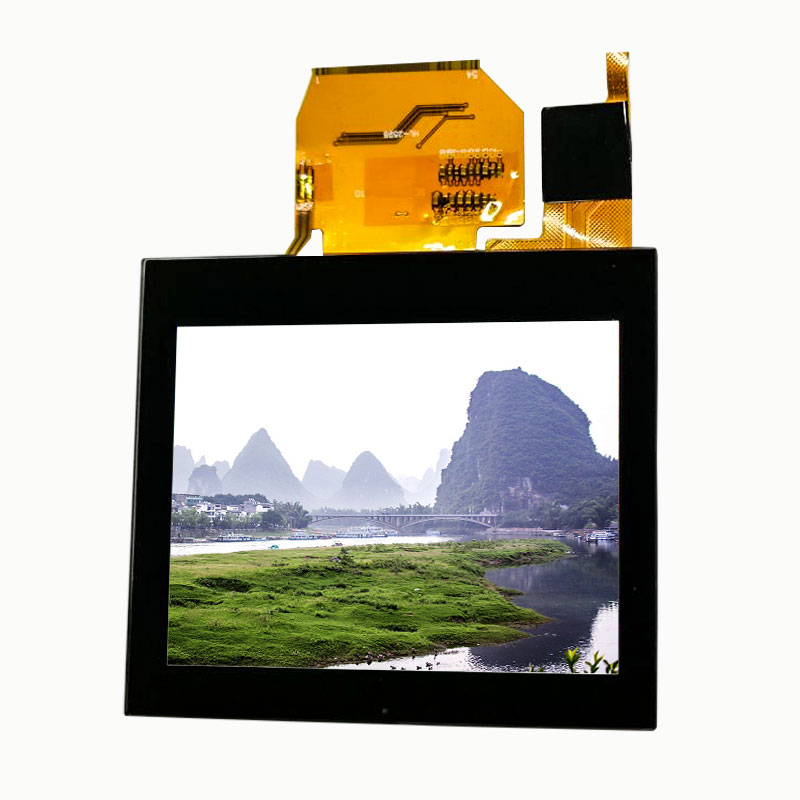

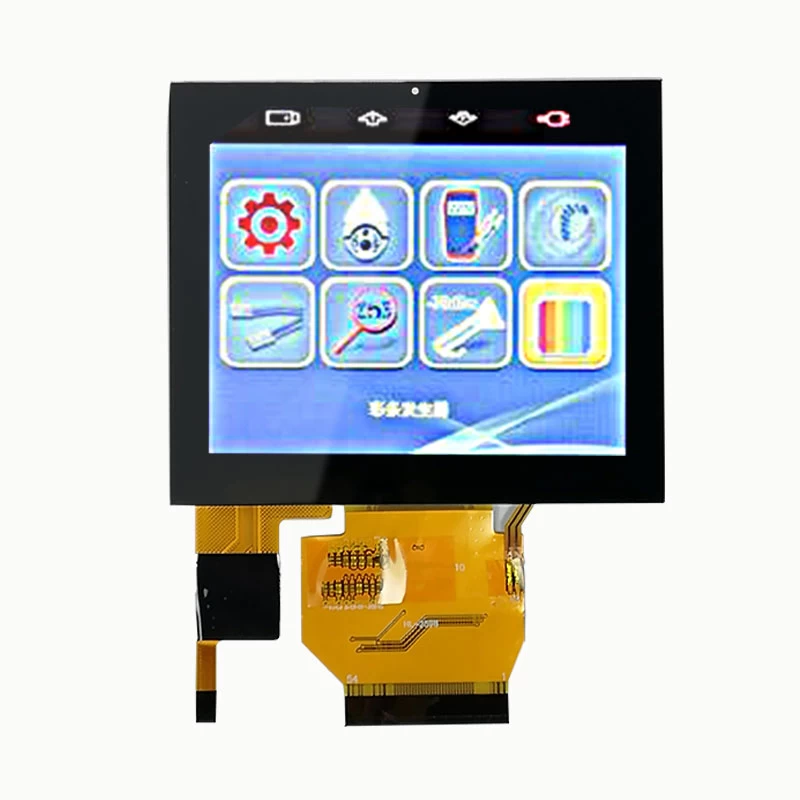

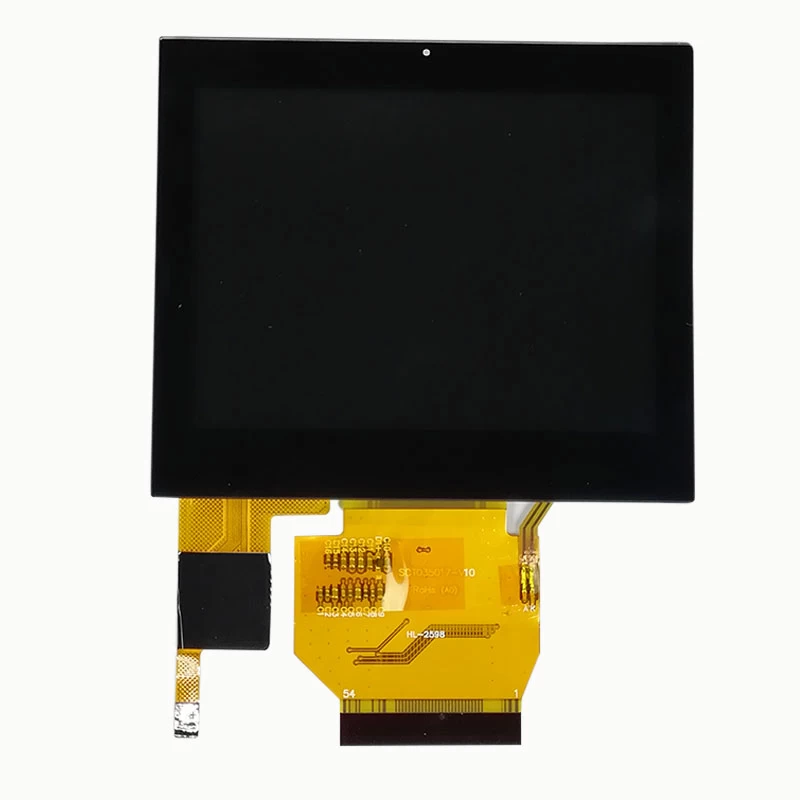

Basic Information
Resolution: 320RGB*240
Outline Dimension: 76.90*63.90*6.05
Active Area: 70.08*52.56
Interface: 24bit RGB with Serial Interface
Driver IC: HX8238
View Direction: 6 o'clock
PIN: 54
Backlight: White LED
Touch Screen: Capacitive Touch Panel

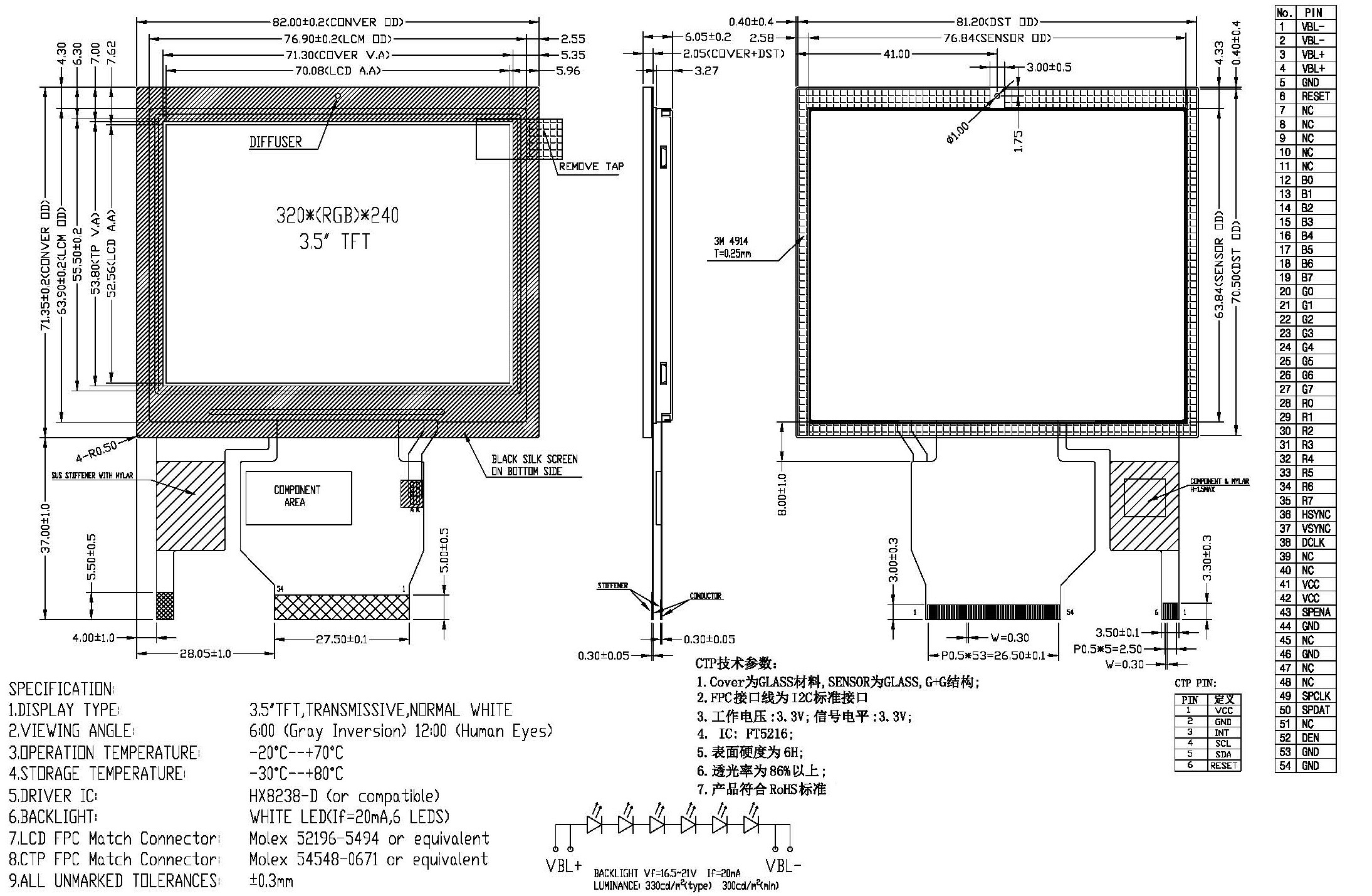

Drawing
General Specification
|
Item
|
Nominal Dimension
|
Unit
|
|
Dot Matrix
|
320 x RGB x 240
|
Dots
|
|
Module Size ( W×H×T )
|
76.90*63.90*3.27
|
mm.
|
|
Active Area ( W×H )
|
70.08*52.56
|
mm.
|
|
Color depth
|
262K(MAX)
|
colors
|
|
Interface
|
24bit RGB with Serial Interface
|
-
|
|
Driving IC
|
HX8238-D
|
-
|
|
Operating temperature
|
-20 ~70
|
ºC
|
|
Storage temperature
|
-30~80
|
ºC
|
|
LCD Type
|
Active maritx TFT, Transmissive type
|
-
|
|
LCD Mode
|
TN / Normal White
|
-
|
|
Backlight Type
|
LED x 6
|
PCS
|
Interface Definition
|
Pin No
|
Pin Symbol
|
Level
|
Description
|
|
1
|
LED-
|
-
|
LED light, cathode
|
|
2
|
LED-
|
-
|
LED light, cathode
|
|
3
|
LED+
|
-
|
LED light, anode
|
|
4
|
LED+
|
-
|
LED light, anode
|
|
5
|
GND
|
0V
|
Ground
|
|
6
|
RESET
|
H/L
|
Reset signal
|
|
7
|
NC
|
-
|
Not use
|
|
8
|
NC
|
-
|
Not use
|
|
9
|
NC
|
-
|
Not use
|
|
10
|
NC
|
-
|
Not use
|
|
11
|
NC
|
-
|
Not use
|
|
12
|
B0
|
H/L
|
Blue Data
|
|
13
|
B1
|
H/L
|
Blue Data
|
|
14
|
B2
|
H/L
|
Blue Data
|
|
15
|
B3
|
H/L
|
Blue Data
|
|
16
|
B4
|
H/L
|
Blue Data
|
|
17
|
B5
|
H/L
|
Blue Data
|
|
18
|
B6
|
H/L
|
Blue Data
|
|
19
|
B7
|
H/L
|
Blue Data
|
|
20
|
G0
|
H/L
|
Green Data
|
|
21
|
G1
|
H/L
|
Green Data
|
|
22
|
G2
|
H/L
|
Green Data
|
|
23
|
G3
|
H/L
|
Green Data
|
|
24
|
G4
|
H/L
|
Green Data
|
|
25
|
G5
|
H/L
|
Green Data
|
|
26
|
G6
|
H/L
|
Green Data
|
|
27
|
G7
|
H/L
|
Green Data
|
|
28
|
R0
|
H/L
|
Red Data
|
|
29
|
R1
|
H/L
|
Red Data
|
|
30
|
R2
|
H/L
|
Red Data
|
|
31
|
R3
|
H/L
|
Red Data
|
|
32
|
R4
|
H/L
|
Red Data
|
|
33
|
R5
|
H/L
|
Red Data
|
|
34
|
R6
|
H/L
|
Red Data
|
|
35
|
R7
|
H/L
|
Red Data
|
|
36
|
HSYNC
|
H/L
|
Horizontal Sync Input
|
|
37
|
VSYNC
|
H/L
|
Vertical Sync Input
|
|
38
|
PCLK
|
H/L
|
Pixel Dot Data Clock
|
|
39
|
NC
|
-
|
Not use
|
|
40
|
NC
|
-
|
Not use
|
|
41
|
VCI
|
P
|
Power supply
|
|
42
|
VCI
|
P
|
Power supply
|
|
43
|
SPENA
|
H/L
|
SPI Interface Chip Select
|
|
44
|
GND
|
0V
|
Ground
|
|
45
|
NC
|
-
|
Not use
|
|
46
|
GND
|
0V
|
Ground
|
|
47
|
NC
|
-
|
Not use
|
|
48
|
NC
|
-
|
Not use
|
|
49
|
SPCLK
|
H/L
|
SPI Interface Data Clock
|
|
50
|
SPDAT
|
H/L
|
SPI Interface Data
|
|
51
|
NC
|
-
|
Not use
|
|
52
|
DE
|
H/L
|
Data Enable Input
|
|
53
|
GND
|
0V
|
Ground
|
|
54
|
GND
|
0V
|
Ground
|
