3.5 Inch IPS 320(RGB)*240 LCD module high brightness

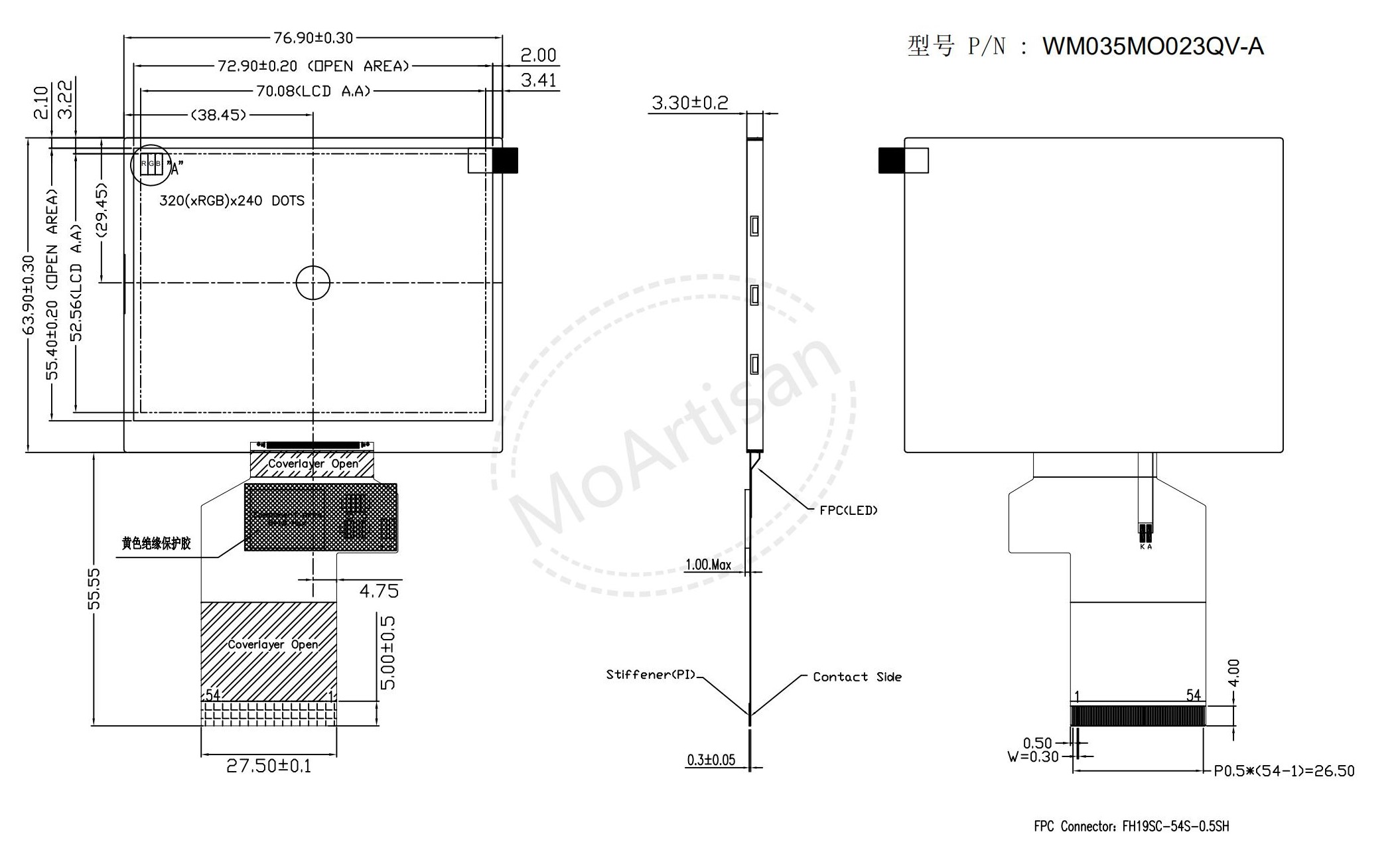

Production drawings
WM035MO023QV-A/B/C Introduction
-
3.5 (4:3) inch diagonally measured
active display area.
-
QVGA (320 horizontal by 240 vertical pixel)
resolution.
-
3.5 inch IPS wide temperature lcd moudule.
-
offering a selection of 500/ 700/ 1000 nits brightness.
-
45 PIN FPC, 18-bit RGB or CPU interface.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…; 001---Serial
Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T
(Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
3.5
|
QVGA, 240*RGB*320, IPS, landscape view lcd screen
|
76.9*63.9*3.3
|
1*6 LED (50K)
|
45 PIN FPC, 18- Bit, RGB/CPU
|
500nits/
700nits/
1000nits
/500
|
Topa:
-20~+70 Tstg:
-30~+80
|
80/80/80/80
|

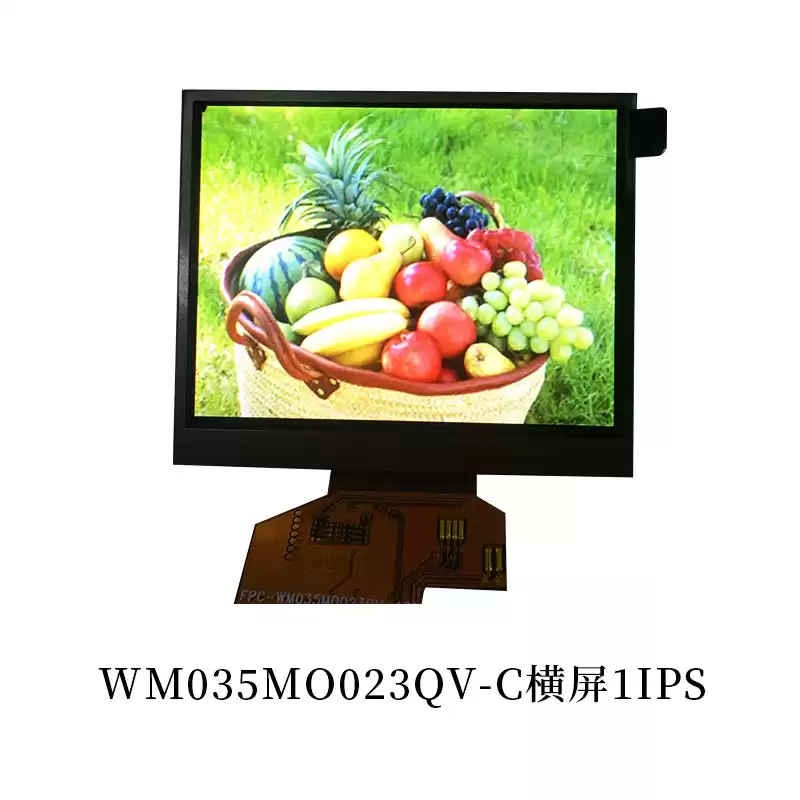

WM035MO023QV-A/B/C
|
Production Applications
GPS, Industrial
Control Application, Personal
Navigation Device, Multimedia
applications and Others AV system.
Production Customized
This kind of production can be customized.
Lead time for samples: 3~4 weeks.
FAQ:
How to enhance the visual effect of the LCD screen under the sunlight?
ANSWER:
There are several ways to enhance the visibility of LCD screens under the sunlight.
The most direct way is to improve the brightness of the back light of the LCD screen, so that the brightness of the LCD screen surface to improve some.
