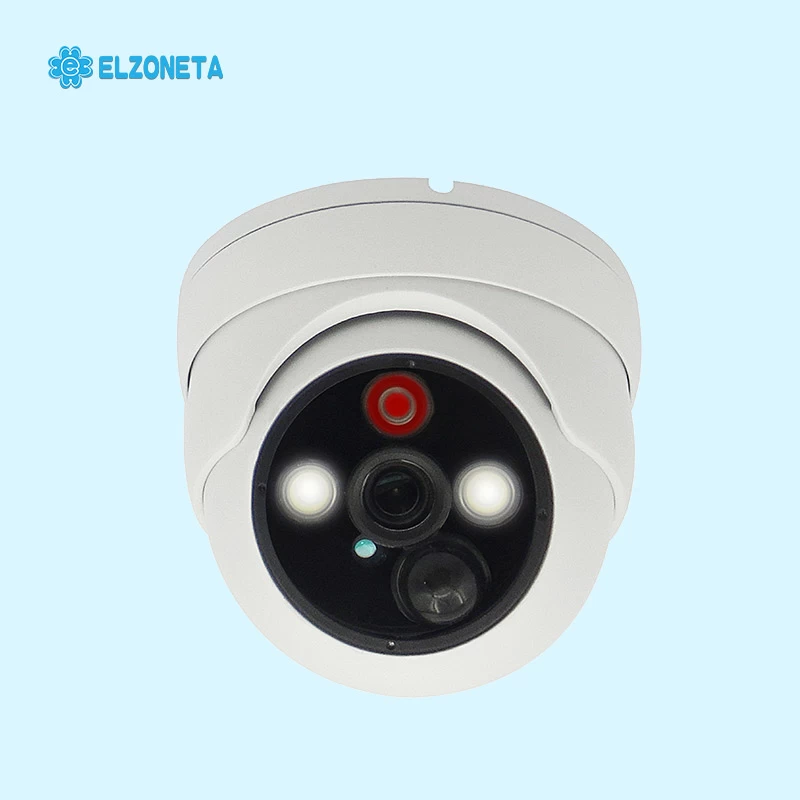

EC-B11 IP Dome Camera With PIR Alarm
Features:
1.) Resolution: 2.0/3.0/4.0/5.0megapixel
2.) Alarm Type: PIR(Passive Infrared Detector)
3.) Alarm DSP: designed by Elzoneta
4.) White Leds: 2pcs white leds (new)
5.) IR Leds: 1pcs IR array leds (new)
6.) Leds range: up to 30meter
7.) Lens: 3.6mm HD fixed lens
8.) Dual stream
9.) DC12 & POE
10.) H.264/H.265 video encoding
11.) Support ONVIF protocol
12.) Plug and play tech(P2P)
13.) Offer CMS and Mobile APP
14.) 3-axis adjustment
15.) Product Guarantee for 2 years
Specifications:
|
Camera
|
|
Model No.
|
EC-B11X
|
EC-B11U
|
EC-B11T
|
EC-B11S
|
|
Image Sensor
|
5.0MP Cmos Sensor
|
4.0MP Cmos Sensor
|
3.0MP Cmos Sensor
|
2.0MP Cmos Sensor
|
|
Effective Pixels (HxV)
|
2560(H)*1960(V)
|
2592(H)*1520(V)
|
2048(H)*1536(V)
|
1920(H)*1080(V)
|
|
Signal System
|
PAL / NTSC
|
|
Mini Illumination
|
0.01lux(IR off)
0.00lux(IR on)
|
0.01lux(IR off)
0.00lux(IR on)
|
0.02lux(IR off)
0.00lux(IR on)
|
0.02lux(IR off)
0.00lux(IR on)
|
|
Lens
|
4.0mm, 6mm HD fixed lens optional
|
|
Angle of View: 83°(4.0mm), 55°(6mm)
|
|
Lens Mount
|
M12
|
|
Day & Night
|
IR cut filter with auto
switch
|
|
DNR
|
3D DNR
|
|
Wide Dynamic Range
|
120db
|
|
Alarm Function
|
|
Alarm type
|
Passive Infrared Detector
|
|
PIR distance
|
4-6 Meter range
|
|
Alarm Control
|
PIR IC mainboard
|
|
Leds
|
2pcs white leds
|
|
1pcs IR array leds
|
|
leds Range
|
Up to 30meter
|
|
Siren function
|
DC12V output Siren is optional
|
|
Interface
|
1ch RJ45/1ch power/1ch Alarm
|
|
Network
|
|
LAN
|
RJ45 10M/100M adaptive ethernet
|
|
Dual stream
|
Support
|
|
Access protocol
|
ONVIF/CGI/GB28181
|
|
Mobile APP
|
IOS/Android
|
|
Support protocol
|
TCP/IP;UDP;HTTP;IGMP;ICMP;DHCP;RTP/RTSP;DNS;DDNS;FTP;NTP;PPPOE;UPNP;SMTP
|
|
Mobile App
|
IOS/Android
|
|
ROL Codec
|
Support
|
|
Corridor Type
|
Support
|
|
Regional Block
|
Support 3 regional block
|
|
Intelligent functions
|
Support face detection, Perimeter
intrusion detection, Objects left&missing detection, Crossing the fence,
Retrograde motion detection, Wandering detection, Desity detection
intelligent functions
|
|
General
|
|
Operating Condition
|
-20 °C - 45 °C (-4 °F - 113
°F), Humidity 90% or less (non-condensing)
|
|
Power Supply
|
12 VDC±15%
|
|
Power Consumption
|
Max. 4W
|
|
IP Rate
|
IP64
|
|
Weight
|
0.7 kg
|
|
Dimension
|
130(L)*130(W)*110(H)mm
|
