3 Layer High Frequency PCB Built On
60mil RO4350B and 6.6mil RO4350B with ENIG for Wireless Booster



	A 4-layer RO4350B PCB is a compound of 2 cores
of RO4350B substrates. As is known to all, there’re 8 cores in RO4350B family,
i.e. 4mil (0.101mm) to 60mil (1.524mm).








			|
					RO4350B:
				 |  |

			|
					4mil
				 |
					0.101mm
				 |

			|
					6.6mil
				 |
					0.168mm
				 |

			|
					10mil
				 |
					0.254mm
				 |

			|
					13.3mil
				 |
					0.338mm
				 |

			|
					16.6mil
				 |
					0.422mm
				 |

			|
					20mil
				 |
					0.508mm
				 |

			|
					30mil
				 |
					0.762mm
				 |

			|
					60mil
				 |
					1.524mm
				 |


So it’s very interesting that stack-up of 4
layers can be done in many different ways.

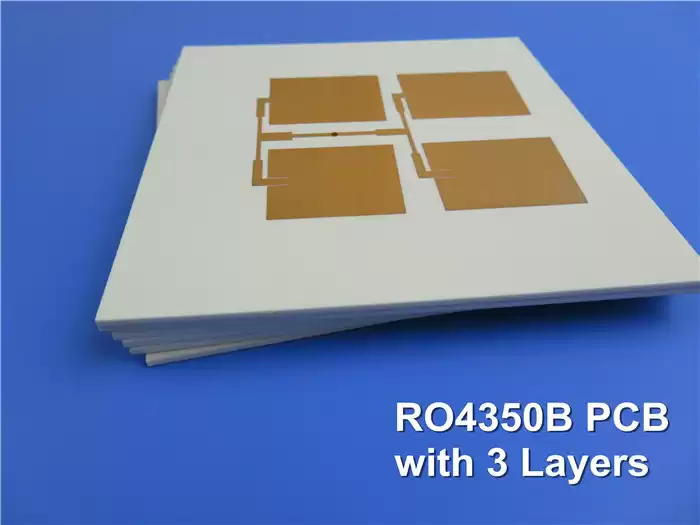

	This
3-Layer high frequency PCB is built on 2 cores of RO4350B and one layer of
copper is etched off, left 3 layers on.







	The
structure is one sheet of 60mil RO4350B plus 4mil RO4450F prepreg and combined
6.6mil RO4350B. The board is a square with 110mm x 110mm, with immersion gold
finishes on pads. They’re 20 pieces packed for shipment and used for wireless
booster.
	Following
is the actual value in engineering manufacture.





	Features and benefits:

	1) Excellent
high frequency performance due to low dielectric tolerance and loss;
	2) Reducing
signal loss in high frequency application meets the development needs of
communication technology;
	3) Professional
and experienced engineers check your production files
	4) Hassle-free,
one-to-one after-sales service;
	5) UL,
ISO14001, IAFT16949 certified factory.



	Applications:


	Amplifier,
Antenna combiner, Frequency converter, Trunk amplifier, RF module, Power
splitter, Low Noise Block, 4G antenna




	Parameter and data sheet:





			| PCB SIZE | 110 x
  110mm=1PCS |

			| BOARD TYPE | Multilayer
  PCB |

			| Number
  of Layers | 3 layers |

			| Surface
  Mount Components | YES |

			| Through
  Hole Components | YES |

			| LAYER STACKUP | copper
  ------- 35µm(1 oz)+plate TOP
  layer |

			| RO4350B 60mil (1.524mm) |

			| copper ------- 35µm |

			| Prepreg RO4450F 4mil (0.102mm) |

			| copper ------- 0µm |

			| RO4350B 6.6mil (0.167mm) |

			| copper ------- 35µm(1oz) + plate  BOT Layer |

			| TECHNOLOGY |  |

			| Minimum Trace and Space: | 4
  mil / 4 mil |

			| Minimum
  / Maximum Holes: | 0.4
  mm / 3.5 mm |

			| Number
  of Different Holes: | 12 |

			| Number
  of Drill Holes: | 124 |

			| Number
  of Milled Slots: | 0 |

			| Number
  of Internal Cutouts: | NO |

			| Impedance
  Control: | no |

			| Number
  of Gold finger: | 0 |

			| BOARD
  MATERIAL |  |

			| Glass
  Epoxy: | RO4350B
  Tg280℃, er<3.48, Rogers
  Corp |

			| Final
  foil external: | 1
  oz |

			| Final
  foil internal: | 1
  oz |

			| Final
  height of PCB: | 1.88
  mm ±10% |

			| PLATING AND COATING |  |

			| Surface Finish | Immersion gold |

			| Solder
  Mask Apply To: | N/A |

			| Solder
  Mask Color: | N/A |

			| Solder
  Mask Type: | N/A |

			| CONTOUR/CUTTING | Routing |

			| MARKING |  |

			| Side of
  Component Legend | N/A |

			| Colour
  of Component Legend | N/A |

			| Manufacturer
  Name or Logo: | N/A |

			| VIA | Plated
  through hole(PTH), minimum size 0.4mm. |

			| FLAMIBILITY RATING | UL
  94-V0 Approval MIN. |

			| DIMENSION TOLERANCE |  |

			| Outline
  dimension: | 0.0059" |

			| Board
  plating: | 0.0029" |

			| Drill
  tolerance: | 0.002" |

			| TEST | 100%
  Electrical Test prior shipment |

			| TYPE OF ARTWORK TO BE SUPPLIED | email
  file, Gerber RS-274-X, PCBDOC etc |

			| SERVICE AREA | Worldwide,
  Globally. |



	Our Quality Policy:


	Bicheng
has developed series of management procedures and approaches to assure that
PCBs are in compliance with the customers' requirements, inclusive of selection
of the vendors, work in progress (WIP) inspection, outgoing delivery inspection
and customer service etc.

PCB designers plan to save
money by using 3 Layer PCBs instead of 4 Layer PCBs. 3 Layer PCB has
many advantages, such as reducing the weight of the whole machine, and
using it with integrated circuits can make the whole machine
miniaturized; reducing the number of soldering points of components is
beneficial to reduce the failure rate; introducing warm grounding
places, reducing local heating, improving equipment functions, etc. .
