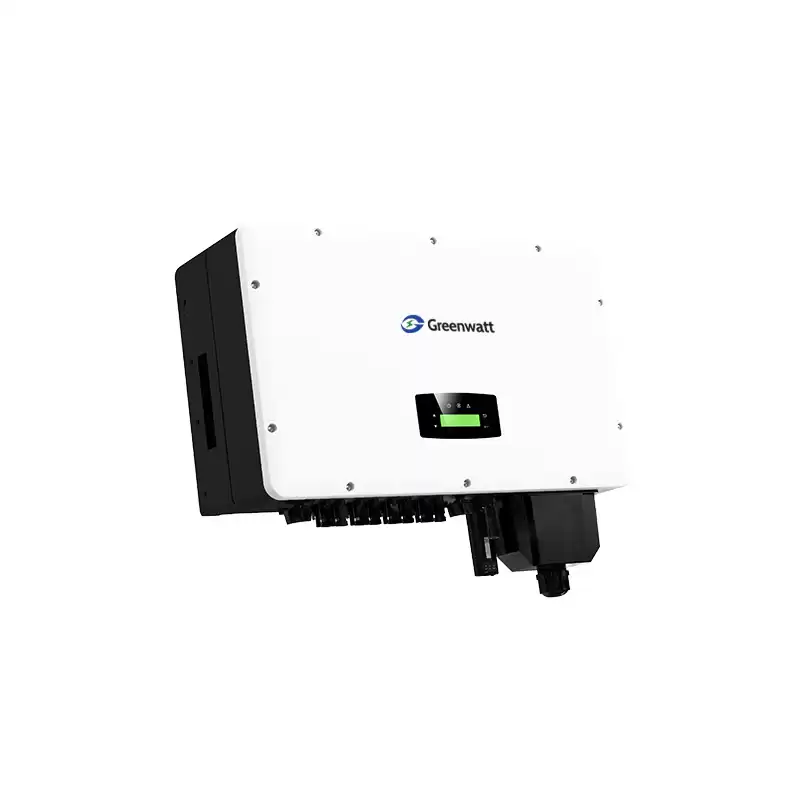

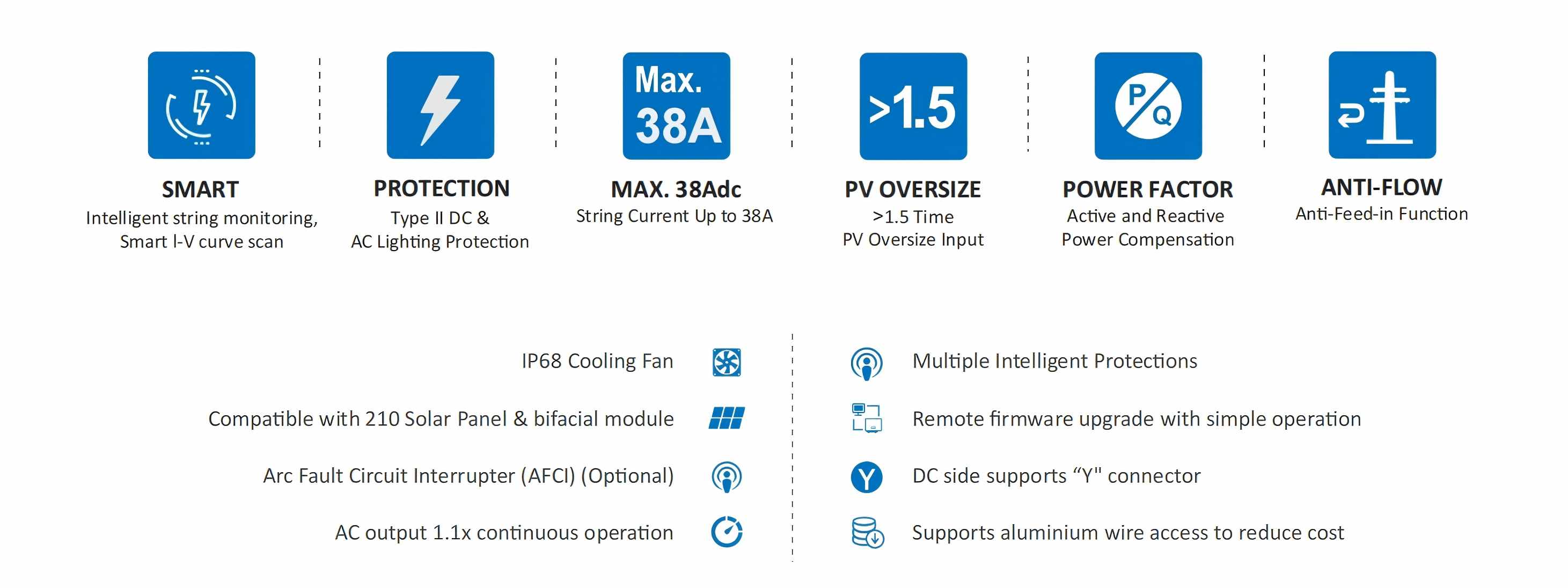

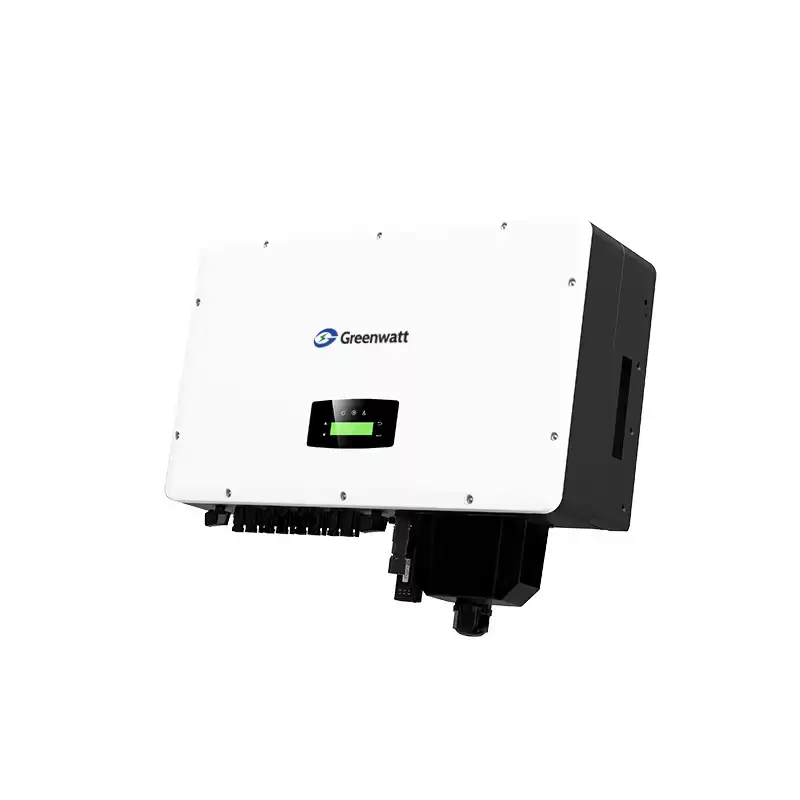

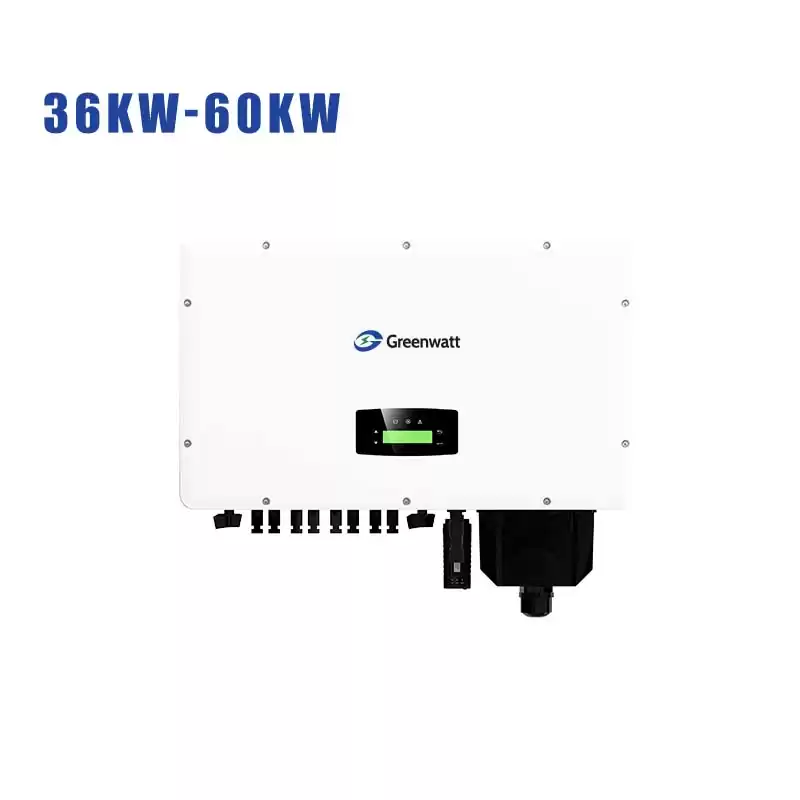

Advanced Features of Greenwatt 36KW-60KW On Grid Inverter
Dual MPPT Trackers
Three independent MPPT channels (3 in total), optimizing energy harvest from multiple PV string orientations
Grid Support & Compliance
Anti-islanding protection, frequency/voltage ride-through, and grid-tie synchronization
Monitoring & Communication
Built-in WiFi, RS485, and Ethernet for real-time data tracking and remote management
LED indicators and optional LCD display for local status check
Battery Readiness
Hybrid capability compatible with high-voltage batteries (150–800 V), supporting Li-ion/lead-acid for backup power (though primarily an on-grid model)
Robust Design & Safety
Protection Ratings
IP65 enclosure for dust/water resistance, suitable for harsh outdoor installations.
Thermal Management
Fan-assisted cooling + natural convection, operating in -25°C to +60°C temperatures
Safety Certifications
Complies with CE standards and includes integrated DC/AC disconnects, surge protection, and automatic fault shutdown
| Technical Data |
BNT036KTL |
BNT040KTL |
BNT050KTL |
BNT060KTL |
| PV Input Data |
| Max.DC Power(W) |
54000 |
60000 |
75000 |
90000 |
| Max. DCVoltage (V) |
1100 |
1100 |
1100 |
1100 |
| MPPT Voltage Range(V) |
200-1000 |
200-1000 |
200-1000 |
200-1000 |
| MPPT Ful Power Voltage Range (V) |
500-850 |
500-850 |
500-850 |
500-850 |
| l Rated Input Voltage ( V) |
620 |
620 |
620 |
620 |
| Start-up Voltage( V) |
200 |
200 |
200 |
200 |
| Max.Input Current (A) |
38x3 |
38x3 |
40x3 |
38x4 |
| Max.Short Current(A) |
48x3 |
48x3 |
48x3 |
48x4 |
| No. of MPP Tracker / No. of PV String |
3/6 |
3/6 |
3/6 |
4/8 |
| Input Connector Type |
MC4 |
| AC Output Data |
| Max. Output Power (VA) |
36000 |
40000 |
50000 |
60000 |
| Nominal Output Power(W) |
36000 |
40000 |
50000 |
60000 |
| Max.Output Current(A) |
60 |
65 |
80 |
96 |
| Nominal Output Voltage( V) |
3P+N+PE /3P+PE 230/400 |
| Grid Voltage Range |
260Vac-519Vac (according to local standard) |
| Nominal Output Frequency (Hz) |
50/60 |
50/60 |
50/60 |
50/60 |
| Grid Frequency Range |
45-55Hz/55-65Hz (according to local standard) |
| Output Power Factor |
1 default (adjustable from 0.8 leading to 0.8 lagging) |
| Output Current THD |
<3% |
| Efficiency |
| Max. Efficiency |
98.65% |
98. 5% |
98.80% |
99.00% |
| Euro Efficiency |
98.20% |
98.25% |
98.45% |
98.50% |
| Protection |
| PV Reverse Polarity Protection |
YES |
| PV Insulation Resistance Detection |
YES |
| AC Short Circuit Protection |
YES |
| AC Over Current Protection |
YES |
| AC Over Voltage Protection |
YES |
| Anti-Islanding Protection |
YES |
| Residual Current Detection |
YES |
| Over Temperature Protection |
YES |
| Integrated DC switch |
YES |
| Surge Protection |
Integrated (Type II) |
| Smart IV Curve Scaning |
YES |
| Quick Arc Fault Circuit Interruption |
Optional |
| General Data |
| Dimensions (WxHxD,mm) |
710x470x236 |
710x470x236 |
710x470x236 |
710x470x236 |
| Weight(kg) |
44 |
44 |
44 |
51 |
| Protection Degree |
IP65 |
IP65 |
IP65 |
IP65 |
| Enclosure Material |
Aluminum |
Aluminum |
Aluminum |
Aluminum |
| Ambient Temperature Range(℃) |
-25 to 60 |
-25 to 60 |
-25 to 60 |
-25 to 60 |
| Humidity Range |
0-100% |
0-100% |
0-100% |
0-100% |
| Topology |
Transformerless |
Transformerless |
Transformerless |
Transformerless |
| Communication Interface |
RS485/WiFi/Wire Ethernet/ GPRS (optional) |
| Cooling Concept |
Intelligent Fan Cooling |
| Night Power Consumption (W) |
<1 |
| Max. Operation Altitude (m) |
≤4000 |
| Certifications and Standards |
| EMC Standard |
EN/IEC 61000-6-2, EN/IEC 61000-6-3, EN61000-3-2, EN61000-3-3, EN61000-3-11,EN61000-3-12 |
| Safety Standard |
IEC 60068, UL1741, EN62109 |
| Grid-connection |
IEEE1547, CSA C22, EN50549, VDE4105, VDE0126, RD1699, ABNT NBR16149 & 16150, AS4777.2, NB/T32004, G98/G99, IEC61727 |
