3 Working Station Laboratory Glove Box With Gas Purification System

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164


  • Warranty Two years limited warranty with lifetime technical support
  • Certificate CE, IOS, ROHS, SGS, UL Certificate

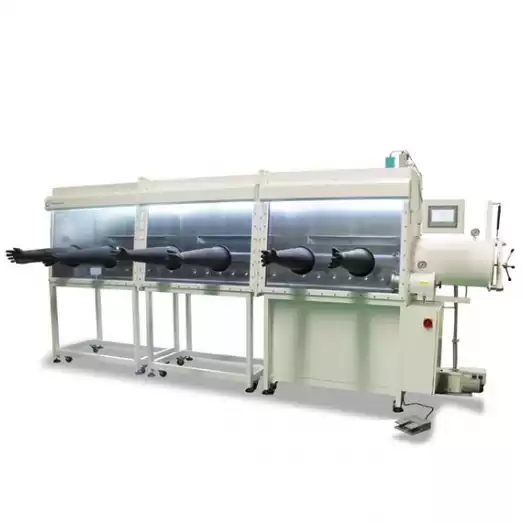

3 Working Station Laboratory Glove Box With Gas Purification System


TMAX-3working is a dual stainless steel lab glove box designed for researchers in material science, chemistry, semiconductor, and related topics. The purification cylinder is made of BASF antioxidant materials from Germany and UOP water adsorbent materials from the US in order to achieve a low water and oxygen concentration of lower than 1ppm, such that experiments can be conducted in an ultra clean and highly purified gas environment. It is integrated with vapor pressure control system, purity control system, automatic gas purity regeneration control system, auto alarm, and system data log recording. TMAX-3working is widely used in preparing nanomaterials, Li-ion battery materials, catalysts, and metallorganics.


SPECIFICATIONS:

Working Voltage

AC 110 - 240 V 50/60 Hz

Max. Power Consumption

3KW

Glove Box Chamber

Dimensions: 3660mm(L) x 750mm(W) x 900mm(H)
Case Material: Stainless Steel 304
12mm thick double layer laminated safety glass with corrosion protection film for operating in a safe and easy manner.
<0.05 Vol% / hr (Depending on oxygen concentration inside the glove box)
Built-in fluorescent lamp
Three slidable shelves, 300mm L x 250mm W x 300mm H

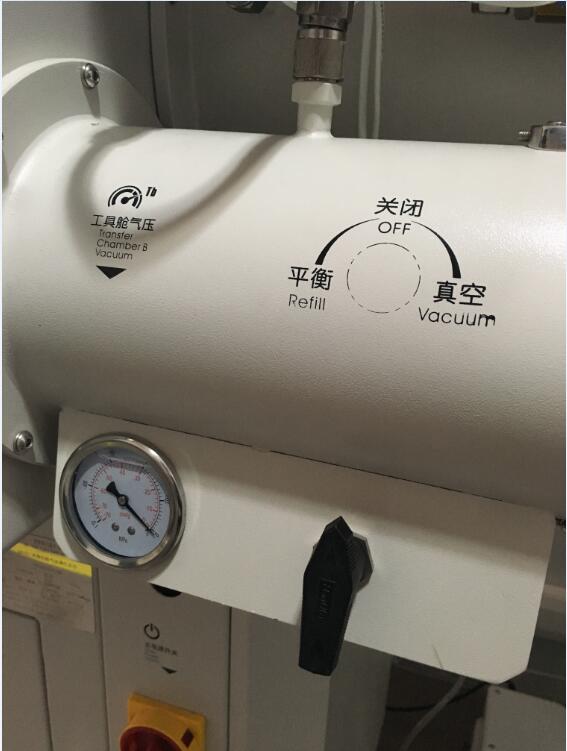

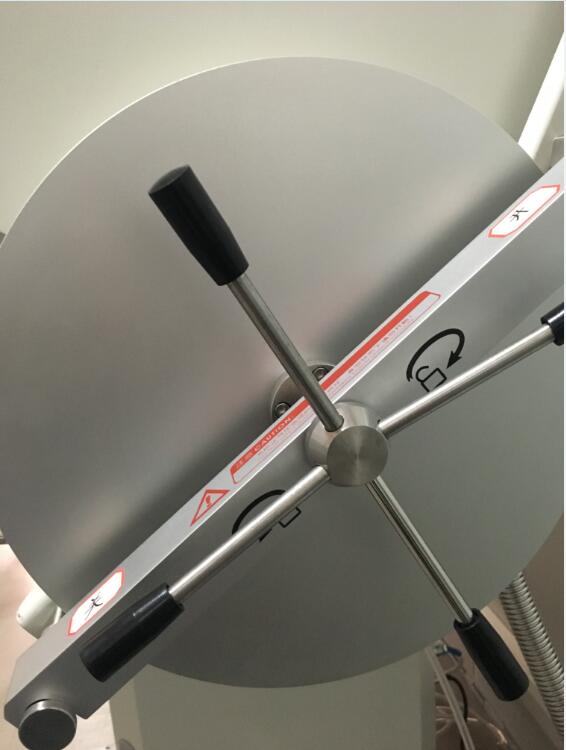

Airlock Chamber

Antechamber Dimensions: 360mm(Dia.) x 600mm(L)
Small Chamber Dimensions (for tools): 150mm(Dia.) x 300mm(L)
Max. vacuum level: 100 Pa

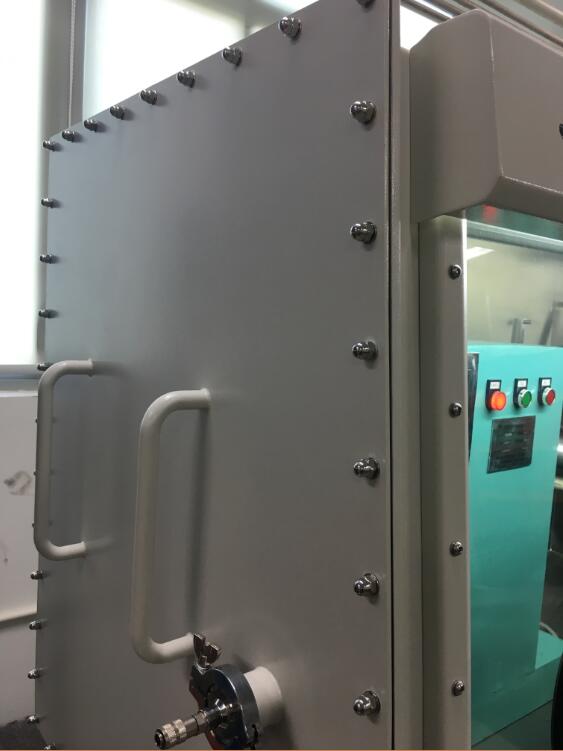

Two Transparent Front Panels

1.Front Panel made of transparent plastic
2.Each Panel Dimension: 1170 mm(L) x 700mm(W)
3.Removable for putting in devices

Attainable purity level

1.Water concentration: <1 ppm (20°C, 1 atm)
2.Oxygen concentration: <1 ppm (20°C, 1 atm)

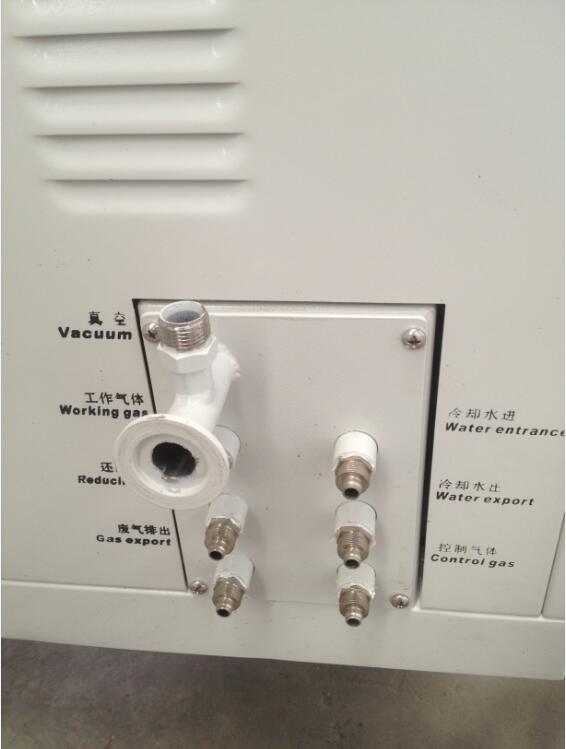

Working Gas

1.Operating gas: Inert gas such as N2, Ar, He
2.Regenerating gas: Mixture of H2 (5%) and Operating gas

Gas Purification System

Auto regeneration process
Auto purging function
Purification Cylinder: made of BASF antioxidant materials and UOP water adsorbent materials
Moisture removal capacity: 1.3KG
Oxygen removal capacity: 30L
Stainless steel pipe connection
Blower: Flow Rate: 8m³/h

Filter System

1.One Organic Solvent Filter System filled with replaceable activated carbon (5.2kg)

2.Two pieces of HEPA filters can eliminate particle size > 0.3μm

Control system

PLC control system with 6" touchscreen display
Water concentration: 0 - 1000 ppm @0.1 ppm

Oxygen concentration: 0 - 1000 ppm @0.1 ppm
Auto pressure control -12 to 12 mbar @0.1mbar

Feedthroughs

Can be 110VAC or 220VAC depending on the input source

Vacuum pump

Vacuum rate: 4.7 cfm
Lowest pressure: 0.4pa

Compliance

CE Certified

Warranty

One years limited warranty with lifetime technical support

Application Notes & Warnings

1.The interconnections between the glove box chamber and the gas purification system must be unimpeded during the purification cycles.
2.The use of corrosive gases is prohibited as they will damage the water sensors.
3.Regularly perform regeneration to maintain the optimum purification efficiency.
4.The H2O removing rate is largely dependent on the type of purging gas used. For faster chamber purging process, Nitrogen is preferred over Argon due to its lighter mass.
5.Corrosive liquid (such as LiPF6 electrolyte) must be remain sealed in a container inside the glove box. Otherwise, liquid vapour may condense and corrode the steel chamber and purification pipeline.

3 Working Station Glove Box



Specifications of Standard Model of Purification Glove Box

No.

Model No.

Box Dimensions

Total Dimensions

Operating Sides

Numbers of Gloves

Options

1

GBP800S-2

1200*800*930mm

1915*830*1830mm

Single

2

Single or double purification columns

2

GBP1000S-4

1200*1000*930mm

1915*1060*1830mm

Single

4

Single or double purification columns

3

GBP1000D-4

1200*1000*930mm

1915*1060*1830mm

Double

4

Single or double purification columns

4

GBP1200S-2

1200*1200*930mm

1915*1260*1830mm

Single

2

Single or double purification columns

5

GBP1200D-4

1200*1200*930mm

1915*1260*1830mm

Double

4

Single or double purification columns















6

GBP800S-3

1500*800*930mm

2215*1060*1830mm

Single

3

Single or double purification columns

7

GBP1000S-3

1500*1000*930mm

2215*1060*1830mm

Single

3

Single or double purification columns

8

GBP1000D-6

1500*1000*930mm

2215*1060*1830mm

Double

6

Single or double purification columns

9

GBP1200S-3

1500*1200*930mm

2215*1260*1830mm

Single

3

Single or double purification columns

10

GBP1200D-6

1500*1200*930mm

2215*1260*1830mm

Double

6

Single or double purification columns















11

GBP800S-4

1900*800*930mm

2615*1060*1830mm

Single

4

Single or double purification columns

12

GBP1000S-4

1900*1000*930mm

2615*1060*1830mm

Single

4

Single or double purification columns

13

GBP1000D-8

1900*1000*930mm

2615*1060*1830mm

Double

8

Single or double purification columns

14

GBP1200S-4

1900*1200*930mm

2615*1260*1830mm

Single

4

Single or double purification columns

15

GBP1200D-8

1900*1200*930mm

2615*1260*1830mm

Double

8

Single or double purification columns

Notes:
Cabinet water and oxygen content under the standard condition:
Water content ≤1ppm, oxygen content≤1 ppm (Note: Standard condition is that an atmospheric pressure, constant temperature of 20 degree).
Leakage Rate: ≤0.05Vol%/ h (subject to change value of oxygen content in box)
Used Gases
a) Working Gas: N2、Ar、He and etc.
b) Controlling Gas: Compressed air or Inert Gas.
C) Restoring Gas: Mixed gas of working gas and hydrogen.
Restoring gas is as same as working gas if there is only water removal system or oxygen removal system.
Remarks: All Single side boxes of 4 gloves are assembled glove box. Numbers of assembled box can be ordered as per customer’s needs. Quantity of purification columns is also designed to be matched according to customer’s requirements
