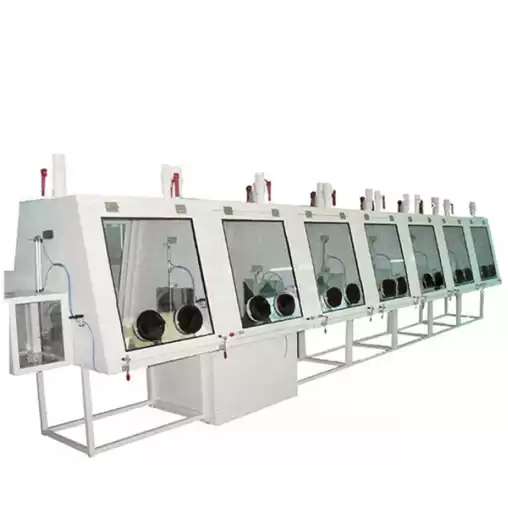

Vacuum Glove Box for Lithium Battery Production with Dry Air And Vacuum Function

1 The glove box can supply a Closed working environment with Maintaining clean and humidity. It is used for lithium battery producing process from electrolyte filling to vacuum pre-sealing.

2 The Electrolyte filling machine, vacuum holding box and vacuum pre-sealing machine need to put in the glove box with making battery under environment without Much H2O and O2. We can input dry N2 into the glove box to improve the environment.

3 This glove box adopts Fission modular design, we can add or combination every section as we wanted according to production line.

4 Transparent toughened glass surface as a visual operation, convenient to observe

5 Designed with antechamber and Transition tank in front and end, easy for battery loading. And the antechamber and also be customized with Vacuum function.

6 Dimension : 1000*1400*1800mm/section, customized

7 Source voltage : AC110V/220V 50/60HZ

8 Power : 0.5KW

9 Air source : 0.6-0.7MPa, 5L/S

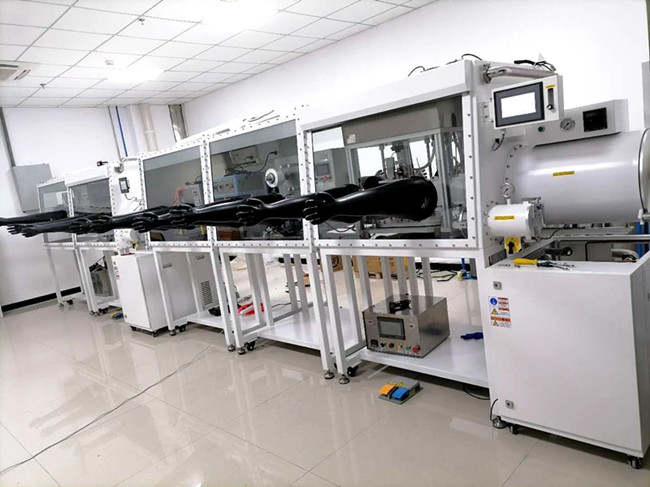

Finished glove box according to customer’s requirement:

SPECIFICATIONS:

Model	TMAX-GB-DVS
Source voltage	AC110V/220V 50/60HZ
Power	1000W
Air intake	4 inch ball
Air outlet	3 inch ball
Glove port	Φ200mm
Glove pairs	4 pairs
Ante chamber size	350*200*400mm
Dimension	1530*1200*1850mm
Weight	350kg
Material	Stainless steel
Warranty	One year limited warranty with lifetime support

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
