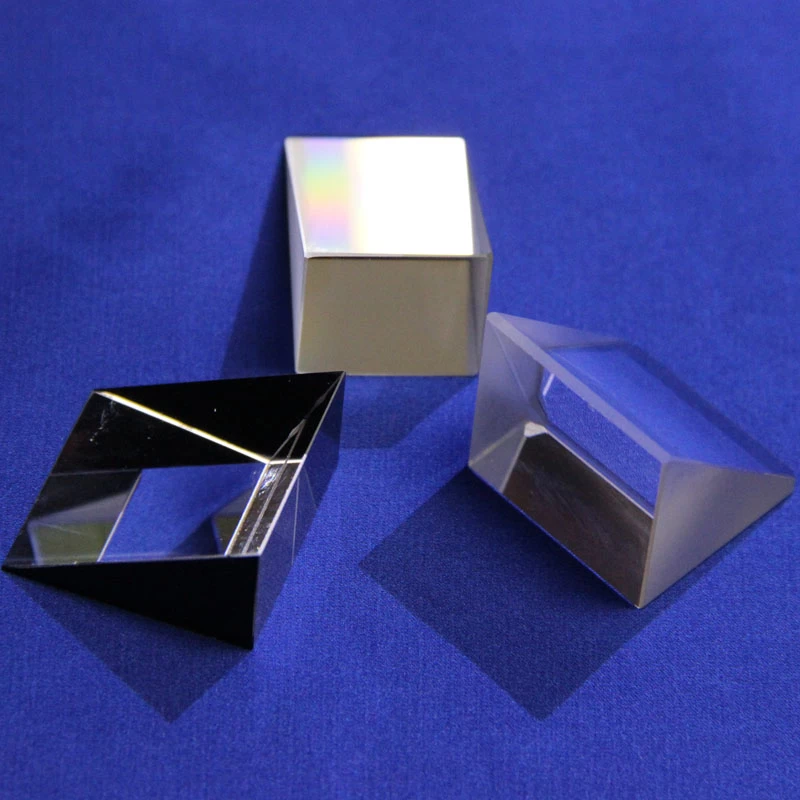

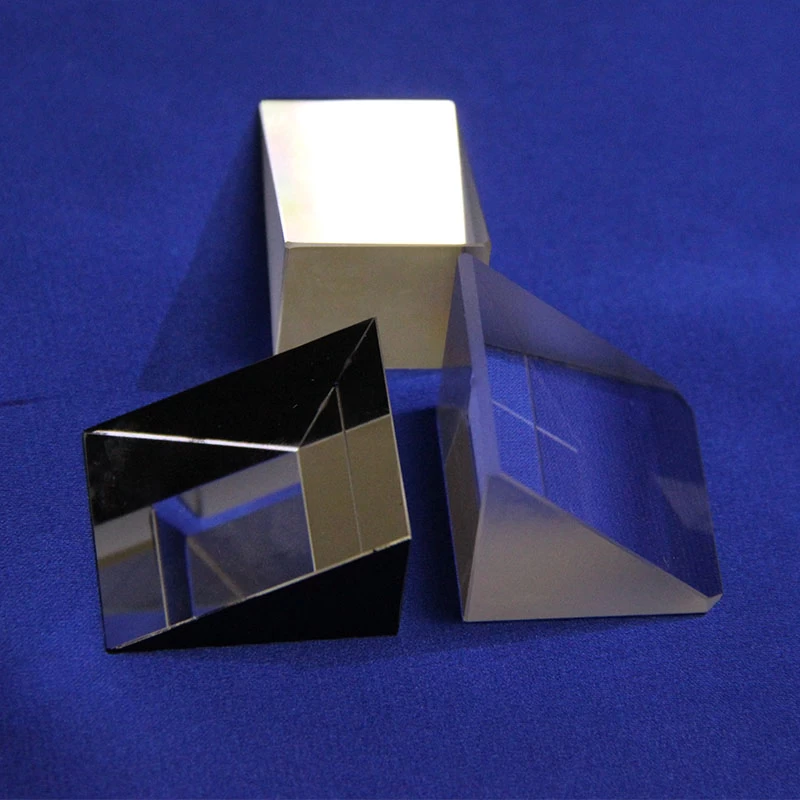

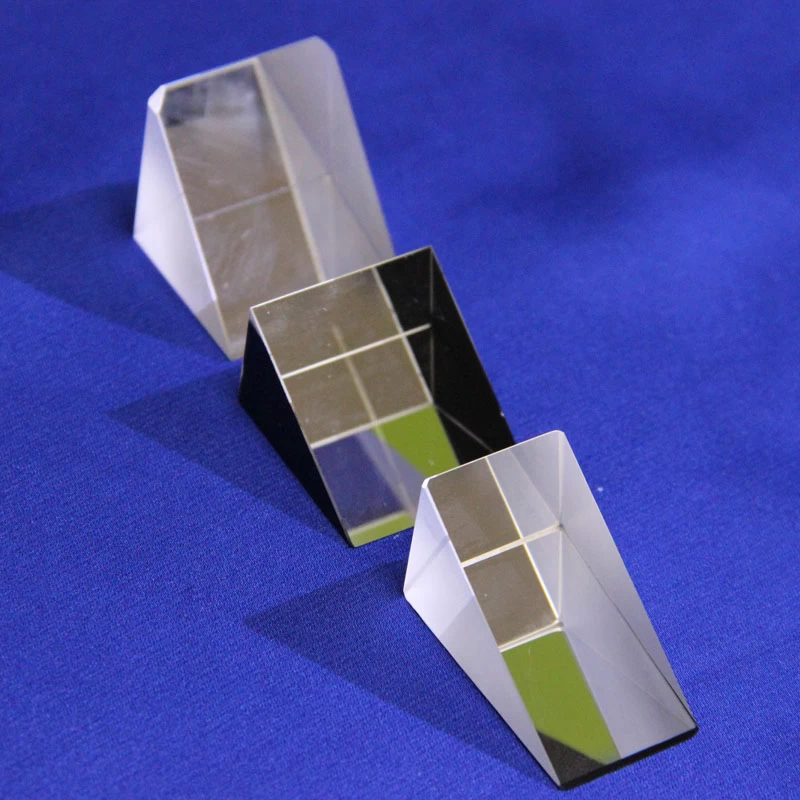

30° - 60° - 90° Littrow Prisms
Ray Deviation of 60° If Coated
Ideal as a Dispersion Prism if Uncoated
Right Handed Image
Littrow Prisms have two main applications.
1. Uncoated littrow dipersion prisms are used to disperse light into its component spectrum.

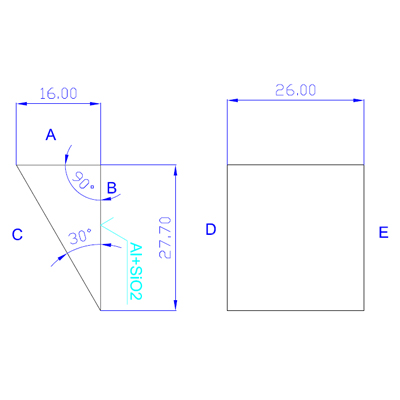

2. Coated littrow dipersion prisms are used to deviate the line of sight by 60°. Reflection coating at the long Right angle surfaces could be used one glasses for climbing and reading laid at the bed.
|
Specifications:
|
|
|
Material:
|
N-BK7 ; UV Fused Silica ;other optical glass
|
|
Dimension Tolerance:
|
±0.1mm(Standard) ; ±0.05mm (High precision)
|
|
Surface quality:
|
60-40 S/D(Standard); 10-5 S/D(High precision)
|
|
Surface flatness:
|
λ/4@632.8nm(Standard); λ/8@632.8nm(High Precision)
|
|
Deviation 180°:
|
±3 arc min(Standard); ±30 arc sec(High Precision)
|
|
Clear Aperture:
|
>85% of dimension
|
|
Bevel:
|
<0.25mm×45°
|
|
Coating:
|
Reflecton coating, Ar coating etc. upon requirement
|
Different Shape, Glass, Coating requirement are available.
