300℃ 24T Lab Small Manual Hydraulic Press with Double Heating Plate

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164


  • WarrantyOne year limited warranty with lifetime technical support
  • Certificate CE, IOS, ROHS, SGS, UL Certificate

300℃ 24T Lab Small Manual Hydraulic Press with Double Heating Plate



The maximum temperature of the double-plate hot press can reach 300℃ or 500℃, and the thickness of the pressed film is 50um-500um.

It is suitable for the study of polymer materials and other thin film materials, and can be used as a small plate vulcanizer.

It is suitable for rubber, plastics, leather, chemical industry, pigments, electronics, electrical appliances, textiles, hardware and other fields. It is a matching equipment for engineering technicians of colleges and institutes to carry out spectral detection and qualitative analysis. The machine can be used as a multi-purpose machine with suitable dies. It can be used as an ordinary manual powder tablet press. At the same time, it can also be used as a press in other work situations where the corresponding pressure is required. It can also be used as a press to test the pressure resistance of various objects and so on.


Specification


Product Name

Lab Press Machine

Module

TMAX-RT-24D

Pressure range

0-24T0-34MPa

Piston diameter

Chrome plating cylinder

Standard pressure gauge type

Indicator/pointer  type, Ton and Mpa double-scale display

Optional pressure gauge

Digital display 0.00-40.00 MPa, accuracy 0.01 MPa at extra fee

Pressurization method

manually pressurization

Temperature Controller Type

PLC Programmed Temperature Controller (Double Temperature Controller)

Temperature Control Range

RT-600.0℃

Heating Temperature of Die

RT-300.0℃(can be customized to 500℃ high temperature die)

Control accuracy

0.1℃

Insulation mode

Imported insulation plate

Cooling mode

Rapid cooling by water cooling (water cooler is optional)

Overall structure

Integral structure patented technology, no sealed connection of equipment, reduce oil leakage point

Heating Die Size

Double Heating Plate 100 x 100mm

Power supply power

220V/1000W

Main Machine Size

405 x 260 x 525mm (excluding optional)

Size of the whole machine

1000×470×500mm

Weight

About 58kg

Instrument description

Optional digital pressure gauge (S type), workspace can be increased, special hot press can be customized according to user needs

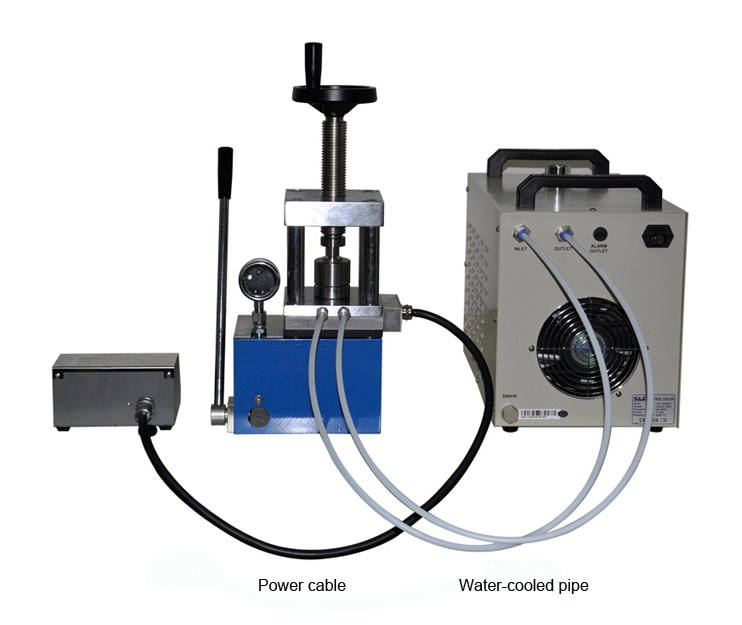

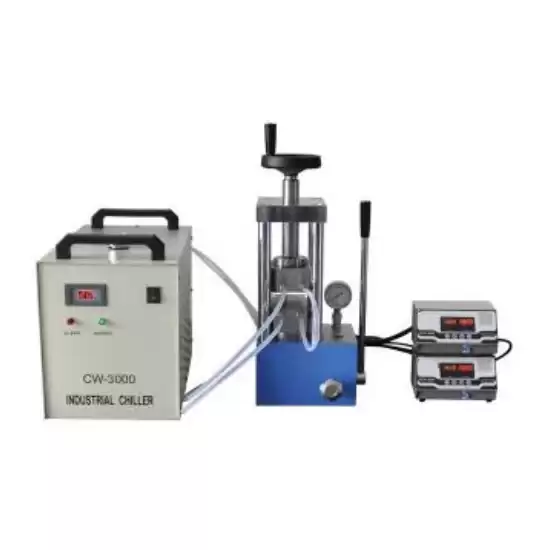

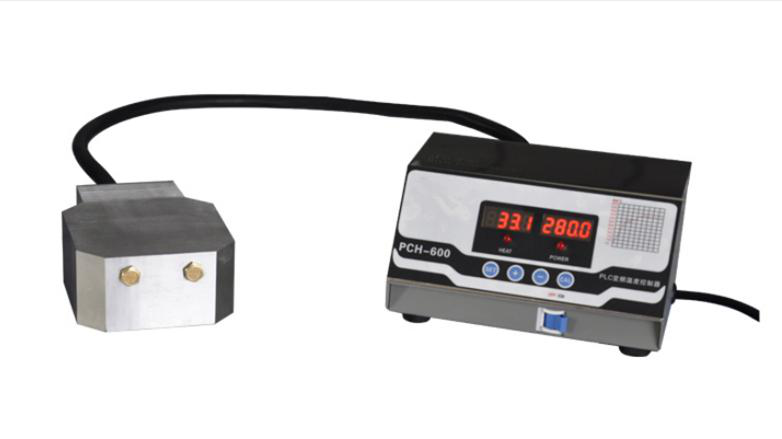

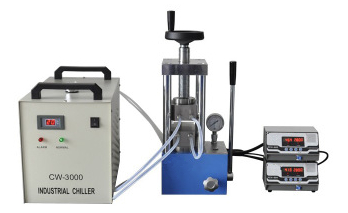

Product Images
