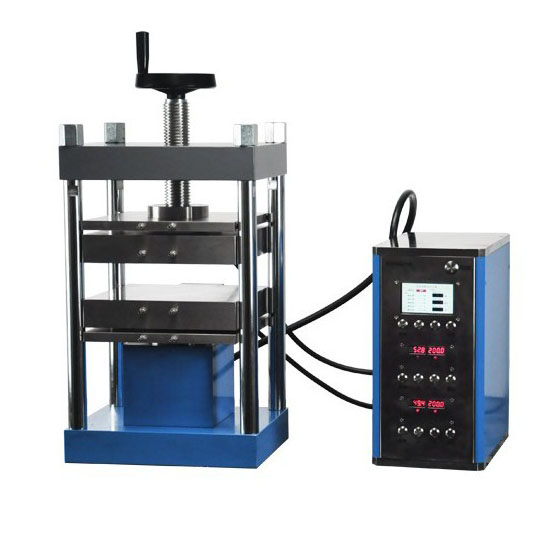

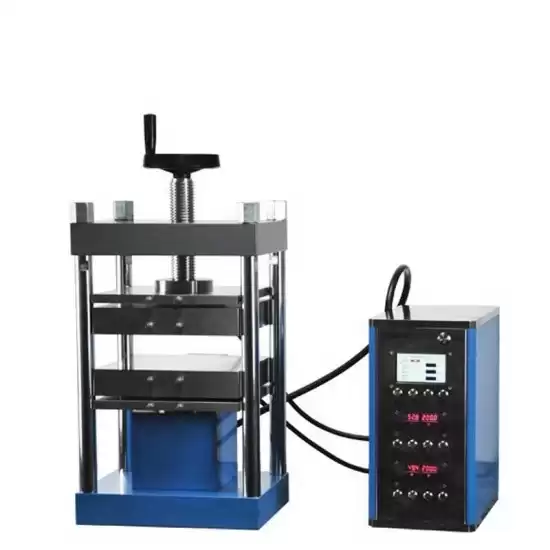

300℃ 40T Lab Automatic Hydraulic Hot Press with High Precision Pressure Control

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164


  • WarrantyOne year limited warranty with lifetime technical support
  • Certificate CE, IOS, ROHS, SGS, UL Certificate

300℃ 40T Lab Automatic Hydraulic Hot Press with High Precision Pressure Control



Our tablet presser has the advantages of small volume, high pressure and high precision of pressure control. It is applied to chemical industry, such as: scientific research, pharmaceutical, teaching, testing, catalysis and so on.In addition, this product can also be used with Fourier infrared spectrometer.Fluorescence spectrometer supporting sample preparation, can replace similar imported products.


Advantages

a.Small size, light weight,No oil, easy to carry.

b.High speed steel imported from Japan

c.Digital display pressure gauge0.1MPa,Pressure control is more accurate.

d.The oil pool is easy to replace oil on the main surface of the host, and the hydraulic oil filter is added to the oil path.

E.Special plunger, special custom sealed structure, good sealing effect, no oil leakage

F.The upper plate adopts six angle screws in electroplating sunk head. It is beautiful and saves space.

G.One one main plate structure, oil pool, main board, oil cylinder, on one body, no seal connection.

H.Lengthening spring, the rebound effect is good, not easy to deform, can realize the oil cylinder 30mm return no deformation.

I.The Aluminum Alloy handwheel, beautiful, practical, durable, not easy to damage



Specification

Product Name

Lab Pressing Machine

Type

TMAX-RT-300c

Pressure range

0-40T

Pressurization process

Program Pressurized--Holding pressure--Pressure relief

Holding pressure

0-999s

Thermostat temperature control

RT-600℃

Abrasive heating temperature

RT-300℃

Temperature control accuracy

0.1℃

Insulation method

Imported heating plate

Cooling method

Rapid cooling water

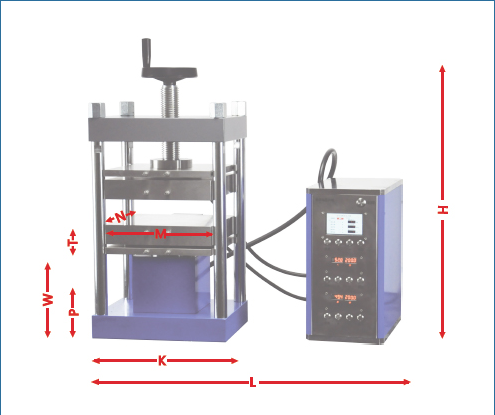

Mold size

Double flat 300*300mm(M*N)

Main engine Size

380*350*600mm(K*P*H)

over dimension

700*400*600mm(L*W*H)

Power

220V/3000W

Main engine weight

51kg

Hydraulic Hot Press



 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
