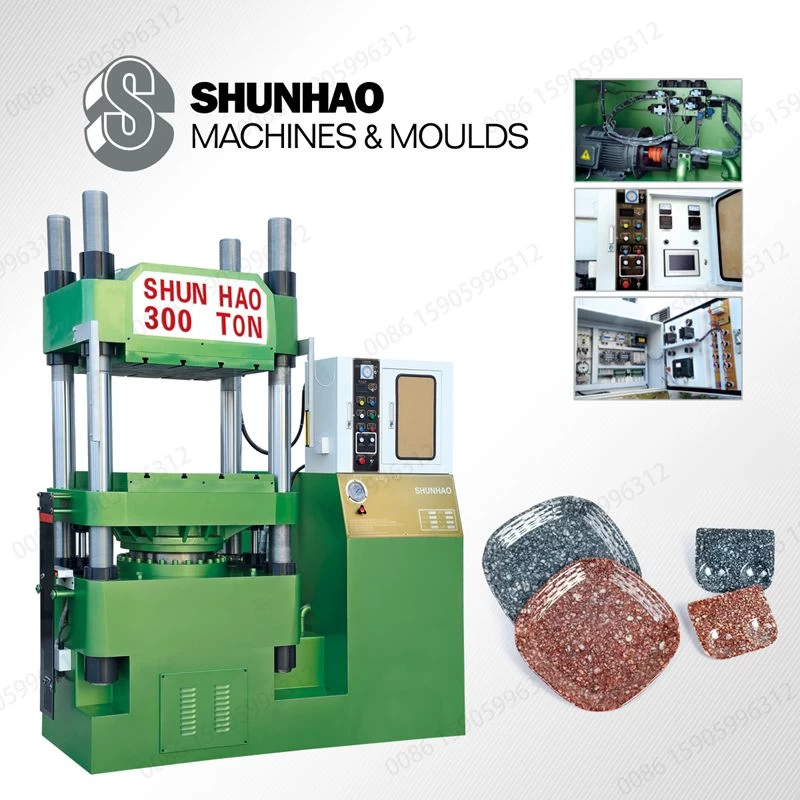

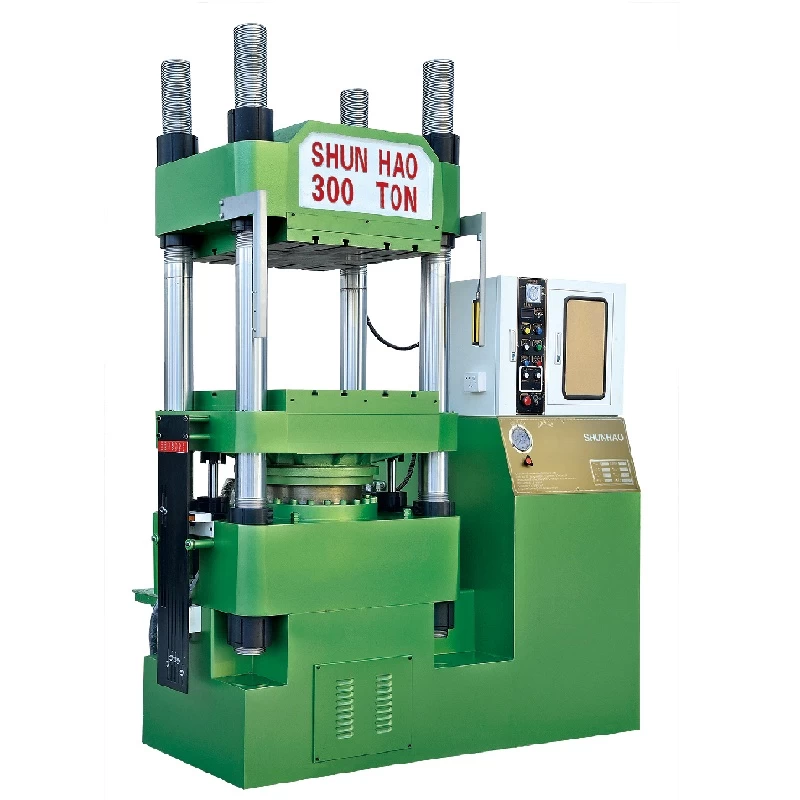

Automatic Single Color Melamine Tableware Moulding Machine
Features
* The vertical pressure is stable and the exhaust frequency is up to 99 times. The pressing time, deflation time and deflation distance can be freely set and adjusted.
* The model of stamping circulation system can also be customized. Closing and opening the mold with low and high speed operation protects the mold and saves time.
* Easy operation, automatic and no noise.
* Suitable for producing melamine tableware, urea and rubber products.
Technical Parameters
|
No.
|
Content
|
DTB 300 A
|
|
1
|
Main Cylinder
Nominal Pressure
|
300Tons
|
|
2
|
Maximum Working
Pressure
|
210kg/cm2
|
|
3
|
Main Cylinder
Piston Diameter
|
Ø450mm
|
|
4
|
Main Cylinder
Working Stroke
|
600mm
|
|
5
|
Adjustable Table
Distance
|
500~1060mm
|
|
6
|
Heating Plate
Size
|
760*720mm
|
|
7
|
Working Layers
|
1 layer
|
|
8
|
Heating Plate
Material
|
45#
|
|
9
|
Tension Column
(Heat Treatment Grinding)
|
Ø120*2400mm
|
|
10
|
Oil Hydraulic
Pump
|
21Mpa
|
|
11
|
Motor
Specifications
|
15HP
|
|
12
|
Heating Sheet
Total Power
|
12.4KW
|
|
13
|
Machine Total
Power
|
23.4KW
|
|
14
|
Machine
Size(length * width * height)
|
2.25*1.45*2.96 M
|
|
15
|
Machine Weight
|
6200KGS
|
■ PS: Specifications subject to change without notice.

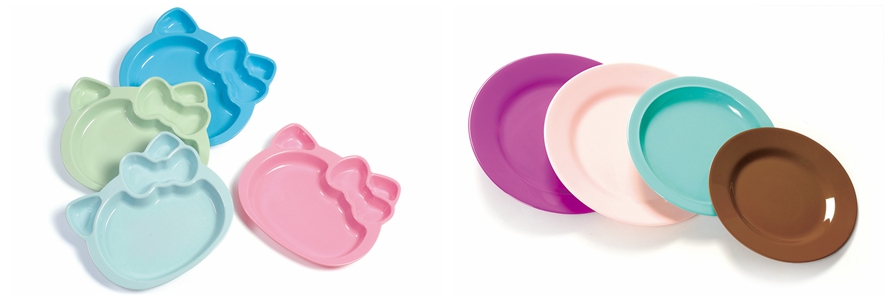

Application:
This series of melamine tableware molding machine products are suitable for melamine tableware, trays, sinks, sink surfaces, cups, chopsticks and other shapes, decals, hot stamping and support customized various parameters and various shapes of hydraulic systems.
