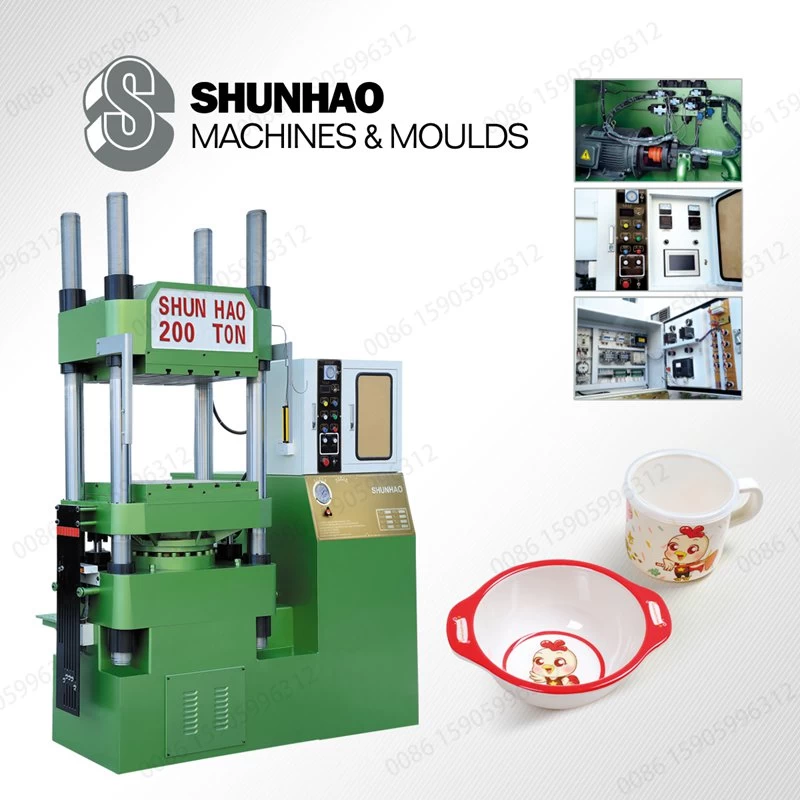

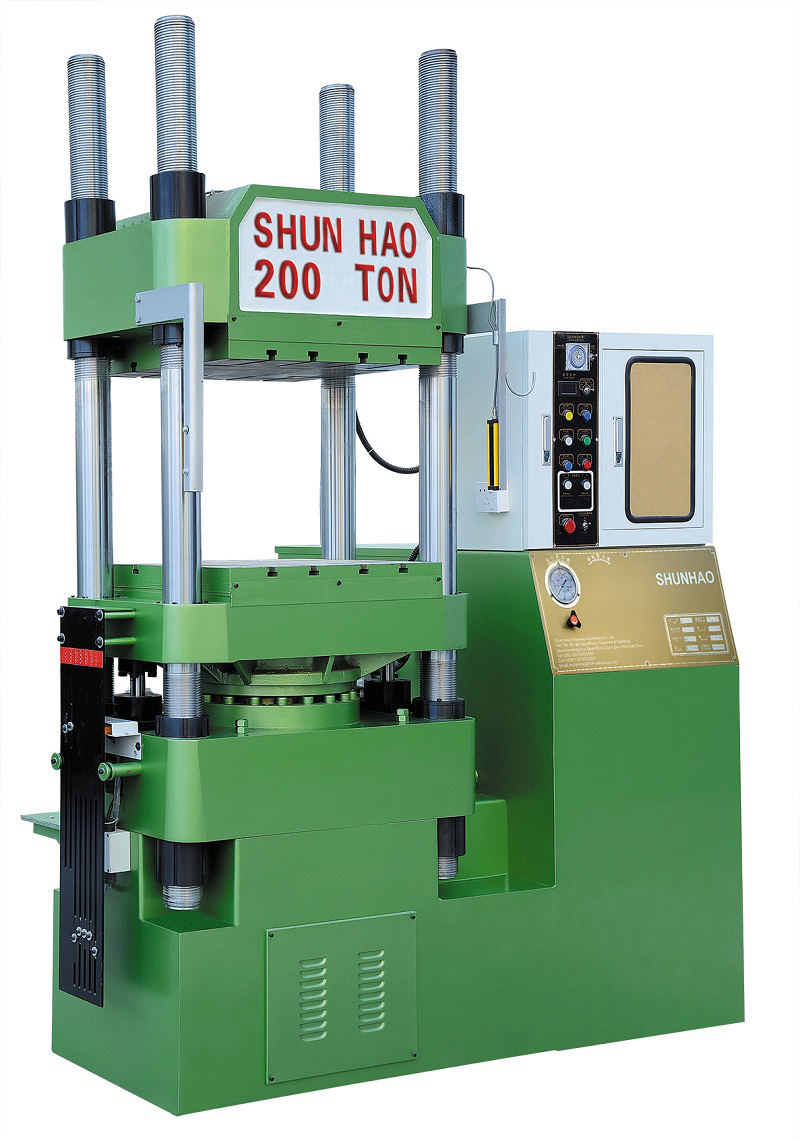

Automatic Single Color Melamine Tableware Molding Machine-DTB 150TONS/200TONS
Competitive Advantage
1. CE certification
2. Fully automatic, energy saving
3. Proprietary technology provides overseas technical support
4. High-quality thermoforming machine, which automatically completes forming, drying and pressing in one machine
5. With over 18 years of experience in tableware molding machine. Shunhao is a reliable supplier in China
Features
* Stable vertical pressure, the air release frequency is up to 99 times. Pressing time and air releasing time and air releasing distance can be freely set and adjusted.
* Pressing circulation system model is customized additionally. Operation by slow speed and high speed to close and open molds，which can protect the molds and save time.
* Easy and automatic operation, without noise.
* Suitable for production of melamine tableware, urea items, and rubber items.
Technical Parameters
|
No.
|
Content
|
DTB 200
|
|
1
|
Main Cylinder Nominal Pressure
|
200Tons
|
|
2
|
Maximum Working Pressure
|
210kg/cm2
|
|
3
|
Main Cylinder Piston Diameter
|
Ø370mm
|
|
4
|
Main Cylinder Working Stroke
|
560mm
|
|
5
|
Adjustable Table Distance
|
500~960mm
|
|
6
|
Heating Plate Size
|
680*620mm/720*720mm
|
|
7
|
Working Layers
|
1 layer
|
|
8
|
Heating Plate Material
|
45#
|
|
9
|
Tension Column (Heat Treatment Grinding)
|
Ø100*2200mm
|
|
10
|
Oil Hydraulic Pump
|
21Mpa
|
|
11
|
Motor Specifications
|
10HP
|
|
12
|
Heating Sheet Total Power
|
12.4KW
|
|
13
|
Machine Total Power
|
19.9KW
|
|
14
|
Machine Size(length * width * height)
|
2.0*1.42*2.7 M
|
|
15
|
Machine Weight
|
4800KGS
|
■ PS: Specifications subject to change without notice.
