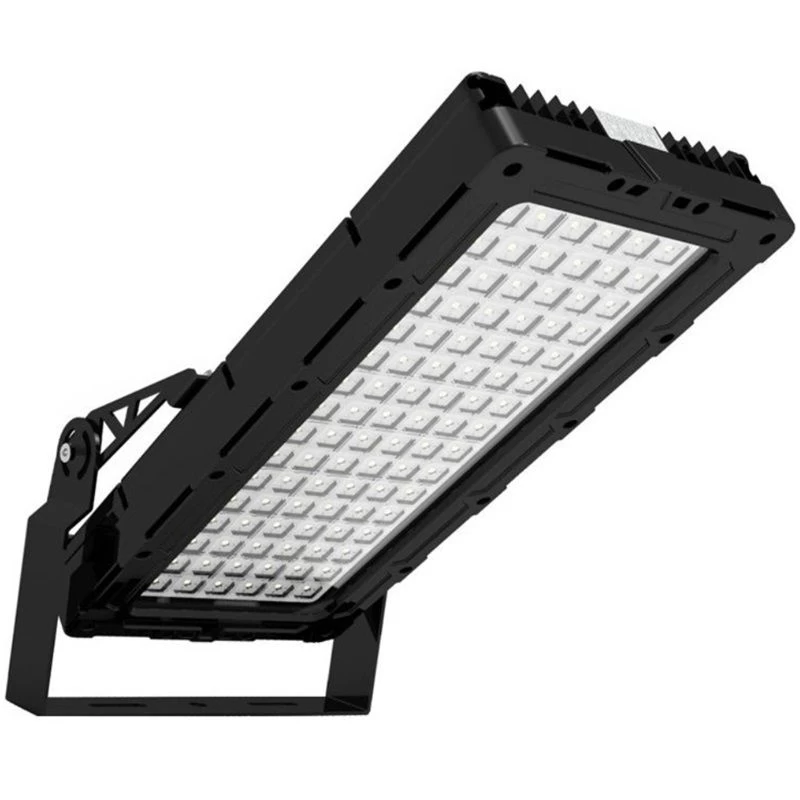

Product Item: 300W Directional Modular LED High Mast Flood Lights For Outdoor Sports Pitch Lighting
Overview:
This range of angle-adjustable LED high mast floodlights ranges from 240W to 2000W, with each module's power at 240W-320W. It can be grouped as a luminaire in 1-6 modules with powerful function. Taking Lumileds SMD LED and Mean Well drivers as high quality guarantee, this high mast light can deliver 130-150LM/W luminous efficacy.
The high lumen output high mast sports floodlights have good ventilation and heat dissipation, with the high heat conductivity aluminum heat sink and well-designed structure. Excellent thermal management contributes to the super long life span over 50, 000hours.
The high versatility of the sports ground floodlights makes it suitable for harbour/dockyard lighting, retail park lighting, railway and marshalling yard lighting, petro-chemical lighting, water treatment plant lighting, container terminal lighting, etc.
Specifications:
|
Model
|
SR-HMAS-300W
|
Power
|
300W
|
Lumen Output
|
42,000lm
|
Light Source
|
LUMILEDS/OSRAM/CREE, etc.
|
Beam Angle
|
30°/60°/90°/TYPE Ⅱ/TYPE Ⅲ(25°/40° available)
|
Driver
|
MEAN WELL/SOSEN, etc.
|
Input Voltage
|
AC 100-305V, 50/60Hz
|
Power Factor
|
>0.95
|
CRI
|
Ra>80
|
CCT
|
3000K/4000K/5000K/5700K/6500K
|
IP Rating
|
IP65
|
|
IK Rating
|
IK08
|
Dimming
|
Dimmable/Non-dimmable
|
Material
|
Die-cast Aluminium, Tempered Glass
|
Dimension
|
571.7x272x116.8mm
|
Weight
|
7.5KG
|
Warranty
|
5 years
|
Features:
-
Power options: 240W/320W/480W/640W/720W/960W/1280W/1440W/1920W, or customized 300W/600W/700W/ 900W/1000W/1200W/1500W/2000W.
-

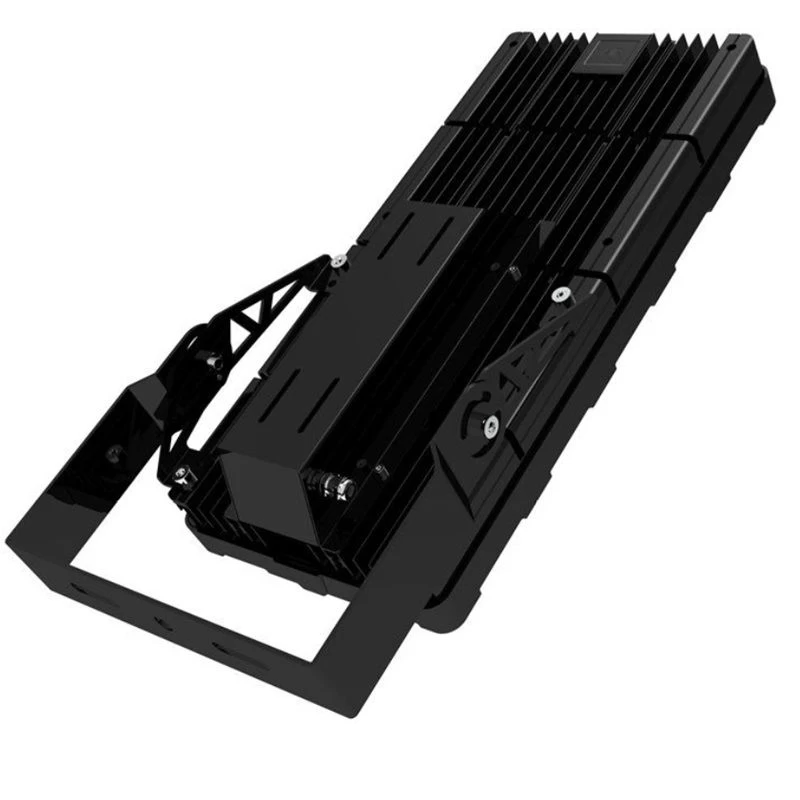

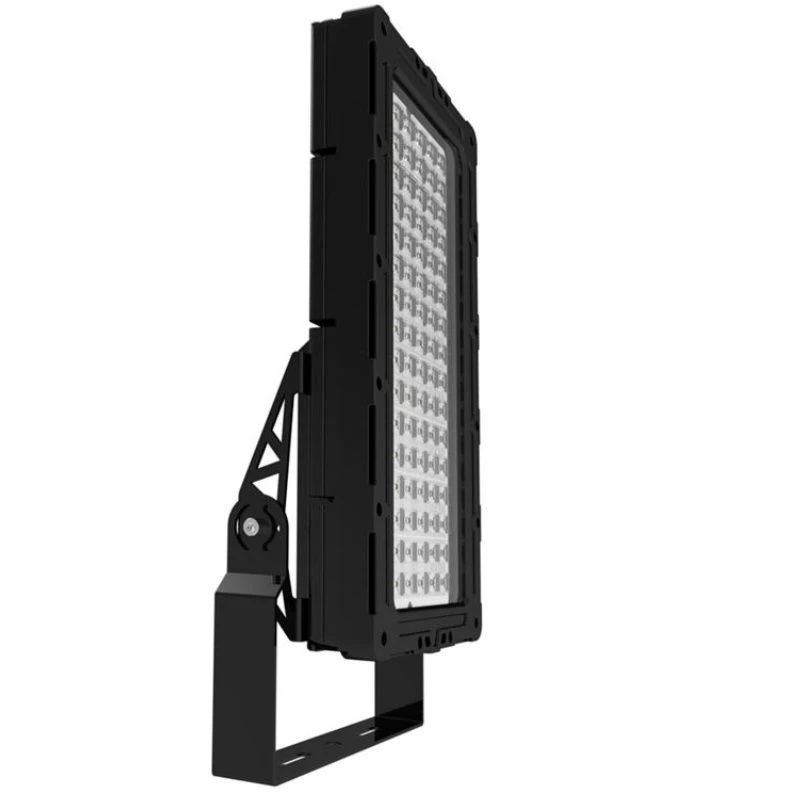

With each module 240W-320W, this modular design high mast lflood light can be tilt on the bracket for 90 degree, and bracket can be rotated for 180 degree.
-
High lumen Lumileds LED as light source, high efficiency Meanwell driver to ensure five years warranty.
-
High transmission polycarbonate lens for high percentage of effective system lumen efficacy 130-150LM/W, and with high uniformity of lighting.
-
Surge protection 6KV, and 10KV surge protection device(SPD) also available to ensure working safety.
-
Light beam options: Lumileds SMD3030 for 30°, 60°, 90°, Type II, Type III; Lumileds SMD5050 for 25°, 40°, 60°, 90° for various lighting projects application.
-
Powder coating die-cast aluminum heat sink for best control of system temperature, highly ventilated lamp body with good airflow, thus to prolong expectancy.
-
Dimming and control options: 1-10V dimming, DALI dimming, Zigbee wireless control, etc.
-
High power factor>0.95, and high protection level, IP65 and IK08, non-corrosive, waterproof, dust'proof, etc.
-
Wide voltage 100-305V, compatible to most countries in the world.
-
Light spill shield available, this glare-free high mast floodlight can effectively reduce spill light, and reduce the uncomfortable feelings the high mast lamp brings to the audience.
|
|
|
Lighting Distribution:
Lumileds SMD3030(recommended): 30 degree, 60 degree, 90 degree, 90x150 degree.
Lumileds SMD5050: 25 degree, 40 degree, 60 degree, 90 degree.
Application:
Sports ground lighting, football pitch lighting rugby pitch lighting, tennis court lighting, dockyards, motorway network and intersection lighting, airport lighting, urban square lighting, etc.
|
 dockyards, motorway network and intersection lighting, airport lighting, urban square lighting, etc.
|
