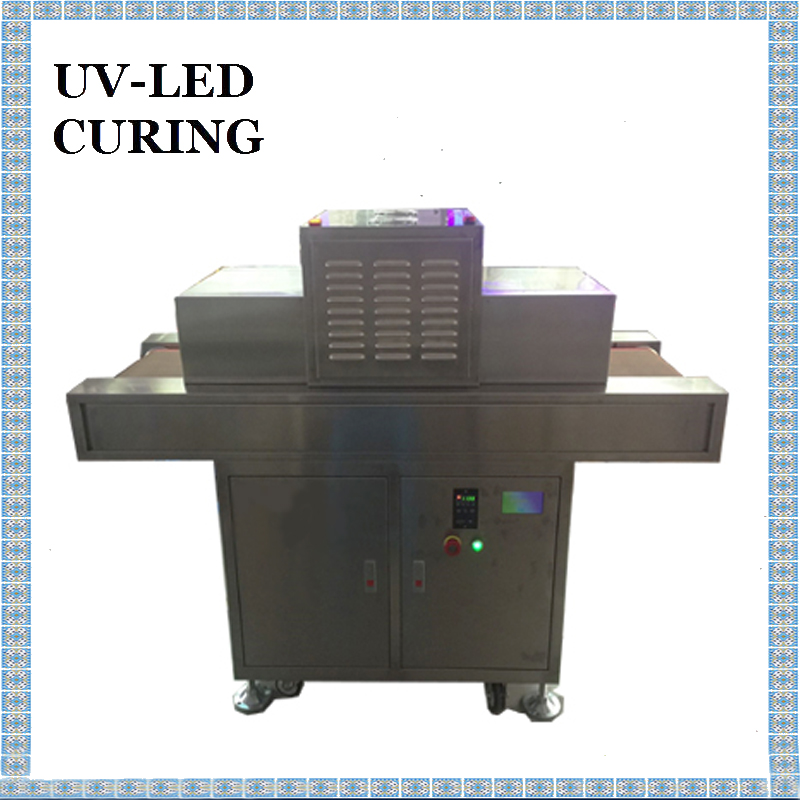

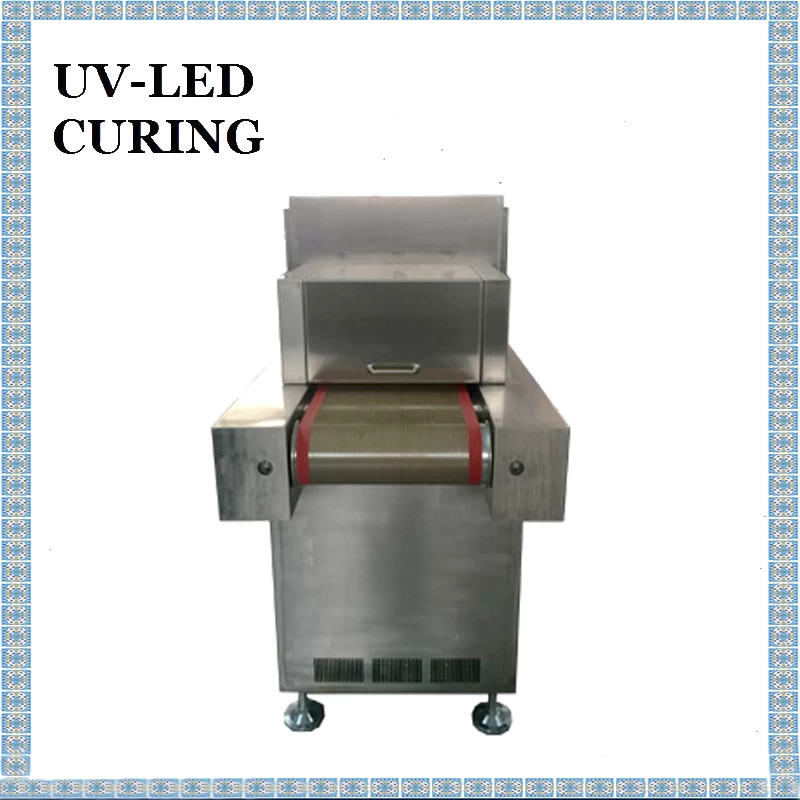

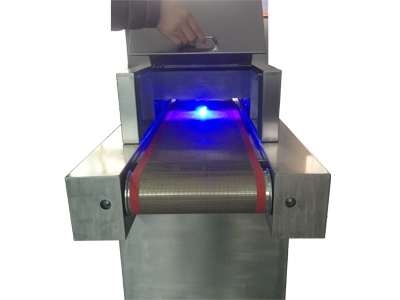

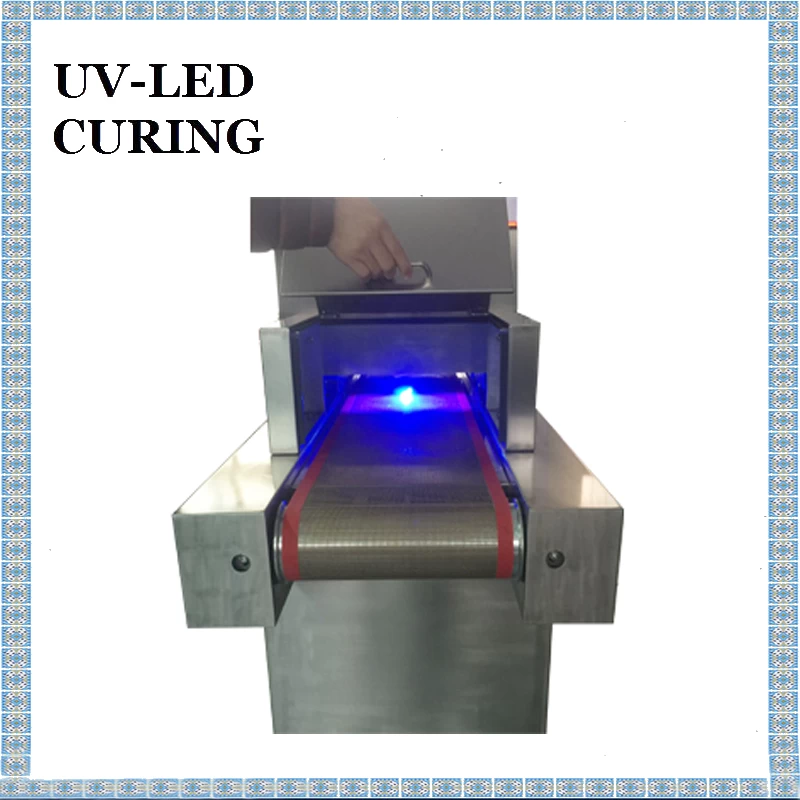

300*200mm Stainless Steel UV LED Curing Machine UV Conveyor high light out of alignment, good uniformity. Do not preheat the boot, that is open to use, instantaneous maximum light intensity. No infrared radiation, cold light source, suitable for all kinds of heat-sensitive materials curing. The machine uses 304 stainless steel, hood can be opened and closed with the need. Does not contain mercury, does not produce ozone safety and environmental protection. Infrared sensor intelligent control, start and stop control on demand.

Specification Parameter

1.Control system:

  *panel display,touch operation, real-time

  *monitoring of head of the working state

  *intensity adjustable from 0-100%

  *temperature monitoring

  *infrared sensor control, conveyor would stop when the UV LED system lighting

  *speed of conveyor:0-10m/min adjustable

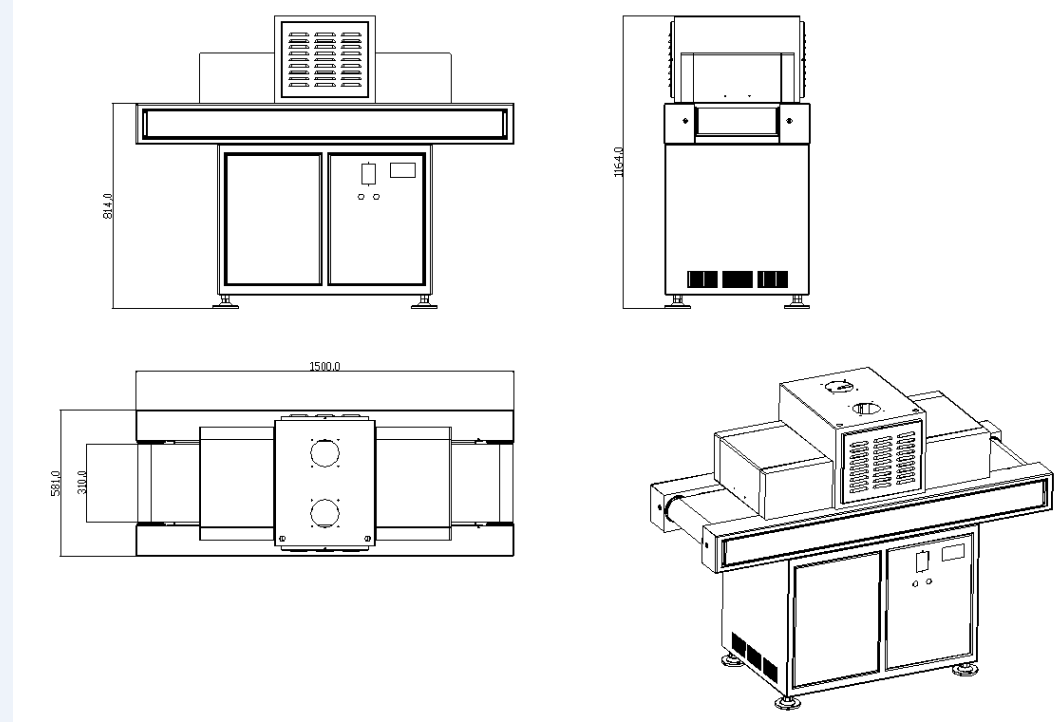

  *whole machine size:L1500*W581*H1640mm

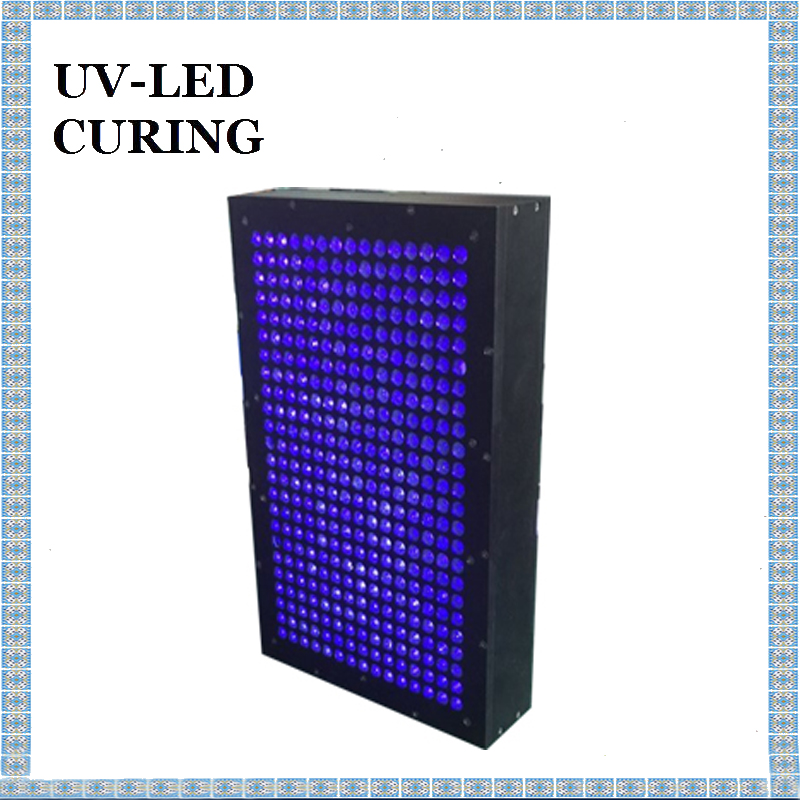

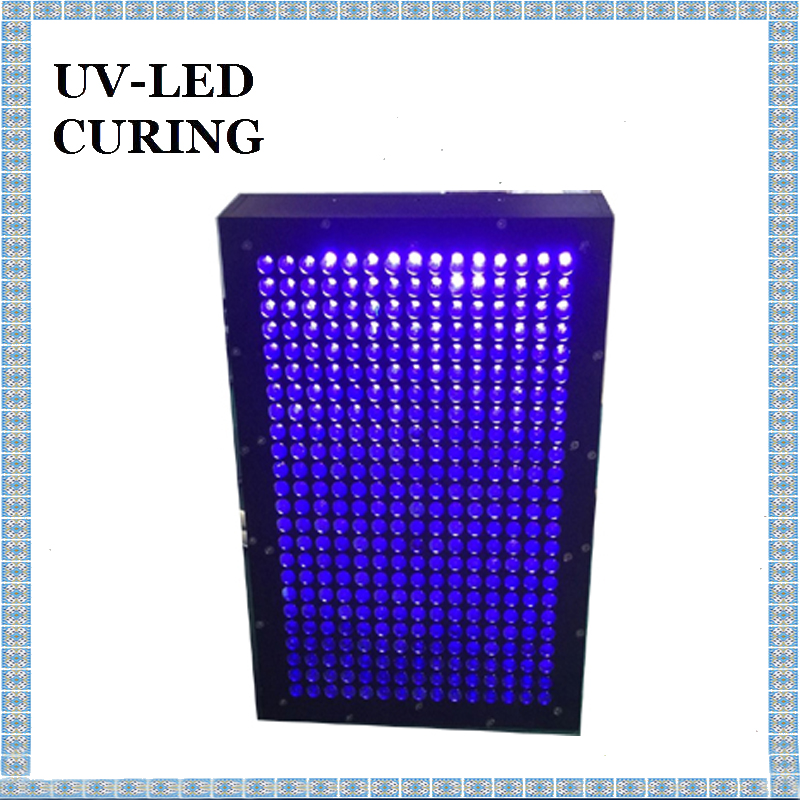

2.UV LED irradiation head(DSX-S528-30X350)

  *wavelength:365nm

  *curing area:200x300mm

  *optic power:13w/cm2(10mm irradiation distance)

  *recommended height of irradiation:5-100mm

  *dimension:L334*W224*H61mm

  *cooling method:  air cooling

Product Survey

DSX-SL360-300X200-365 is a high-performance UVLED surface curing system designed for UV adhesive curing. The system mainly consists of a control system, a UVLED head and a conveyor belt. The machine UVLED irradiation head with imported high-intensity UV LED integrated UV wavelength of 365nm, single LED front quartz mirror installed to improve the LED light output accuracy and uniformity, uniformity up to 90%, the whole machine material 304 stainless steel, Teflon conveyor belt, width of conveyor is 300mm.
