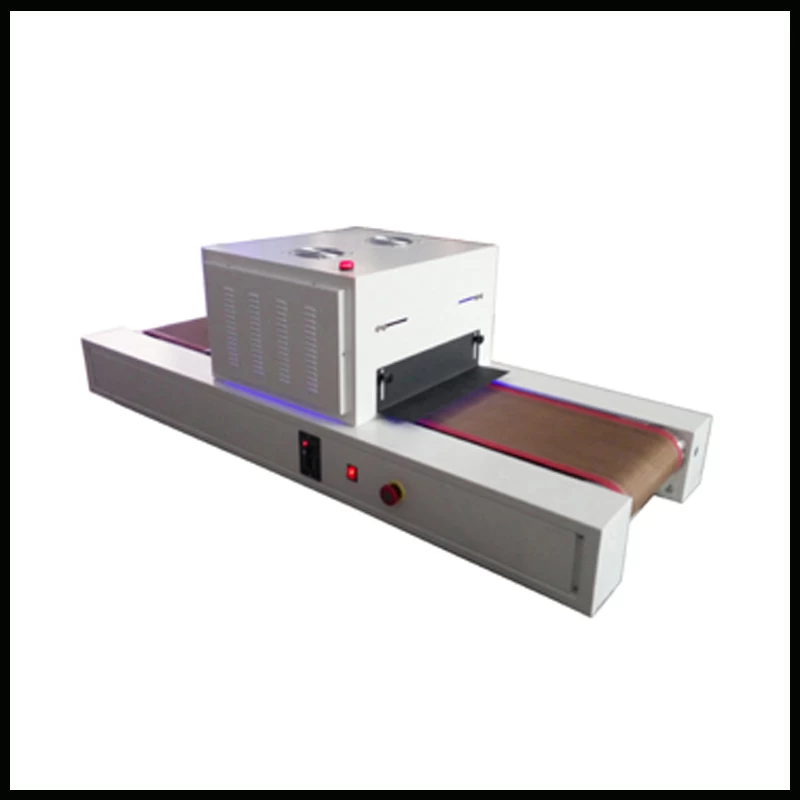

Energy Saving UV LED Curing System with Desktop Conveyor for Printing

Energy saving factory price UV LED Curing System with desktop conveyor for printing. Effective irradiated area: 30mm*200mmTotall size: 1500x300mm and 1200x400mm



Energy saving factory price UV LED Curing System with desktop conveyor for printing. Effective irradiated area: 30mm*200mmTotall size: 1500x300mm and 1200x400mm



Advantages of LED System UV LED Curing Machine :

1. Long life span: 25000-30000H

2. Energy saving: save 80% electrical than Mercury lamp

3. Enviroment friendly: NO Mercury. NO Ozone

4. NO warm-up time

5. Low temprature

6. UV output adjustment: From 1%-100%.

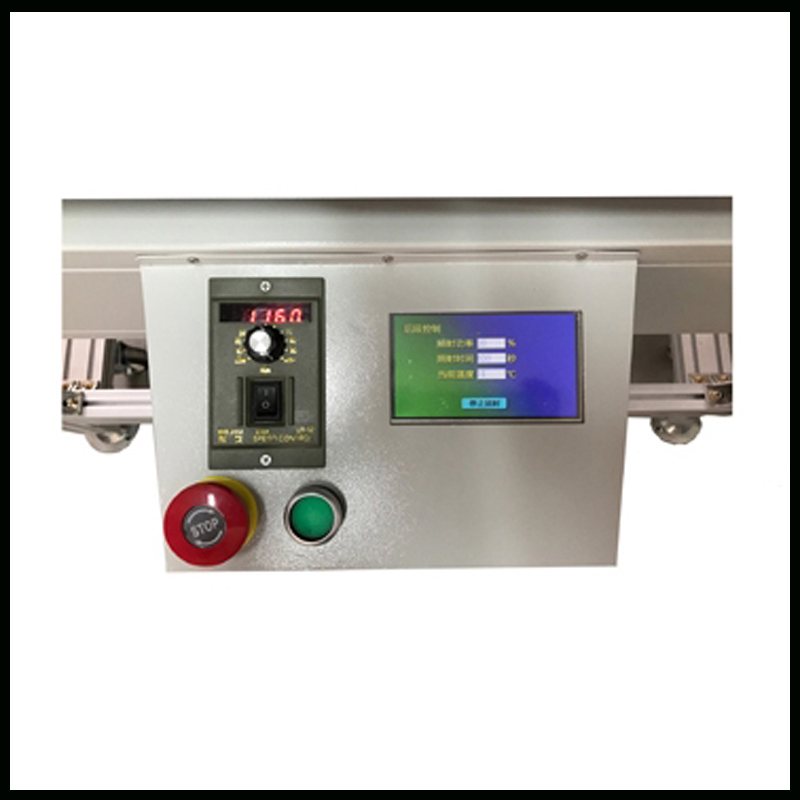

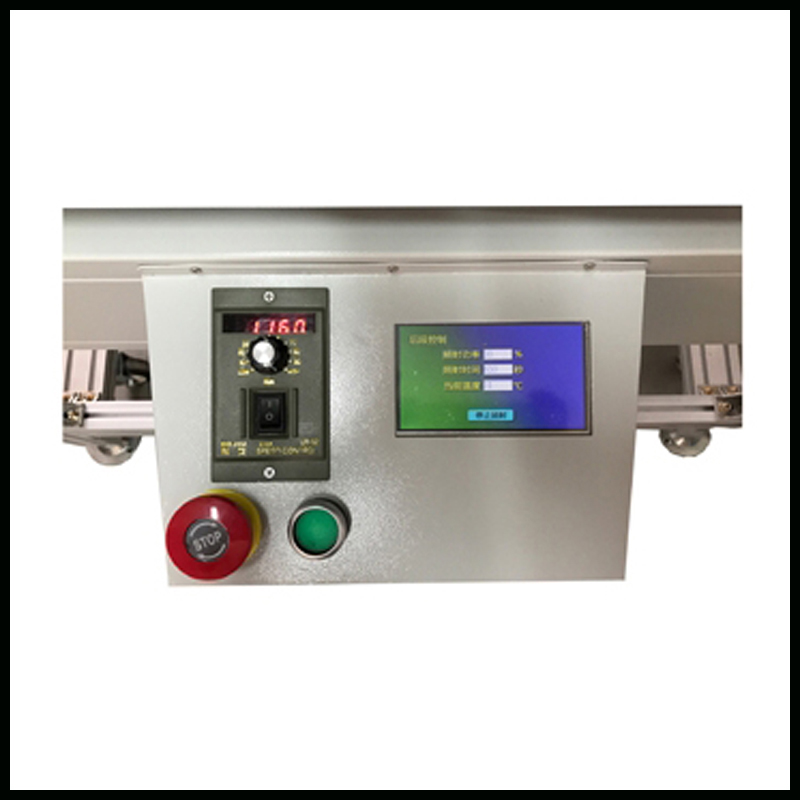

7. Multiple control modes:pedal control, digital I/O, PLC and COM


UV Glue Curing

Glue Machine of UV LED


Technical Data of UV Conveyor Dryer Irradiation Light Head:

Wavelength(±5nm)

365nm/385nm/395nm/405nm

Curing Area

300*200mm/Other Sized Available

Electronic Power

1100w

Input voltage

220VAC 50Hz / 60Hz

Cooling method

Air cooling

Life

>10000H

Conveyor Speed

100-400mm Adjustable

Irradiation distance

10-100mm adjustable

Optic power

800mw/cm2 (10mm irradiation distance)

Recommend Irradiation Distance

10-100mm

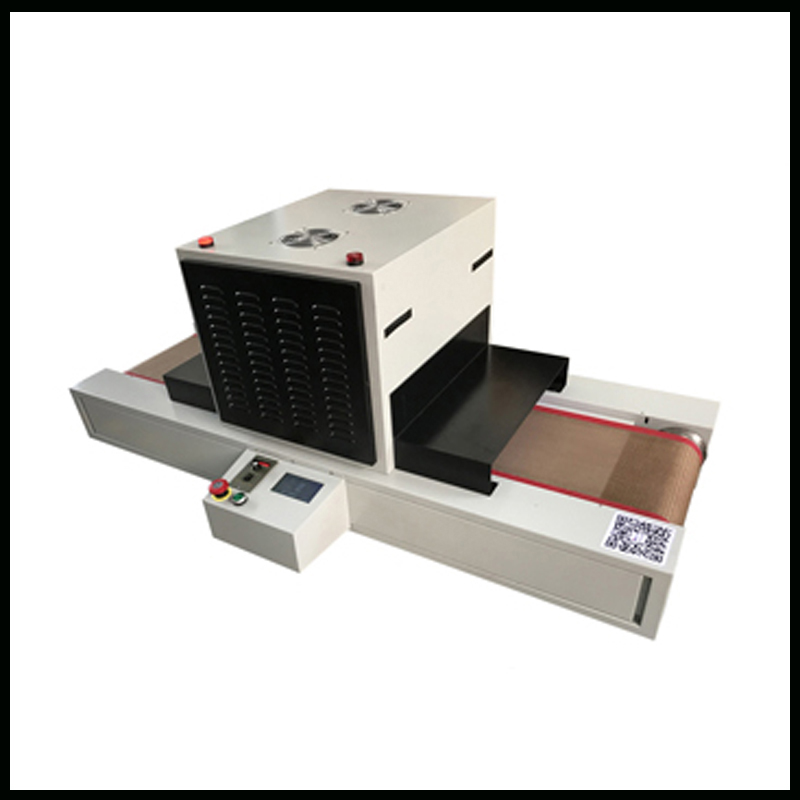

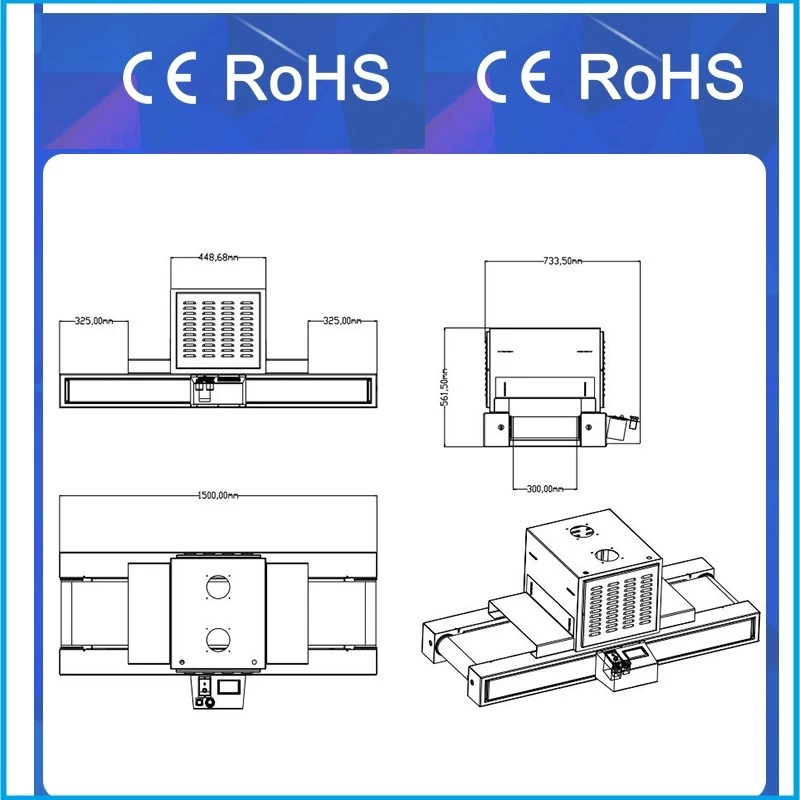

Details of 300*200mm Compact UV Conveyor Oven :

UV LED 300*200 DesktopUV Curing Printing 300*200mm

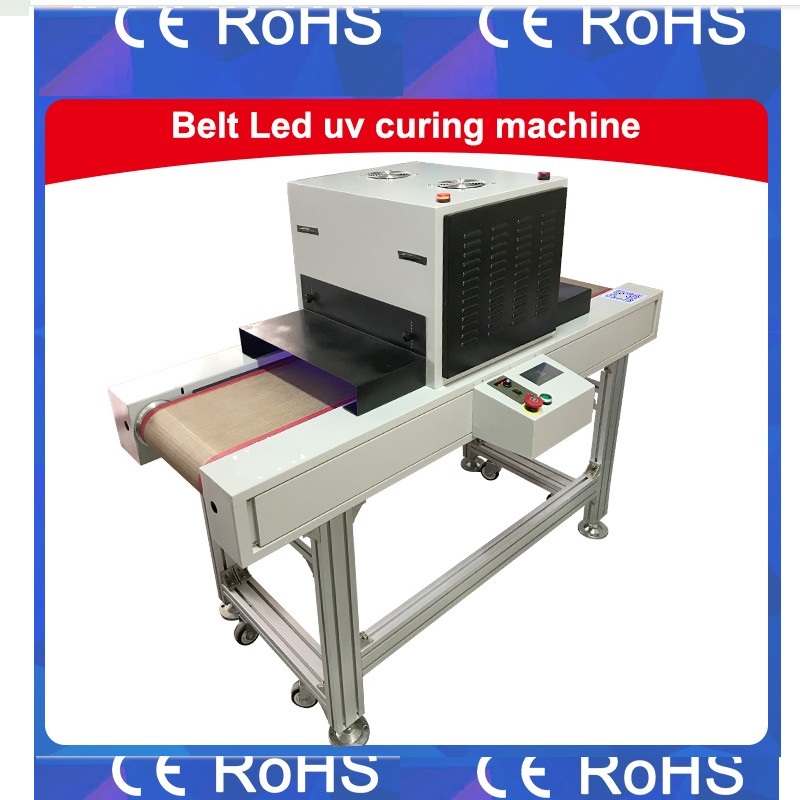

Conveyor Belt UV Curing System  :

Wavelenght: 365nm, 385nm, 395nm, 405nm available

Irradiated area: 300*200mm

Peak irradiance: 1300mw/cm2; 2000mw/cm2 available

Irradiated distance: 10-60mm

Intensity range: 1% to 100%


Conveyor description of Desktop UV Conveyor :

Belt width: 300mm

Belt material: teflon mesh

Conveyor speed: 1-10m adjustable

UV light away from the conveyor belt can be adjusted from 10 to 300mm


Product feature of Desktop UV Conveyor Dryer :

1. Instant ON/ OFF, NO preating required.

2. Adjustable curing distance, UV output intensity and conveyor speed

3. Energy saving and environmental protection

4. infrared sensor to stop, protect your products
