As the most professional semi-trailer manufacturer in China, we CEEC TRUCKS can produce all kinds of semi-trailer based on customers’ request, such as: Flatbed semitrailer (Long Vehicle); Skeletal container semi-trailer; Wall side cargo semi-trailer; Gooseneck skeletal container semi-trailer; Tipper semi-trailer; Stainless tanker semi-trailer; V type bulk cement semi-trailer; Low bed semi-trailer; Concrete mixer semi-trailer; Container semi-trailer, etc.

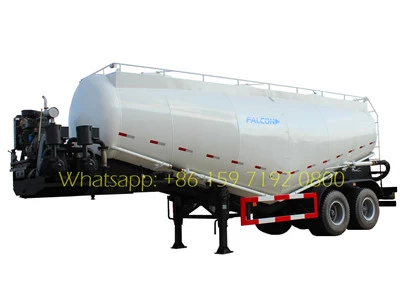

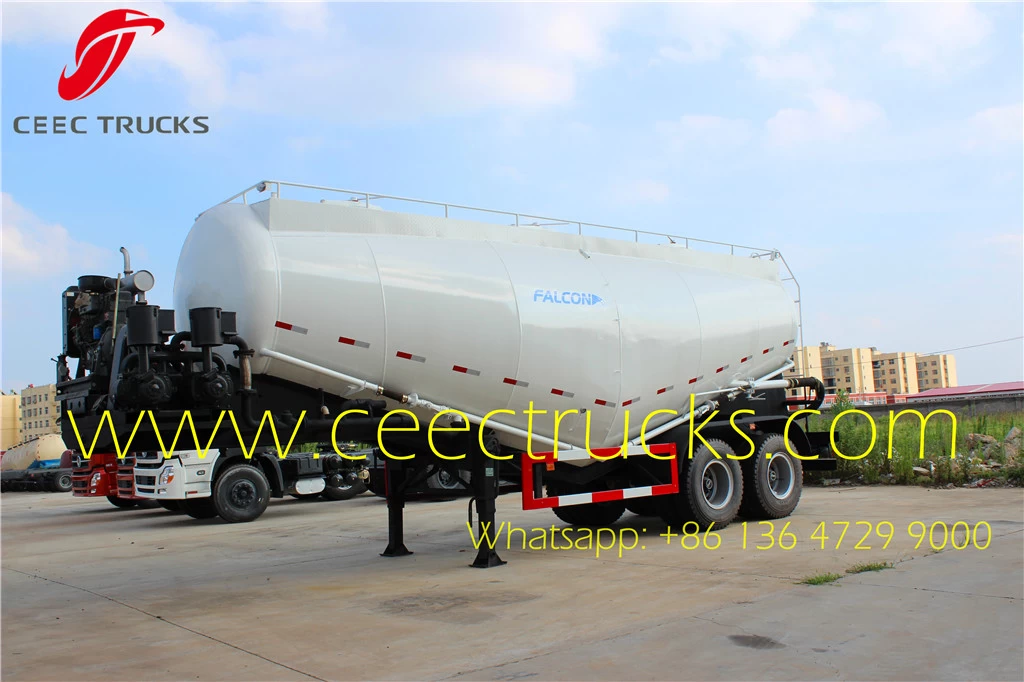

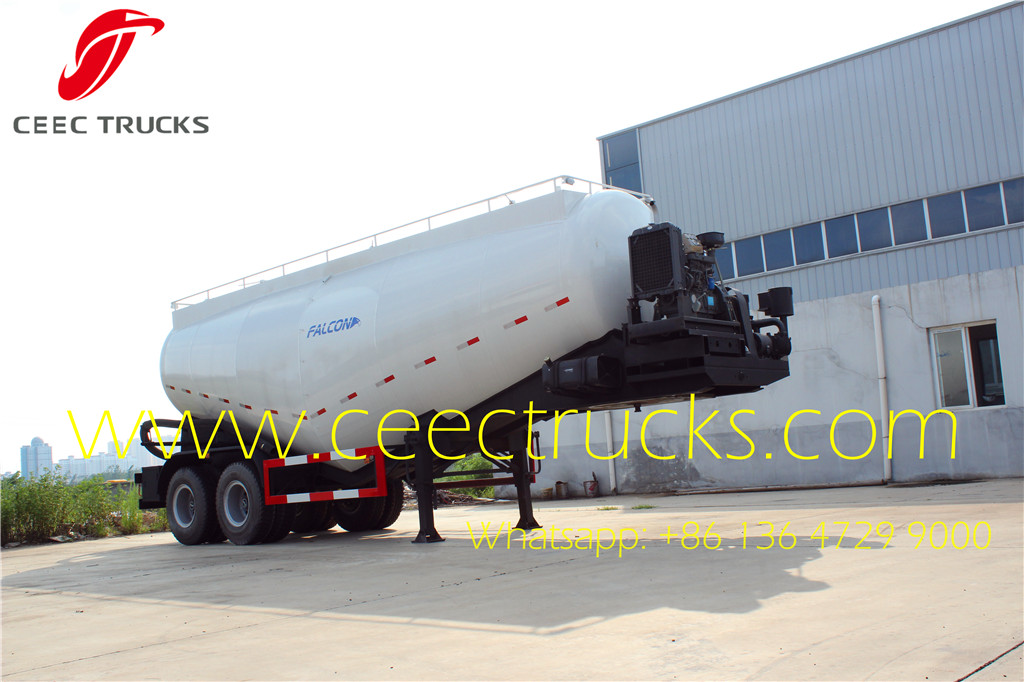

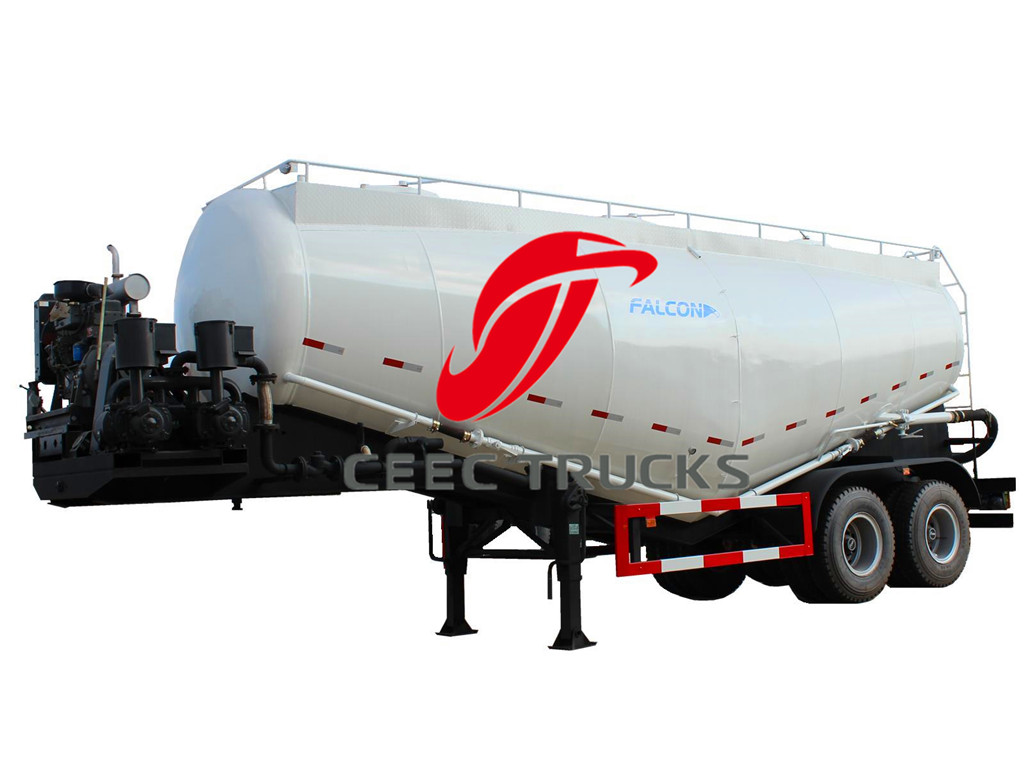

2 axle 30 CBM bulk powder tank semitrailer
Way clients both from Asia, Africa and America countries like purchase Bulk cement tanker semitrailers from China CEEC TRUCKS:
1> Buying from stated approved factory (original leading manufacturer) without the worry of business fraud.
2> CEEC 40cbm cement trailer has got the CCC certificate.
3> The average discharging speed of CEEC cement bulker trailer over 1.3tons/min and the residual volume is less 50kg, which is outstanding performance compared with others.
4> 2 years quality guarantee is the basic promise to our customers.
5> CEEC is a large manufacturer factory and has clients from all over the world.
6> As the most professional manufacturer we can provide CAD for all semi-trailer.
Being the professional 2-axle / 3-axle bulk powder tanker semitrailer manufacturer and supplier in China, we CEEC TRUCKS export nearly one hundred units 30-70 CBM cement tanker trailers to Asia Phillippine, Myanmar, etc; Africa Kenya, Nigeria, Tanzania, Algeria, Cameroon, Togo, Ivory Coast etc every year.
Similar Key Works: Bulk cement tanker semitrailer, 30CBM powder tanker semitrailer, Cement flour tanker semitrailer, 2 axle cement tanker semitrailer, 3 axle powder semitrailer, 30 CBM bulk powder transport semitrailer

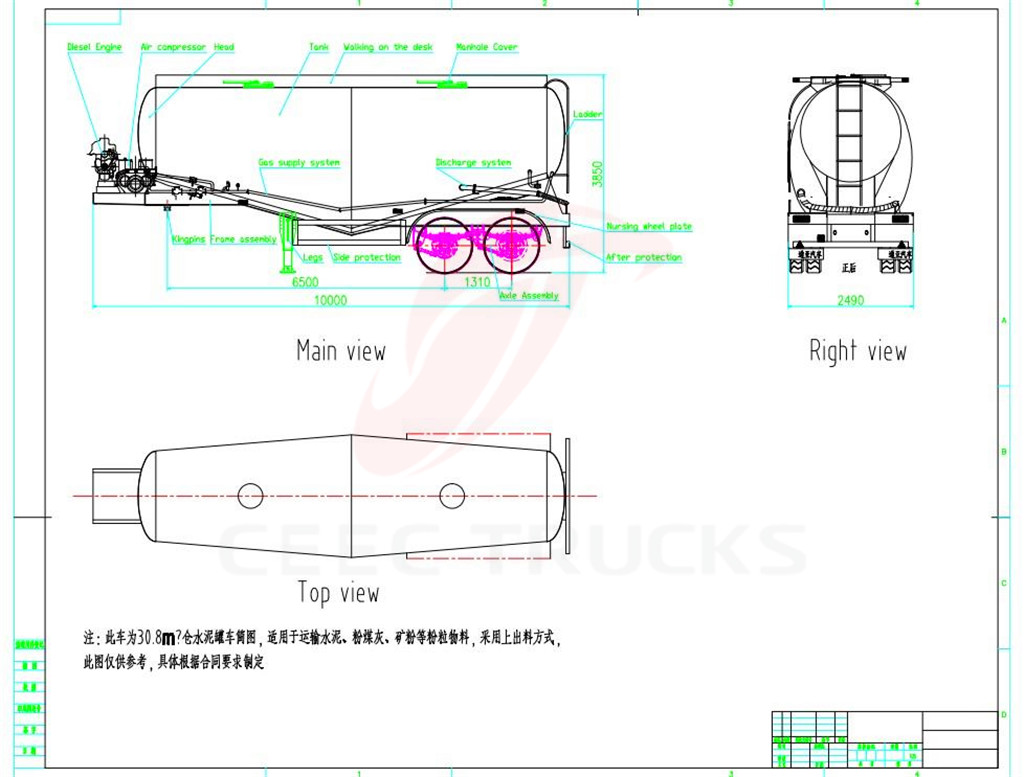

| 30CBM steel tank 2 axle bulk powder semitrailer supplier
|
| Tank Body
|
| Shape
|
Optional ( One Silo with V type or Two ,Three Silos Design)
|
| Dimension
|
12000mm*2490mm*3990mm ( Exact size depends on the final design)
|
| Tare weight
|
About 7500KGS-15000KGS
|
| Total Volume（m3）
|
30m3-68 m3
|
| Tanker Body Material
|
5mm or 6mm/ Q235 carbon steel
|
| End Plate
|
5mm or 6mm /Q235 carbon steel
|

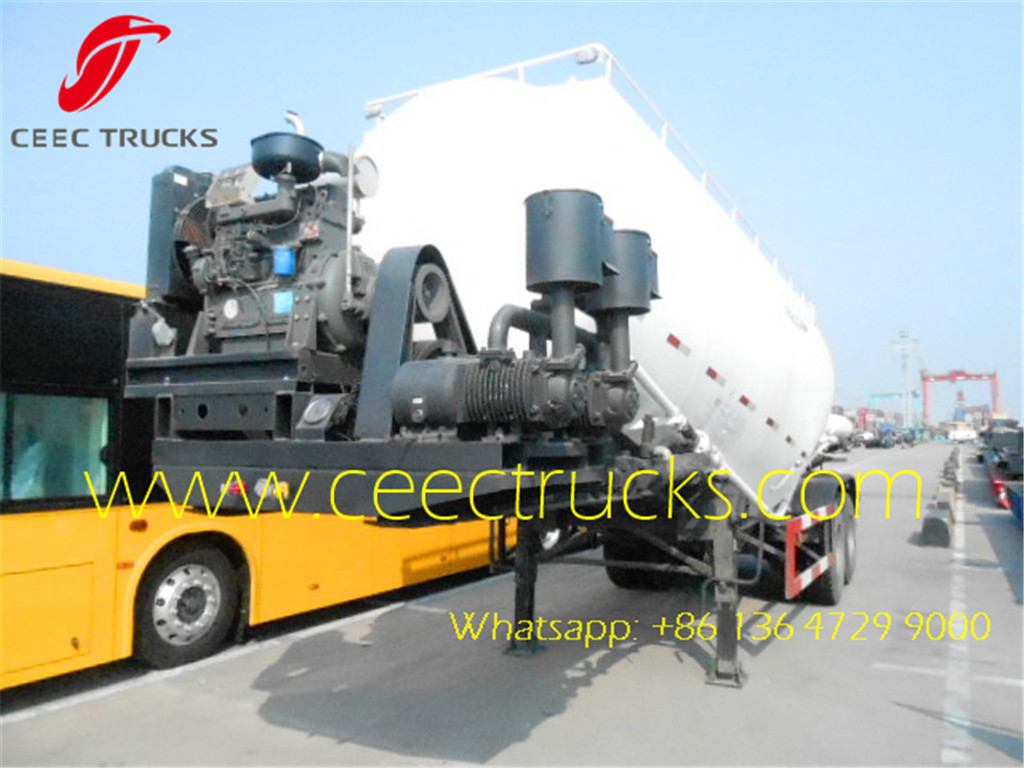

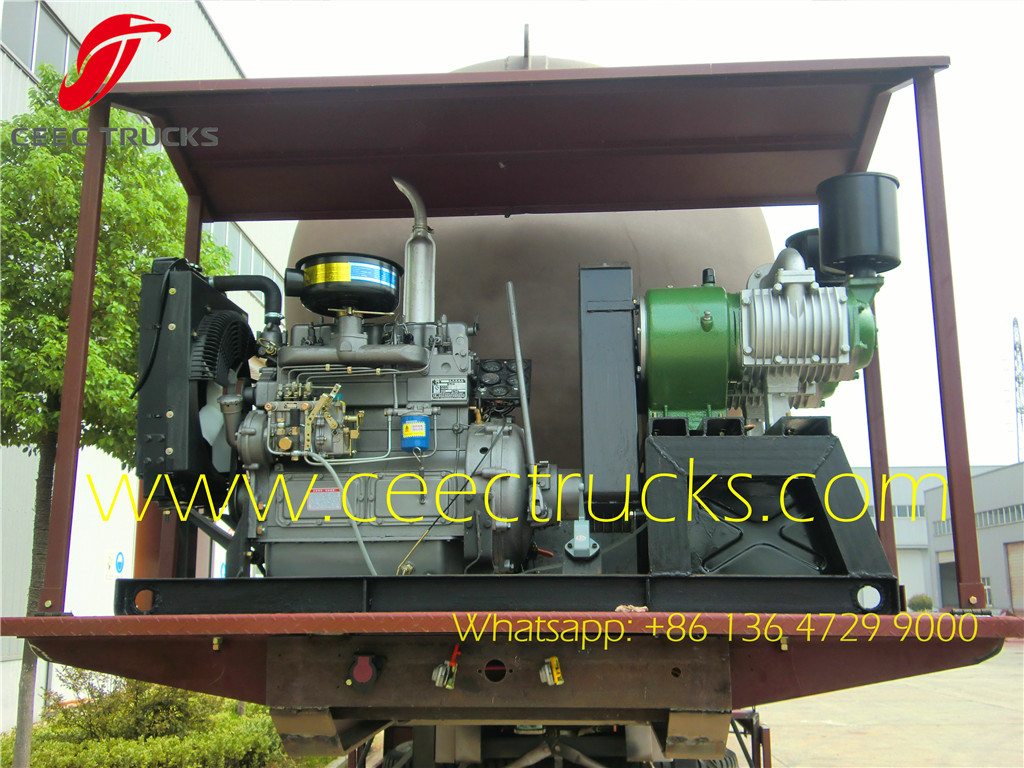

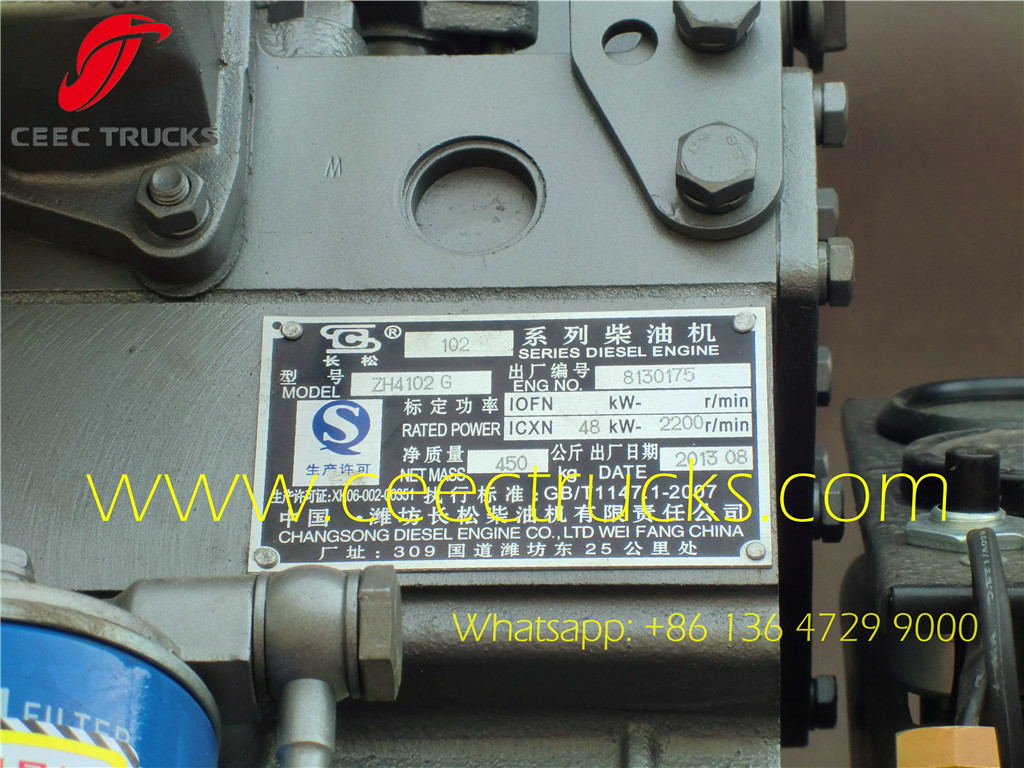

| Diesel Engine
|
WEICHAI , Tianhe 4100/4102 or other brand
|
| Compressor
|
BOHAI 10m3/12 m3or other brand
|
| Manhole Cover
|
Carbon steel ∮500mm
|
| Discharging Valve
|
Diameter is 3 or 4 inch
|

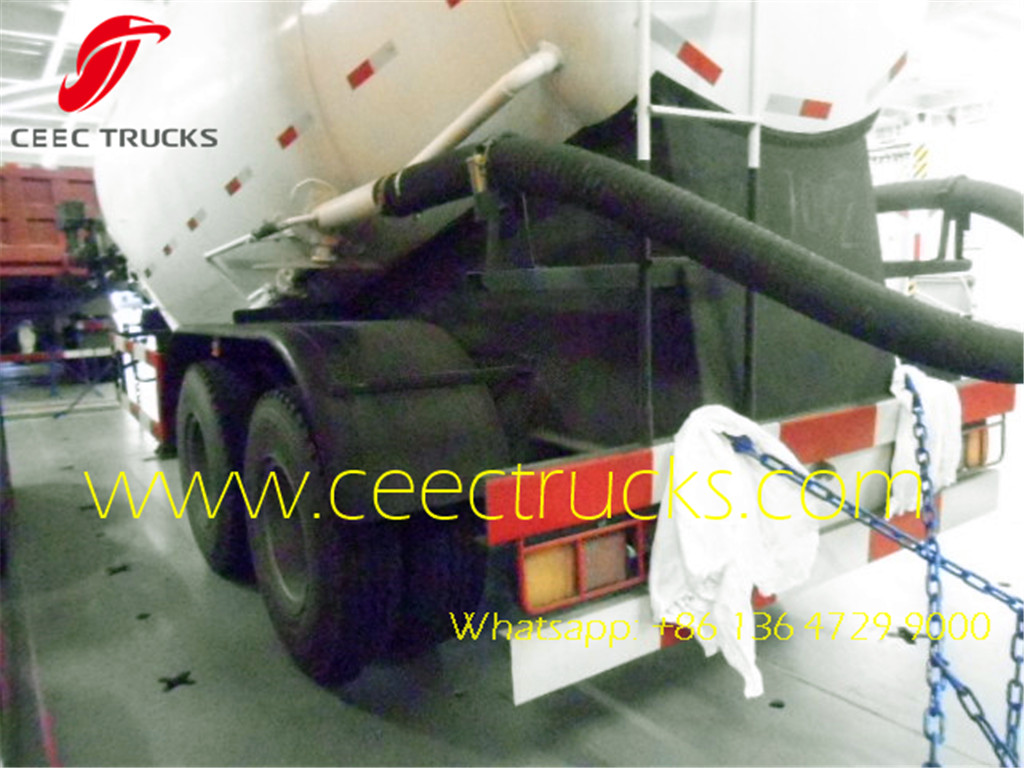

| Discharging Pipe
|
3 or 4 inch rubber hose, 1pcs, 6m/each
|

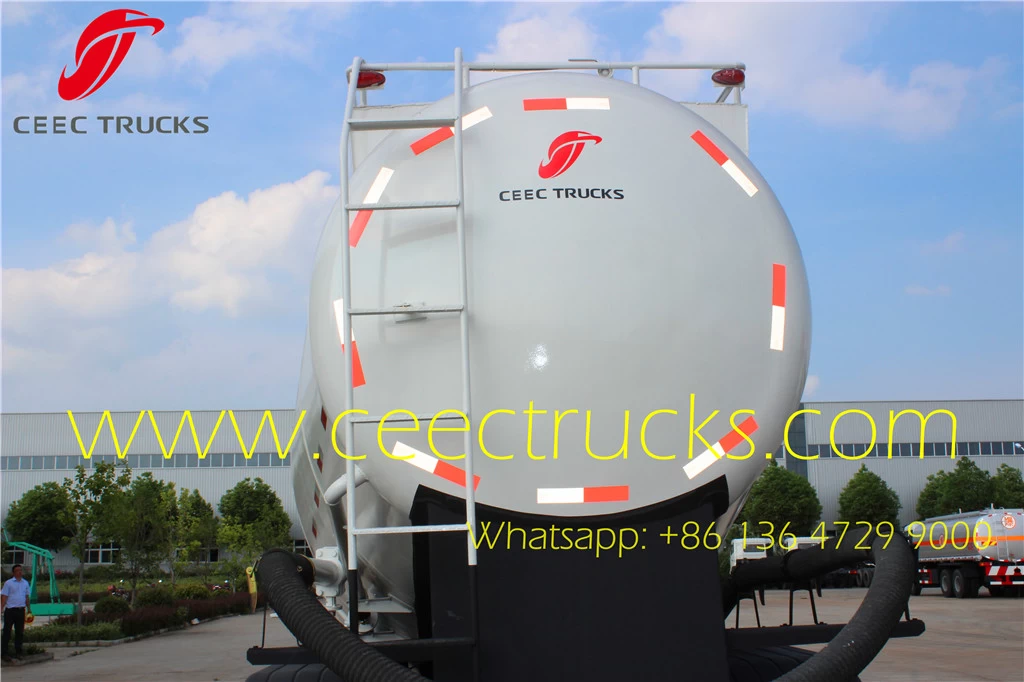

| Cat Walk
|
With (Common model or special design)
|
| Chassis
|
| Main Beams
|
Welding Design ,Q345 carbon steel
|

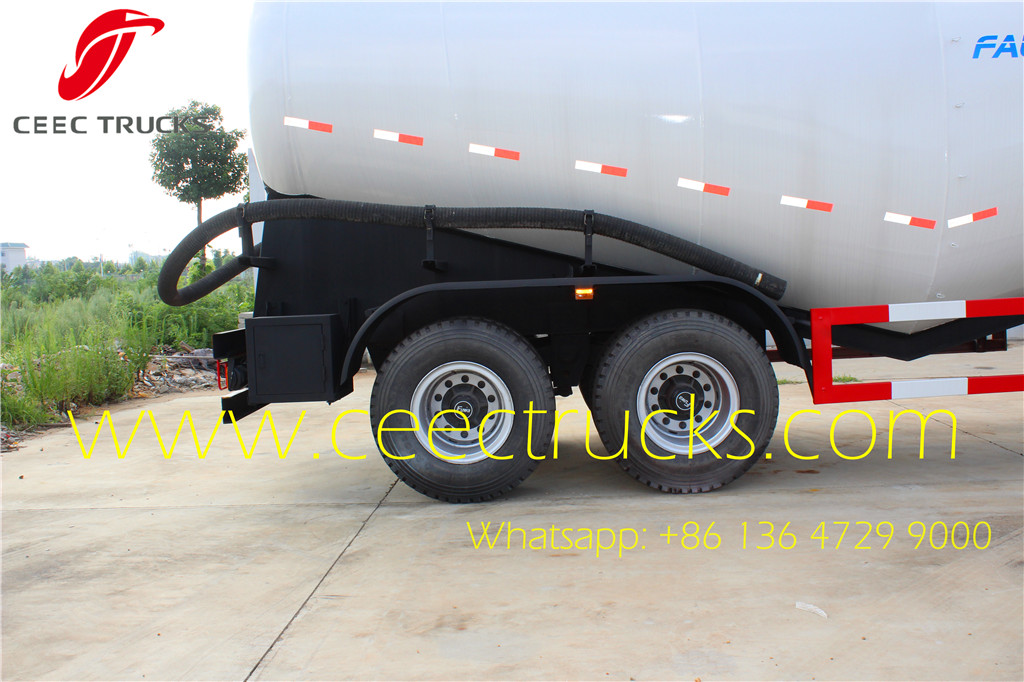

| Axle
|
2 or 3 axles, 12T/13T/16T, BPW/FUWA/HUAJING brand
|

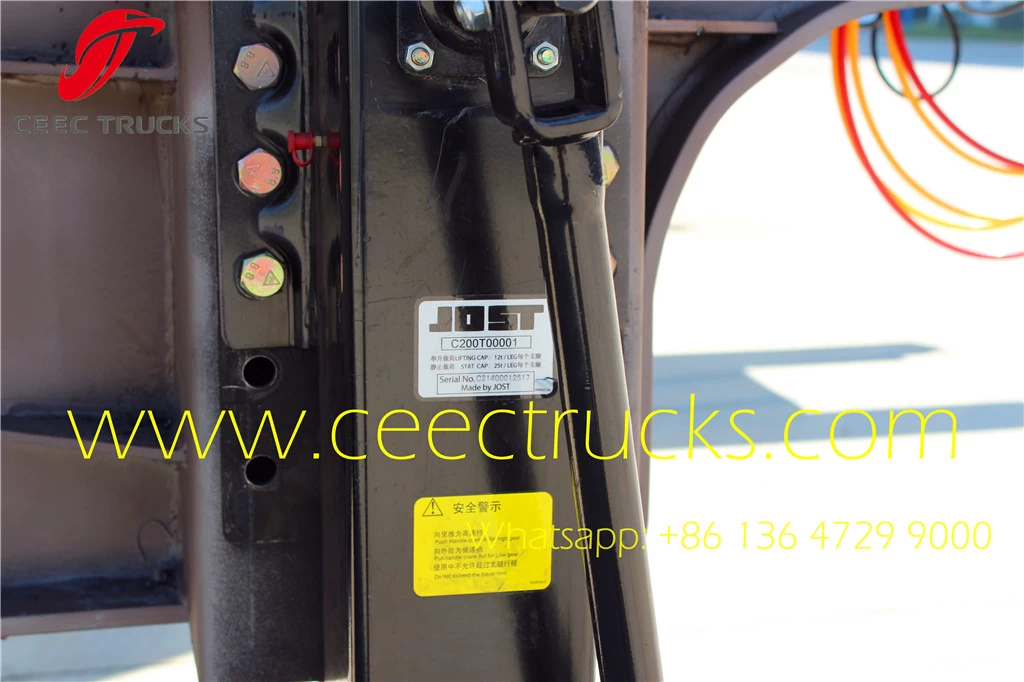

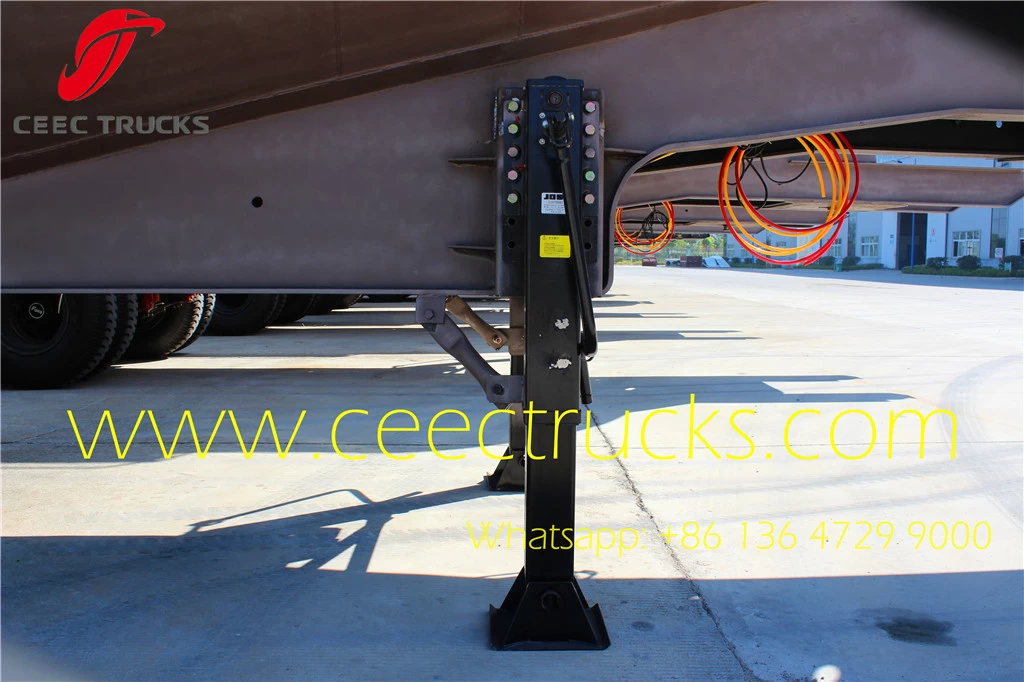

| Landing Gear
|
JOST (D200T）or CHINA BRAND 28T
|
| King Pin
|
JOST 2.00 or 3.5 inch bolt-in king pin
|
| Suspension
|
Mechanical suspension/Germany or America type /Air Suspension
|
| Leaf Spring
|
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
|
| Pneumatic Braking System
|
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber（TKL brand）; 45L air tanks.
|
| Rim
|
9.00-22.5/8.00-20/8.5-20 China Brand
|
| Tire
|
12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional
|
| ABS
|
Optional
|
| Painting
|
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
|
| Accessories
|
One standard tool box
|
| Shipping Terms
|
By Bulk Cargo ,RORO
|
