30T Lab Manual Hydraulic Press with High-precision Digital Pressure Gauge Optional



The powder tablet press can be used in sample preparation with calcium-iron analyzer, Fourier infrared spectrometer (IR), X-ray fluorescence spectrometer (XRF) and other analytical testing instruments; it has been widely used in scientific research, teaching, testing, catalysis, pharmaceuticals, and chemical industries. In addition, various powder materials such as potassium bromide (KBr), sodium chloride (NaCl), boric acid (H3BO3) and other powder materials can be pressed into shapes through specific tableting molds, and various types of For scientific research on specimens, cylinders, special-shaped bodies or other shapes; at the same time, the hydraulic press is also suitable for other workplaces that require corresponding pressure. It is used as a press to test the pressure resistance of various objects, etc., and is widely used , Can replace similar imported products.

The SYP series laboratory manual tablet press is a new generation of compression molding machine developed by TMAX to meet the current market demand and accept the suggestions and feedback of some college teachers. The machine has the characteristics of beautiful appearance, compact structure, small size, fast pressing, simple operation, convenient cleaning, etc.; it adopts national utility model patent technology, one-piece structure, oil cylinder, oil pool, main board, and piston are all on one main body. The sealed connection reduces the oil leakage point and reduces the oil leakage rate of the tablet press; the imported pressure sensor is used to greatly improve the pressure stability; the future cleaning and maintenance work of the hydraulic press is considered at the beginning of the design, which is more convenient The user maintains the equipment and is deeply loved by users at home and abroad.

SYP-30T manual powder tablet press is often used for sample preparation of laboratory fluorescence spectrometers, so it is also called fluorescence tablet press, equipped with appropriate X fluorescence special molds, such as boric acid molds, steel ring molds, etc., to prepare fluorescence spectrometers The test piece required for testing, this model uses a pointer pressure gauge, double scale display pressure tonnage, pressure MPa, pressure applied without conversion, simple and clear, to avoid mold overpressure. If the pressure control is strict, it is recommended to choose the "S" type high-precision digital pressure gauge, the pressure range is 0.00-40.00MPa, the display accuracy is 0.01MPa, and the model is SYP-30TS, which is suitable for places or tests with more accurate pressure control. activity. It can also be equipped with an additional "F" plexiglass protection function, the model is SYP-30TF, which makes your pressure test operation safer, safer to use, and in line with relevant safety regulations.


Specification


Model

SYP-30T

SYP-30TS

SYP-30TF

SYP-30TFS

Pressure gauge type

Pointer type

Digital display

Pointer type

Digital display

Standard pressure gauge

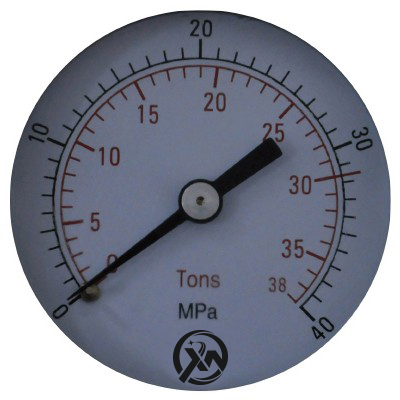

Pointer type, double scale display of pressure tonnage and pressure MPa

Optional digital display

XNNETS digital display 0.00-40.00MPa/0.01MPa (only "S" type)

Pressure range

0-30T(0-31.5MPa)

Pressure conversion

1T=1.05Mpa

Piston diameter

Chrome plated cylinder φ110mm

Max. Piston stroke

40mm

Pressurization mode

Manual pressurization

Pressure stability

≤1MPA/10Min

Mold pressure calculation formula

The area of the oil cylinder ÷ the area of the mold × the reading of the pressure gauge = the actual pressure of the mold (Mpa)

the whole frame

One-piece structure

Workstation diameter

Φ120mm

Number of columns

4 pillars

4 pillars

Protection function

/

With plexiglass protective cover

Column space

92×160mm(W*H)

112×160mm(W*H)

over dimension

275×195×420mm(L*W*H)

305×195×425mm(L*W*H)

Weight

57kg

66kg

Standard configuration

30T manual tablet press, mold option; "S" in the model is a digital pressure gauge, with "F" for plexiglass protective cover

Remarks: Some of the indicators are unique to TMAX, which can be customized or improved according to customer needs.



30T hydraulic press

Pressure conversion table

Model No.

SYP-30B type powder tablet press pressure conversion table

Actual output pressure

Pressure gauge system pressure

Pressure gauge type

1 T

1.05 MPa



3 T

3.10 MPa

5 T

5.20 MPa

8 T

8.40 MPa

10 T

10.5 MPa

15 T

15.7 MPa

20 T

21.0 MPa

25 T

26.2 MPa

30 T

31.5 MPa

Pressure calculation formula

The area of the oil cylinder/the area of the mold × the reading of the pressure gauge = the actual pressure of the mold (Mpa)

Note

The system pressure (ie pressure gauge reading) should not exceed 31.5MPa=30T, otherwise it will affect the service life of the equipment
