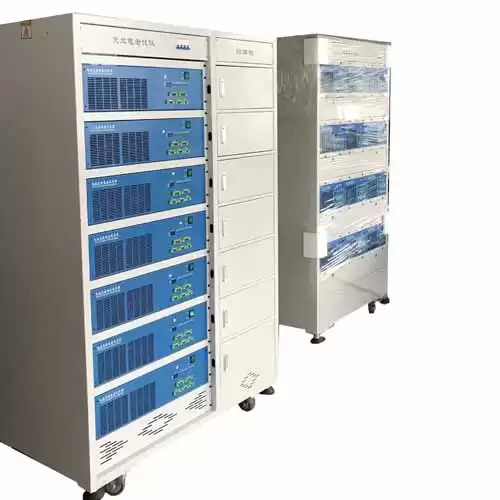

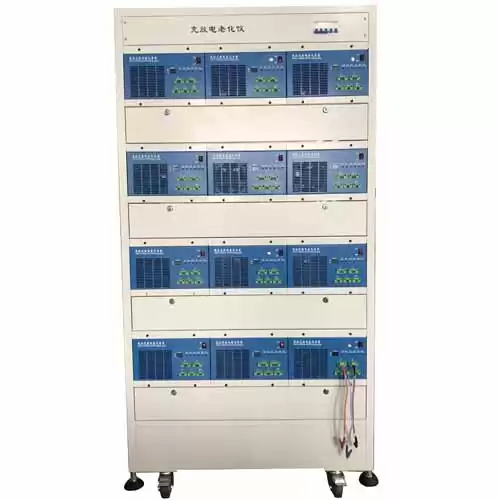

30V 10A Charging 20A Discharging Battery Pack Aging Machine

Wechat:18659217588

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Certificate CE ROHS Certificate

30V 10A Charging 20A Discharging Battery Pack Aging Machine




INTRODUCTION

This Battery Tester is mainly used for lithium battery charging and discharging cycle test. The test items include battery charging protection voltage, discharging protection voltage, capacity, etc. The equipment has four test steps: charging, discharging, shelving and cycling. By editing the corresponding step, the battery can be tested according to the set process.

Contact us for more details about Battery Charge Tester!



The basic performance of the tester



1. Charging and discharging functions

It has the functions of constant current and voltage charging and constant current discharging, charging and discharging batteries and recording the capacity of batteries.



2. Charge-discharge interface

It fully meets the requirements of charging and discharging ports and charging and discharging ports of battery packages, namely, two wires (P + P-) and three wires (P + P - C-). At the same time, the electric tool battery (CH+P+P-) which can aging positive plate charging protection and negative plate discharging protection can be used.



3. Check Voltage Protection

By charging and discharging the batteries, it can be detected whether the charging protection and discharging protection of the batteries play a role.



4. Safety Protection

Anti-reversal protection function; upper and lower limits of voltage setting protection; safe discharge current protection.



5. Online Mode

If the instrument is single or less than 5, PC can be connected through serial port.

More than 5 computers are connected by network mode. PC computer can control less than 60 instruments by only providing a network port.



6. Control System

The software system adopts classical mature C/S mode. There are two modes of communication: serial port and network. Serial port can realize accurate communication of several instruments in short distance, and network can realize accurate communication of many instruments in long distance.



7. Management software

Based on Windows operating interface, using SQL database to store test data, it is very convenient for staff to inquire and export data online. According to the battery bar code, time and equipment number, the aging curve of charge and discharge can be viewed, and the curve can be derived at the same time.


SPECIFICATION

Input power

AC 220V ±10% / 50Hz



Volta

ge

Per Channel Voltage



Range



5-30V

Accuracy

±(0.2% of reading + 0.2% of range)





Curr

ent

Per Channel Current



Range



50~10000mA

Accuracy

±(0.2% of reading + 0.2% of range)

Discharge range

50~20000mA

Accuracy

±(0.2% of reading + 0.2% of range)

Charg

ing



CV cut-off current



Minium: 50mA

Capac

ity



Accuracy



±1‰

Pow

er

Per Channel Output



Power



 600W





Time

Current Response



Time



The Current gets to 20A Hardware Response Time is 2s

Step Time Range

0-999 hours/step

Data recording interval

 5S

Middle machine version

1.1series



Char

ge



Charge Mode

Constant Current Charge,Constant Voltage Charge,

CC-CV Charge ,CP-Charge

End Condition

Voltage,Current,Relative Time,Capacity,



Disch



arge

Discharge



Mode



Constant Current Discharge CP-D CR-D

End Condition

Current,Current,Relative Time,Capacity,





Cycle

Loop Measure



Range



1-999times

Max Steps Per Loop

100

Voltage and Current Testing



Sample



4-wire connecting

Data Management

MySQL Database

Communication Means

TCP/IP Protocol

Data Output

EXCEL,TXT

Communication Interface

Ethernet Port

Working Temperature Range

0℃~40℃

Storage Temperature Range

-10℃~50℃

Working Environment Relative

Humidity Range



30% ~ 70% RH

Storage Environment Relative

Humidity Range



30% ~ 70% RH
