Customized AC DC Converter 5V 3A/ 12V 1A SMPS dual output power supply 5V 12V
Description:
K01-U30D dual output series 30W 5V 12V / 5V 24V switching power supply is wide range of AC input voltage, with high efficiency and low temperature rise, having short circuit, overload and overvoltage protection.
Features:
1, 30W dual power supply wide range of AC input voltage;
2, 5v 12v dual power supply high efficiency and low temperature rise;
3, 30w dual power supply short circuit, overload and overvoltage protection;
4, This model also include filters and low output noise.
|
Parameter
|
|
Item NO
|
K01-U30D5+12
|
K01-U30D5+24
|
|
CH1
|
CH2
|
CH1
|
CH2
|
|
Output
|
Output Voltage
|
+5V
|
+12V
|
+5V
|
+24V
|
|
Rated Current
|
3A
|
1A
|
3A
|
0.5A
|
|
Current Range
|
0.1-3A
|
0.1-1A
|
0.1-3A
|
0.1-1A
|
|
Rated Power
|
27W
|
27W
|
|
Ripple
|
50mVp-p
|
100mVp-p
|
50mVp-p
|
100mVp-p
|
|
Adjustable Output Range
|
CH1:±10%
|
|
Output Accuracy
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
800ms, 30ms, 16ms/115VAC 300ms, 30ms, 50ms/230VAC
|
|
Input
|
Input Voltage Range
|
88~264V AC，100~370VDC
|
|
Input Current
|
0.6A/115V 0.3A/230V
|
|
Input Frequency
|
47~63Hz
|
|
Efficiency
|
82%
|
83%
|
|
Inrush Current
|
30A@230V
|
|
Leakage Current
|
<0.3mA@240V
|
|
Protection
|
Over Load Protection
|
105~150%,Hiccup,automatic recovery
|
|
Short Circuit Protection
|
Hiccup,automatic recovery
|
|
Environment
|
Working Temp.,Humidity
|
-10~50℃，10~90% RH，No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃，10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety&EMC Standards
|
Safety Standards
|
GB4943,EN60950
|
|
Withstand Voltage
|
I/P-O/P，I/P-FG：1.5KV；O/P-FG:0.5KV DC 1min.
|
|
Insulation Resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC Standards
|
GB9254,EN55022 CLASS B
|
|
Others
|
Dimension
|
74*68*27mm CASE：K801
|
|
Weight
|
0.2Kg
|
|
Notes
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured,
other load fixed at 60% load.
|

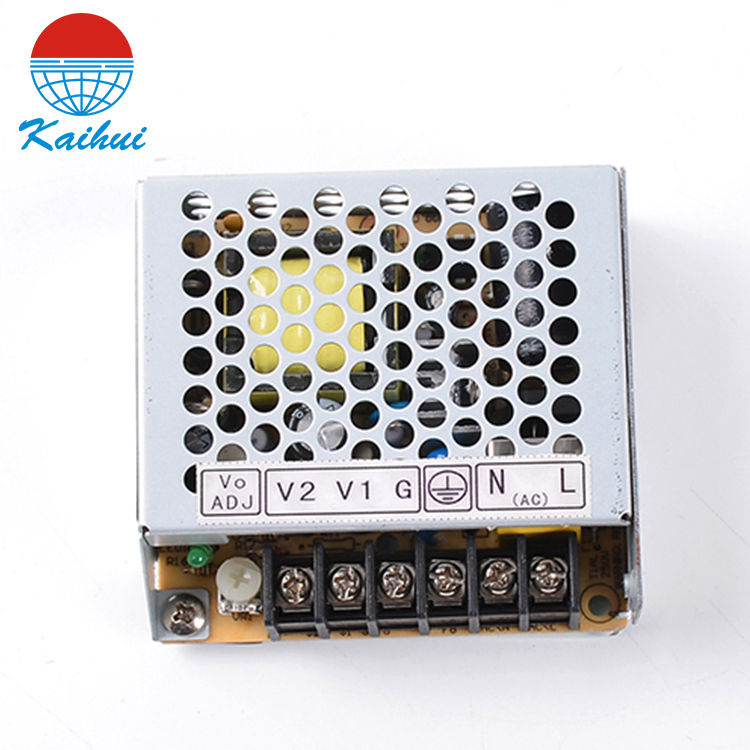

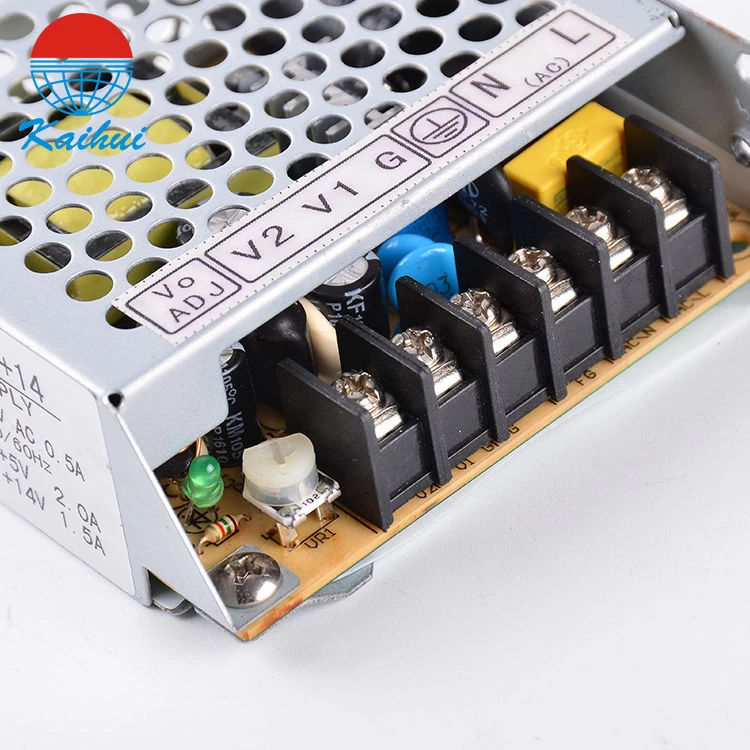

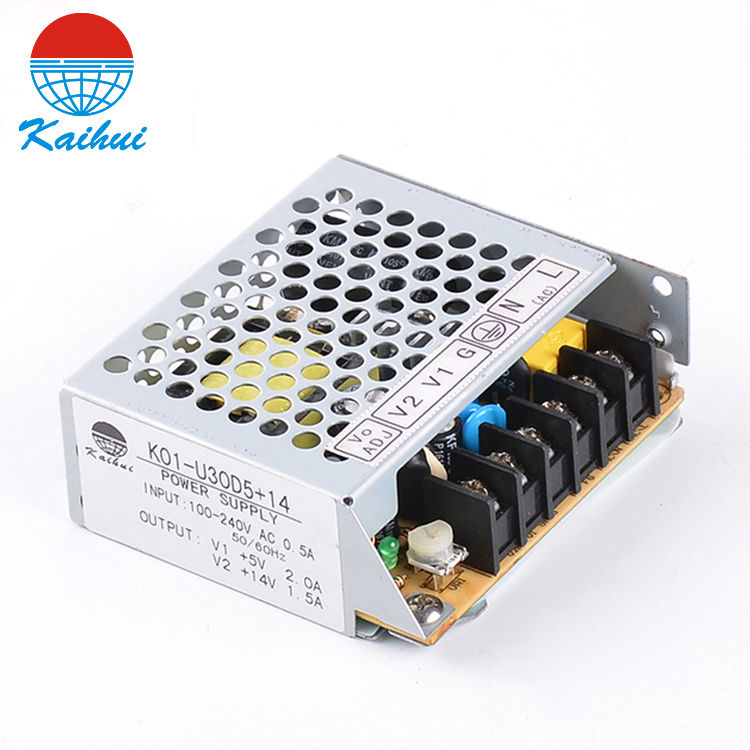

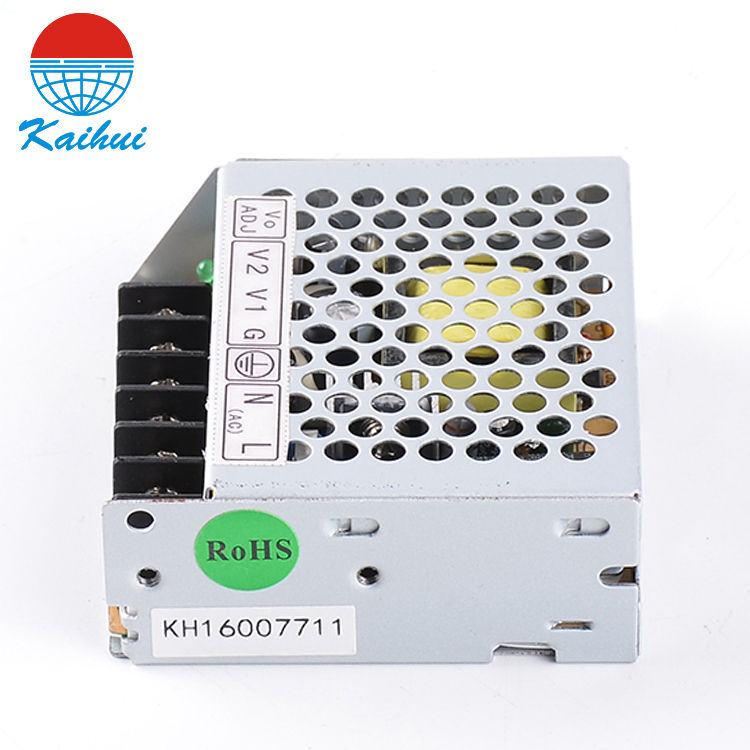

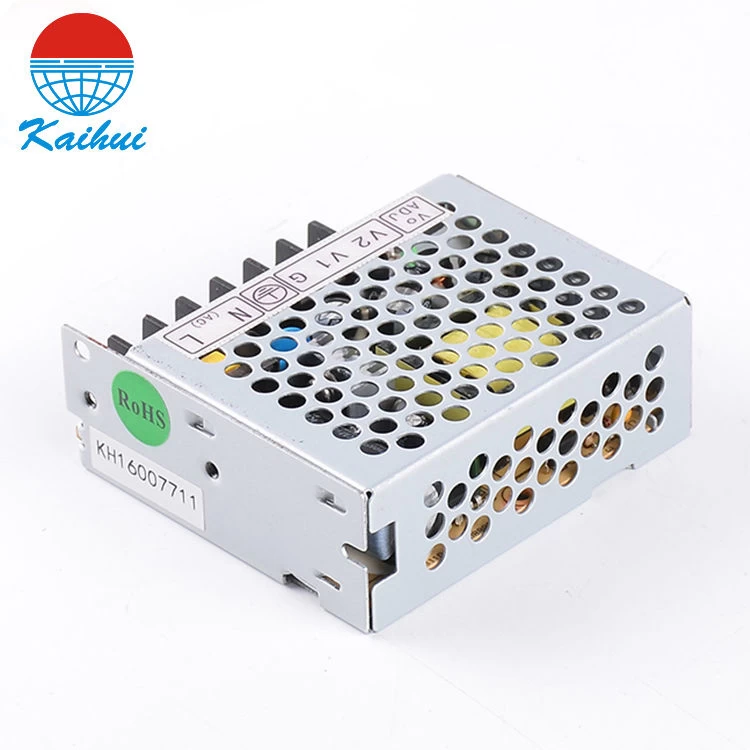

Product picture:
