Customized hot sale 5v 12v dual output CCTV camera power supply ac dc 40w smps
Description:
K14-U40D dual output series 40W 5V 12V / 5V 24V /-5V 5V/ -12v 12v switching power supply full range of AC input voltage range, with high efficiency and low working temperature, having full load burn-in test.
Features:
1, 40W dual power supply full range of AC input voltage;
2, 5v 12v dual power supply high efficiency and low working temperature;
3, 40w dual power supply short circuit and overload protection;
4, This model have full load burn-in test.
|
Parameter
|
|
Item NO
|
K14-U40D5+12
|
K14-U40D5
|
|
CH1
|
CH2
|
CH1
|
CH2
|
|
Output
|
Output Voltage
|
+5V
|
+12V
|
+5V
|
-5V
|
|
Rated Current
|
4A
|
1.5A
|
5A
|
2A
|
|
Current Range
|
0.2~5A
|
0.1-2A
|
0.2~5A
|
0.1-2A
|
|
Rated Power
|
38W
|
35W
|
|
Ripple
|
50mV
|
100mV
|
50mV
|
50mV
|
|
Adjustable Output Range
|
CH1:4.75-5.5V
|
|
Output Accuracy
|
CH1: ±2% CH2: ±5%
|
|
Line Regulation
|
±1%
|
|
Load Regulation
|
CH1: ±1% CH2: ±4%
|
|
Set up,Rise,Keep up time
|
250ms, 30ms, 50ms/230VAC
|
|
Input
|
Input Voltage Range
|
90~264V AC
|
|
Input Current
|
0.4A/230V
|
|
Input Frequency
|
47~63Hz
|
|
Efficiency
|
>80%
|
>79%
|
|
Inrush Current
|
COLD START 40A/230V
|
|
Leakage Current
|
<0.5mA/240VAC
|
|
Protection
|
Over Load Protection
|
115~200% Rated power, automatic recovery
|
|
Short Circuit Protection
|
--------
|
|
Environment
|
Working Temp.,Humidity
|
-10℃~+50℃@100% LOAD,+60℃@60% LOAD；20%-90% RH
|
|
Storage Temp.,Humidity
|
-20℃ - +85℃, 10%-95% RH
|
|
Temp.,Drift
|
±0.03% /℃(0-50℃)
|
|
Vibration
|
10-500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety&EMC Standards
|
Safety Standards
|
MEET GB4943
|
|
Withstand Voltage
|
I/P-FG,I/P-O/P:1.5KV AC;O/P-FG:0.5KV
|
|
Insulation Resistance
|
I/P-O/P:500VDC / 100M Ohms
|
|
EMC Standards
|
-------
|
|
Others
|
Dimension
|
88*70*38mm
|
|
Weight
|
0.3Kgs
|
|
Notes
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured,
other load fixed at 60% load.
|

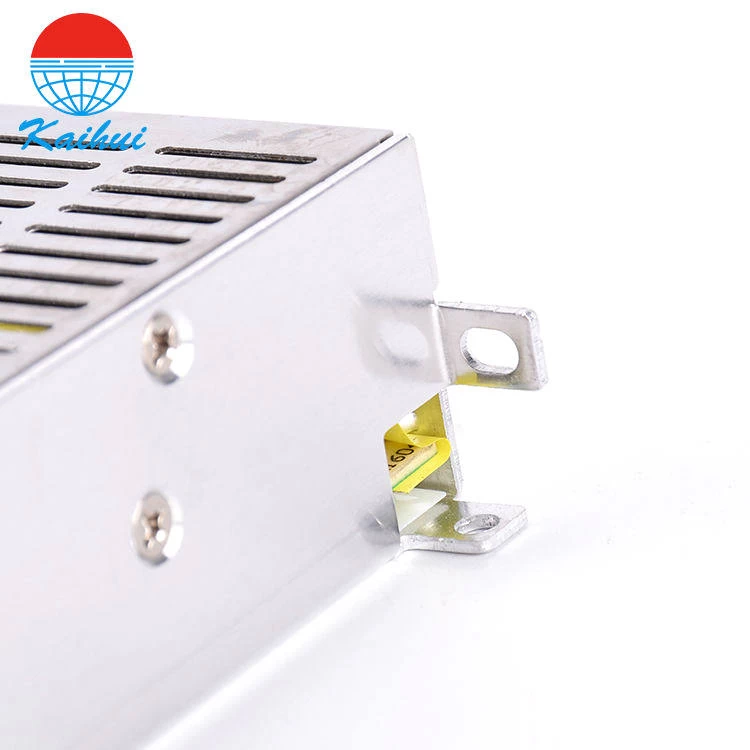

Product picture:
