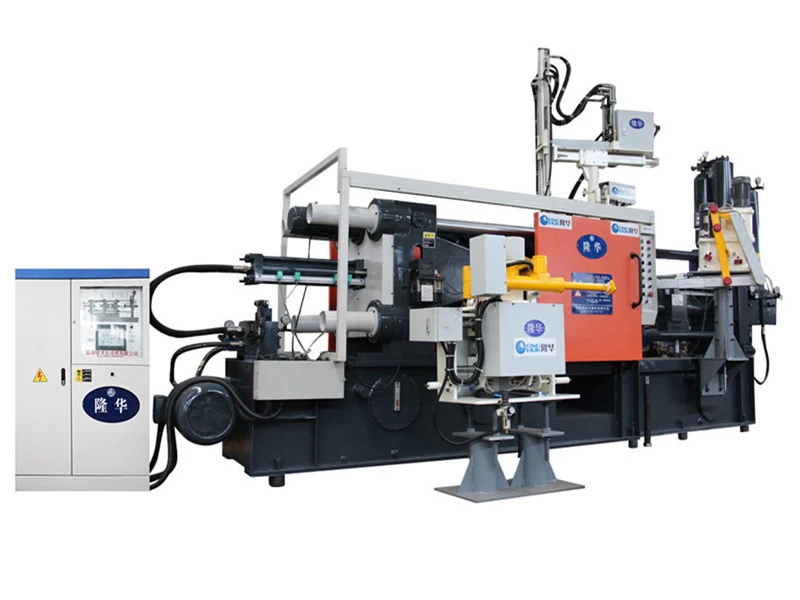

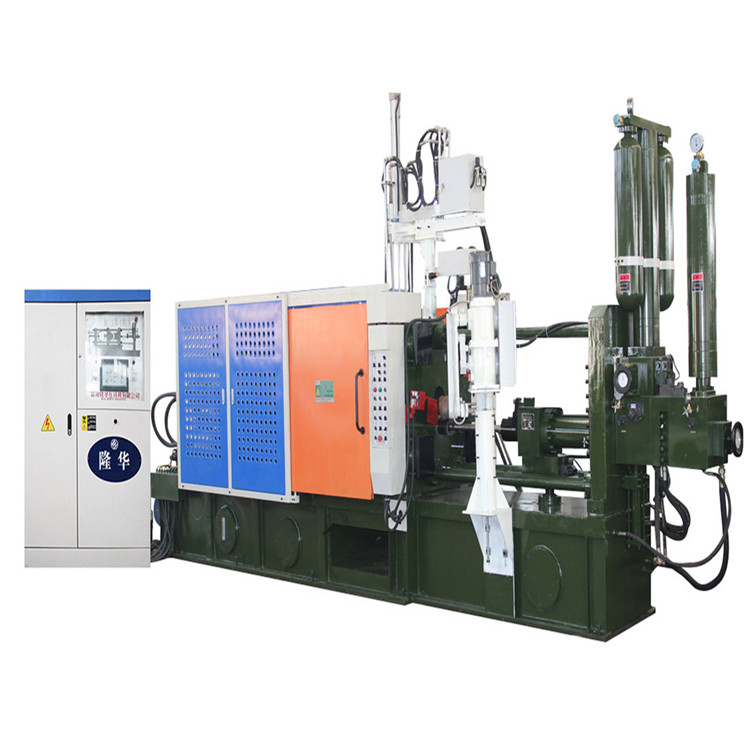

350T Hot Sale Horizontal Magnesium alloy Die Casting Machine

Our machines have been recognized by the state quality supervision department for their high efficiency, energy saving, environmental protection and quality.



350T Hot Sale Horizontal Magnesium alloy Die Casting Machine

Horizontal Magnesium alloy Die Casting Machine

350T Horizontal Magnesium alloy Die Casting Machine parameter  :

Items

Unit

Specification

Hydraulic Working Pressure

MPa

14

Clamping Force

KN

3500

Space Between Tie Bars

mm

600*600

Tie Bar Diameter

mm

¢120

Die Opening Stroke

mm

500

Injecction Force(intensify)

KN

360

Plunger launch distance

mm

180

Injection position

mm

0  --  160

Plunger Diameter

mm

¢50----¢80

Injection Stroke

mm

480

Casting pressure (intensify)

MPa

184/127/94

Casting Fiange Protrusion

mm

12

Casting Fiange Diameter

mm

110

(40Mpa) Max Casting Area Under 40Mpa

CM2

875

lnjection Weight(Al)

Kg

3.8

Die Height(Min--Max)

mm

250~750

Ejector Force

KN

180

Ejector Steoke

mm

110

Motor Capacity

Kw

18.5

Machine Dimensions  (L*W*H)

m

6.8*1.8*2.7

Referential Machine Weight For Uplifting

T

14.2

Oil Tank Capacity

L

700

WE reserve the right to make any technical improvement without further notice


Cooperative r&d unit:

Since 2006, we have established a production base of die casting machines with such institutes as Anhui Institute of Science and Technology, Chinese Academy of Sciences, Nanjing University, China University of Science and Technology and Tsinghua University to jointly develop and produce intelligent die casting machines and oilfield equipment, new energy equipment.
