Airflow Water Cooling Portable air Cooler Industrial Evaporative Air Cooler Warehouse Factory Cooling System

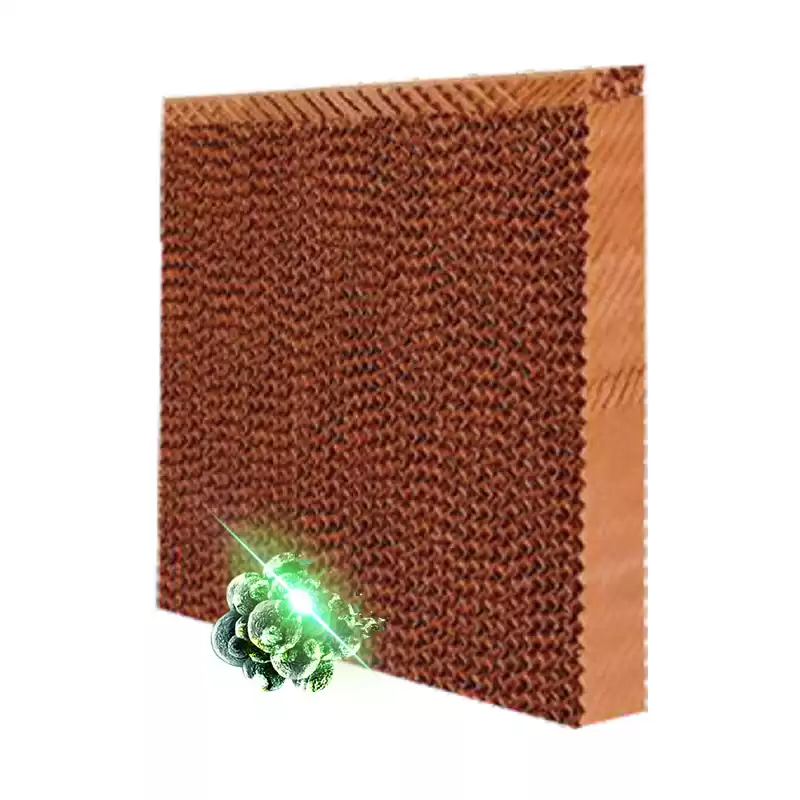

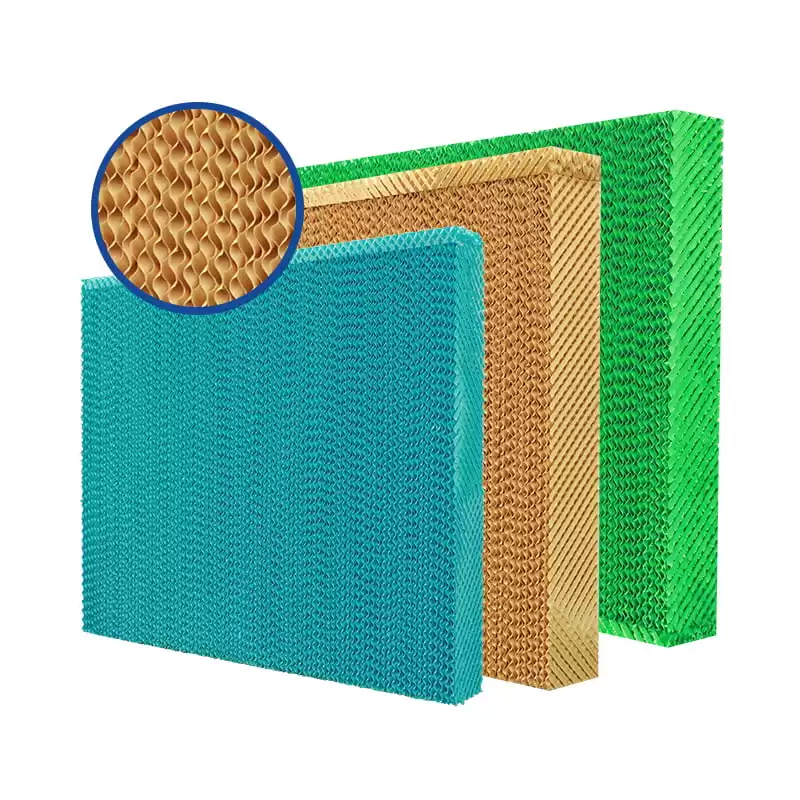

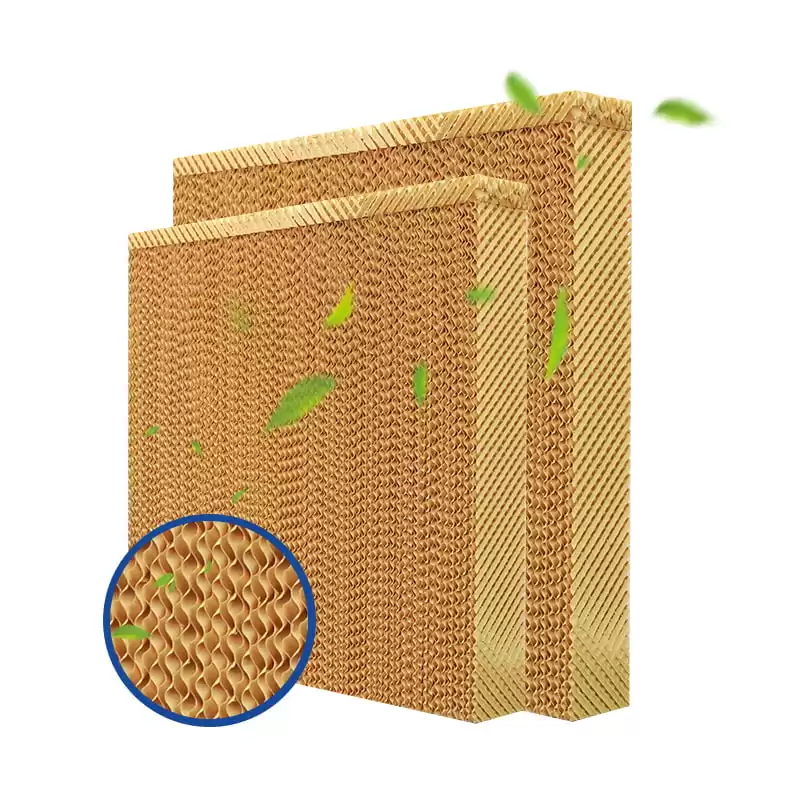

Characteristics Of Evaporative Cooling Pad
●Good water absorption and high evaporation efficiency. ●Not easy to mildew, long service life.
●Manufactured with advanced technology, no water drift. ●High structural strength, easy and fast installation.
●Low pressure drop during operation and low operating costs.
●Eco-friendly glue, no smell,no pollution, manufactured with advanced technology, no floating.
●The company's evaporative cooling pads have passed ROHS.REACH and other certifications.
Specification:
| Model Specifications |
Water Absorption |
Water Absorption Height (mm/min) |
Height H(mm) |
Width W(mm) |
Thickness D(mm) |
Corrugation Height h(mm) |
Corrugation Angle α、ß (°) |
| ARN95J 3590 Type |
≥280% |
55/10 |
≤2000 |
≤1000 |
100~400 |
3.5 |
45 |
| AEN95J 3590 Type |
≥280% |
55/10 |
≤2000 |
≤1000 |
100~400 |
3.5 |
35 |
| ARN95J 5070 Type |
≥262% |
61/10 |
≤2000 |
≤1000 |
100~400 |
5 |
45 |
| AEN95J 5070 Type |
≥262% |
61/10 |
≤2000 |
≤1000 |
100~400 |
5 |
35 |
| ARN95J 5090 Type |
≥255% |
62/10 |
≤2000 |
≤1000 |
30~300 |
5 |
35 |
| AEN95J 5090 Type |
≥255% |
62/10 |
≤2170 |
≤1000 |
30~300 |
5 |
45 |
| ARN95J 7090Type |
≥238% |
76/10 |
≤2170 |
≤1000 |
50~300 |
7 |
45 |
Characteristics:

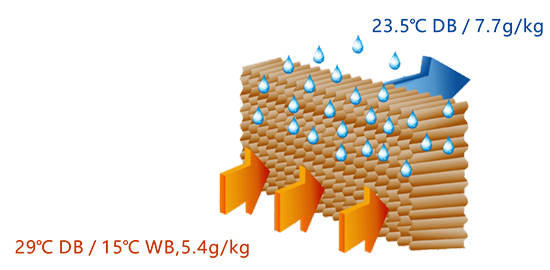

Evaporative Cooling Introduction

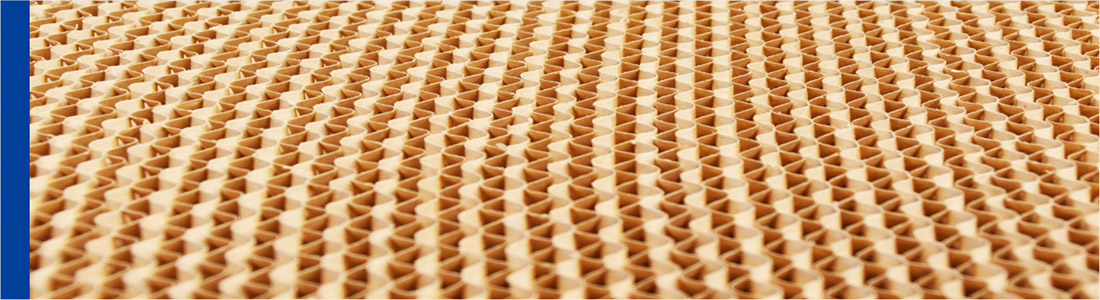

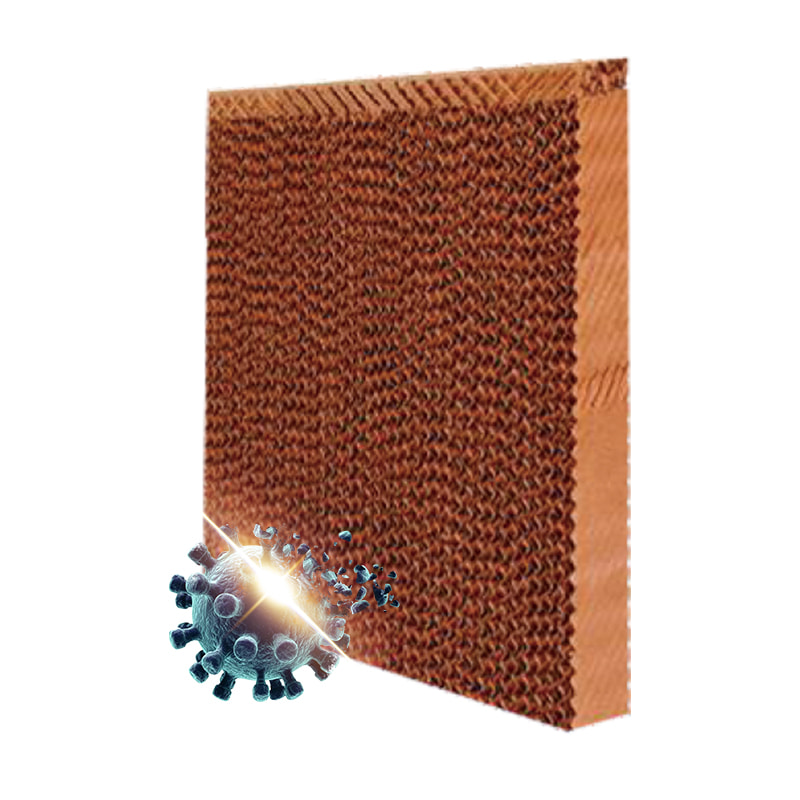

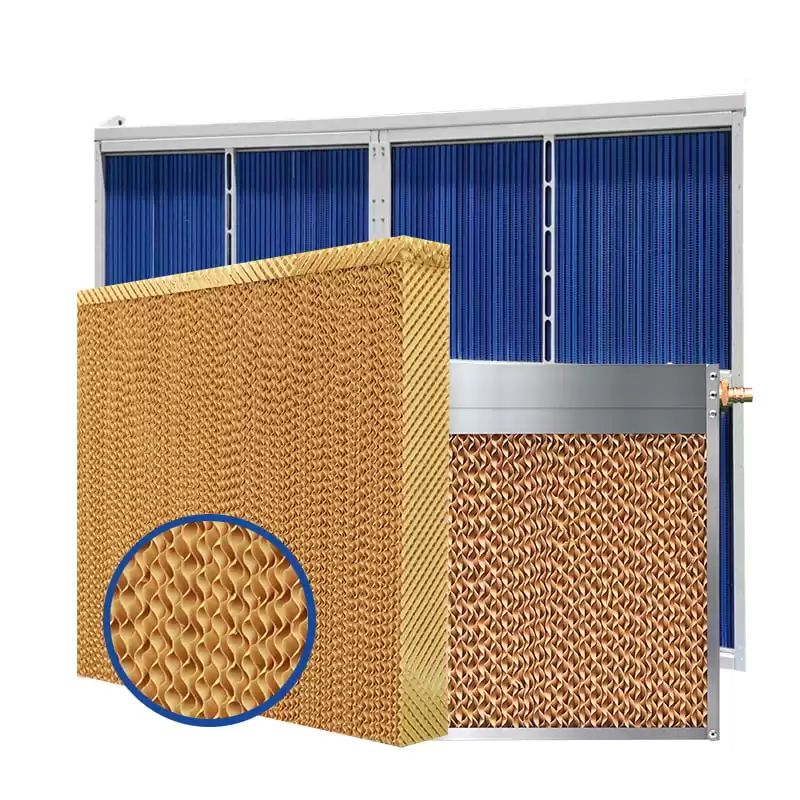

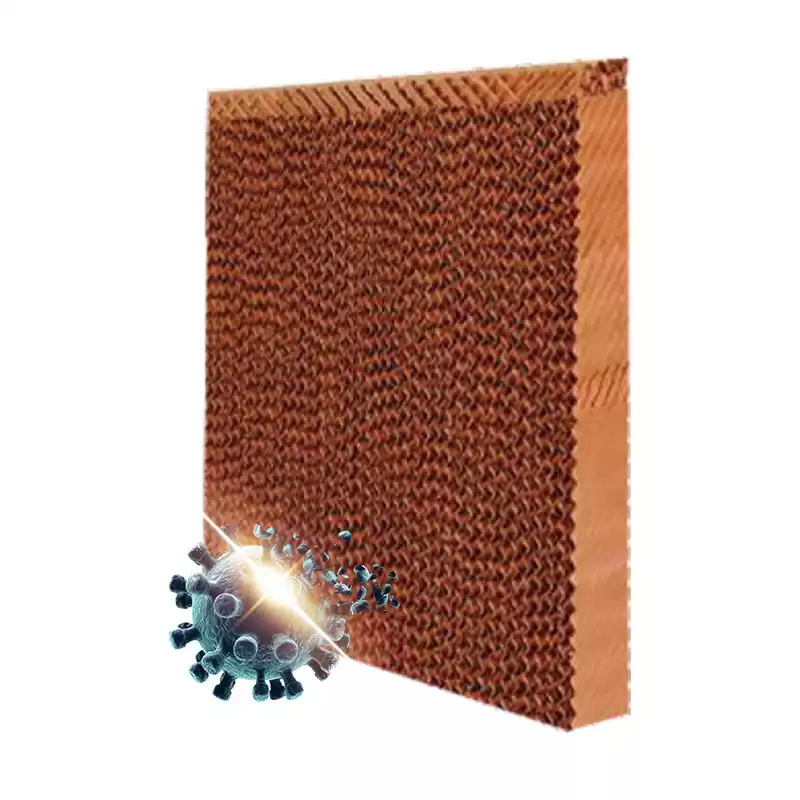

The honeycomb structure media made of high-grade corrugated fiber material by special process has the characteristics of good water absorption, high wet stiffness, anti-bacterial and anti-mildew, long service life etc.
Outdoor fresh air cooling
* An example of a evaporative cooling pad thickness of 100 mm.
Humidify the indoor air
* An example of a evaporative cooling pad thickness of 35 mm.
