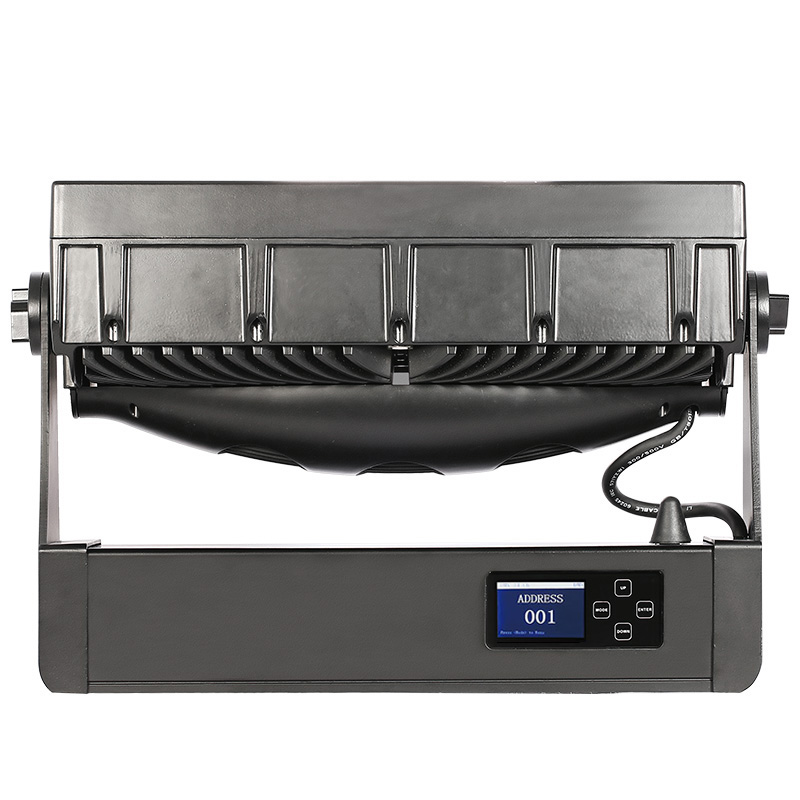

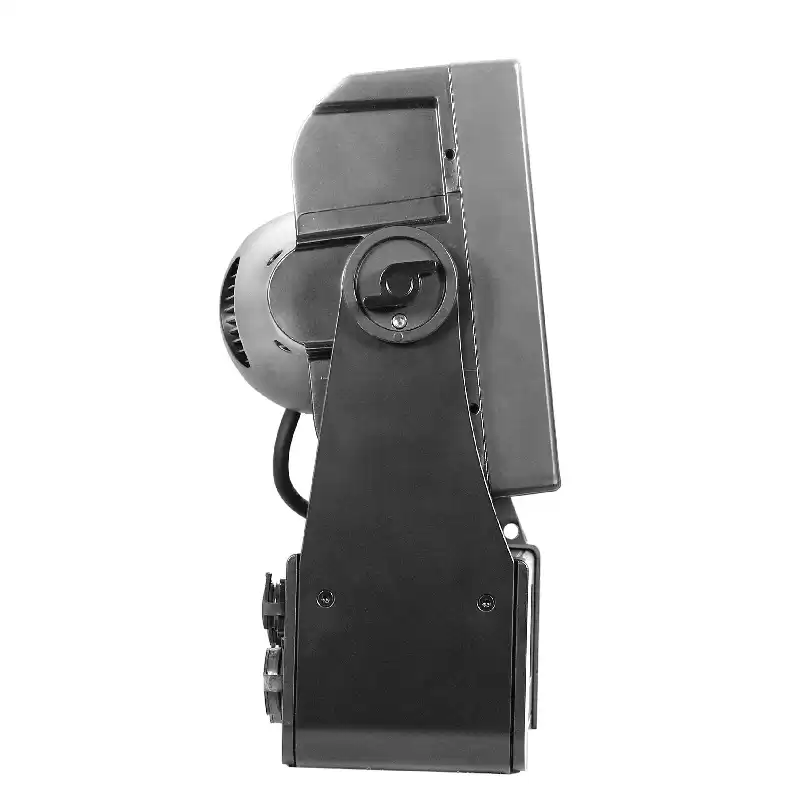

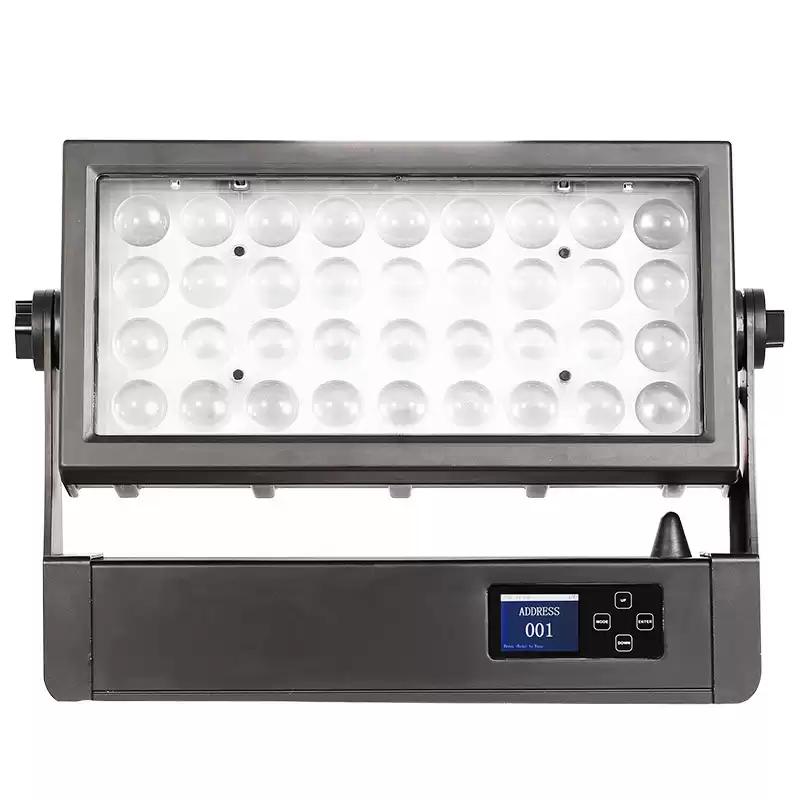

It is aluminium & waterproof structure, fashion housing and easy installation, it is with 36*10W CW WW LED as the main light source, 72*0.2w as the backlight source. And 36pcs Lenses of one piece whole plate is used for the optics, Zoom angle: 7-58°, 3200K-5600K color temperature adjustable, The projection distance is far away. It can be widely used for projecting lighting, stage, theater, etc. And it is with powerful two-way RDM function besides DMX control. It is convenient and fast to upgrade software by DMX signal.
● Optics
. LED qty：
※ 36x10W cool white ,warm white LED (Power LED), uniform and delicate
color mixing effect
※ 72x0.2W RGB LED（backlight）
. Lens： 36pcs high brightness PMMA Lenses of one piece whole plate
. Beam angle：7-58°Zoom
. Lifetime：50000H，low power consumption, energy conservation
and environmental protection
● Colors
. Uniform and delicate mixing color system
. 3200-5600K color temperature
. Each line of LEDs controlled individually can create more colorful chasing effect
. Static color set up
. RGB backlight LEDs can create soft color mixing effect
● Specification
. 8 DMX channel modes：2CH/3CH_1/3CH_2/5CH/12CH/14CH/16CH/24CH international standard DMX-512 channel
. 3 control modes::DMX512、W-DMX、Master-Salve
. 2.4G wireless DMX
. Beam angle：7-58°Zoom
. DMX function：Dimmer、Strobe、Color temperature selection、Dimmer curve selection、function setting
. Stand-alone mode：color jumping change、color gradual change、Auto-program、slave、Macro color、static color setting、Rainbows、Auto-program selection
. Strobe effect：0-20HZ strobe、Pulse strobe、Ramp up strobe、Ramp down strobe、Random strobe、 Strobe Break Effekt, 5s…..1s、Strobe0-20Hz。
. Dimmer:0-100% 16bit linear dimming which can control brightness change and closing of 4colors at the same time
. LEDs of each line can be controlled in 4colors
. Dimming way：LED mode and Halogen lamp mode
● Display
. 2.4inches TFT colorful screen
. High anti-interference four touch buttons
. Settable button lock to prevent imoperation
. Display screen can be reversed 180° and fit for different places installation
● Software
. Software upgrade：quick software upgrade via DMX cable
. Display the use time of the light, so that customers can know the use details of the light in time
. LED refresh rate：3000Hz
. 4kinds of dimming curve：linear dimmer、Sqaure dimmer、I. Sqaure dimmer、S-Curve dimmer
● Other functions
. Setting and addressing：RDM
. LEDs temperature detection system to protect the LEDs

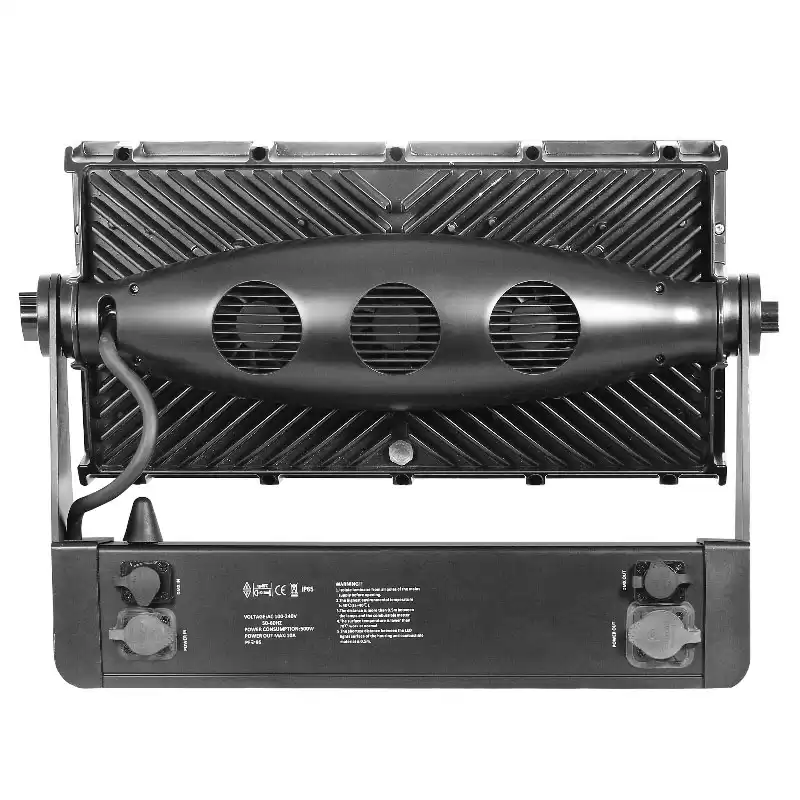

. Fan cooling(the fan change the speed with the temperature changes）
. Fan running mode：Auto mode and high speed mode
● Power/Signal connection
. Power connection：waterproof Seetronic powerCON IN (SAC3MPX) / OUT (SAC3FPX)
. DMX input：Waterproof DMX XLR 3-pin Seetronic J3F2C-W
. DMX output：Waterproof DMX XLR 3-pin Seetronic K3F2C-W
● Power
. AC100-240V 50/60HZ
. Power consumption：380W
● Protection class
. Housing：Die-cast aluminium
. IP class：IP65
● Operation environment
. operation temperature：-20°C～+40°C
● Size/weight
. Packaging size：575*270*450mm
. Net weight： 15KG
. Gross weight：17.7KG
● Certification：
. CE,ROHS
