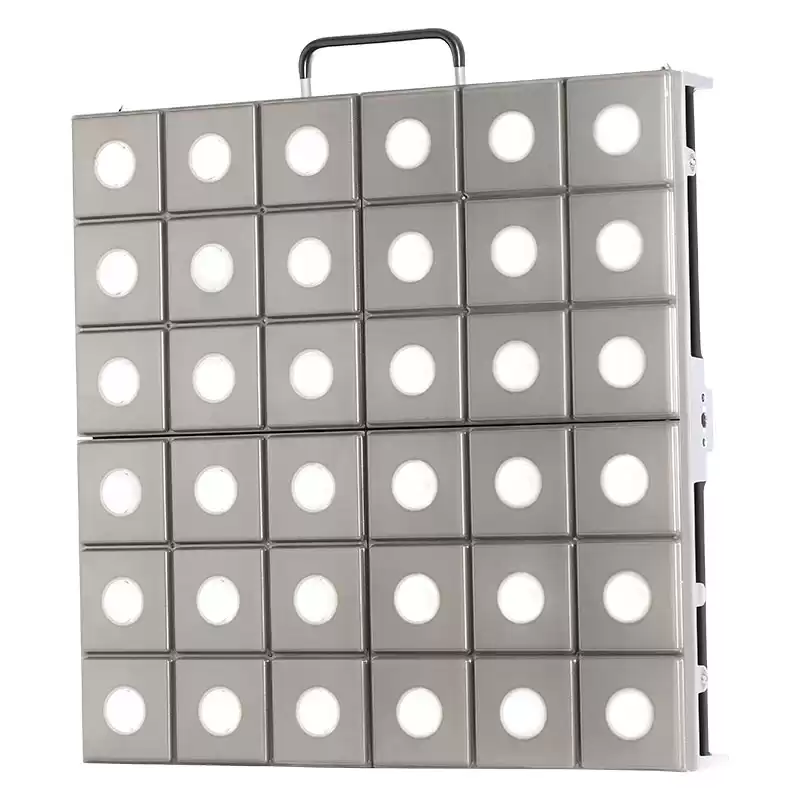

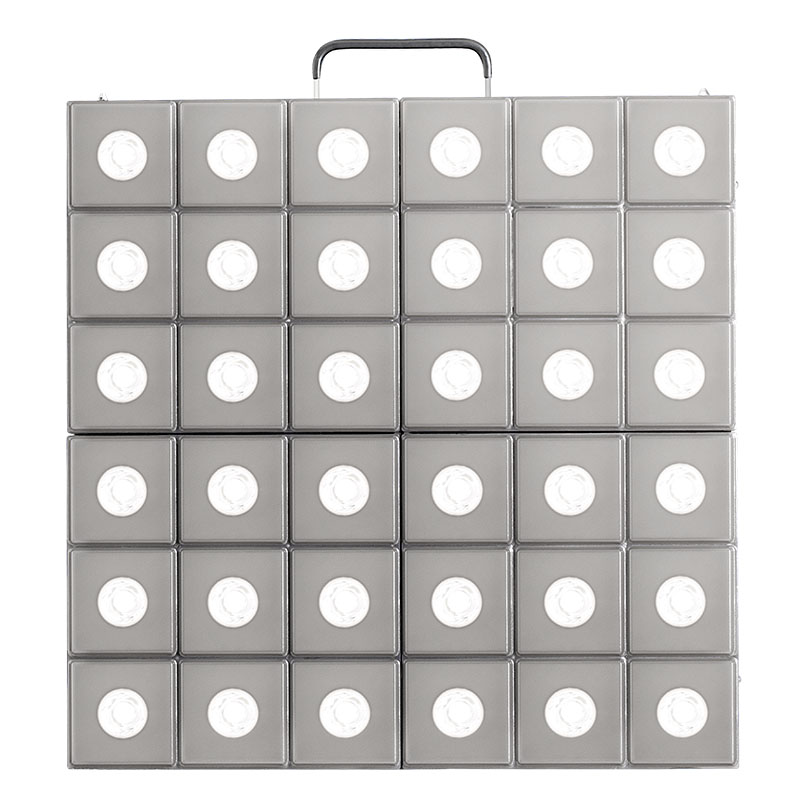

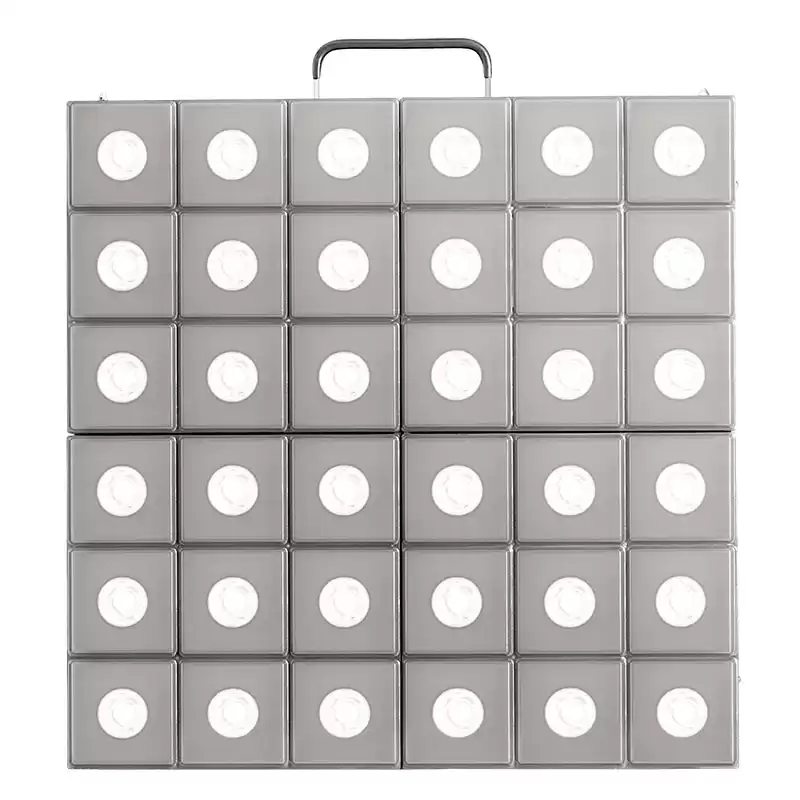

36x5W LED Amber Matrix with RGB Backlight

LED pixel Matrix.It uses 36x5w Amber LEDs and 288x0.2w  RGB LEDs(backlight) and follows Art-Net,King-Net and DMX protocols. LEDs can be controlled separately to bring strong 6x6 beam matrix effect and rich background effect.Each 2units are easy to combinate.




It is one square matrix including 2 in 1 LEDs . This equipment not only uses 36pcs of high brightness warm white LEDs chip as main light source but also own 288pcs of SMD5050 RGB LEDs as background. At the same time, each LEDs can be controlled separately so that very strong 6x6 beam matrix effect and rich background effect. Combination between each two units is easy. There are square combination and arc combination. The arc combination angle is up to 30°. The unit is with dual network port in and out already. And it can be connected with Matrix software without any additional controller. It is in line with interational standards. it not only supports DMX, but also integrates Art-Net and King-Net protocols. Different users can easily and quickly program endless matrix beam and LED pixel mapping effect.

●  Optics

. LED qty

Ø 36x5W warm white LED(power LED)

Ø 288x0.2W RGB LEDs(backlight)

. Beam angle

. Lifetime50000Hlow ower consumption, energy conservation and environmental protection


●  Colors

. 3200K Matrix LED

. RGB backlight LEDendless mixing color,great mixing color and rainbow effect

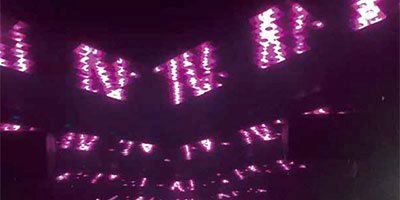

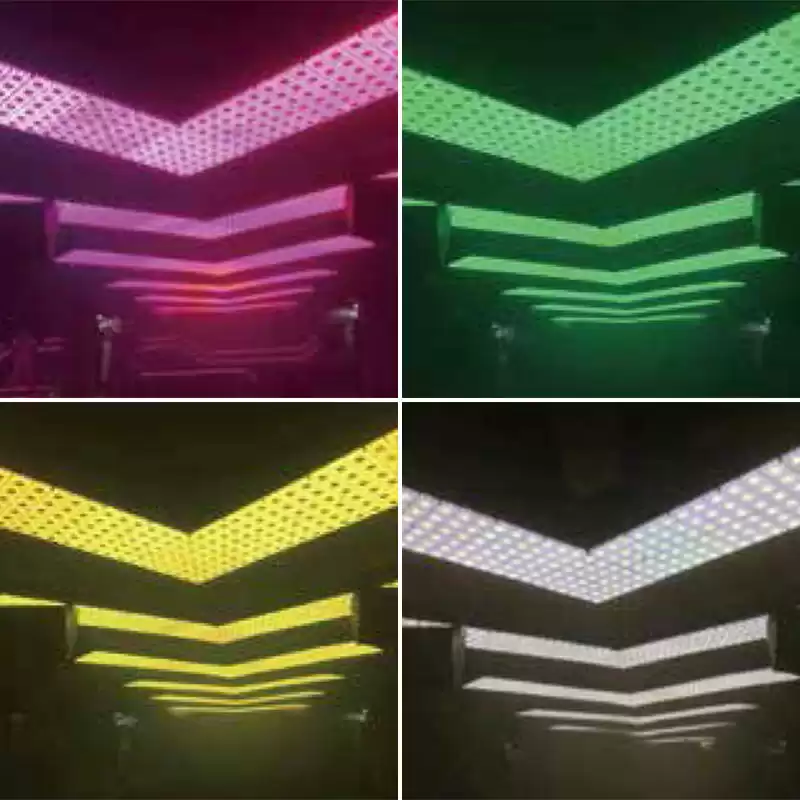

Lighting Effect For 36x5W LED Amber Matrix


●  Specification

. 4 DMX channel modes4CH/8CH/144CH/468CH international standard DMX-512 channel

. AetNet channel4CH/8CH/144/468CH/900CH model

. Control mode:DMX512ArtNetKingNet ,Mastar-slave

. Auto-program:30 programs

. Beam angle

. 0-20HZ strobe

. Dimmer :0-100% linear dimming

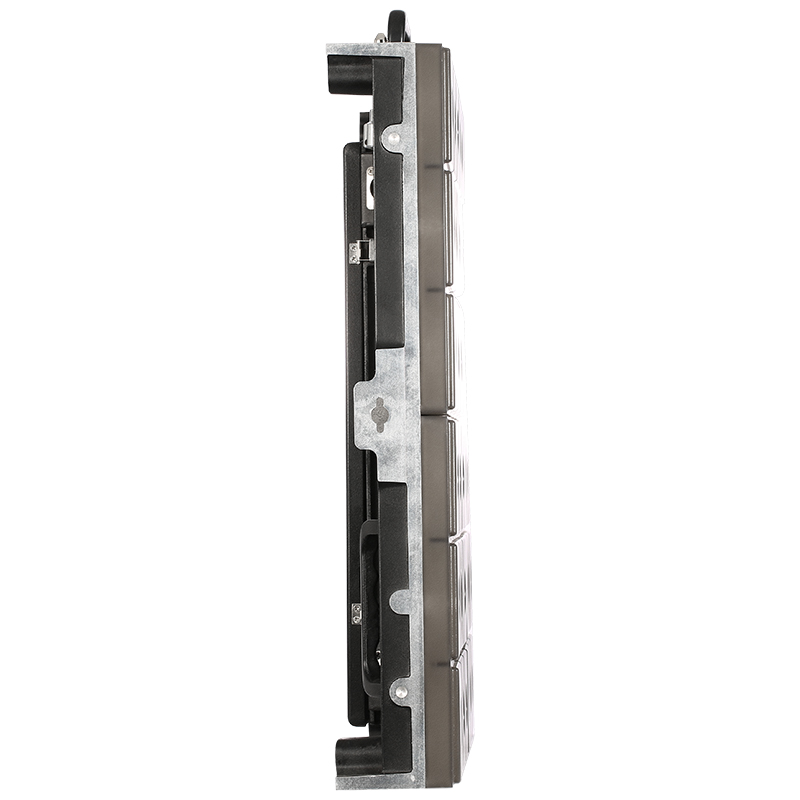

. Combination method: quare combination and arc combination  (arc combination angle is up to 30°)

. dual network port in and out, it can be connected with Madrix   software without any additional controller

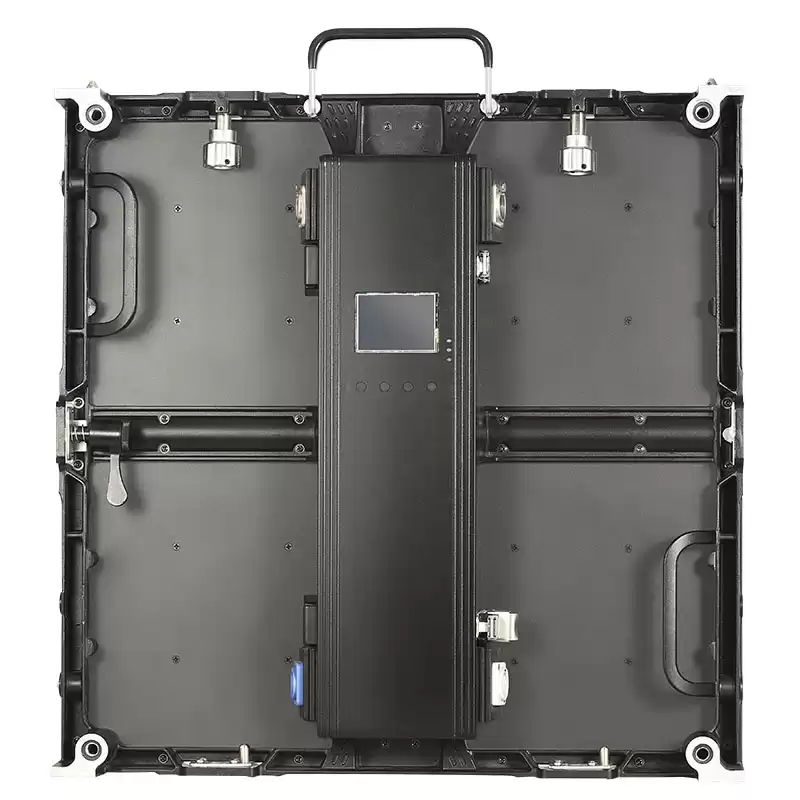

●  Display

. 2.4inches TFT colorful screen

. Display screen can be reversed 180° and fit for different places installation


●  Software

. Software upgradequick software upgrade via DMX cable

. Display the use time of the light, so that customers can know the use details of the light in time

. LED Dimming wayLED mode and Halogen lamp mode

. Intelligent temperature protection system ensure LED service life


●  Other functions

. Setting and addressingRDM

. LEDs temperature detection system to protect the LEDs


●  Power/Signal connection

. PowerCon input/output

. DMX3-pin XLR input/output

. Dual network portRJ45Input&Output.


●  Power

. AC100-240V 50/60HZ

. Power consumption250W


●  Protection class

. HousingDie-cast aluminium

. IP classIP20


●  Operation environment

. Indoor operation temperature-20°C+40°C


●  Size/weight

. Packaging size500x500x100mm

. Net weight8.3KG

. Gross weight9.3KG


●  Certification

. CE,ROHS
