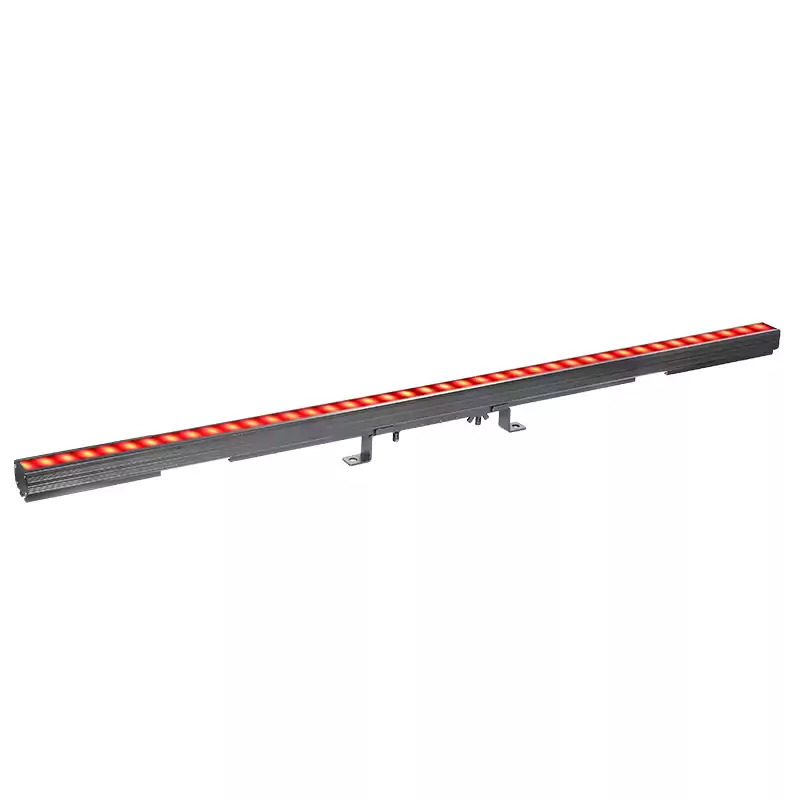

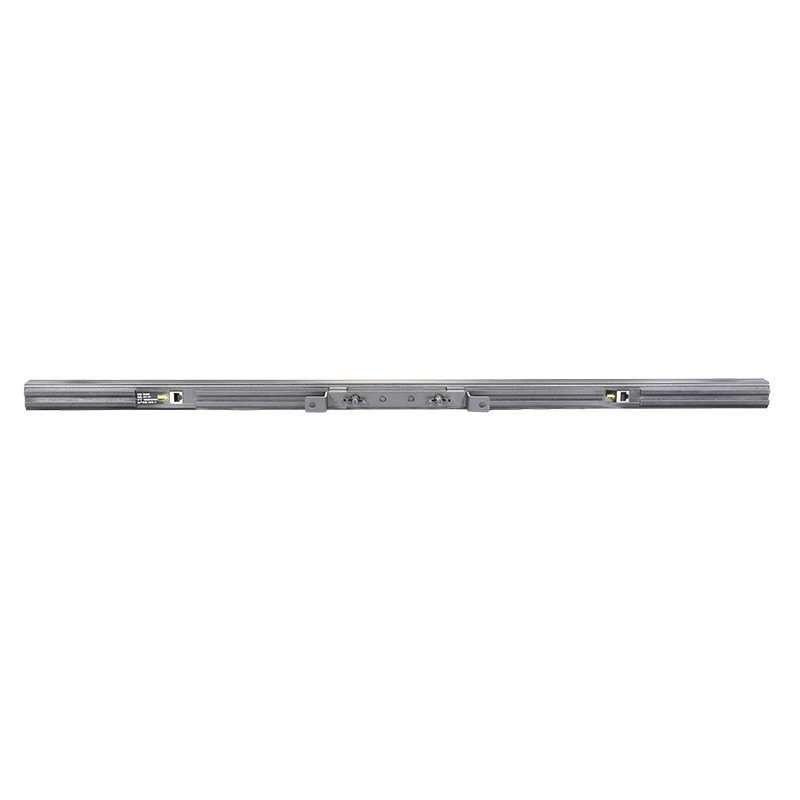

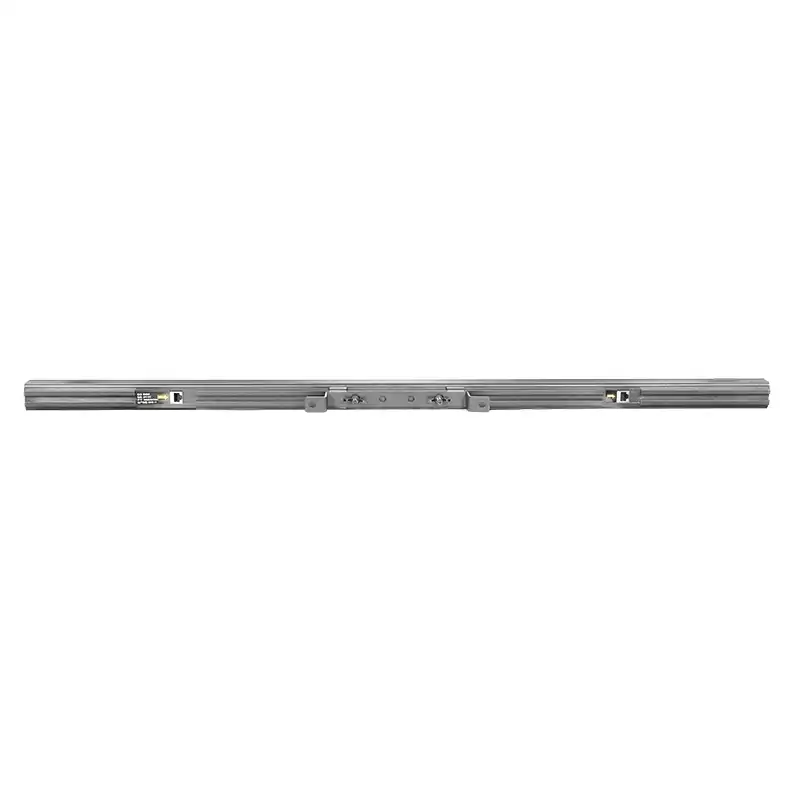

40x0.2W SMD 5050 RGB Pixel LED Bar


LED RGB Pixel Bar.It uses 40x0.2W RGB LEDs controlled individually and following Art-Net &DMX protocols.multiple units can be connected by digital console or computer software and the maximum  point controlled can reach 200,000.




It is all aluminum alloy structure, stylish, generous, easy to install. Using 40* 0.2W SMD 5050 RGB LEDs as light sources, each light source can be controlled individually, equipped with international standard DMX512 and Art-net dual protocols, and the application platform has a wide range. For complex stage shapes, there are unique digital processing methods to easily achieve colorful effects. CAT-5 network port and DMX output and input. With digital console or computer software, multiple units can be connected, and the maximum can control 200,000 points. The controller can reach 154 units, and the corresponding IP address and DMX address code can be intelligently set by the controller buttons, which is convenient and simple.

●  Optics

. LED : 40x0.2W RGB LED, uniform and delicate color mixing effect

. Spot angle: 120 °

. Life span : 50000H, low power consumption, energy saving and environmental protection


●  Colour

. Uniform RGB color mixing system

Lighting Effect For 40x0.2W 5050 RGB Pixel LED Bar


●  Specification

. 1 DMX channel mode: 8CH international standard DMX512 channels

. ArtNet channel 480CH

. 3 control modes: DMX512, ArtNet, master-slave

. DMX function: dimming, strobe, RGBL, auto-run program selection, auto-run


 ●  speed

. Strobe effect: 0-20HZ strobe

. Dimming: 0-100% dimming


●  Display

. LCD display

. Four-key button


●  Power / DMX connection

. Power connection: PowerCON power cable input and output

. DMX card dragon seat: 3 Pin & 5Pin card dragon seat input, output

. ArtNet: RJ45 input and output

. Control box power output: 24V

. Control box output RJ45 4 outputs, each output can take 4 pixel light strips


●  Power supply

. AC100-240V 50 / 60HZ

. Power consumption : 320W


●  Protection class

. Housing material: metal

. Waterproof level: IP20


●  Working environment

. Indoor working temperature: -20 ° C + 40 ° C


●  Certification

. CE, ROHS
