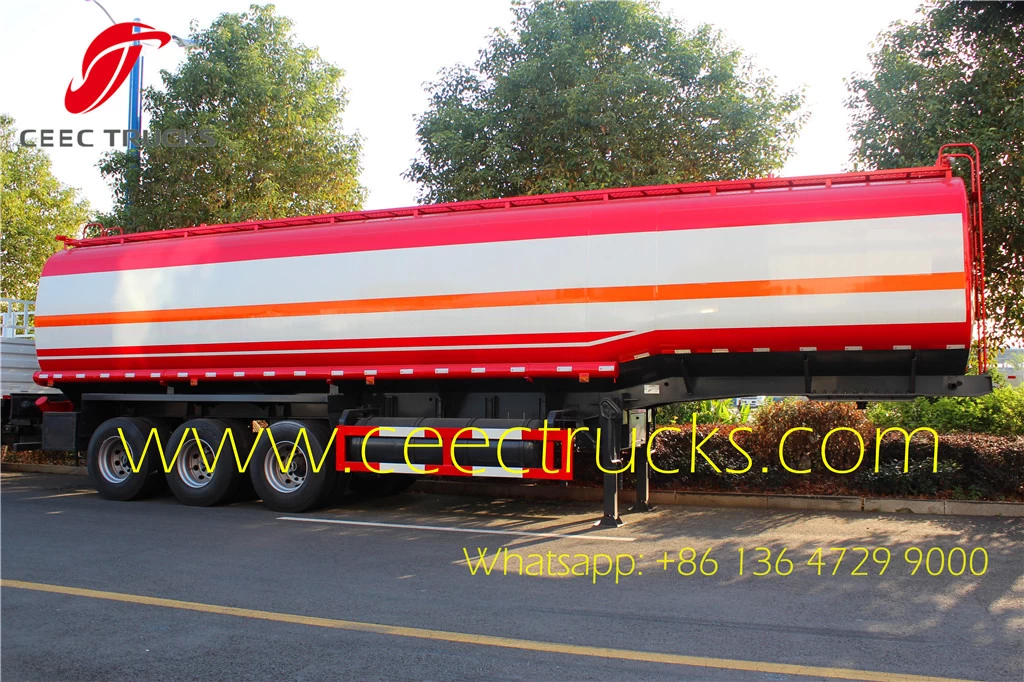

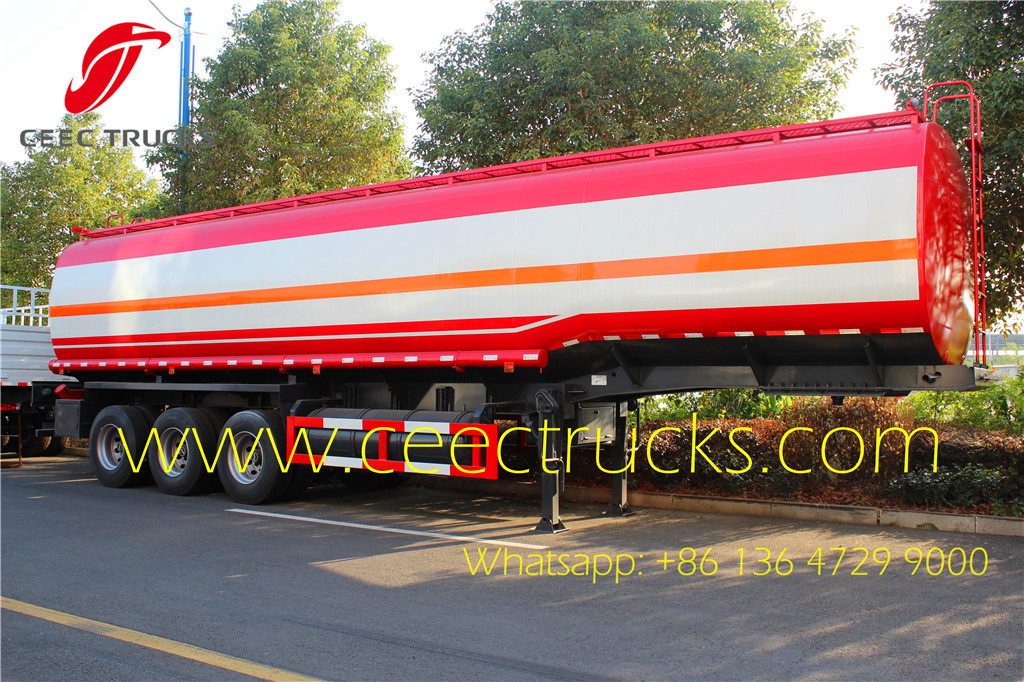

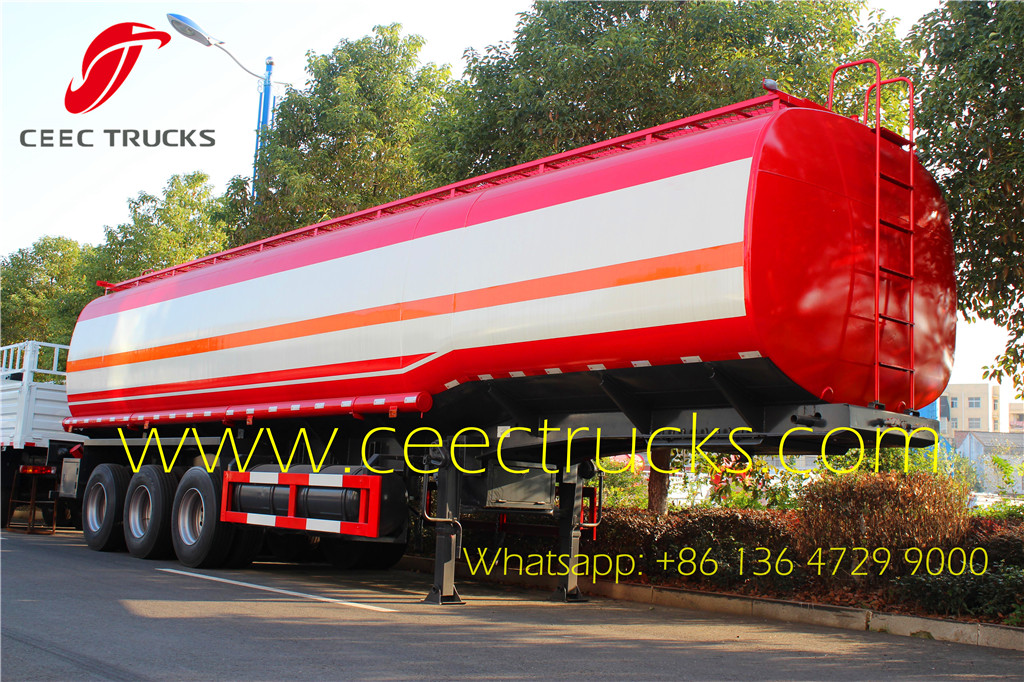

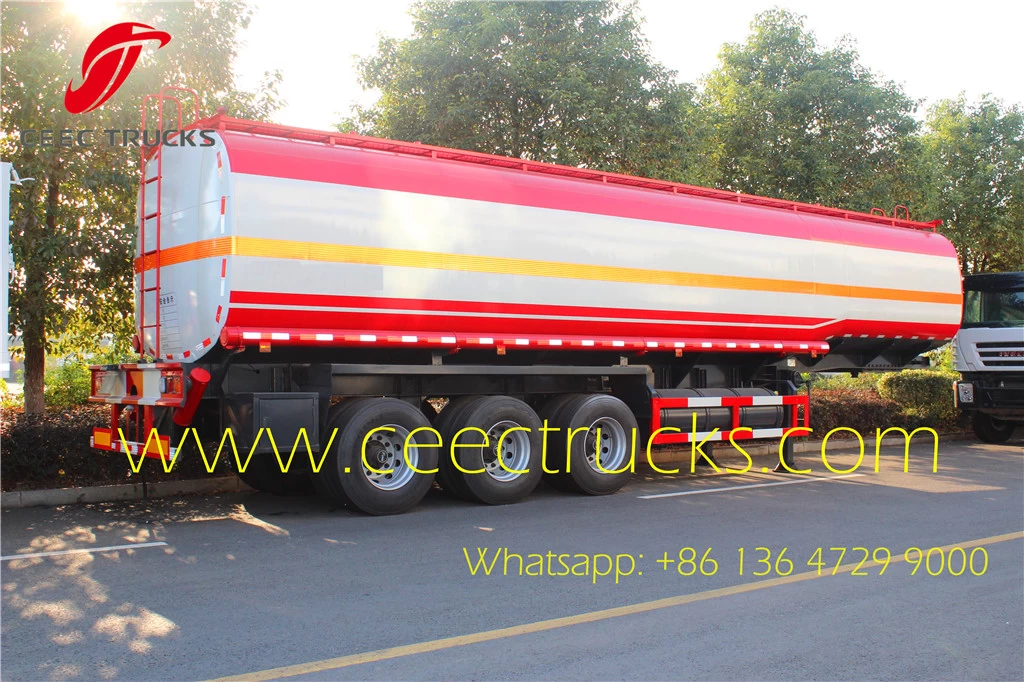

Africa & Asia Customer choose 3 axle fuel tanker trailer
Function:
Oil tanker trailer (also called oil tanksemi-trailer, fuel tanker semitrailer, fuel semi-trailer, oil semitrailer, fueltrailer tanker, fuel tankers, fuel tank trailer, oil trailer, semi tankertrailer, stainless steel oil tanker trailer, carbon steel trailer tank fuel) is used to transport oil, diesel, gasoline, kerosene,etc.
2016 produced 35-45 CBM Oil tank semitrailers can be divided into many compartments to load and transport differenttypes of fuels, lubricant, crude oil, alcohol……
Features:
---- High quality tank material has options of carbonsteel, stainless steel, aluminum alloy.
---- JOST kingpin, JOST / FUWA landing gears
---- Axles are of top Chinese brand FUWA or German brand BPW
---- Main fuel components available of international brands (ADR standard) -Civacon of OPW (America), EMCO Wheaton (America), DIXON (Europe)....
---- Bottom loading system including vapor recovery and overfill detectionsystem can be equipped.
Specification:
Similar Key Words: 36,000litres tanker semitrailer, 40,000litres tank semi-trailer, fuel semi-trailer,oil semitrailer, fuel trailer tanker, fuel tanker trailer, fuel tankers, fueltank trailer, oil trailer, semi tanker trailer

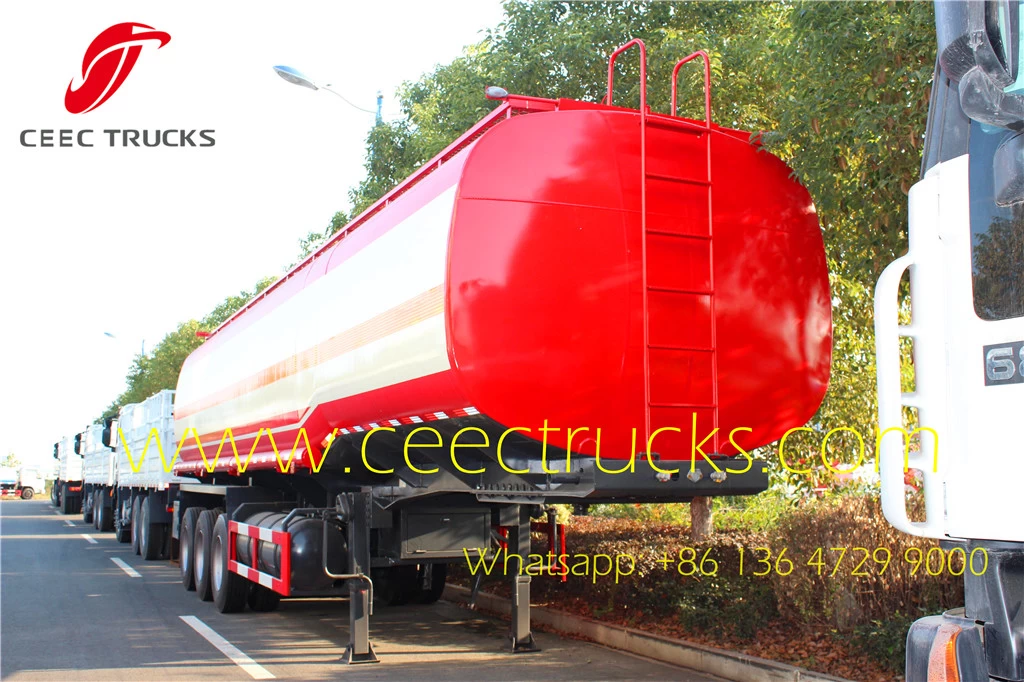

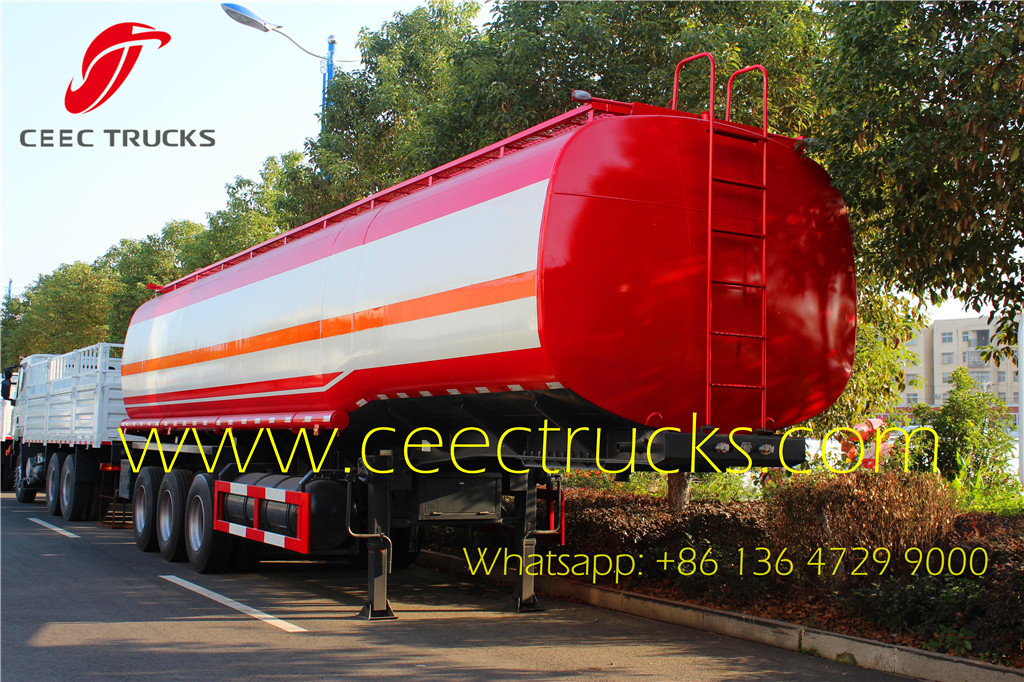

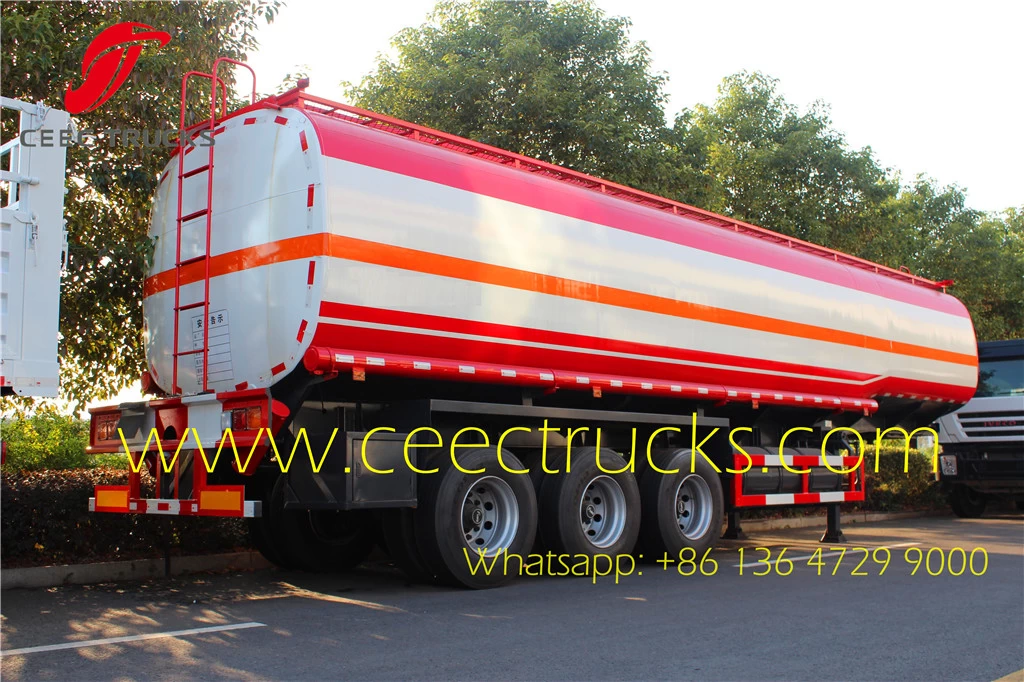

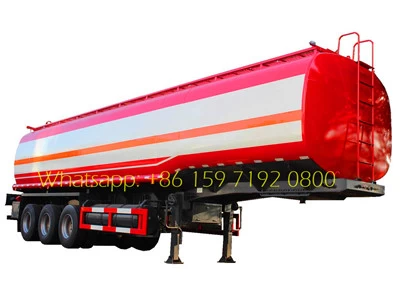

| 3 Axle Oil Tanker Trailer (38,000 Litres)
|
| General
|
Trailer Brand
|
CEEC TRUCKS
|
| Overall Dimension
|
12900 x 2500 x 3800 mm
|
| GVW / Kerb Weight
|
40,000kg / 11,750 kg
|
| Superstructure
|
Tank Capacity
|
42,000 Litres (11,000 gallons)
|
| Tank
|
Made of Carbon steel with inner baffles to prevent fuel surge during moving.
|
| Kingpin
|
2” or 3.5”
|

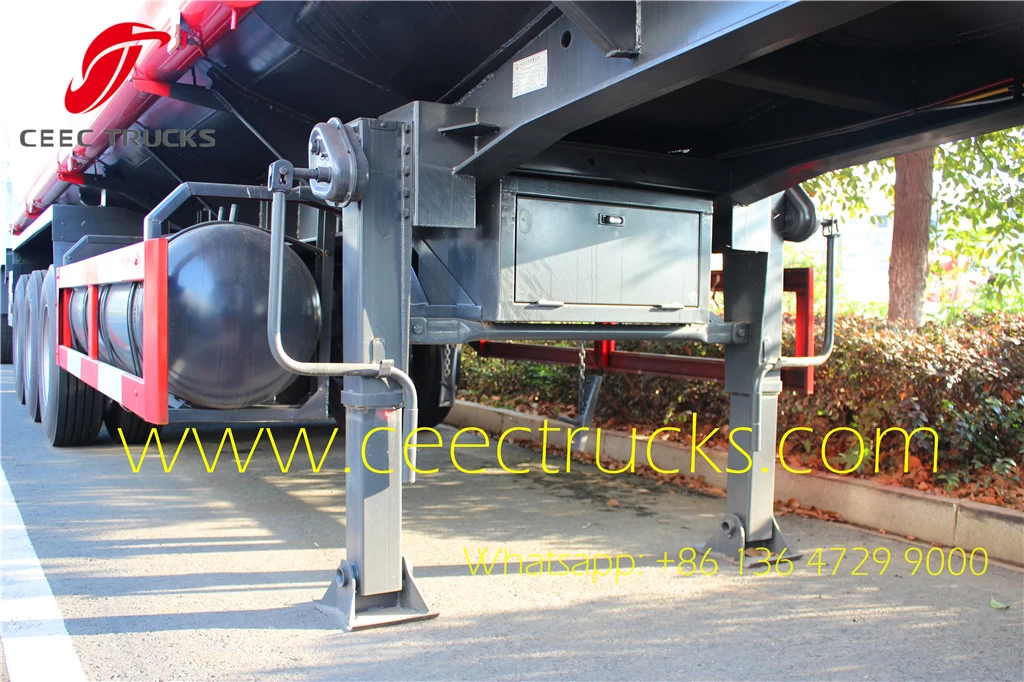

| Landing Gear
|
28 Ton capacity
|

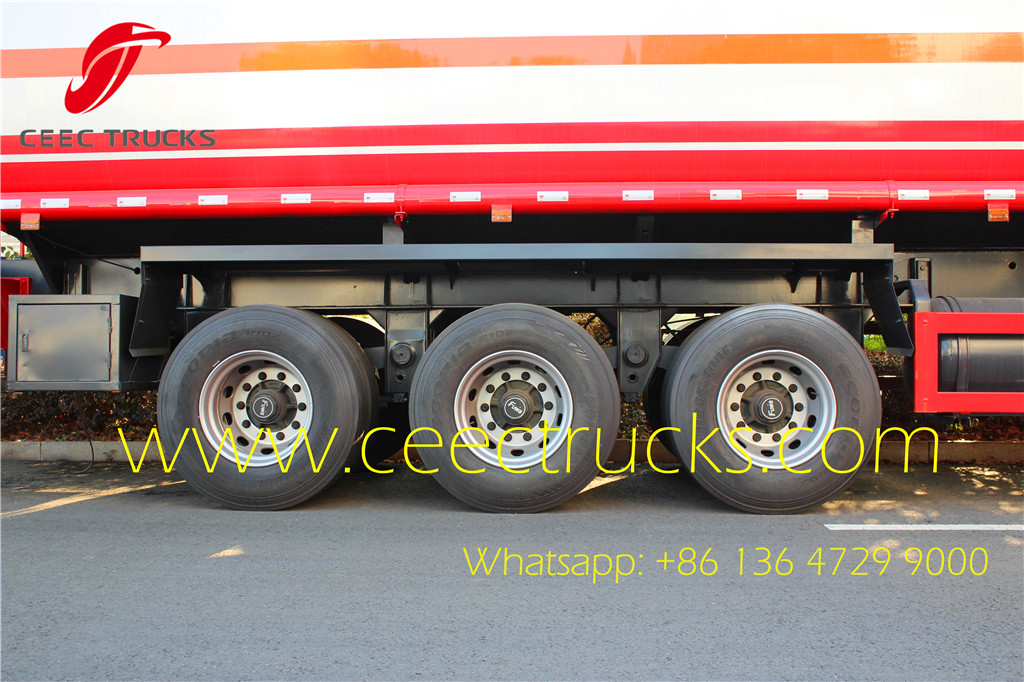

| Axles
|
3 axles, 13Ton, FUWA or BPW brand
|
| Tyre
|
11.00-20, 11.00R20, 315/80R22.5
|
| Paint
|
Automotive metallic paint
|

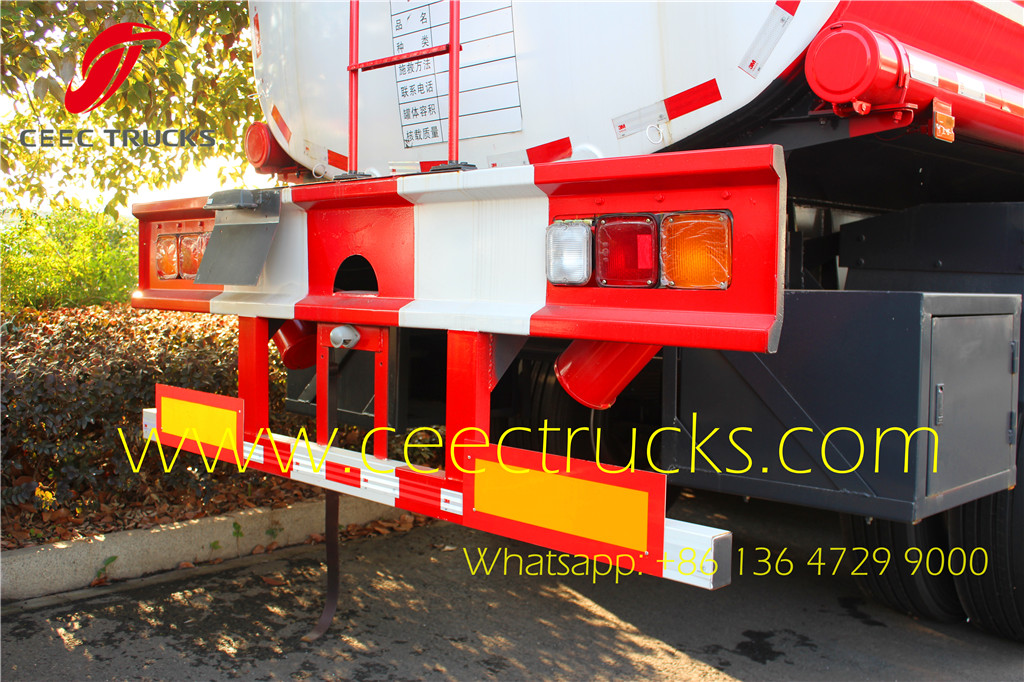

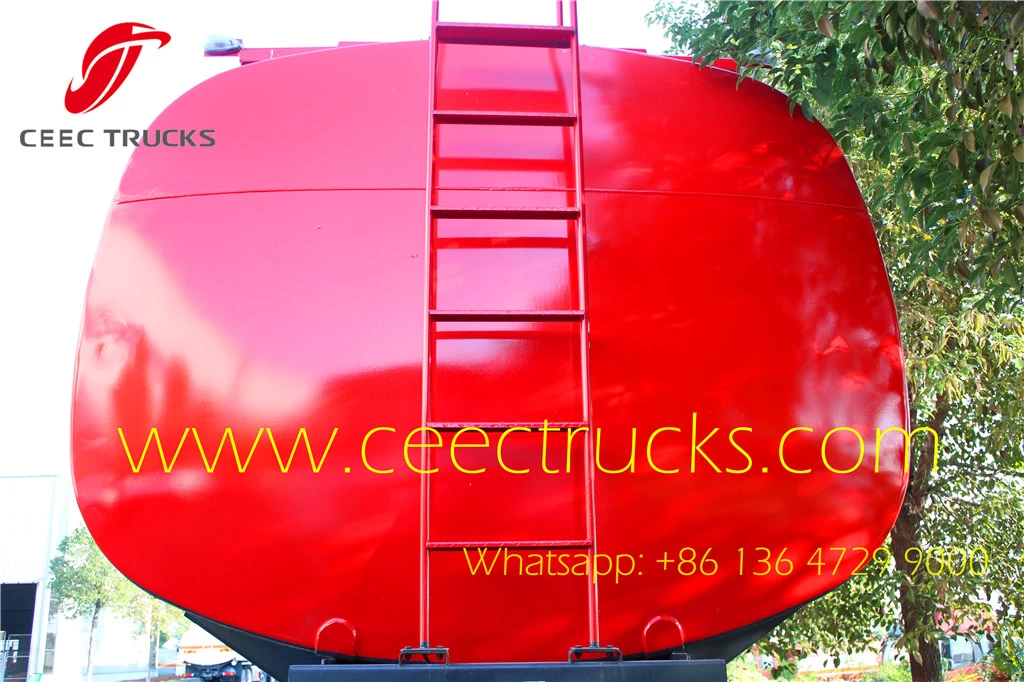

| All standard accessories: manhole, ladder, inlet, discharge, anti-slip walkway, hose, reflective strips……..
|
| Optional
|
1. Tank material could be carbon steel, stainless steel, alluminum……
2. It can be divided into many compartments to load different types of fuels.
3. BPW axles, JOST kingpin, JOST landing gears, Air suspension, ABS.
4. Heat preservation of rock cotton or polyurethane foaming, Heating system.

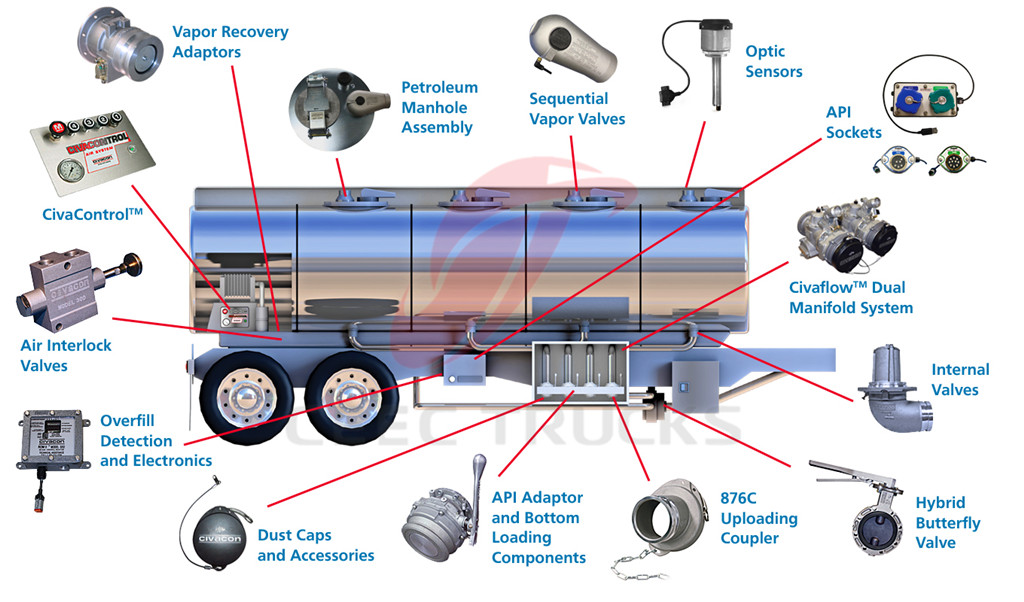

5. OPW (Civacon) bottom loading system can be equipped: API connections, over-fill detection system , vapor recovery vent, vapor recovery adaptors & dust cap, pneumatic control, bottom emergent valve……
6. Tube or tubeless tyres, off-road single tyre for bad roads.
|
