Product Name

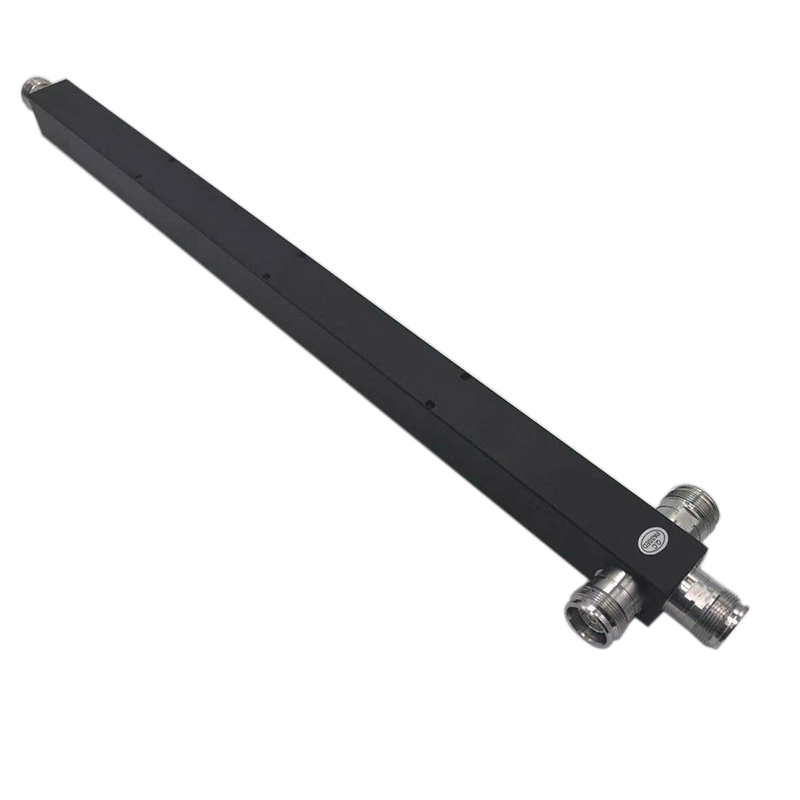

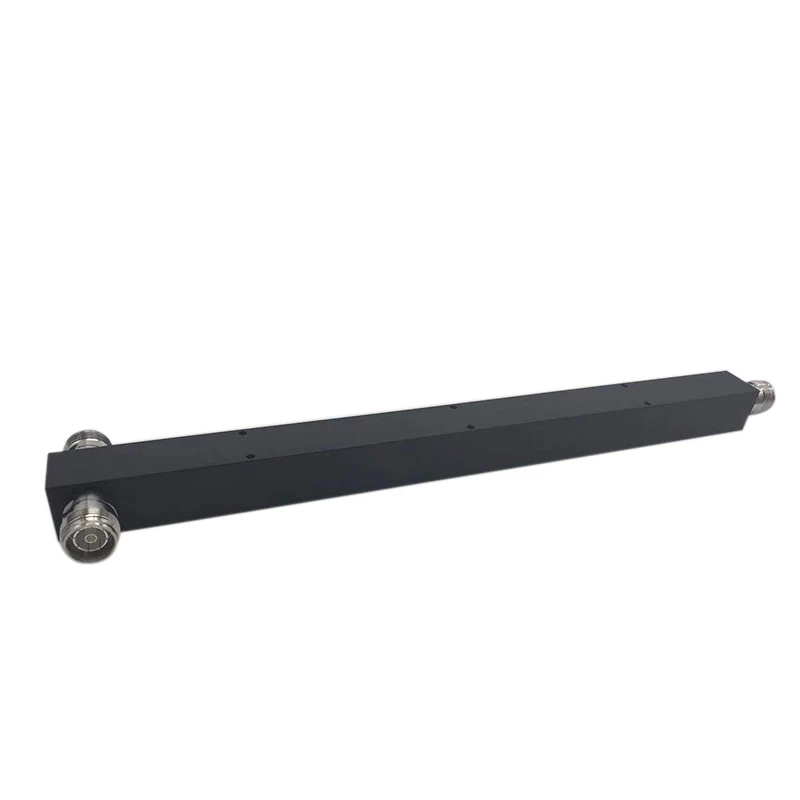

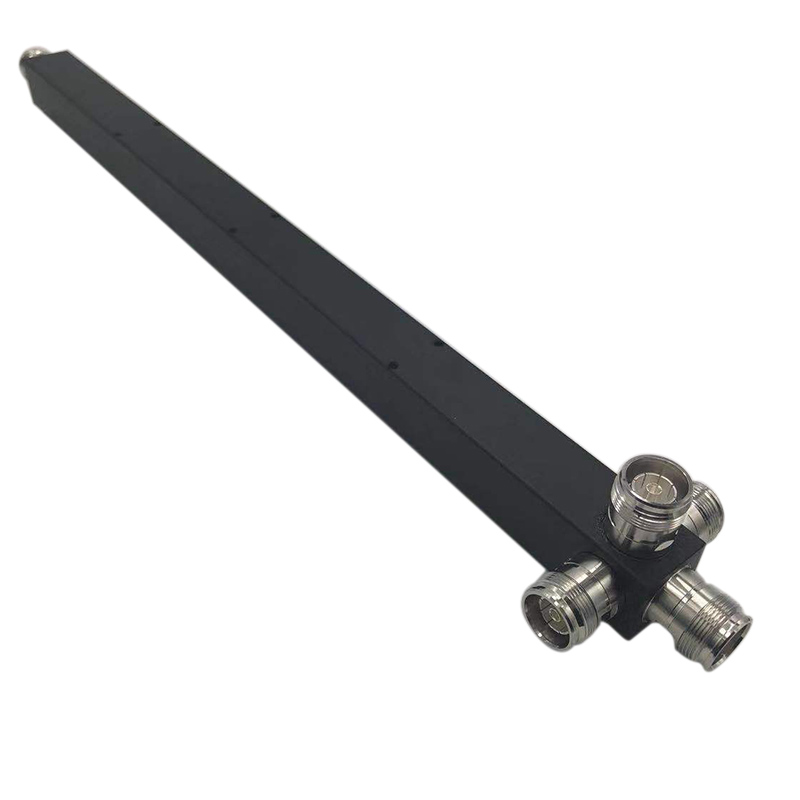

380-6000MHz 2-3-4Way Cavity Power Splitter with 4310-F
Low PIM Wideband Splitters are used for 5G market
Product Features
◆ Low VSWR
◆ Low Insertion Loss
◆ Indoor or outdoor Application
◆PIM-160dBc@2*43dBm
◆Widely used for In-building Solutions and Outdoor application.
Technical &Mechanical Specifications
|
Model No.
|
MPS-460-02-4F-160
|
MPS-460-03-4F-160
|
MPS-460-04-4F-160
|
|
Freq(MHz)
|
380-6000
|
|
Input
|
2-way
|
3-way
|
4-way
|
|
Insertion Loss(dB)
|
≤0.4 (380-2700)
≤1.5 (2700-6000)
|
≤0.6 (380-2700)
≤2.0 (2700-6000)
|
≤0.6 (380-2700)
≤2.0 (2700-6000)
|
|
VSWR
|
≤1.3 (380-2700); ≤1.35 (2700-6000)
|
|
PIM(dBc)
|
≤-160dBc@2*43dBm(698-2700)
|
|
Power(W)
|
300
|
|
Impedance
|
50 ohm
|
|
Connector
|
4310F
|
|
Color
|
Black
|
|
Temp(deg)
|
-30~+65
|
OUR SERVICES
1. Professional skills support for 380-6000MHz
Low PIM 5G 2-3-4Way Cavity Power Splitter with 4310-F,Low VSWR,Low Insertion Loss.
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
