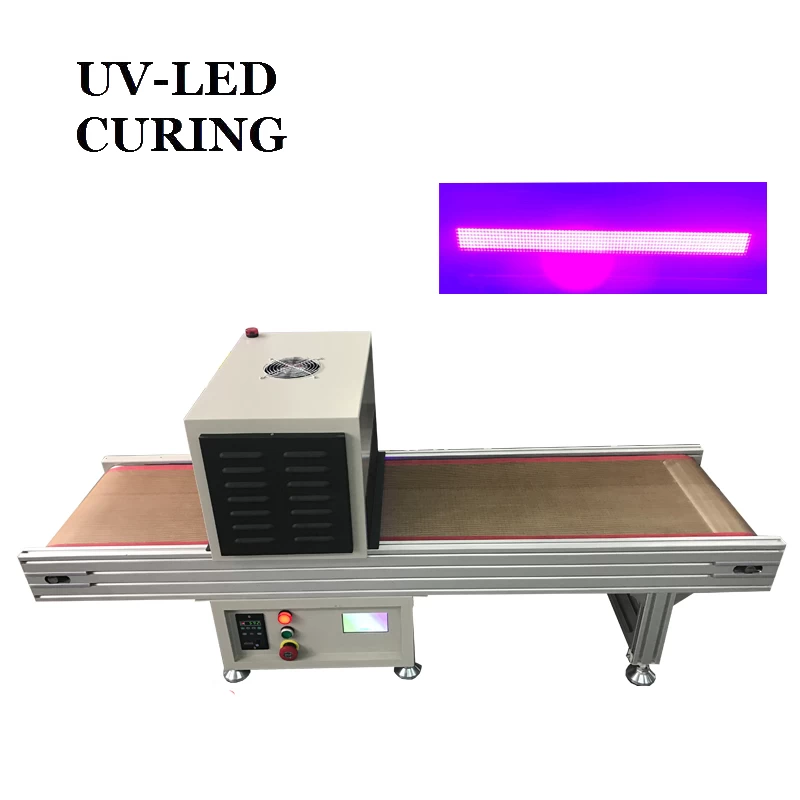

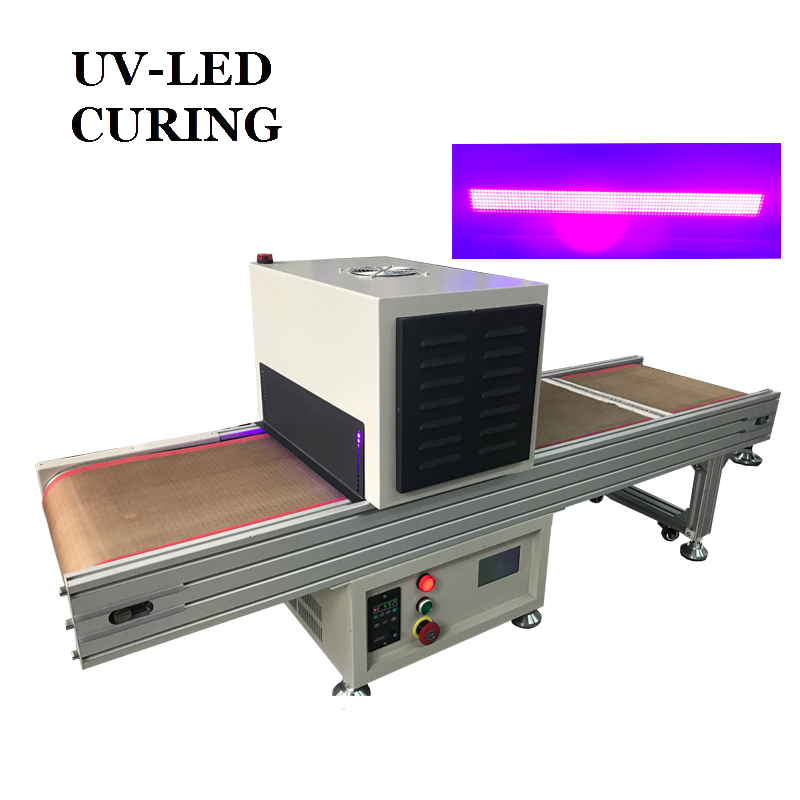

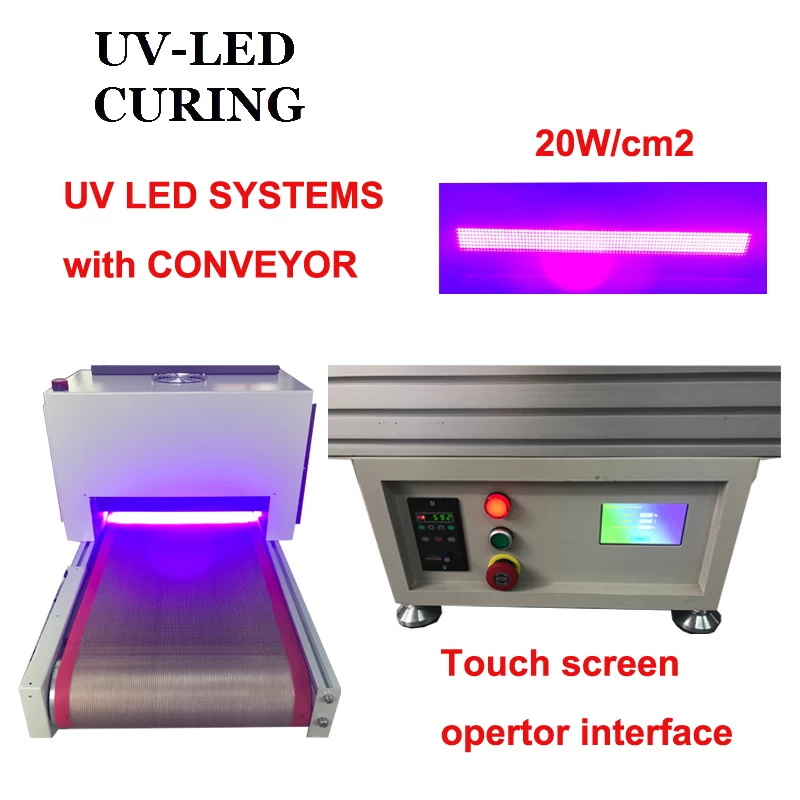

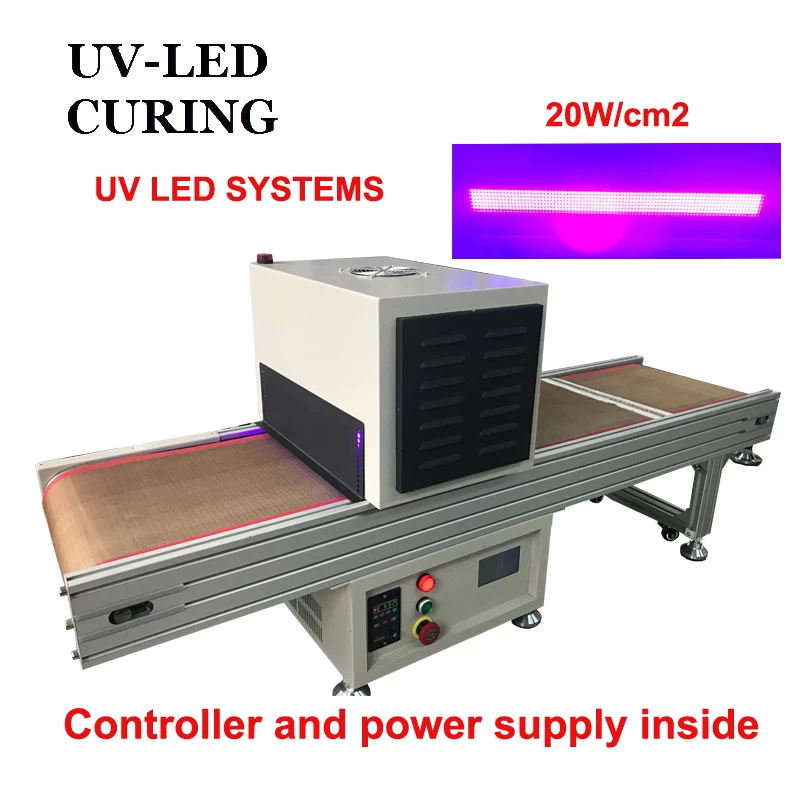

395nm High Power UV LED System for Fast Curing

High Power UV Curing System 395nm is for fast curing. It is without preheating, out-of-the-box, easy to handle.



Why do we chose the product of 395nm High Power UV Curing System for Fast Curing? The cause is clear. Our company pursue the product of high efficiency, practicability, environmental protection. As 395nm High Power UV Curing System for Fast Curing, it can be used without replacing the ink. Also, low temperature is most important for safely using.


Product Parameters of 395nm Fast UV LED Curing System:

Place of Origin

Guangdong, China(Mainland)

Brand Name

UV-LED CURING

Model Number

UV-LED CURING-SL

Rated Power

1600w

Voltage

220V

Wavelength

365nm/375nm/385nm/395nm/405nm/415nm


High Power 395nm Fast Curing System


Technical Data of LED UV Curing System Controller

Type

UV-LED CURING SL

Channel

2

The size of controller

L384*W350*H100mm

Terminal I/O

Input

Pedal switch & serial RS-232 communication signals

Output

Serial RS-232 communication signals

Cooling method of controller

Water cooling

Power supply voltage

AC100~240V±10%(50/60HZ)

Operation mode

Touch Panel

Ambient temperature and humidity

Ambient temperature: -10℃—50℃  Relative humidity: 25%—85%RH

Dimming/Exposure control

Digital Debugging, Manual exposure control, Foot control or timing control (0.1~9999s)

Setting operation

Using the operating switch is set, Power key parameter switch, RS-232

External Control

External input

Enter irradiation alone Irradiation stop input, Interlocking, All lights illuminated input, Query switch

External output

REDAY signal, Error signal, Warning Output, Busy output (Various skinhead), +5VOutput(indicator used)


Technical data of UV Curing Machine :

Product Model

Emitting Window Size

Wavelength

Cooling Method

Peak Irradiation

Irradiation Distance

UV-LED CURING

S528-30*350

30*350mm

395nm

Water Cooling

20000mw/cm2

10-20mm
