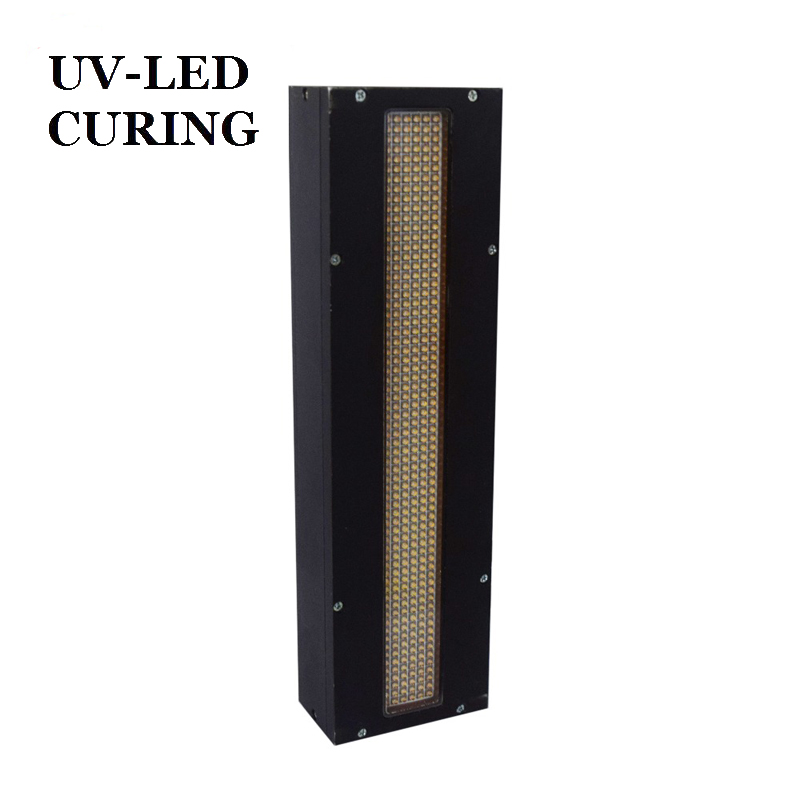

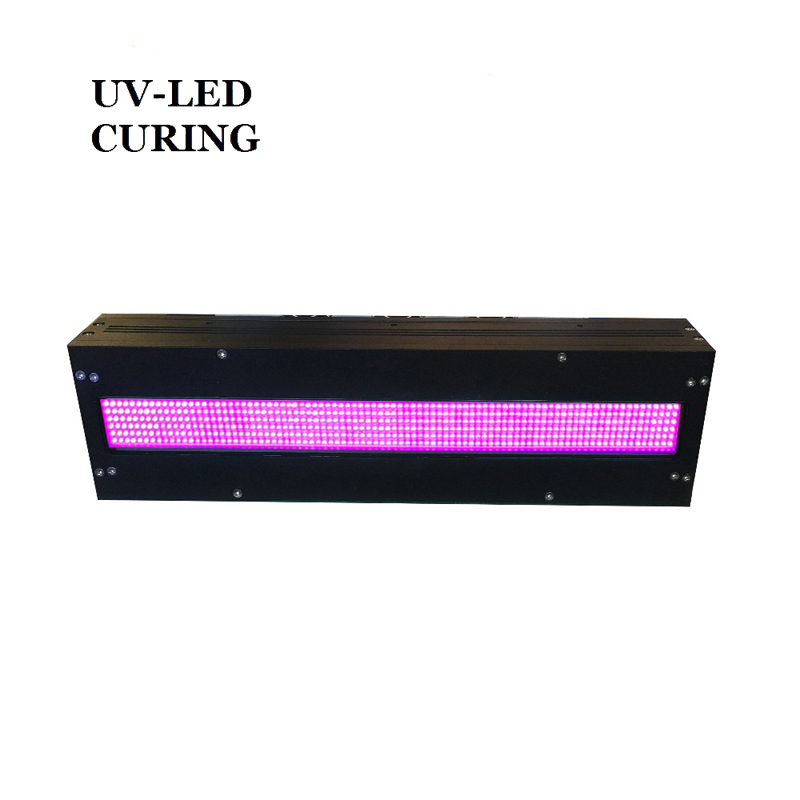

395nm UV LED Curing System UV Dryer Screen Printing

The product of 395nm UV LED Curing System is used for UV dryer screen printing.



395nm UV LED Curing System UV Dryer Screen Printing, chosen for stable output, high uniformity, adjustable output, etc., has its superiority of 25000h~30000h extra-long life and adjustable output.


Product Parameters of Portable 395nnm UV Curing Light Source for Flexo Printing :

Condition

New

Place of Origin

Guangdong, China (Mainland)

Brand Name

UV-LED CURING

Model Number

XYUV-4II

Automatic Grade

Semi-Automatic

Color & Page

Multicoloured

Voltage

110V / 220V

Gross Power

1188w

Dimensions(L*W*H)

384x284x100mm

Weight

20kg

Certification

CE Certification

Warranty

1 Year

After-sales Service Provided

No overseas service provided



Wavelength

365nm/375nm/385nm/395nm/405nm/415nm

Usage

Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer


UV Dryer Screen Printing Curing System

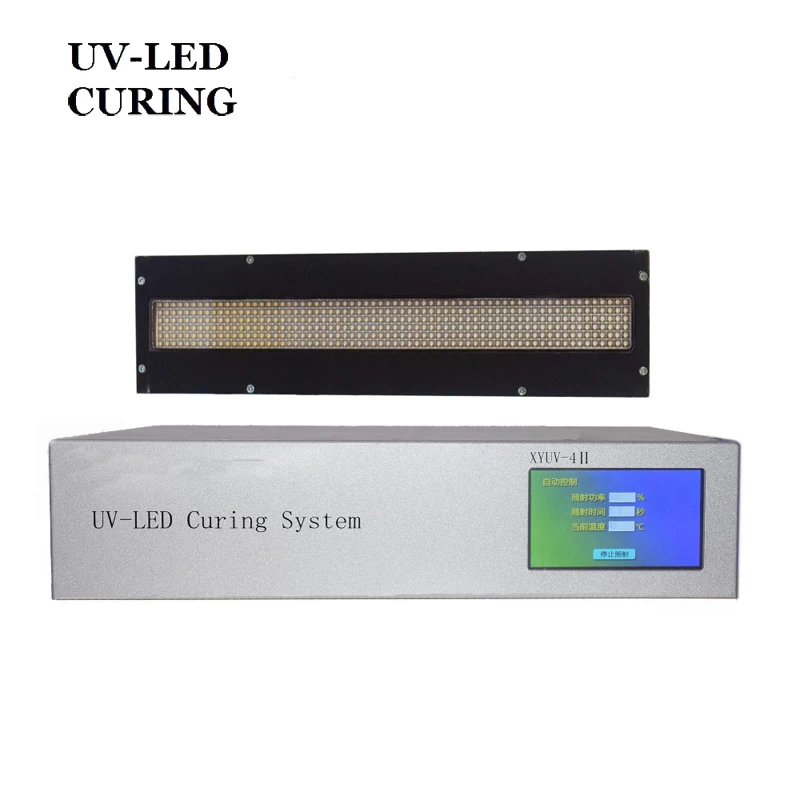

Technical Data of Best UV Curing Machine Controller for Dryer Screen Printing

Type

XYUV - 4

Channel

1

The size of controller

L384*W250*H100mm

Terminal I/O

Input

Pedal switch & serial RS-232 communication signals

Output

Serial RS-232 communication signals

Cooling method of controller

Air cooling

Power supply voltage

AC100~240V±10%(50/60HZ)

Operation mode

Touch Panel

Ambient temperature and humidity

Ambient temperature: -10℃—50℃  Relative humidity: 25%—85%RH

Dimming/Exposure control

Digital Debugging, Manual exposure control, Foot control or timing control (0.1~9999s)

Setting operation

Using the operating switch is set, Power key parameter switch, RS-232

External Control

External input

Enter irradiation alone Irradiation stop input, Interlocking, All lights illuminated input, Query switch

External output

REDAY signal, Error signal, Warning Output, Busy output (Various skinhead), +5VOutput(indicator used)

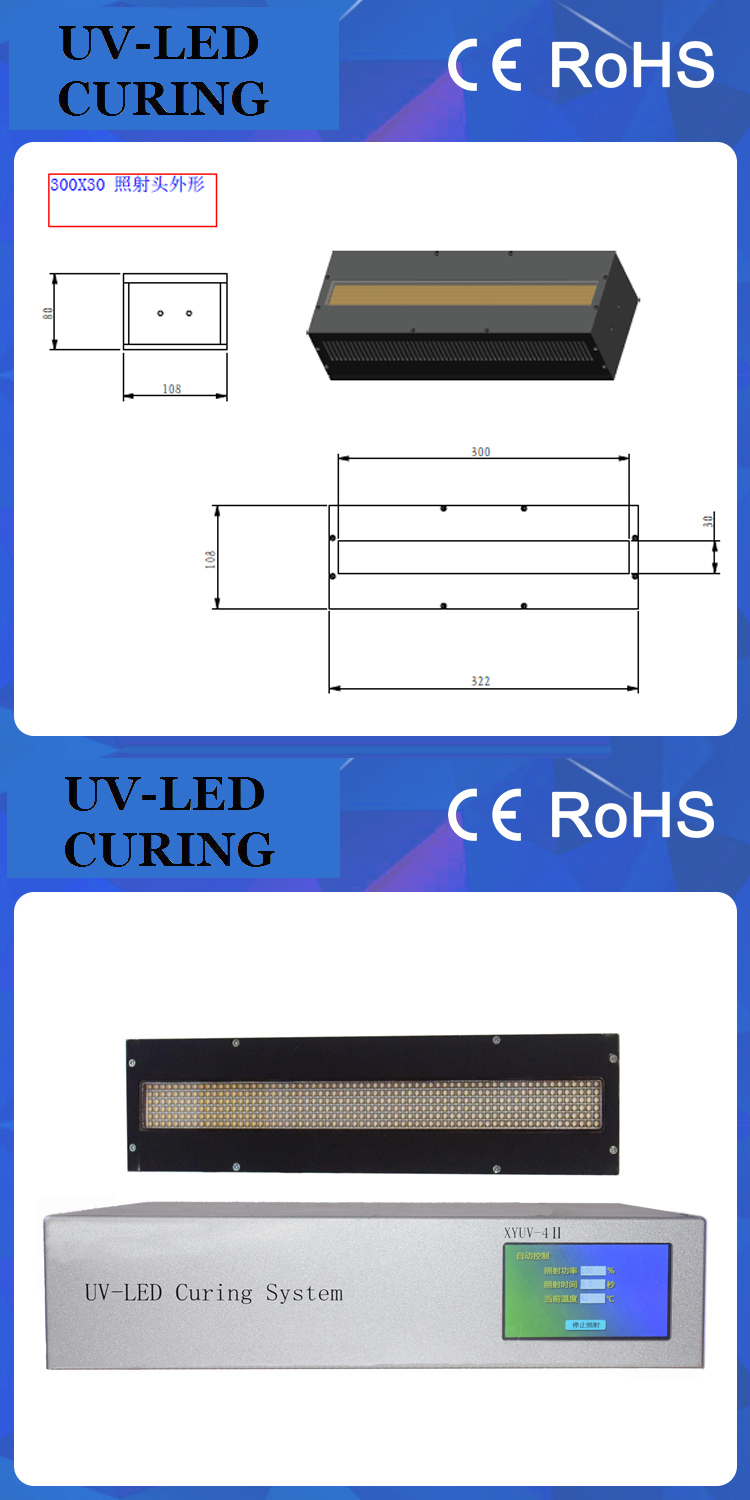

Technical data of Energy Saving 395nm UV Screen Printing System :

Product Model

Emitting Window Size

Wavelength

Cooling Method

Peak Irradiation

Irradiation Distance

UV-LED CURING

S396-30*300

30*300mm

395nm

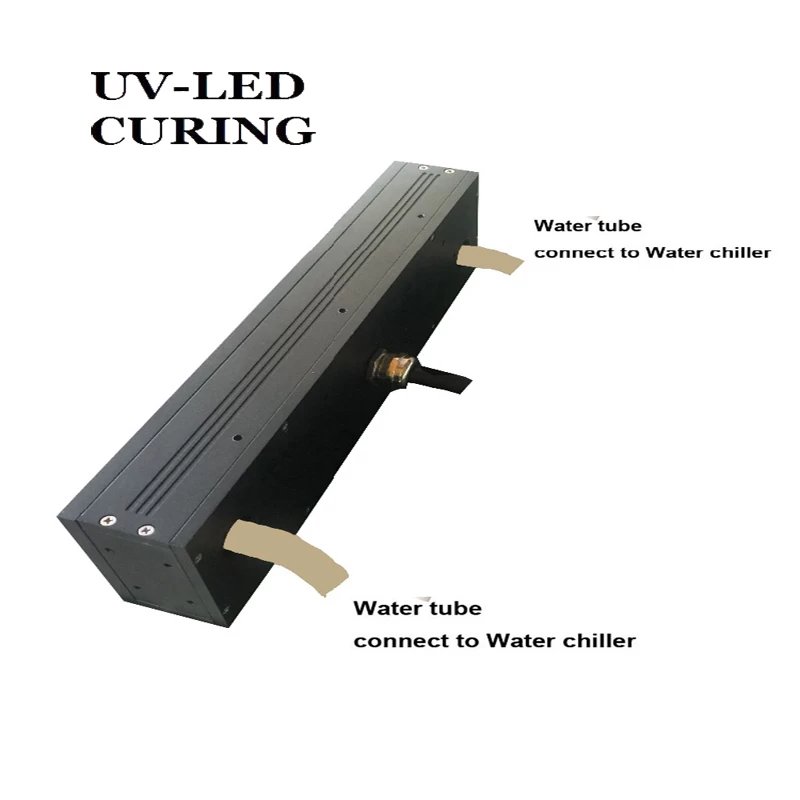

Water Cooling

12000mw/cm2

10-20mm
