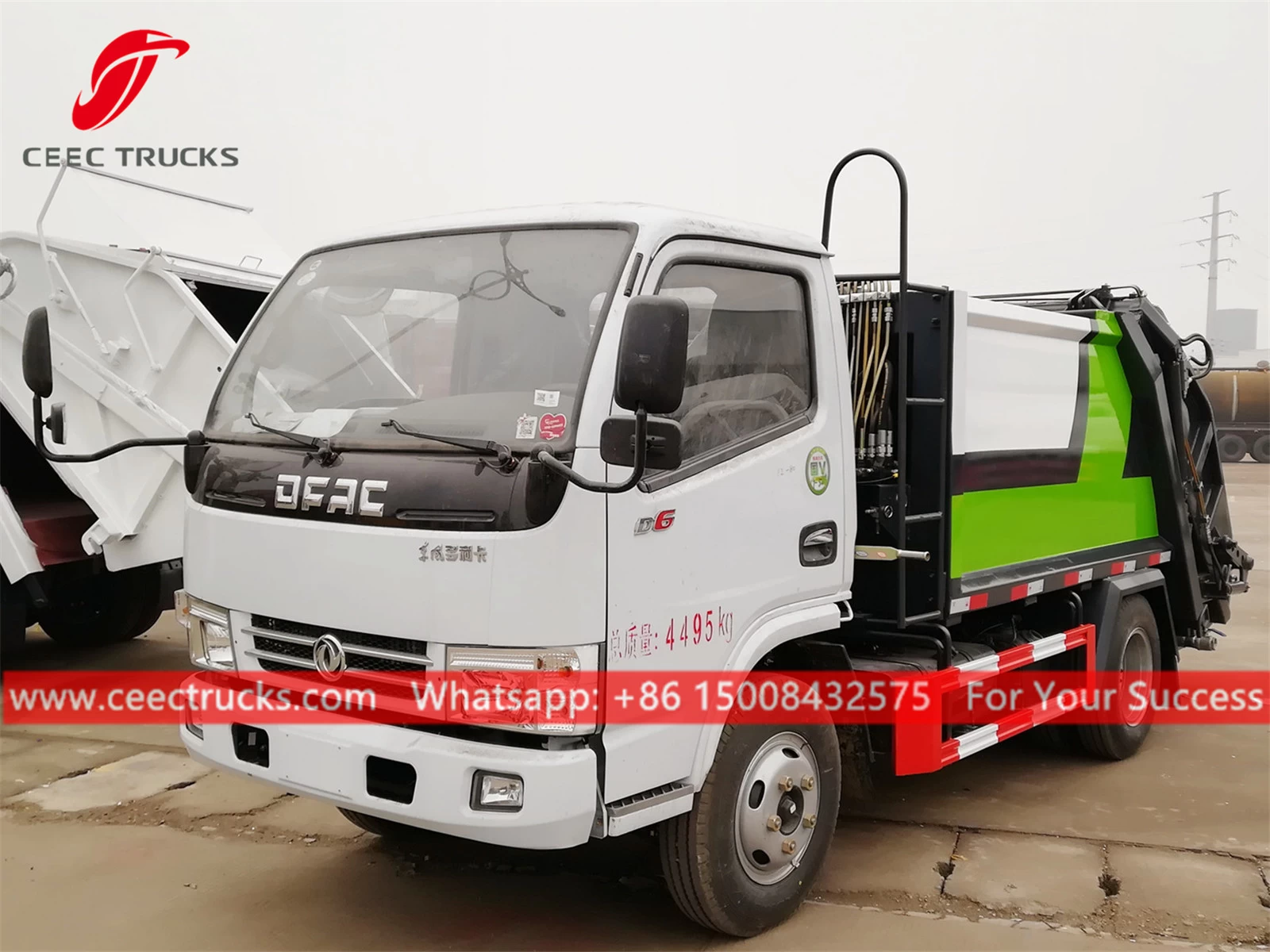

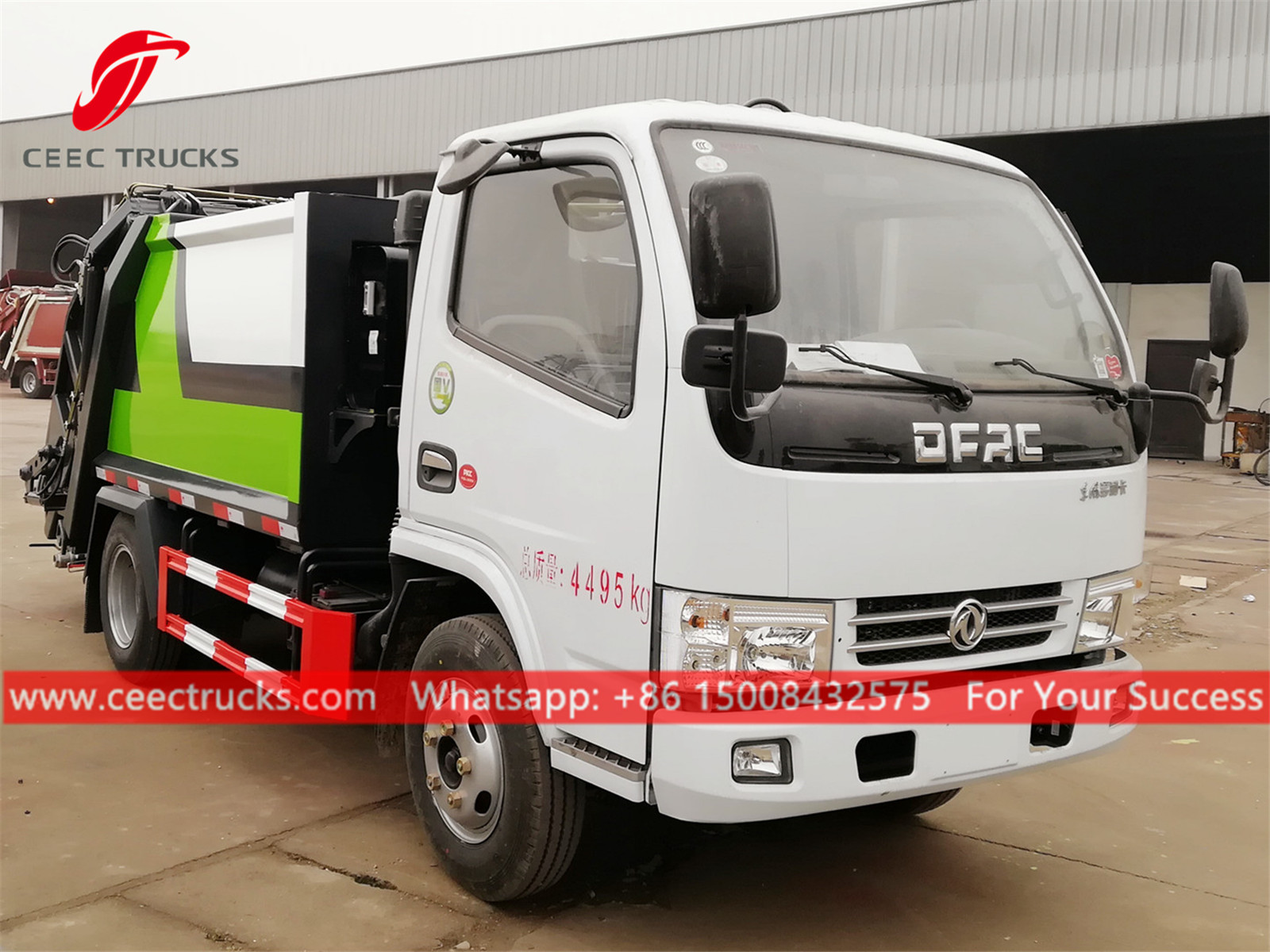

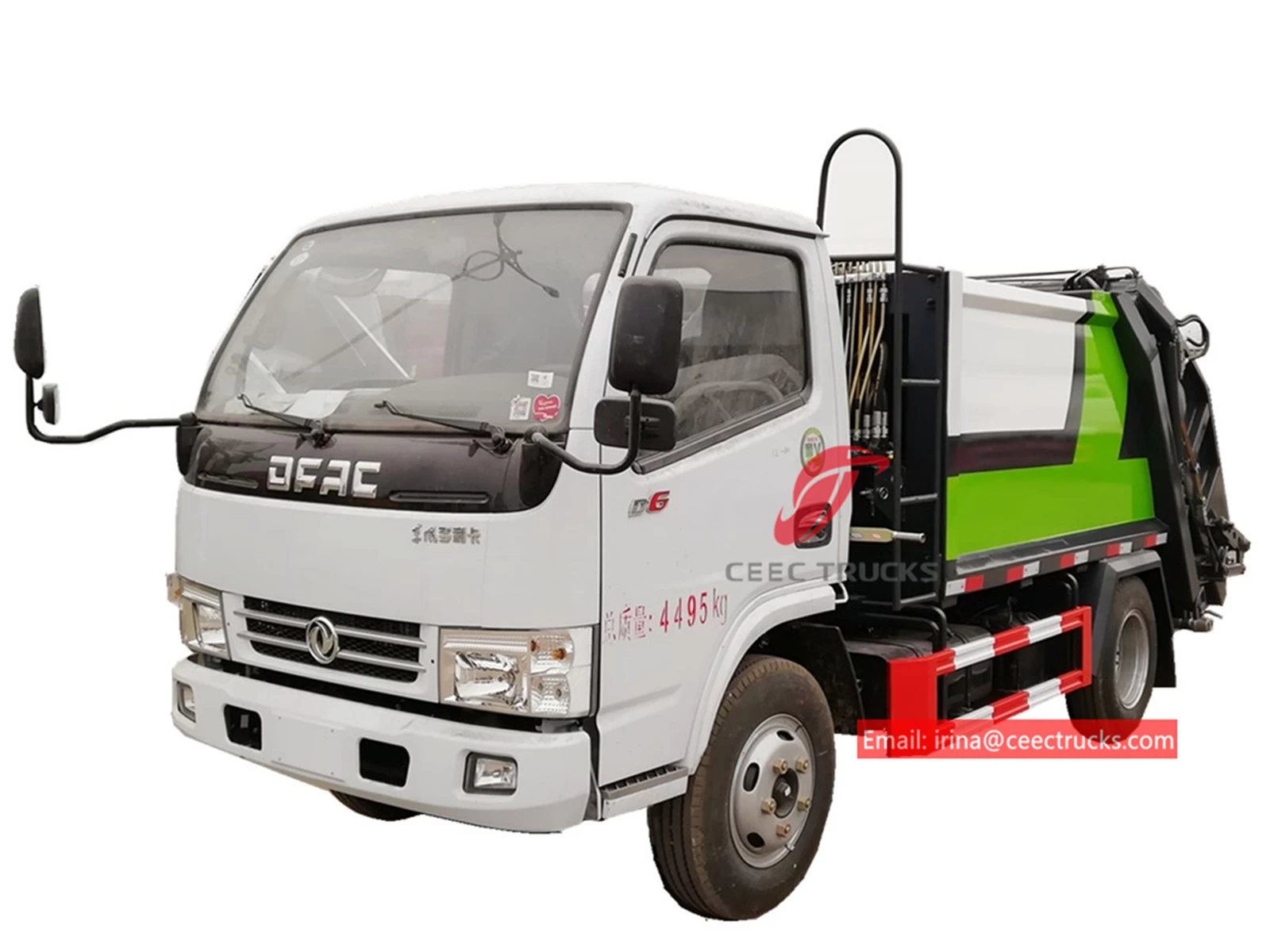

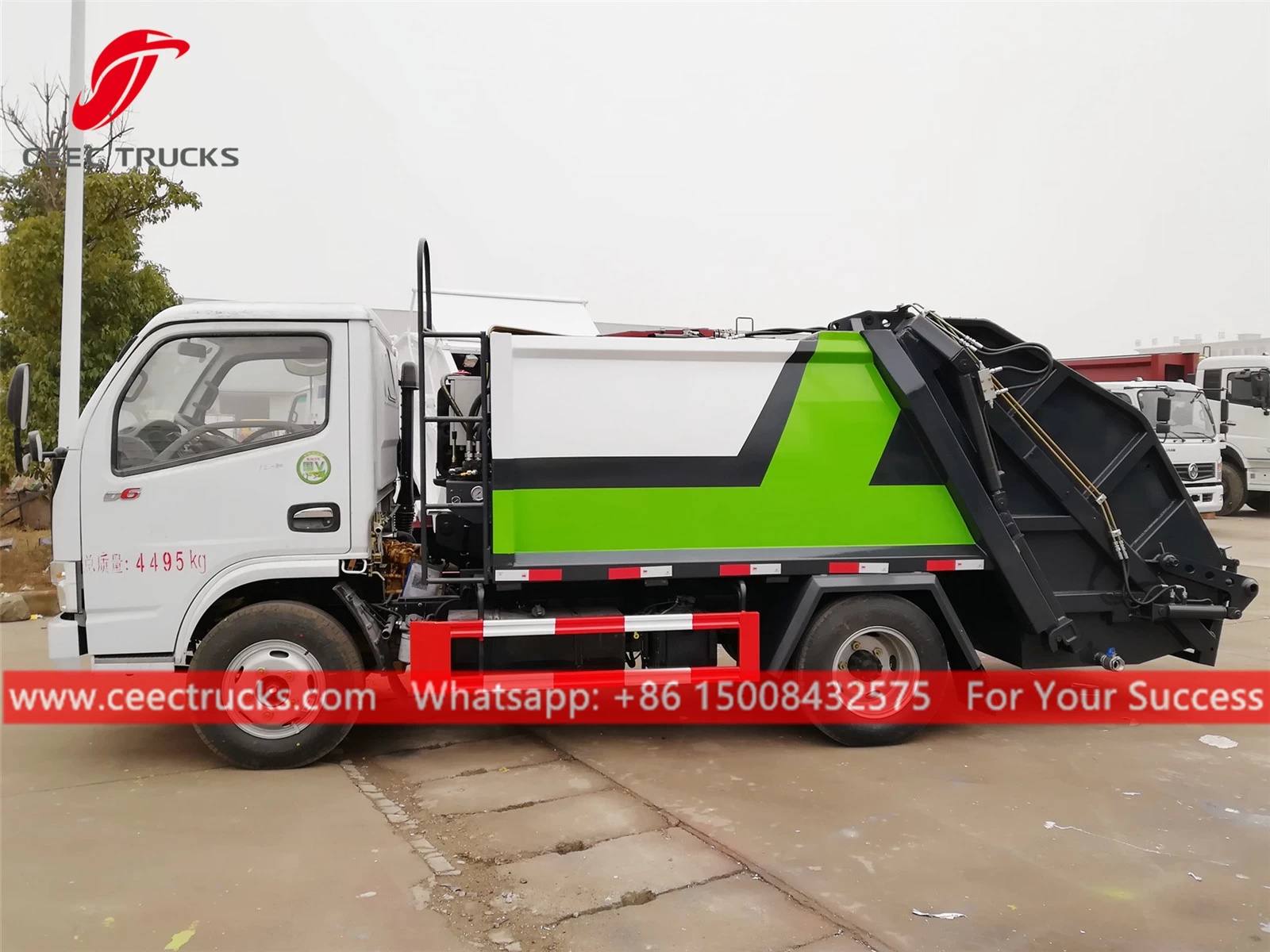

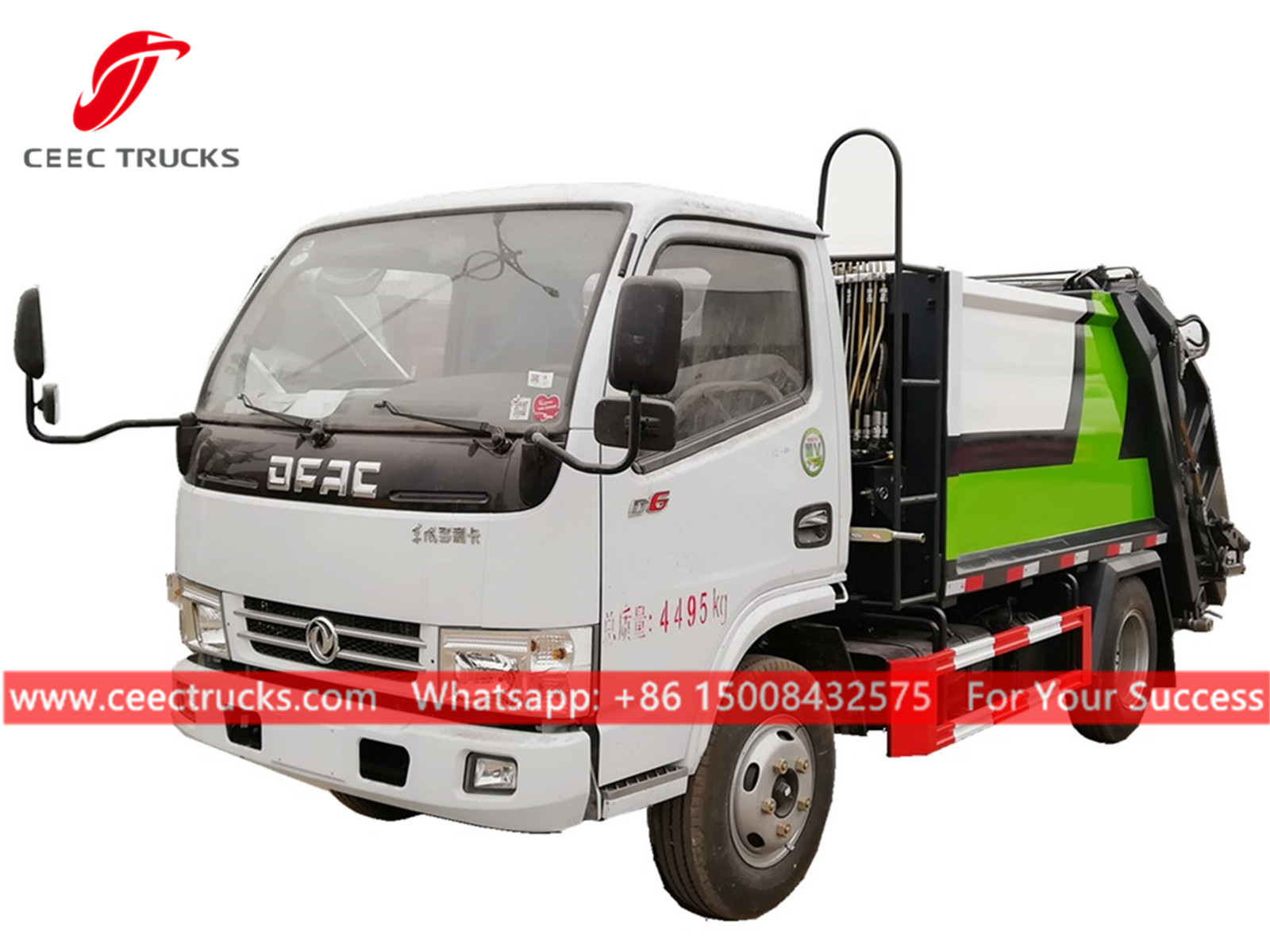

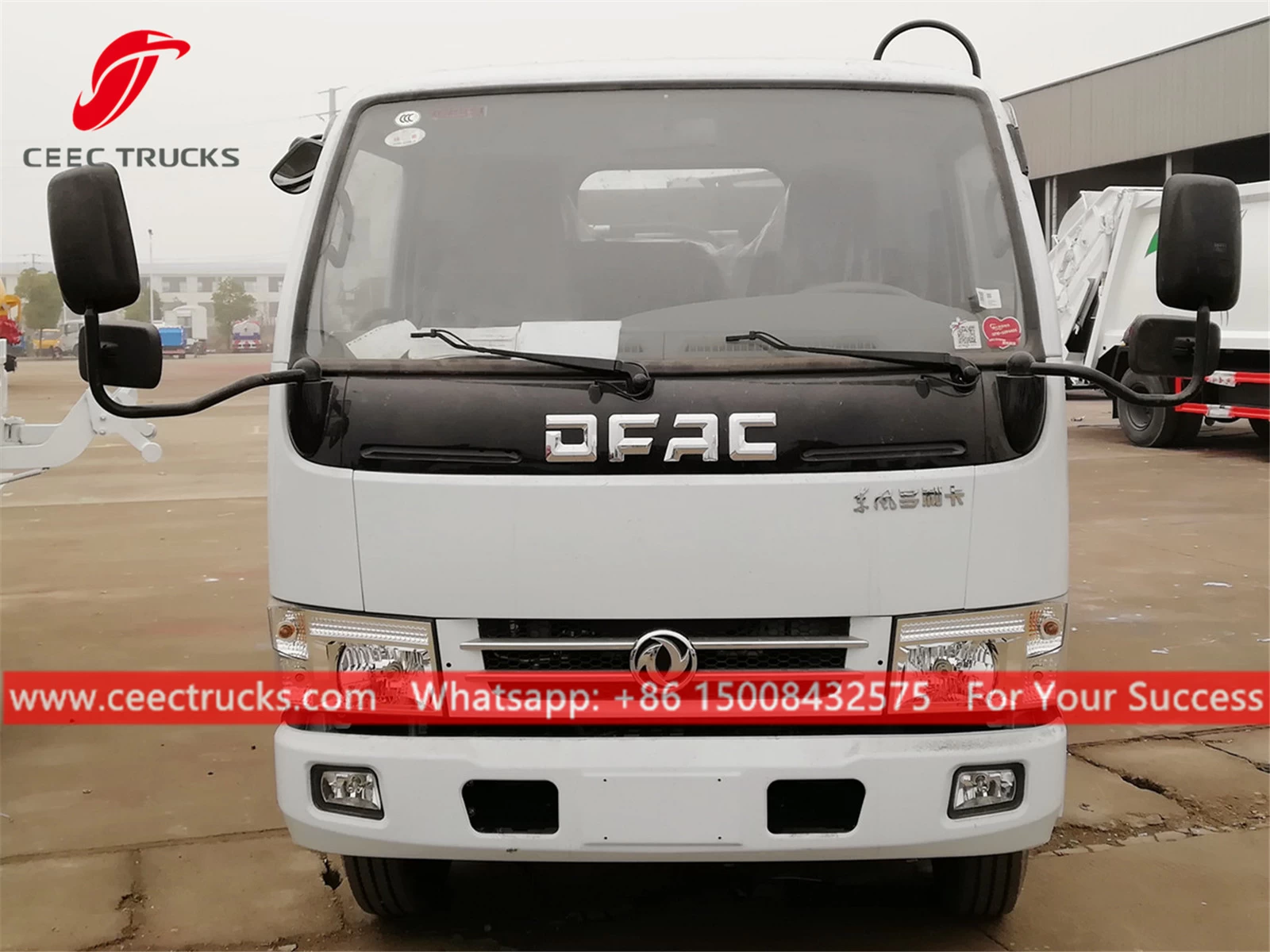

3CBM Garbage compactor truck DONGFENG

Dongfeng garbage compactor truck, Dongfeng 4*2 LHD / RHD chassis, 3308mm wheelbase, 5-shift manual gearbox for easy driving, Italy multifunction hydraulic control valves, carbon steel material tanker body with capacity 3 CBM.




 Applications:



Compressed Garbage Truck Dongfeng (also called Hydraulic pressing garbage truck, rear loader garbage truck, compactor garbage truck, back loading garbage compression truck, waste collection vehicle, refuse compactor truck) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airport, and densely-populated areas like industrial and mineral enterprises and military units.



CEEC TRUCKS  compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.



The refuse compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.



Key Features:



---- DONGFENG chassis, perfect performance

---- CUMMINS / YUCHAI / CHAOCHAI engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Compression body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Virious types of refuse container lifter are available.



Specifications:



Refuse Compactor DongFeng (3 cbm)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

Dongfeng

Overall Dimension

5845* 1980 * 2160 mm

GVW / Kerb Weight

4,495kg / 4,200kg

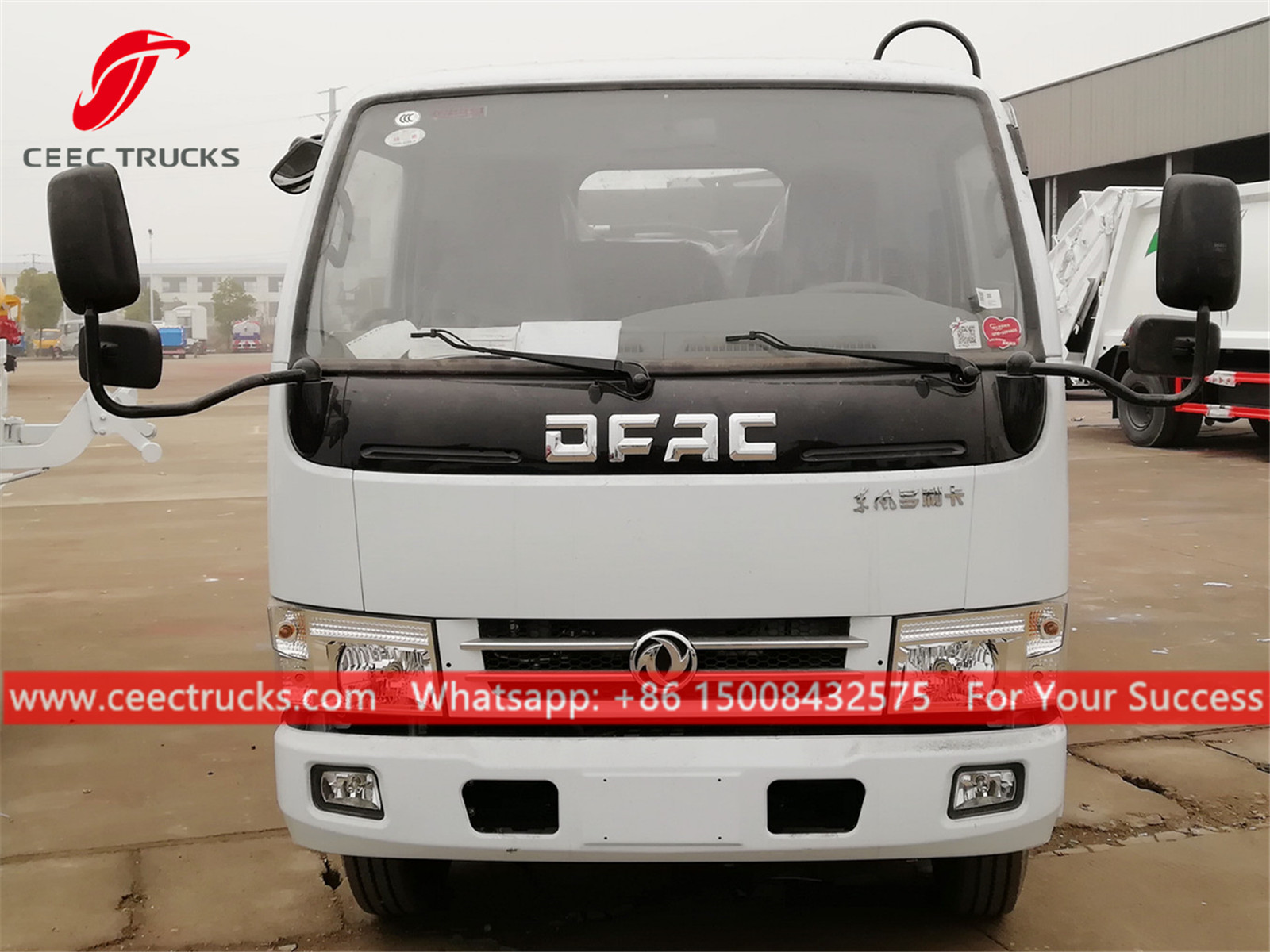

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

DONGFENG

Power

115 HP (85 KW)

Displacement

3856 ml

Emission Standard

Euro 3 or 4

Chassis

Drive Type

4X2, (left hand drive)

Transmission

Manual 5 speed levers with 1 reverse

Wheelbase/No. of axle

3300 mm / 2

Tire Specification

7.00-16

Tire Number

6 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Body capacity

3 cbm

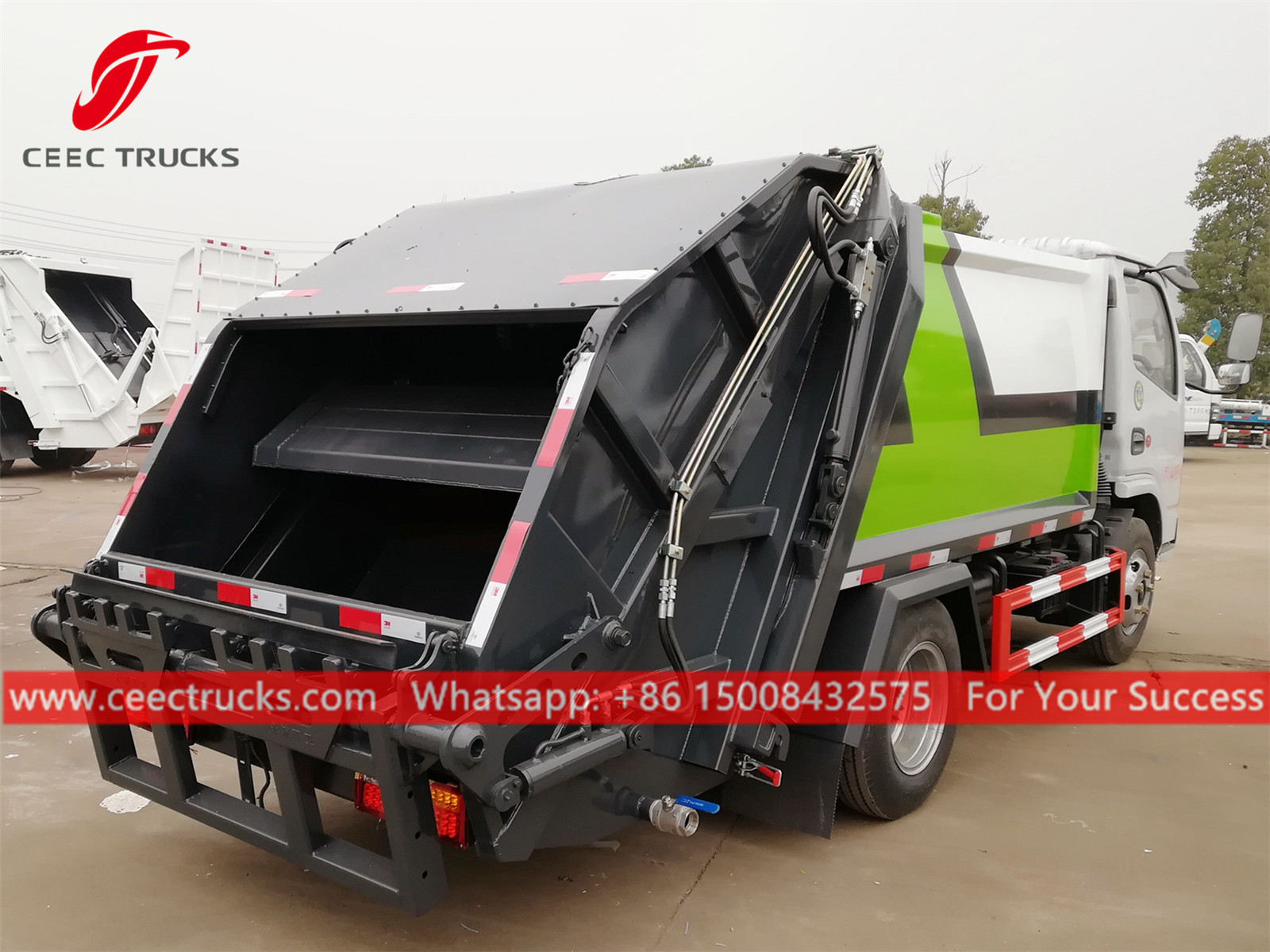

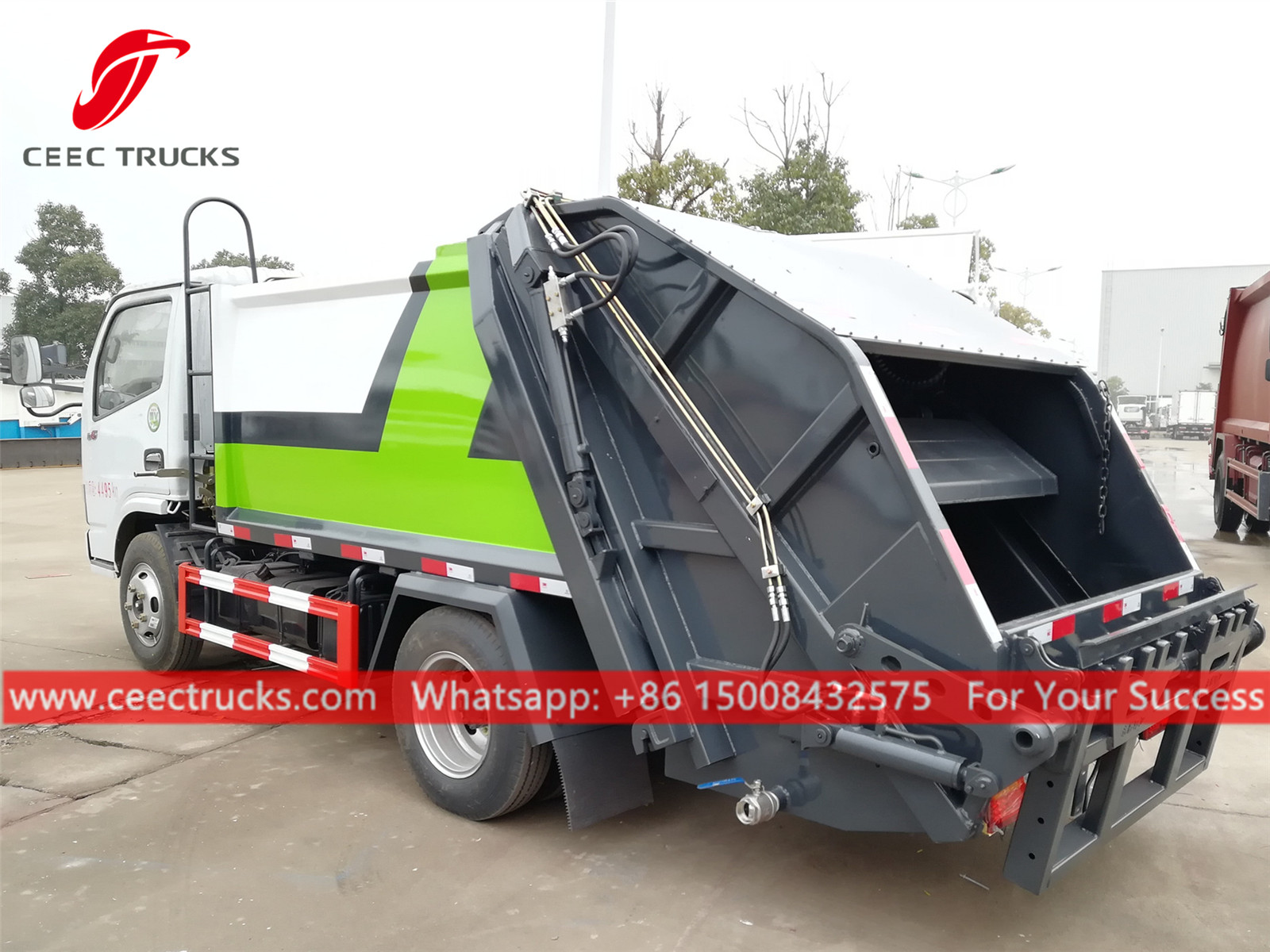

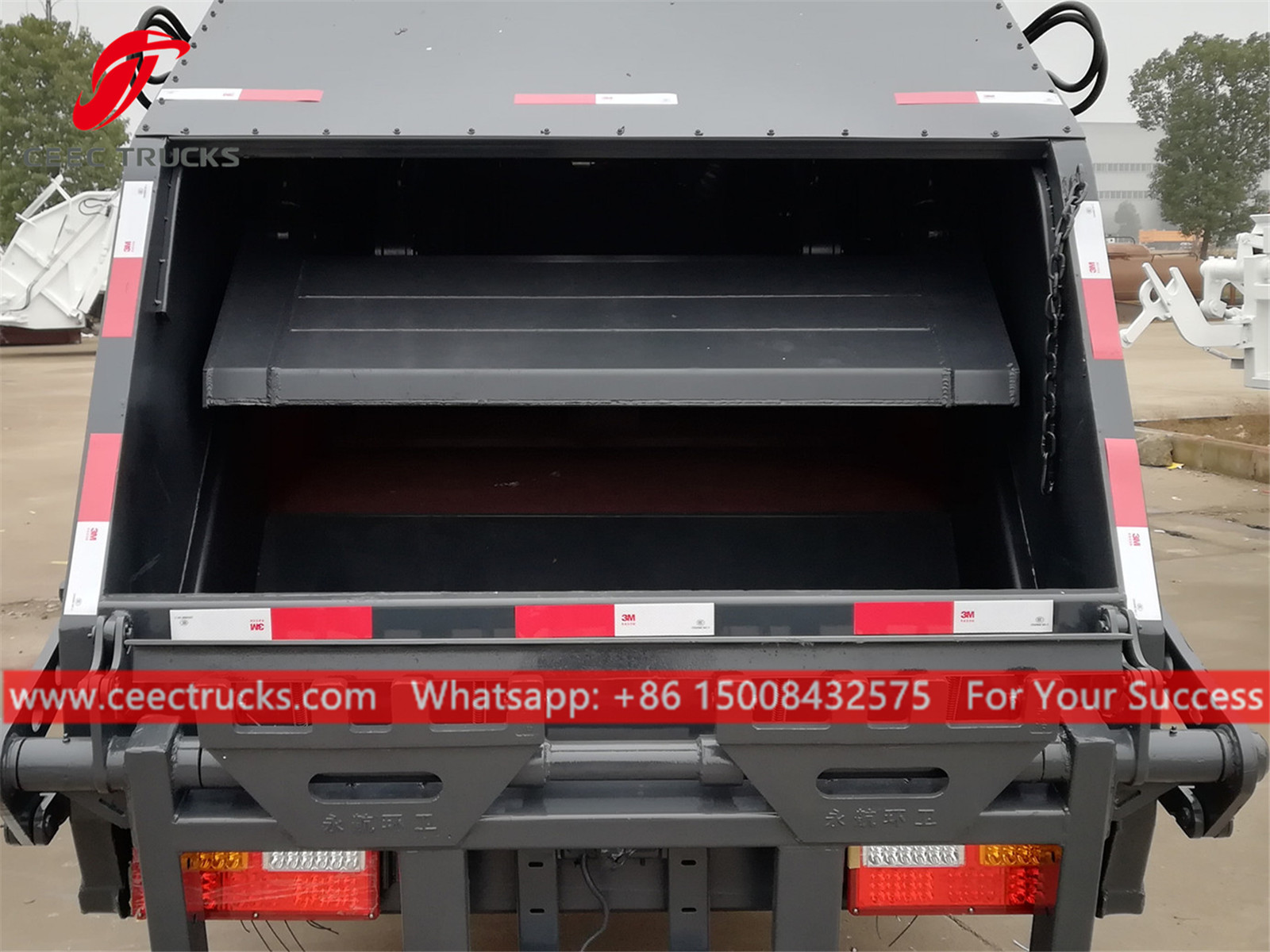

Fill Hopper capacity

0.8 cbm

Sewage tank

 200 liters

Filling work cycly time

 20~25 s

Discharge model

Horizontal Ejection

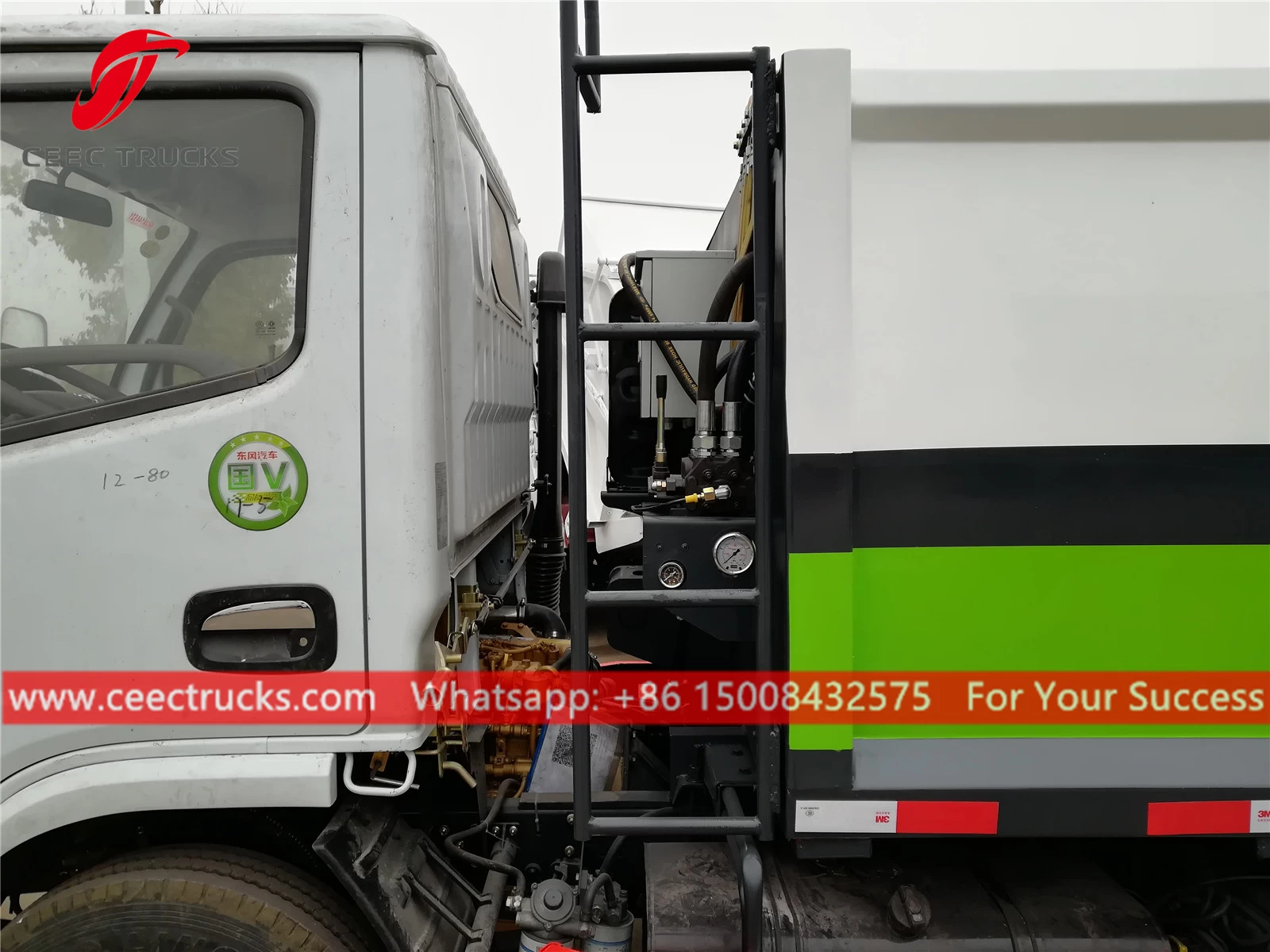

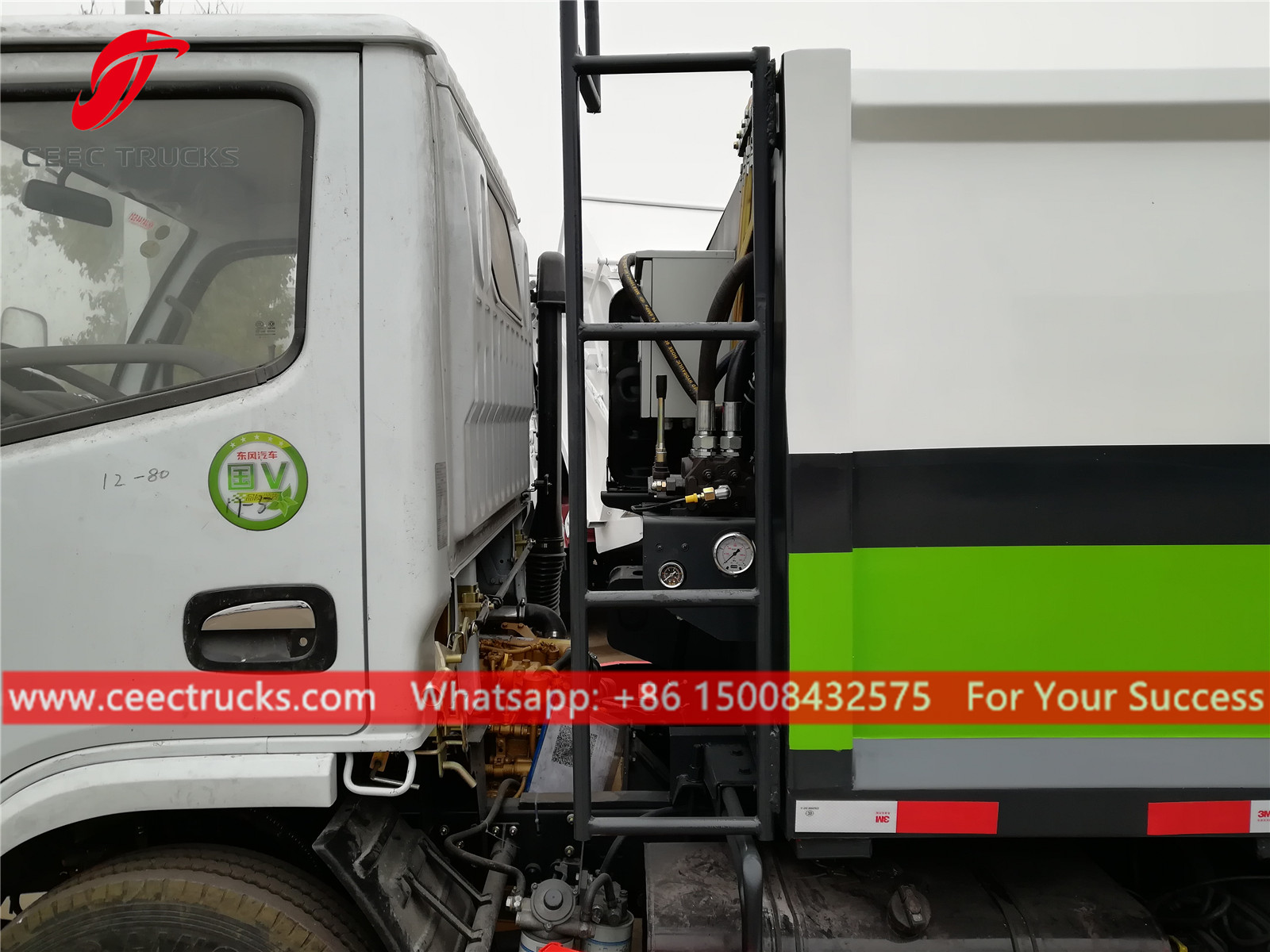

Control system

Electrically Hydraulic control

Manual hydraulic control

Control panel

English or Your language

All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button, handrail, fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Italy mulit-valve can be choosed.

** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.
