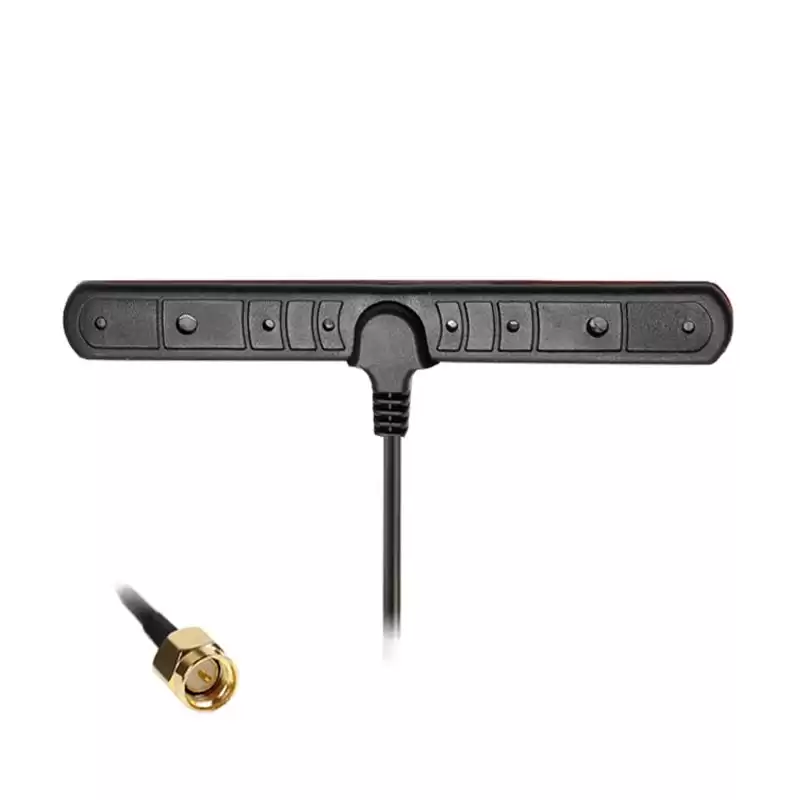

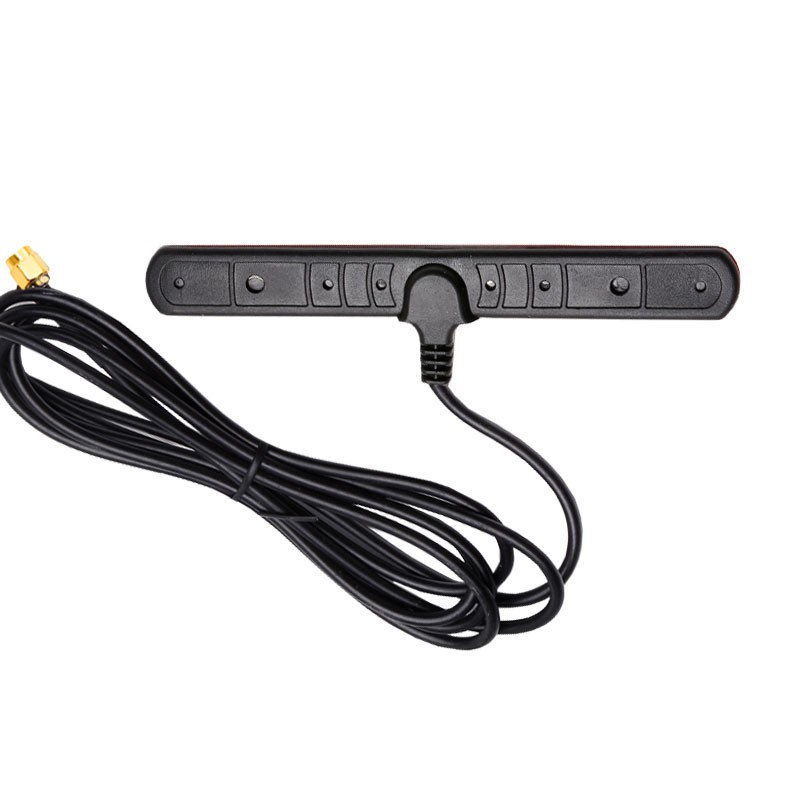

3M Adhesive 900MHz 1800MHz 3dBi Omni Directional GSM GPRS WiFi Patch Antenna SMA Male Connector

Features:

  • Radiation Pattern of Antenna;
  • Polarization of Antenna;
  • Intensity of Radiation;
  • Effective Aperture;
  • Gain & Directivity;
  • Bandwidth;
  • Power Gain & Radiation Efficiency;
  • Effective Length;
  • Input Impedance.



3M Adhesive 900MHz 1800MHz 3dBi Omni Directional GSM GPRS WiFi Patch Antenna SMA Male Connector

The Antenna, also called Aerial, component of radio, television, and radar systems that directs incoming and outgoing radio waves. Antennas are usually metal and have a wide variety of configurations, from the mastlike devices employed for radio and television broadcasting to the large parabolic reflectors used to receive satellite signals and the radio waves generated by distant astronomical objects.



Specifications

ELECTRICAL DATA
Frequency Range(MHz)  900/1800
VSWR  ≤1.5
Gain(dBi)   3dBi
Input Impedance(Ω)  50
Cable Type RG174
Connector Type  SMA Male

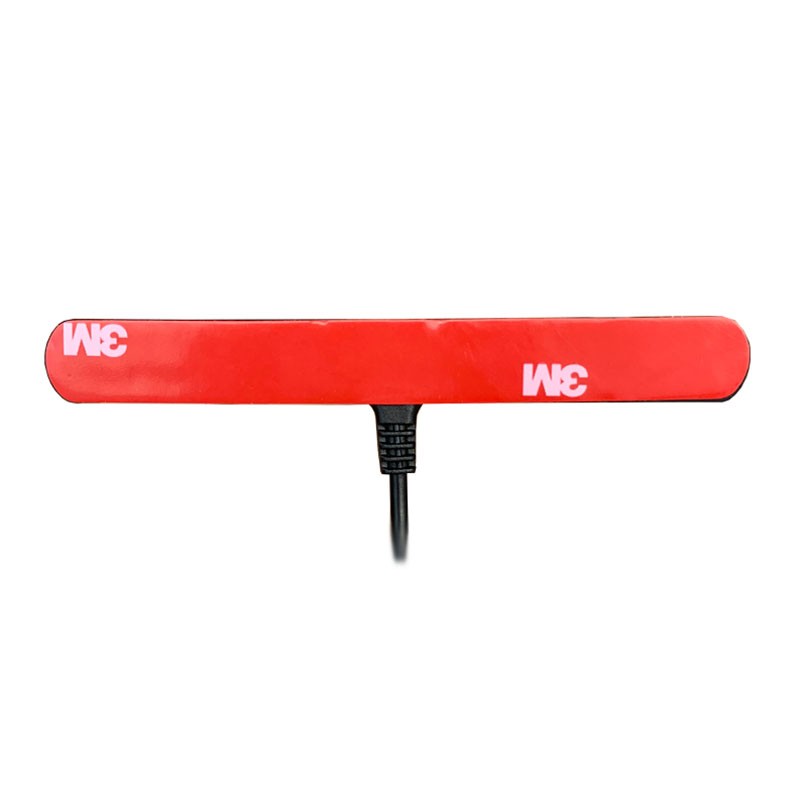

Mounting  Sticker
Housing  Black
Storage Temperature  -45'c to +75'c
Operating Temperature  -45'c  to+75'c



Applications

  • Antenna Gain
  • Aperture
  • Directivity and bandwidth
  • Polarization
  • Effective length
  • Polar diagram




Product Tags SMA Male GPRS GSM Patch Antenna          SMA Connector GPRS Patch Antenna          900MHz GPRS GSM Patch Antenna          1800MHz GPRS GSM Patch Antenna          900MHz 1800MHz GSM Patch Antenna          3dBi GPRS GSM Patch Antenna
