3Tons Isuzu Road
Wrecker Truck Emergency Rescue Vehicle
Tags: Good quality
Isuzu Road Wrecker truck, Isuzu Towing vehicles, Isuzu emergency road service
truck, Japanese Light duty wrecker towing truck, Isuzu road rescue vehicle, Flatbed
Tow Road Wrecker Truck Isuzu, Isuzu mini road wrecker flatbed road wrecker
Description:

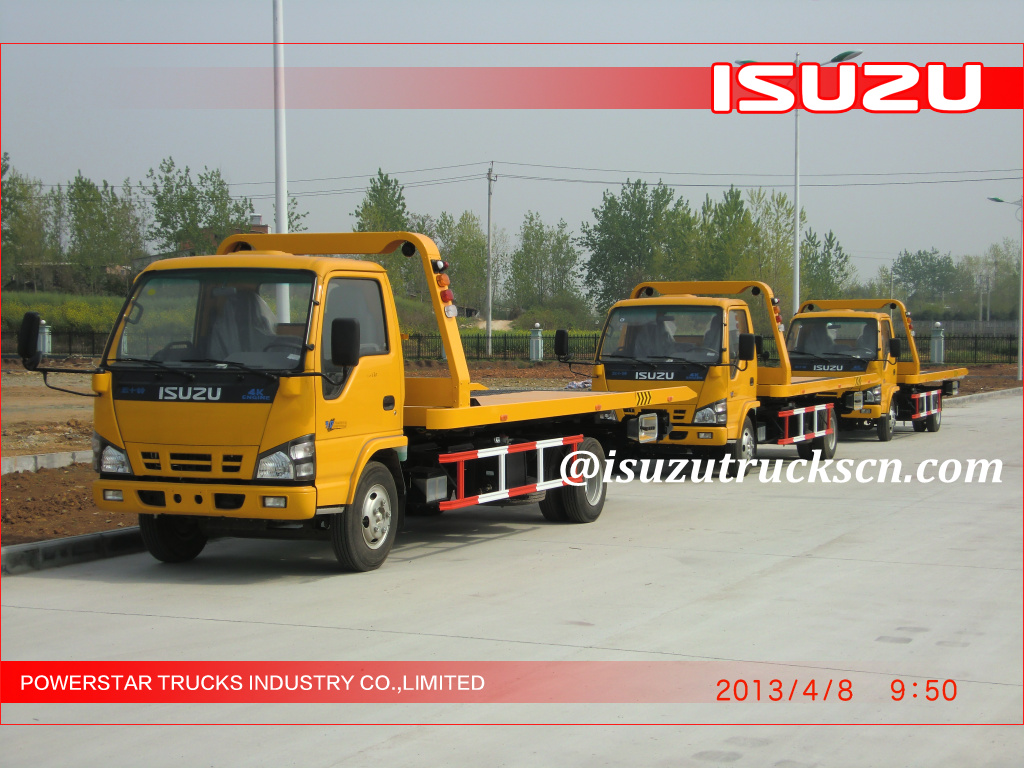

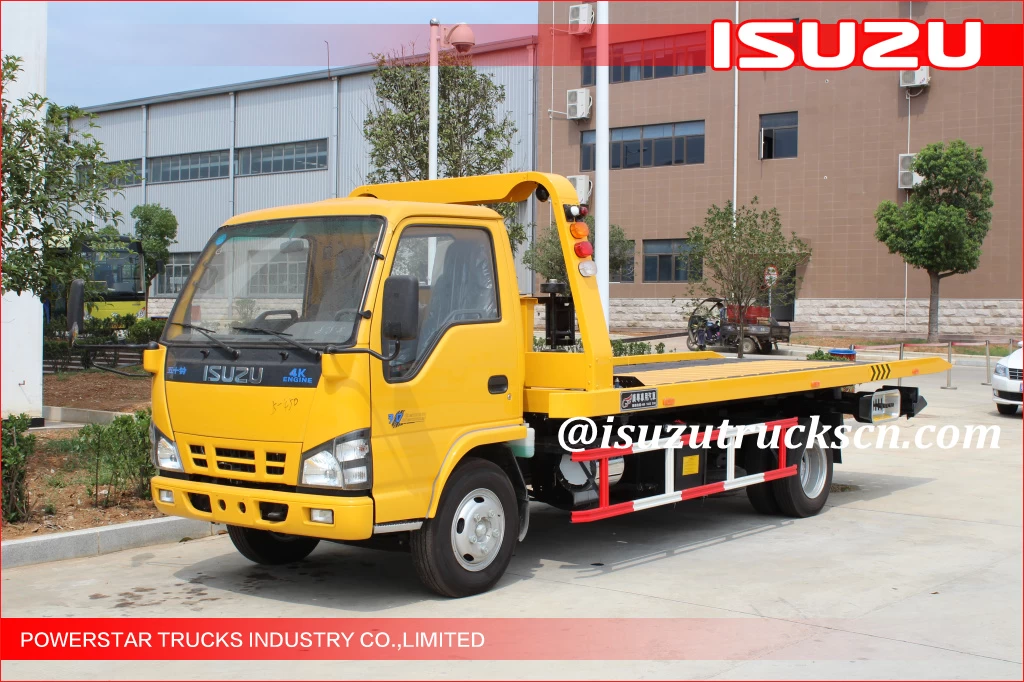

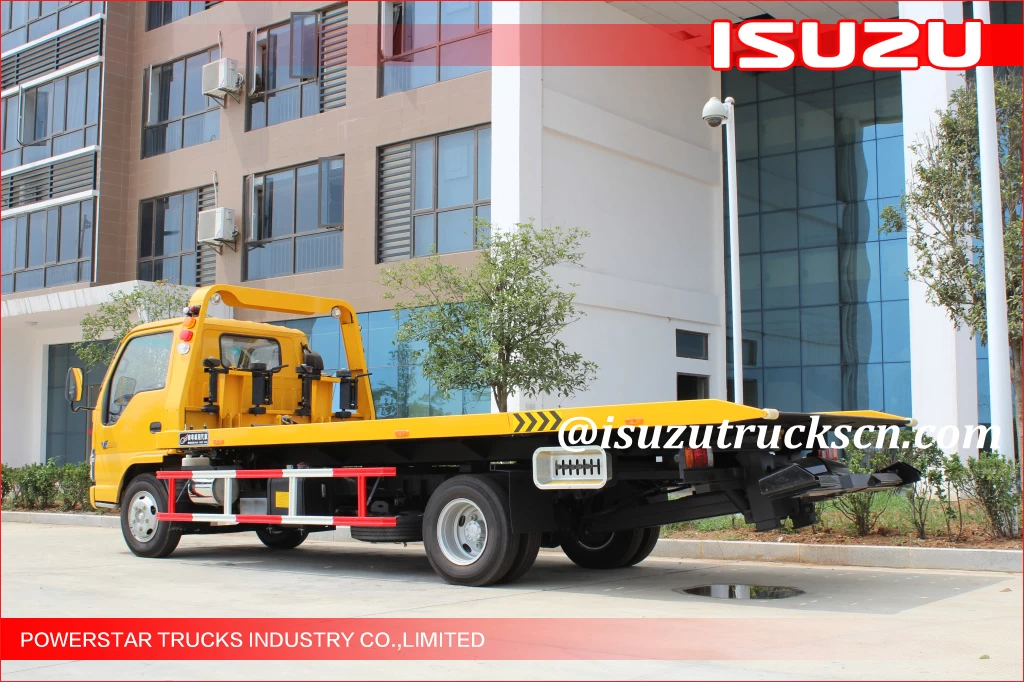

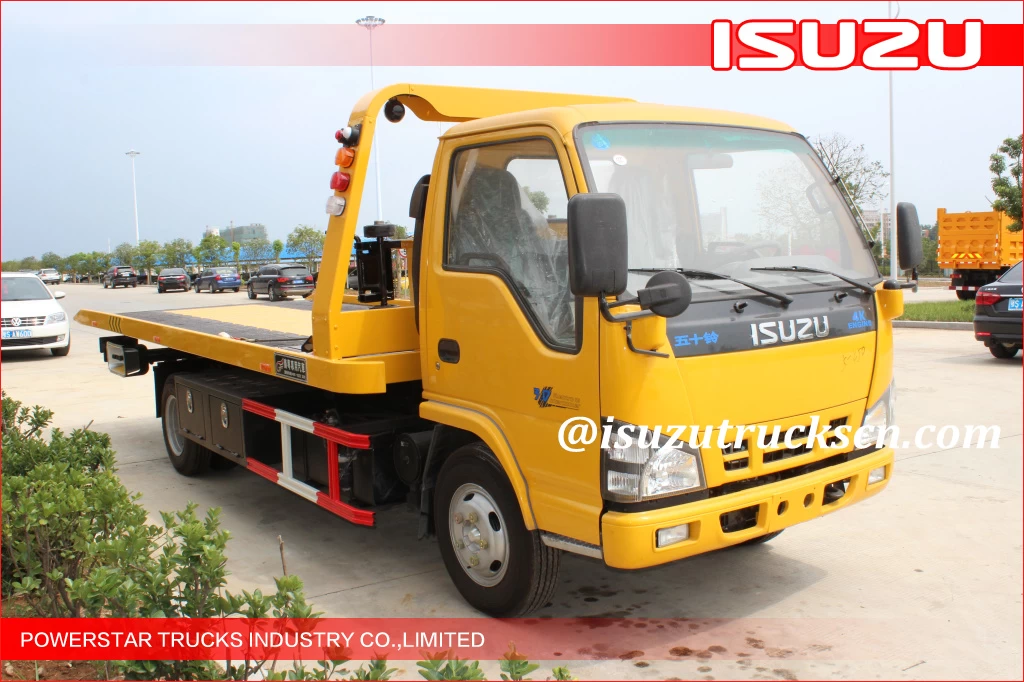

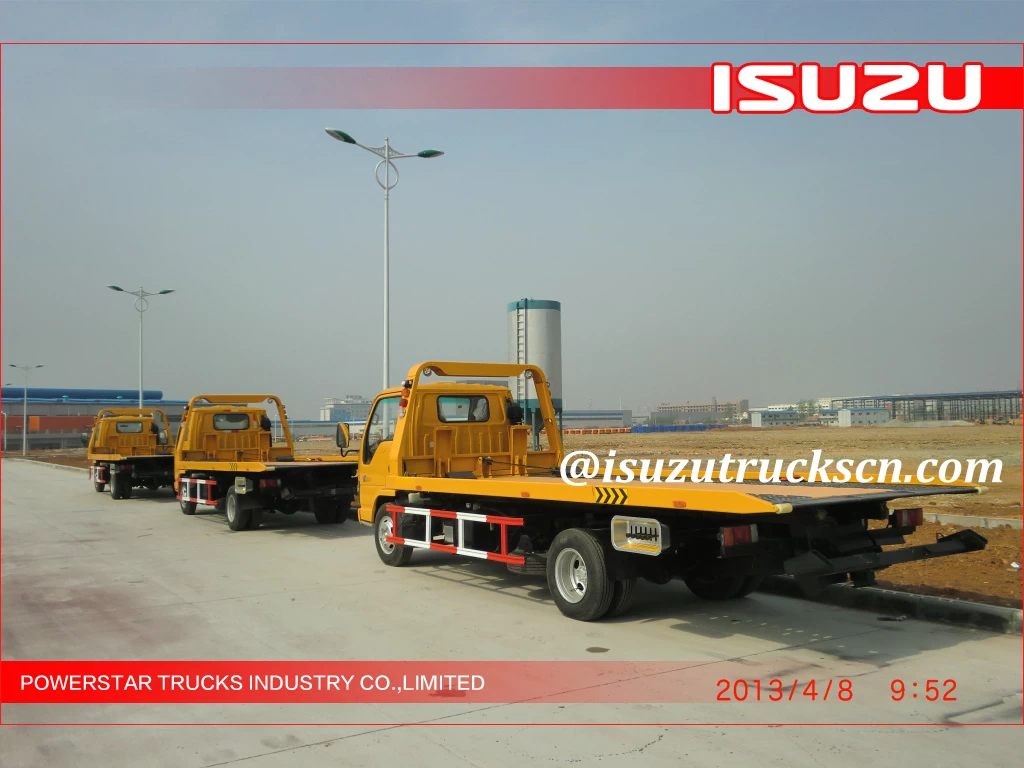

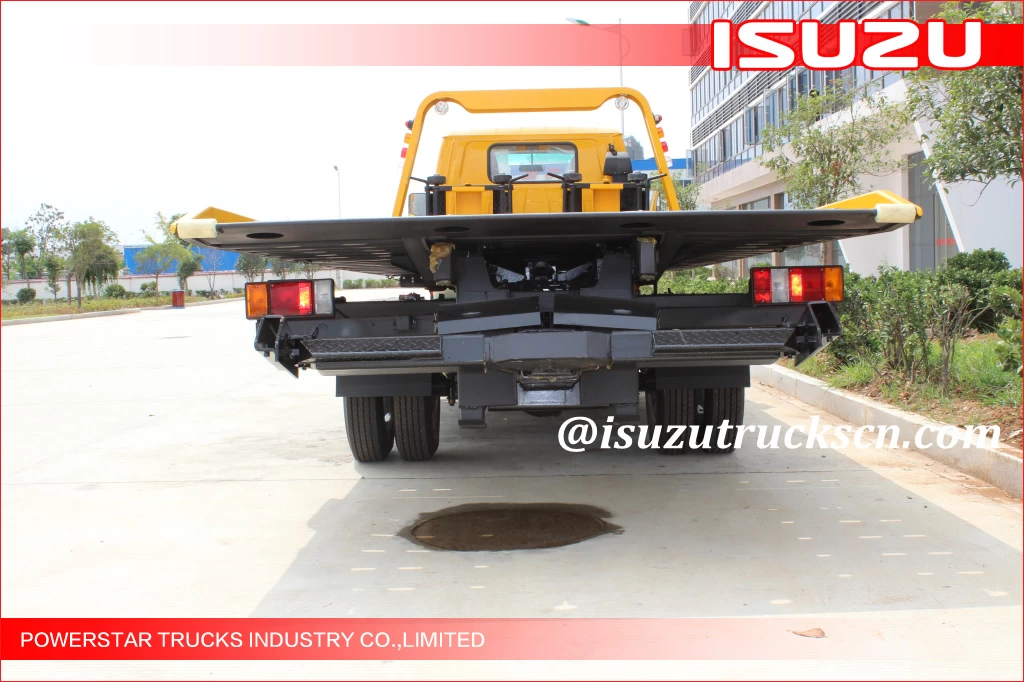

Isuzu Road wrecker
is used for safety salvage of vehicles subject to city road, suburb way,
highway, airport and bridge road. It is suitable for medium and small-sized
cargos, cars and other special vehicles, which are allowed within the technical
parameters of this kind.
Main
specifications:
|
Model
|
PT5070TQZ
|
|
|
Driving
Type
|
4x2 (Left
hand drive)
|
|
|
Wheelbase
|
3815 mm
|
|
|
Cab
|
Forward control over engine,
all-steel-welded construction
|
|
|

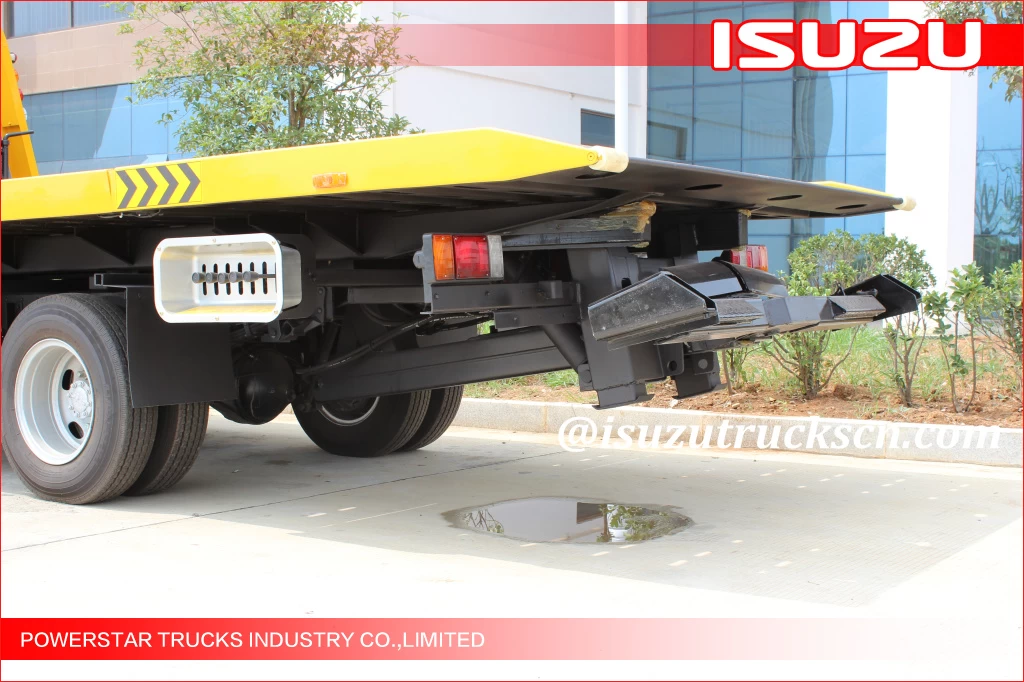

Boom
Structure
|
Rated towing
weight
|
7300kg
|
|
|
Max. Lifting
weight
|
1500kg
|
|
|
Max. Lifting weight
of full extending boom
|
800kg
|
|
|
Effective length
of boom
|
1600mm
|
|
|
Extension
traveling of boom
|
1200mm
|
|
|
Elevation of
boom (upper/ lower)
|
9~-10°
|
|
|

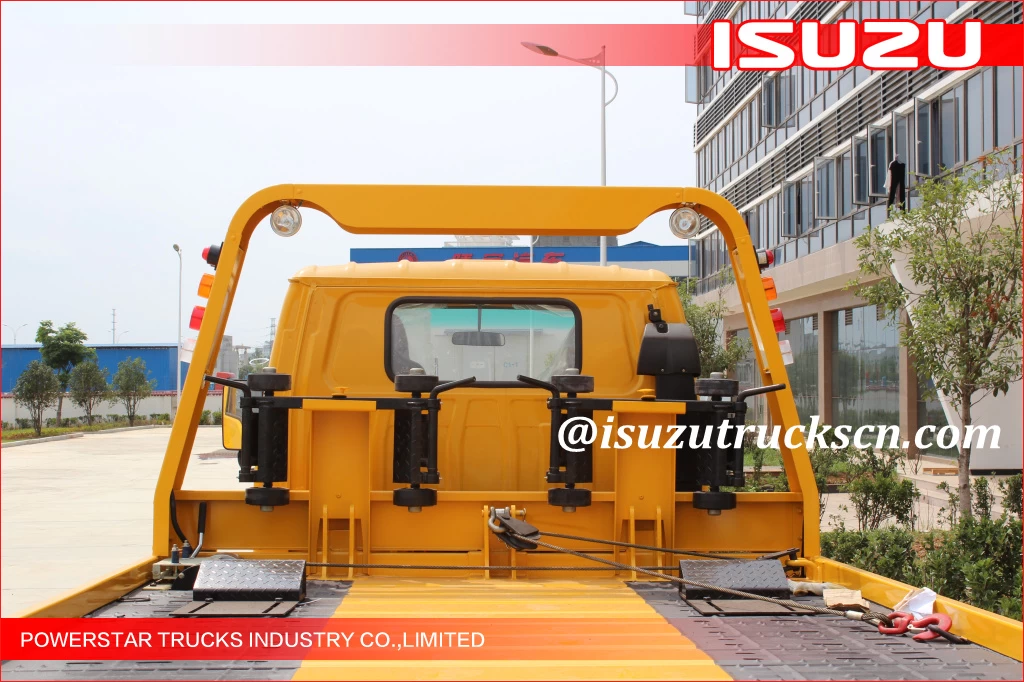

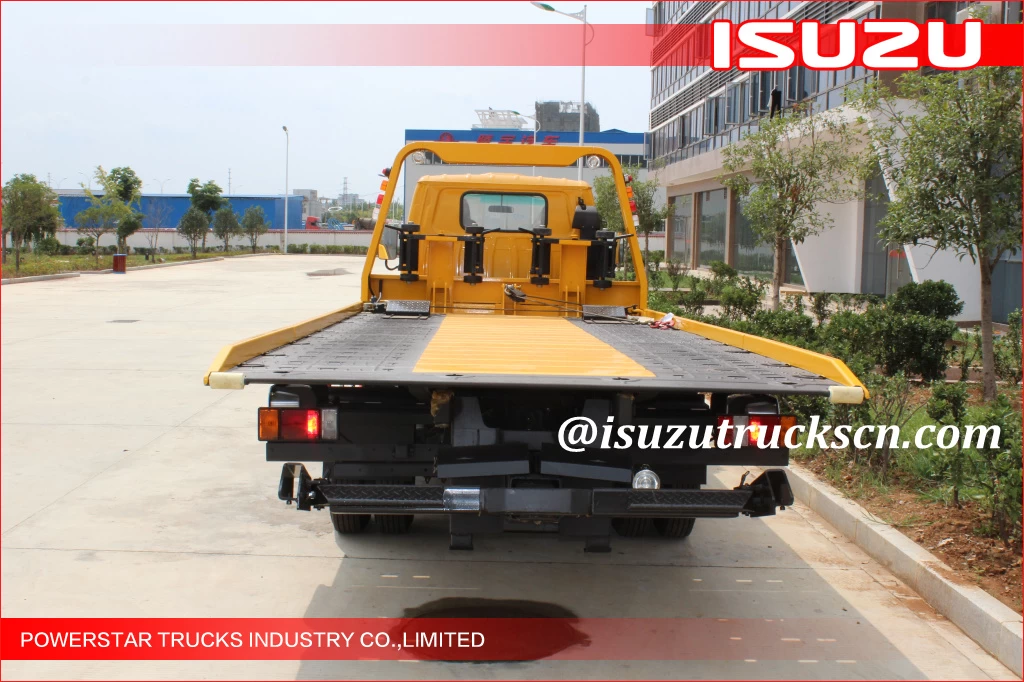

Platform
Structure
|
Min. Elevation
of full extending platform
|
8°
|
|
Max. Loading of
platform
|
3000kg
|
|
External
dimension of platform (L×W×H)
|
5400×2140×57mm
|
|
Ground clearance
of cage floor
|
1014mm
|
|

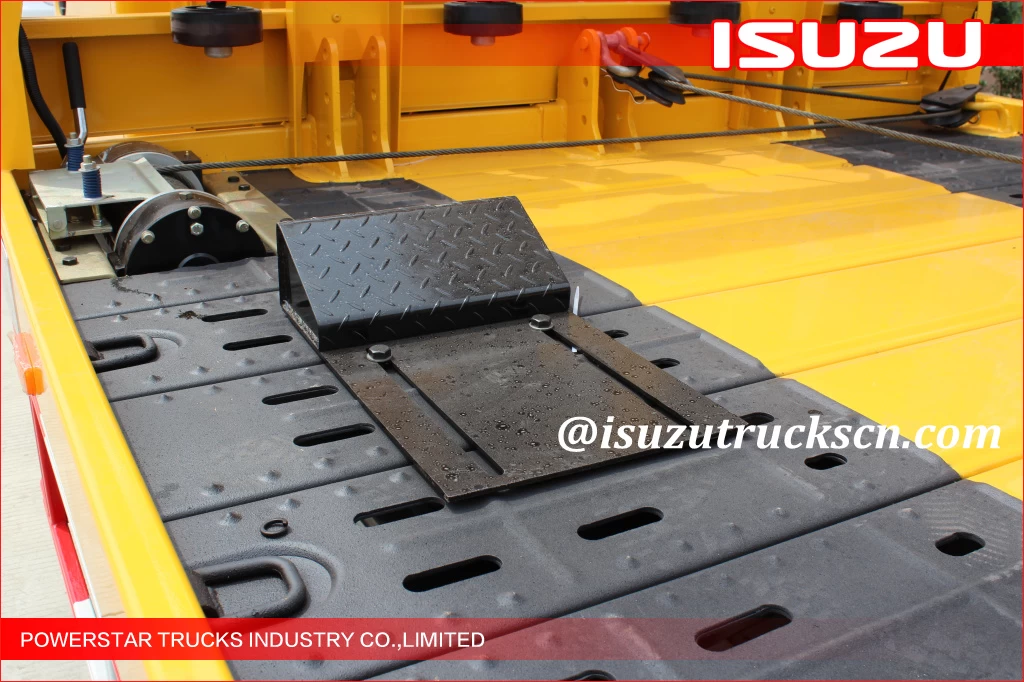

Max. Pulling
power of winch
|
4000kg
|
|
Dia. Of steel
cable
|
10mm
|
|
Length of steel
cable
|
25m
|
|
Min. Speed of
steel cable
|
4.5m/min
|
|
Engine
|
Model
|
4KH1-TCG40
|
|
Type
|
Diesel, turbo
charged inter-cooled, 4 cylinder
|
|
Max. Power
|
88 KW (120 HP)
|
|
Gearbox
|
MSB 5-shift,
mechanical type, 5 forward and 1 reverse with
|
|
|
Tire
|
7.00-16
|
|
|
Color
|
Red (Any color & logos up to wish)
|
|
|
Max
Speed
|
100 km/h
|
|

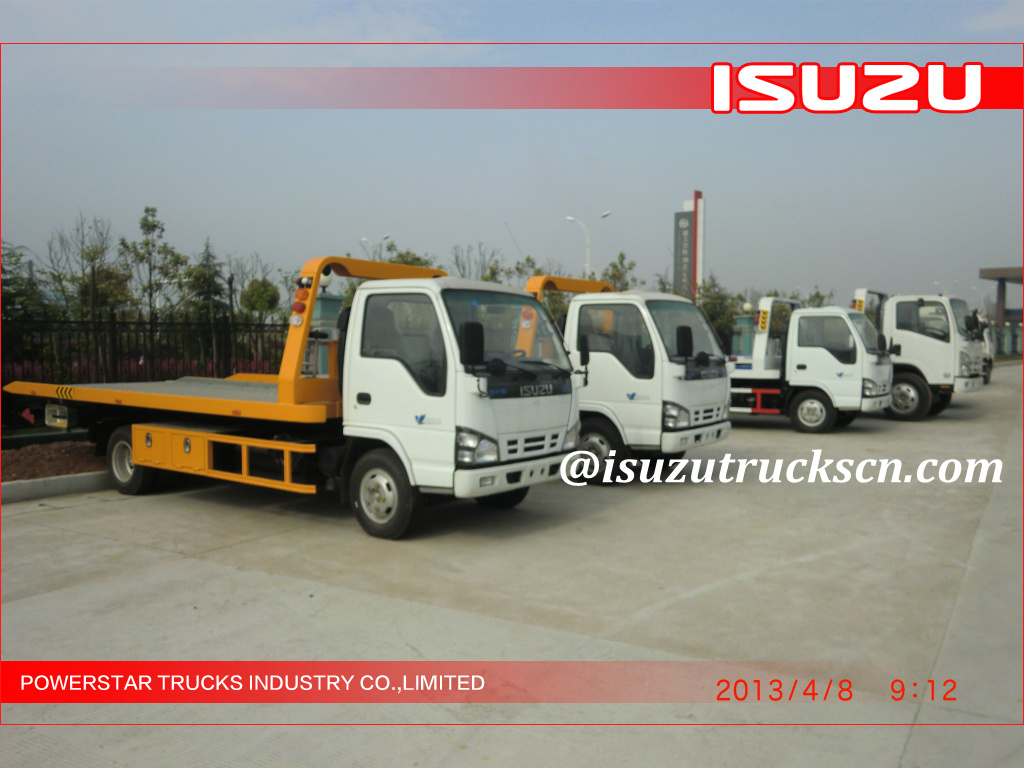

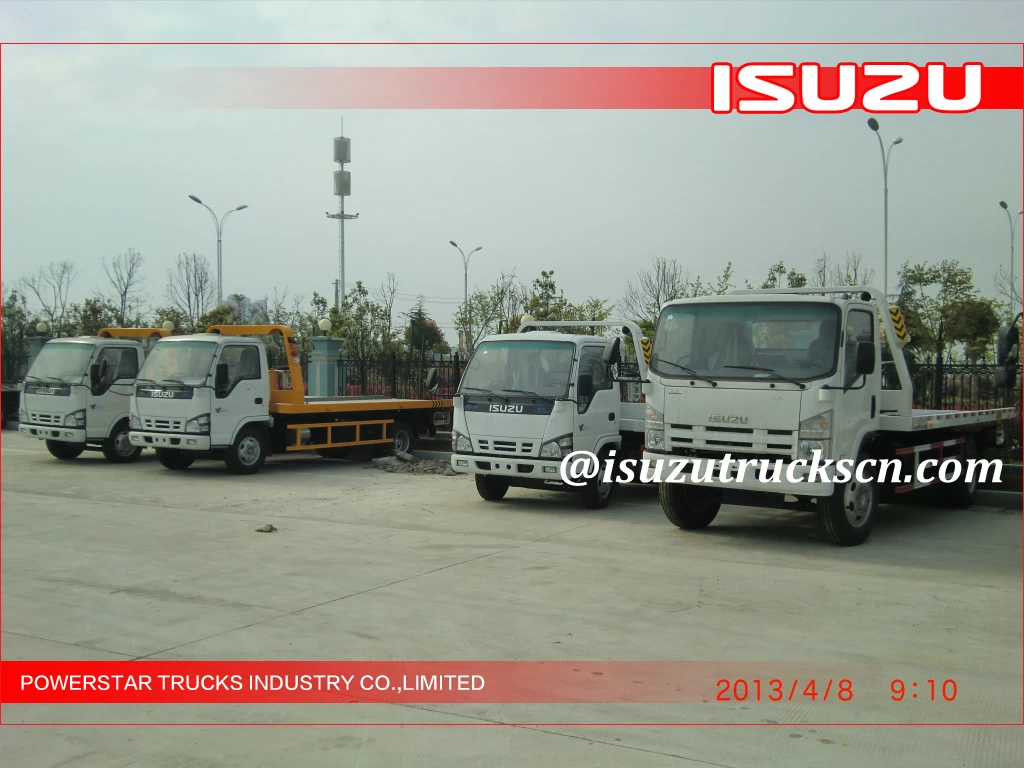

Recently Built Road Wrecker Truck:
