Model

PT5100TQZ

Driving Type

4x2    (Left hand drive)

Wheelbase

4475 mm

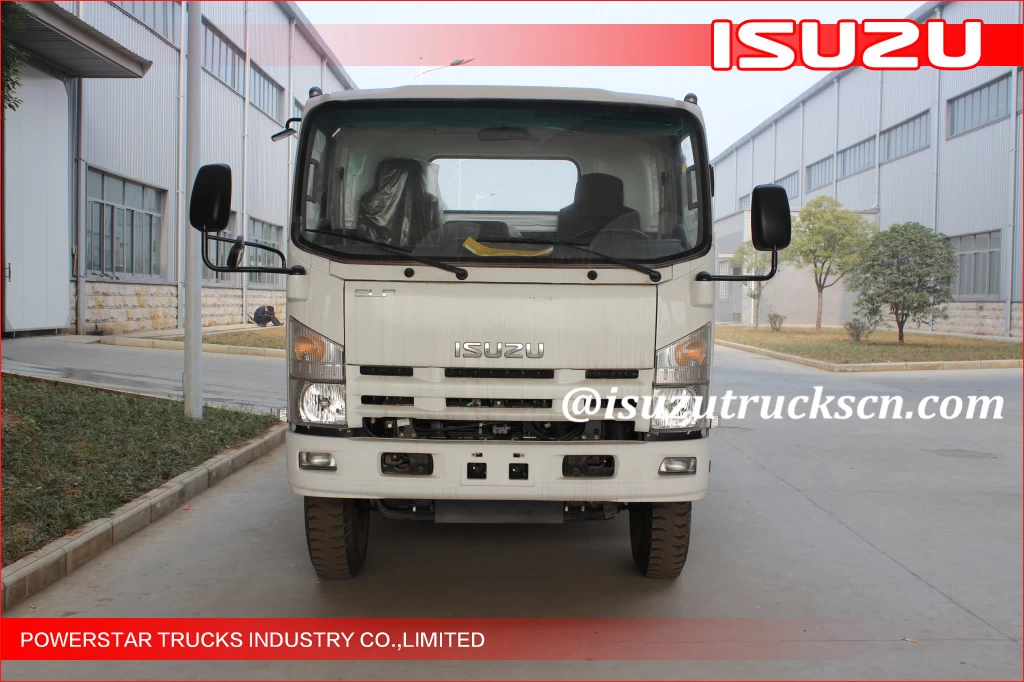

Cab

Forward control over engine, all-steel-welded construction

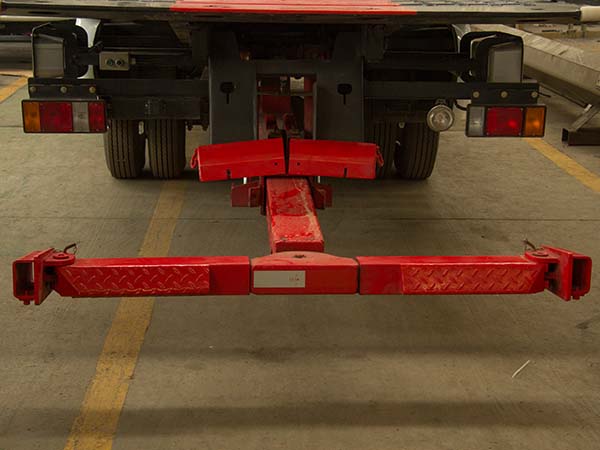

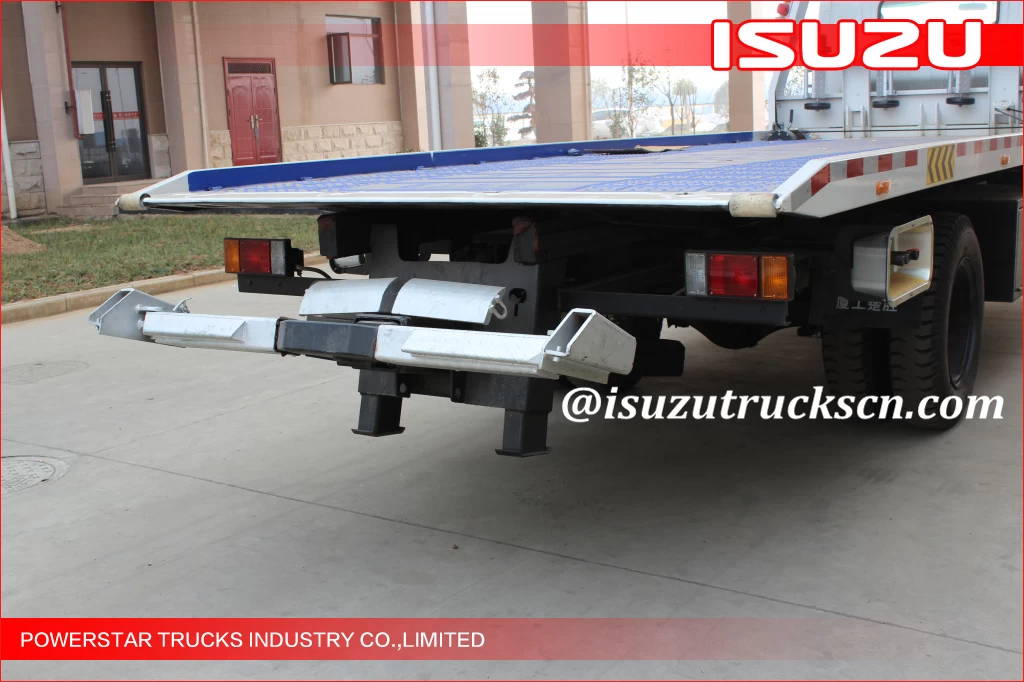

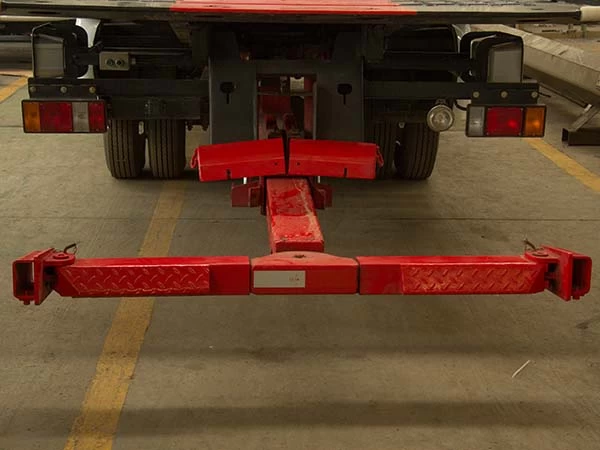

Boom Structure

Rated towing weight

10000kg

Max. Lifting weight

2500kg

Max. Lifting weight of full extending boom

1800kg

Effective length of boom

1600mm

Extension traveling of boom

1200mm

Elevation of boom (upper/ lower)

9~-10°

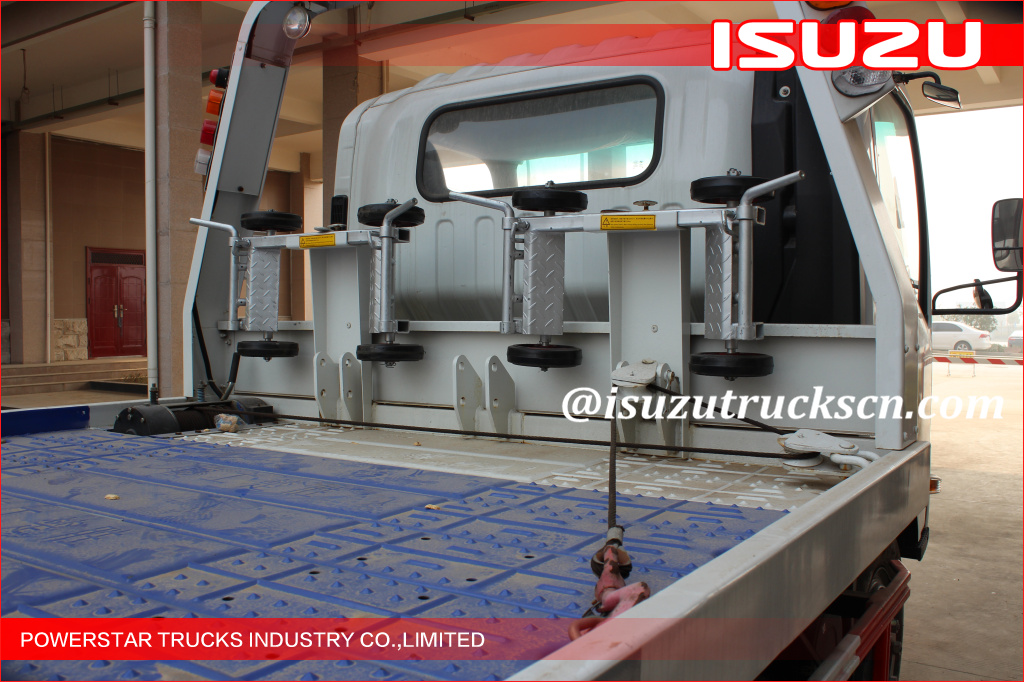

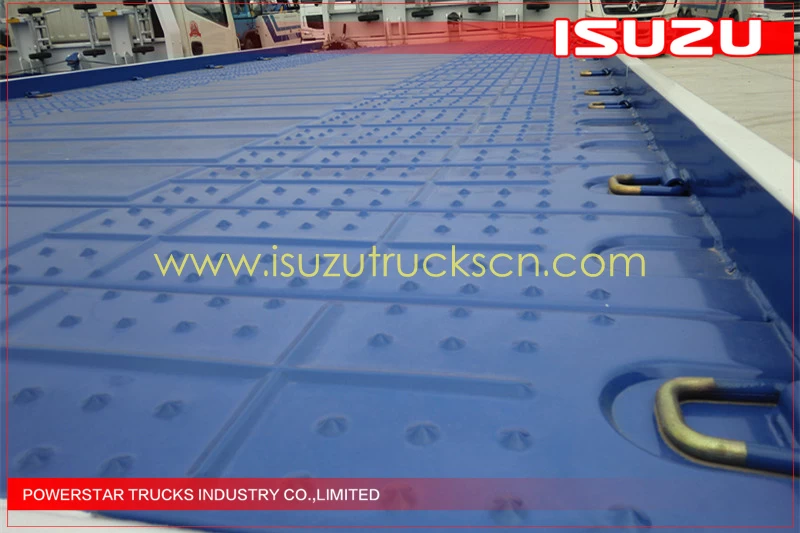

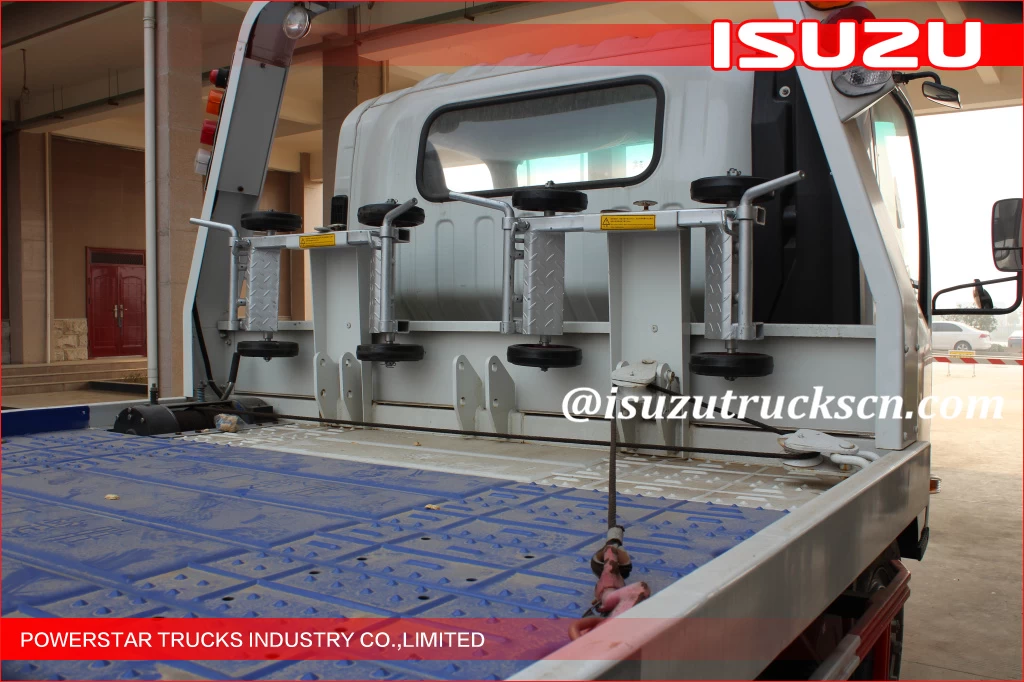

Platform Structure

Min. Elevation of full extending platform

8°

Max. Loading of platform

5000kg

External dimension of platform (L×W×H)

6200×2400mm

Ground clearance of cage floor

1035mm

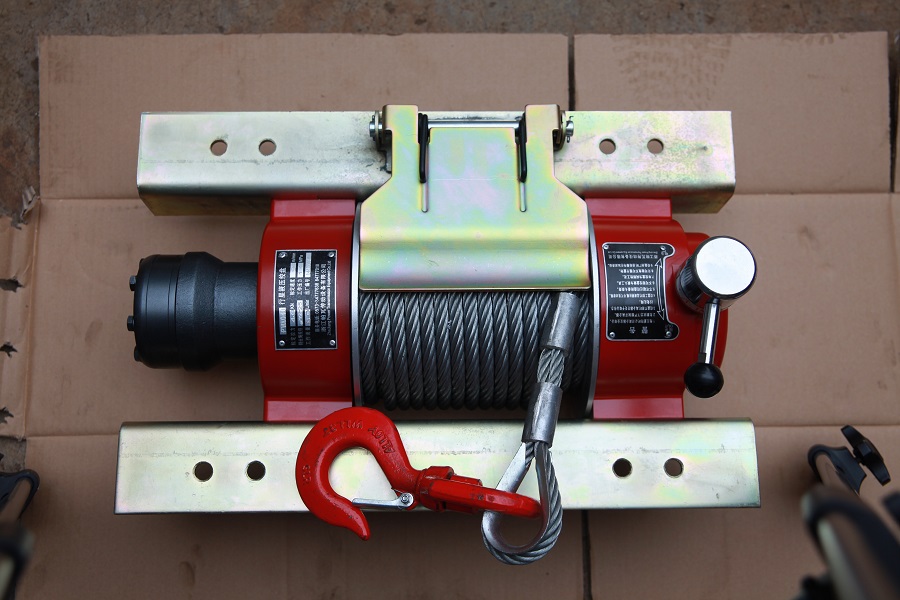

Max. Pulling power of winch

4000kg

Dia. Of steel cable

10mm

Length of steel cable

25m

Min. Speed of steel cable

4.5m/min

Engine

Model

4HK1-TCG40

Type

Diesel, turbo charged inter-cooled, 4 cylinder

Max. Power

139 KW (190 HP)

Gearbox

MLD 6-shift, mechanical type, 5 forward and 1 reverse with

Tire

8.25-20

Color

Red    (Any color & logos up to wish)

Max Speed

100 km/h
