Item No.
|
ITPP072
|
|
Features:
|
|
● Space-saving design, 32 bit RISC processor
|
|
● Auto calibration of media
|
|

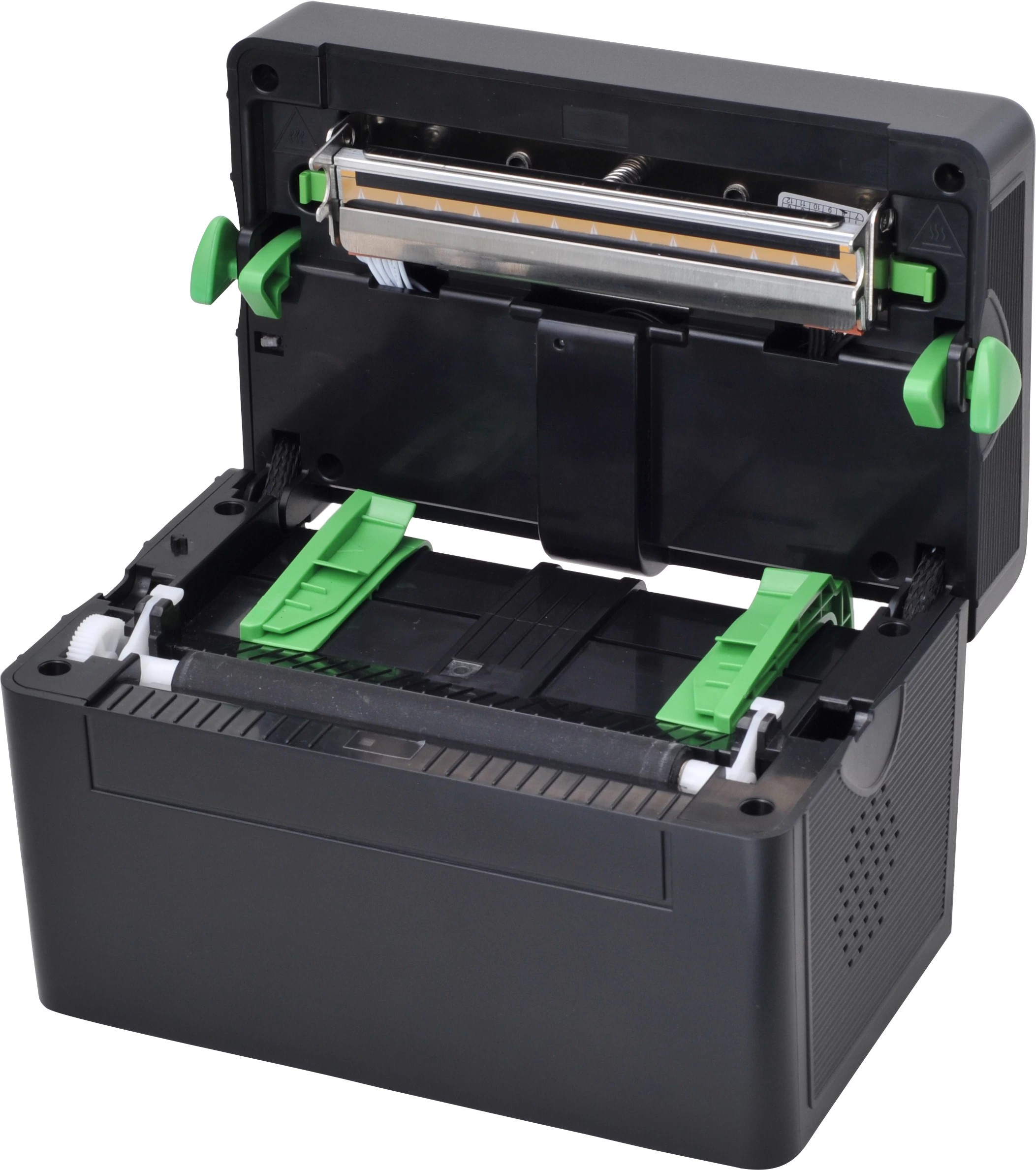

● Tool-less print head and platen replacement
|
|

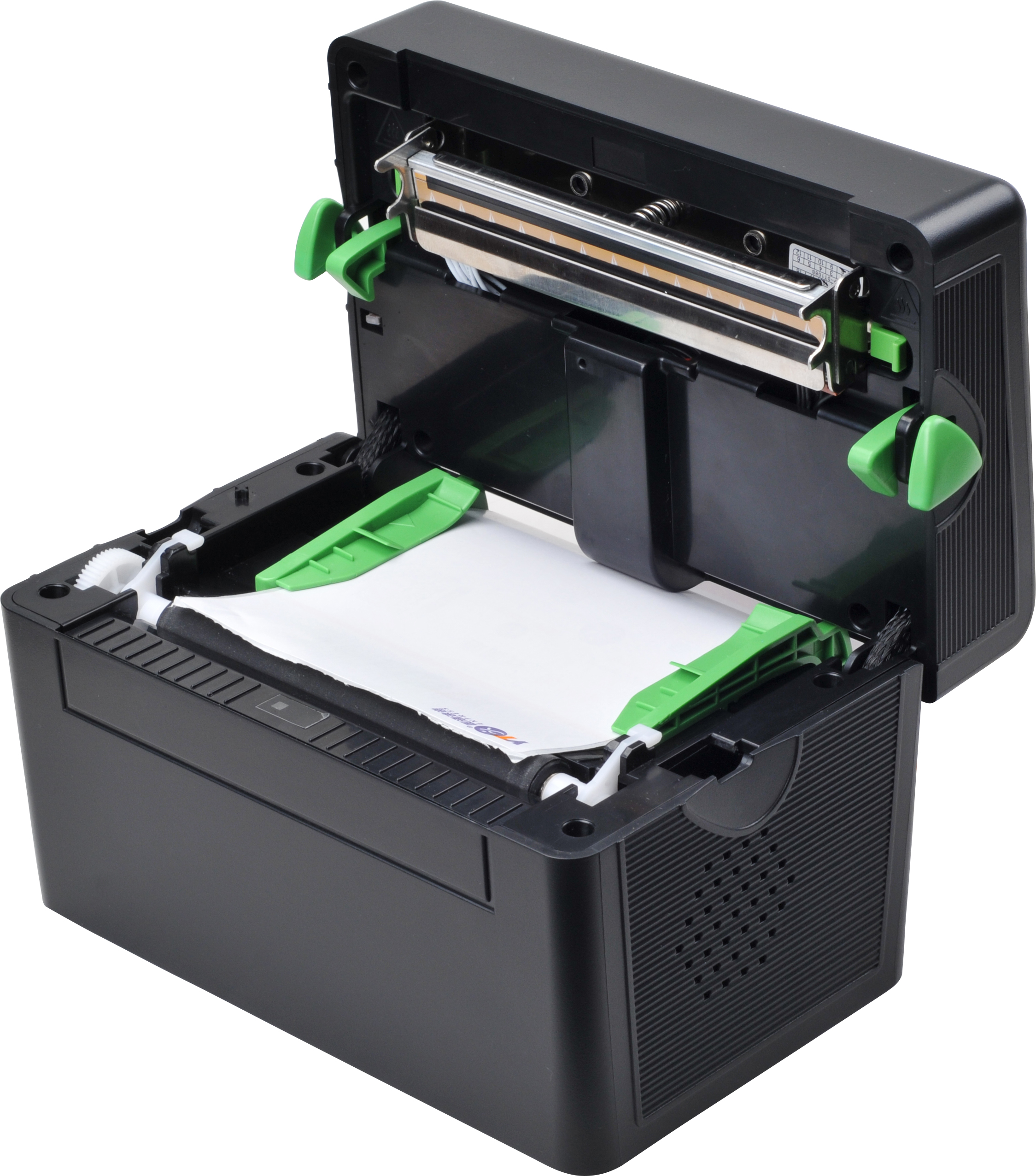

● Open access for easy media loading
|
|
● Voice broadcast, more perfect then similar products
|
|
● Bi-colored status LEDS for quick printer status.
|
|
Specification:
|
|
Resolution
|
8 dots/mm(203DPI)
|
|
Printing method
|
Direct Thermal
|
|
Max.print speed
|
127 mm (5”)/S
|
|
Max.print width
|
108 mm (4.25”)
|
|
Max.print length
|
2286 mm (90”)
|
|
Media type
|
Continuous, gap, fan-fold and punched hole
|
|
Media width
|
20 ~ 118 mm (0.78 " ~ 4.6 ")
|
|
Media thickness
|
0.06 ~ 0.25 mm (2.36 ~ 9.8 mil)
|
|
Label length
|
10 ~ 2,286 mm (0.39 " ~ 90 ")
|
|
Label roll capacity
|
127 mm (5“) OD (outside wound)
|
|
Enclosure
|
Double-walled plastic
|
|
Physical dimension
|
182.9 mm（W）x117.8 mm（H）×127.8 mm （D）
|
|
Weight
|
1.10 kg
|
|
Processor
|
32-bit RISC CPU
|
|
Memory
|
4MB Flash Memory, 8MB SDRAM,
SD card reader for Flash memory expansion, up to 4 GB
|
|
Interface
|
USB 2.0
|
|
Internal fonts
|
8 alpha-numeric bitmap fonts,
Windows fonts are downloadable from software.
|
|
Barcode
|
1D bar code：Code 39, Code 93, Code 128UCC,
Code 128 subsets A, B, C,
Codabar, Interleaved 2 of 5, EAN-8,EAN-13,
|
|
EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST
|
|
2D bar code：PDF-417, Maxicode, DataMatrix, QR code
|
|
Font and barcode rotation
|
0°,90°,180°,270°
|
|
Environment condition
|
Operation: 5 ~ 40°C, 25 ~ 85% non-condensing, Storage: -40 ~ 60°C, 10 ~ 90% non-condensing
|
|
Printer language
|
TSPL,(EPL ,ZPL),DPL
|
