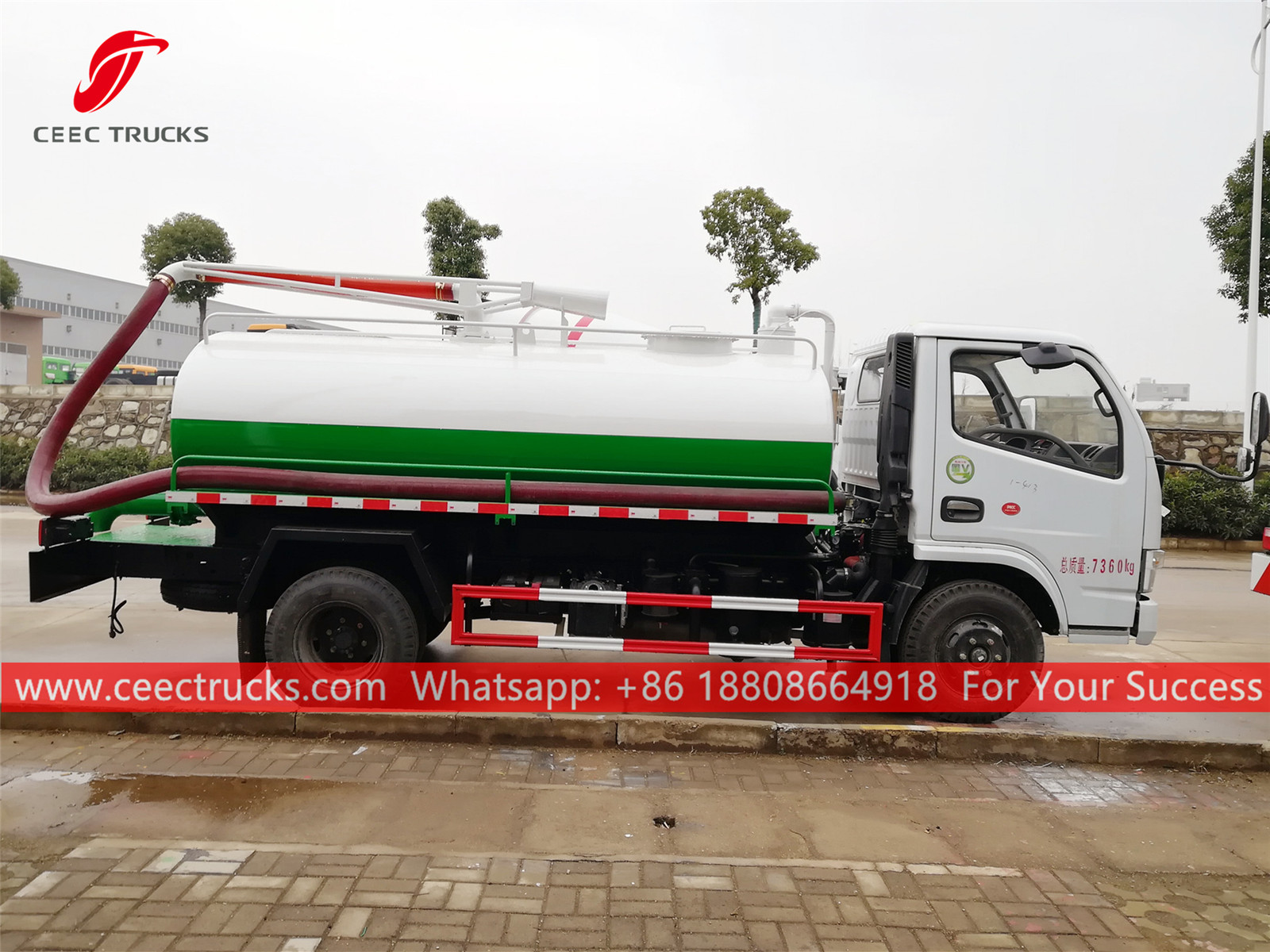

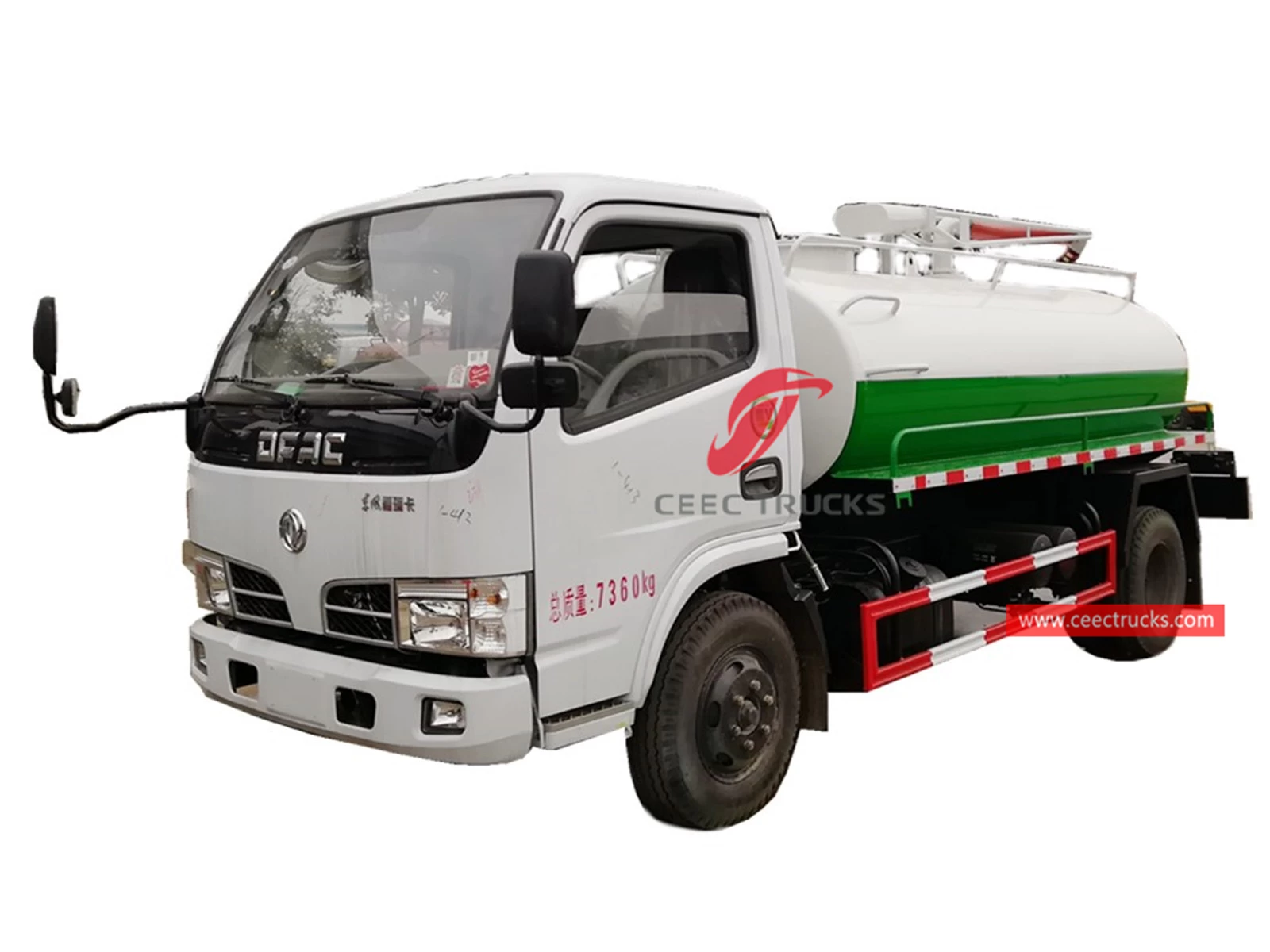

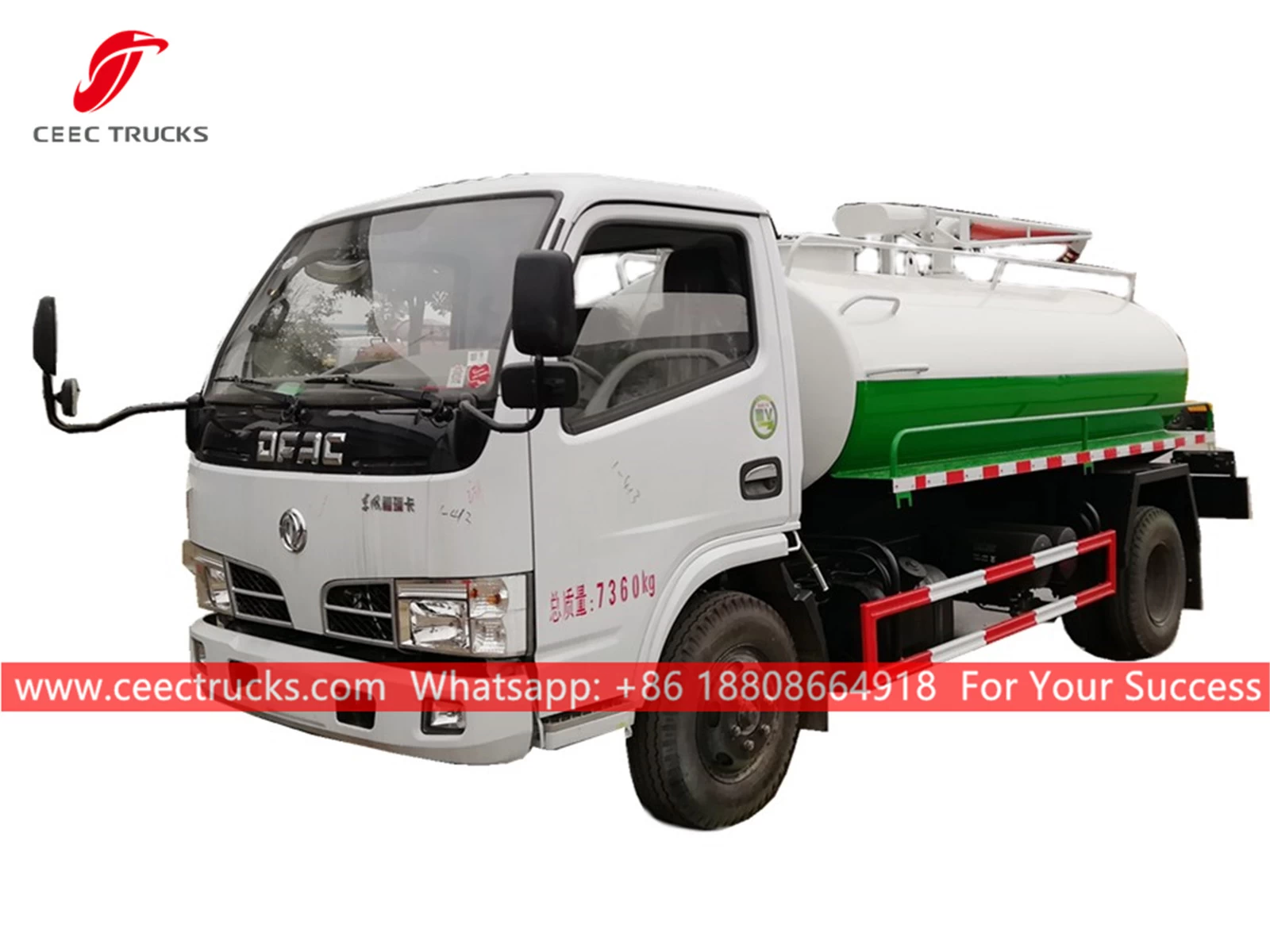

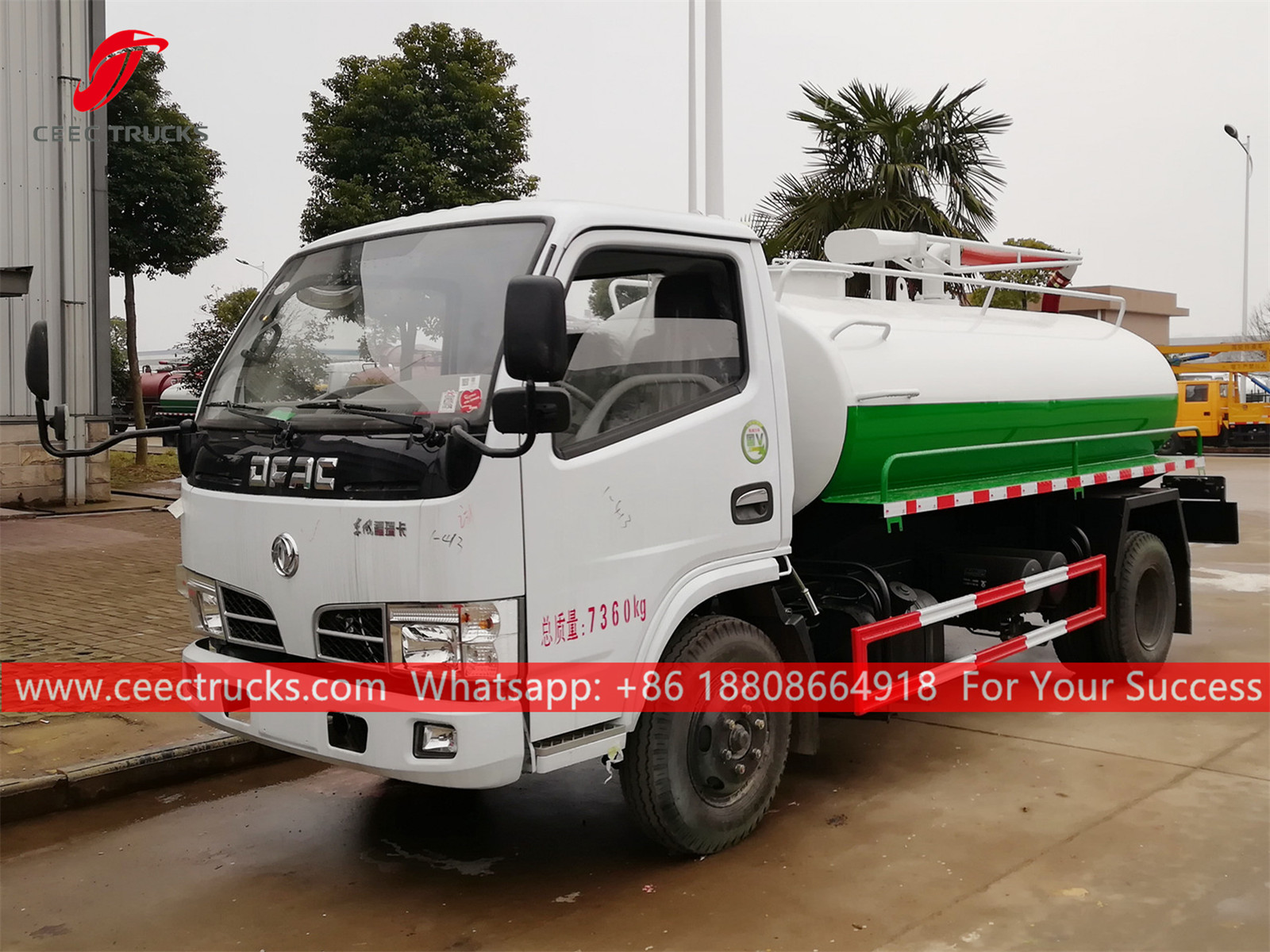

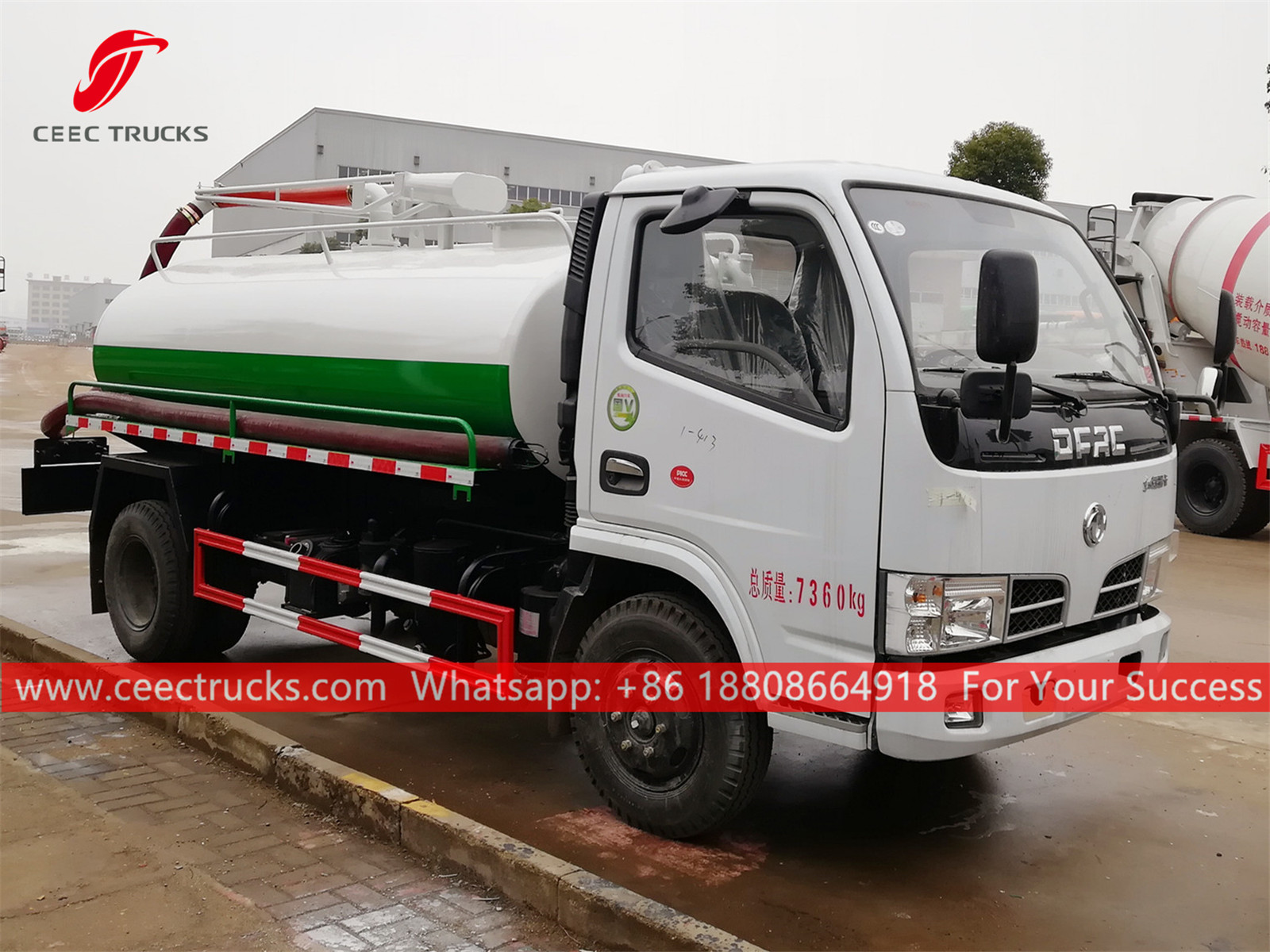

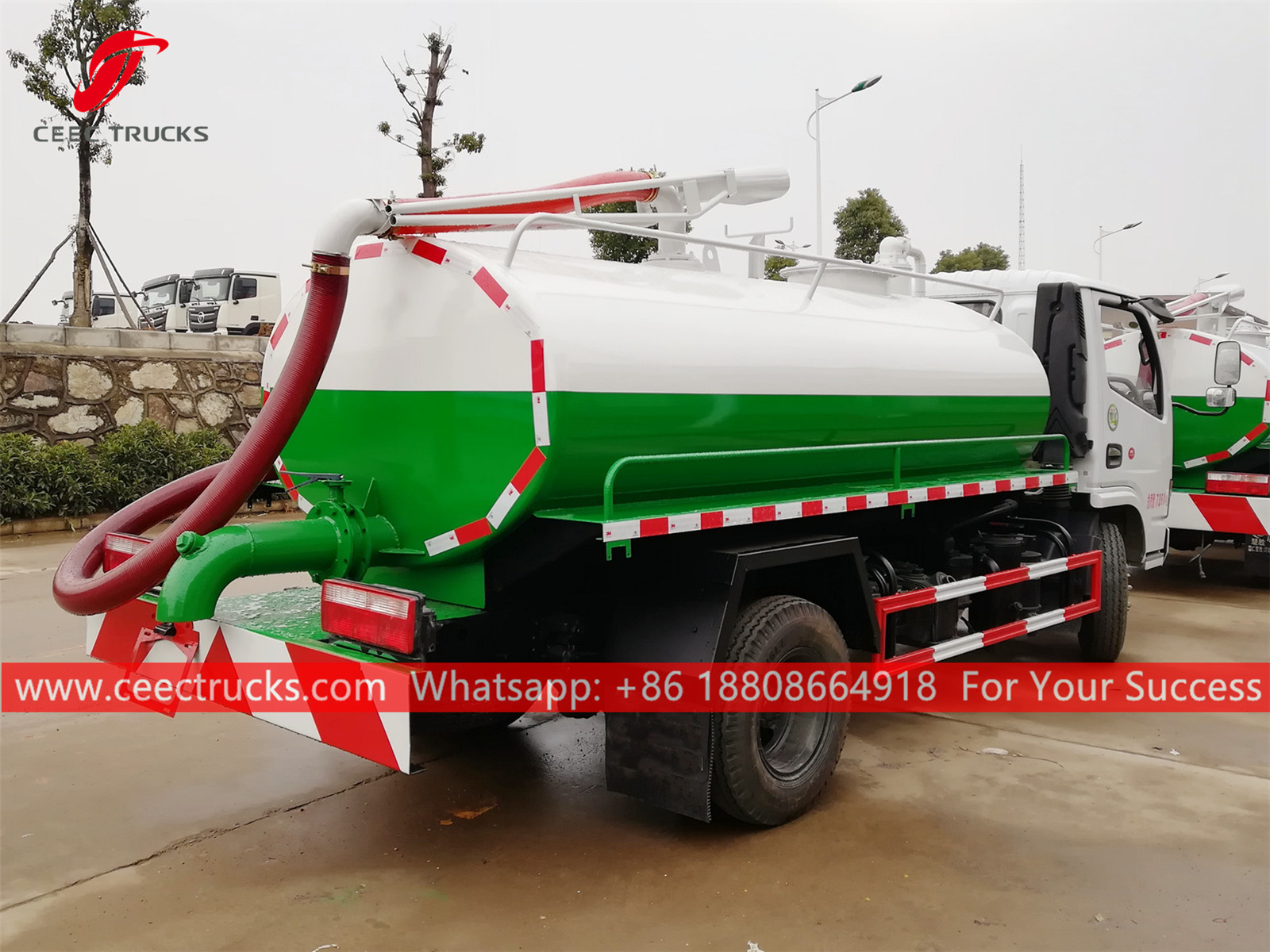

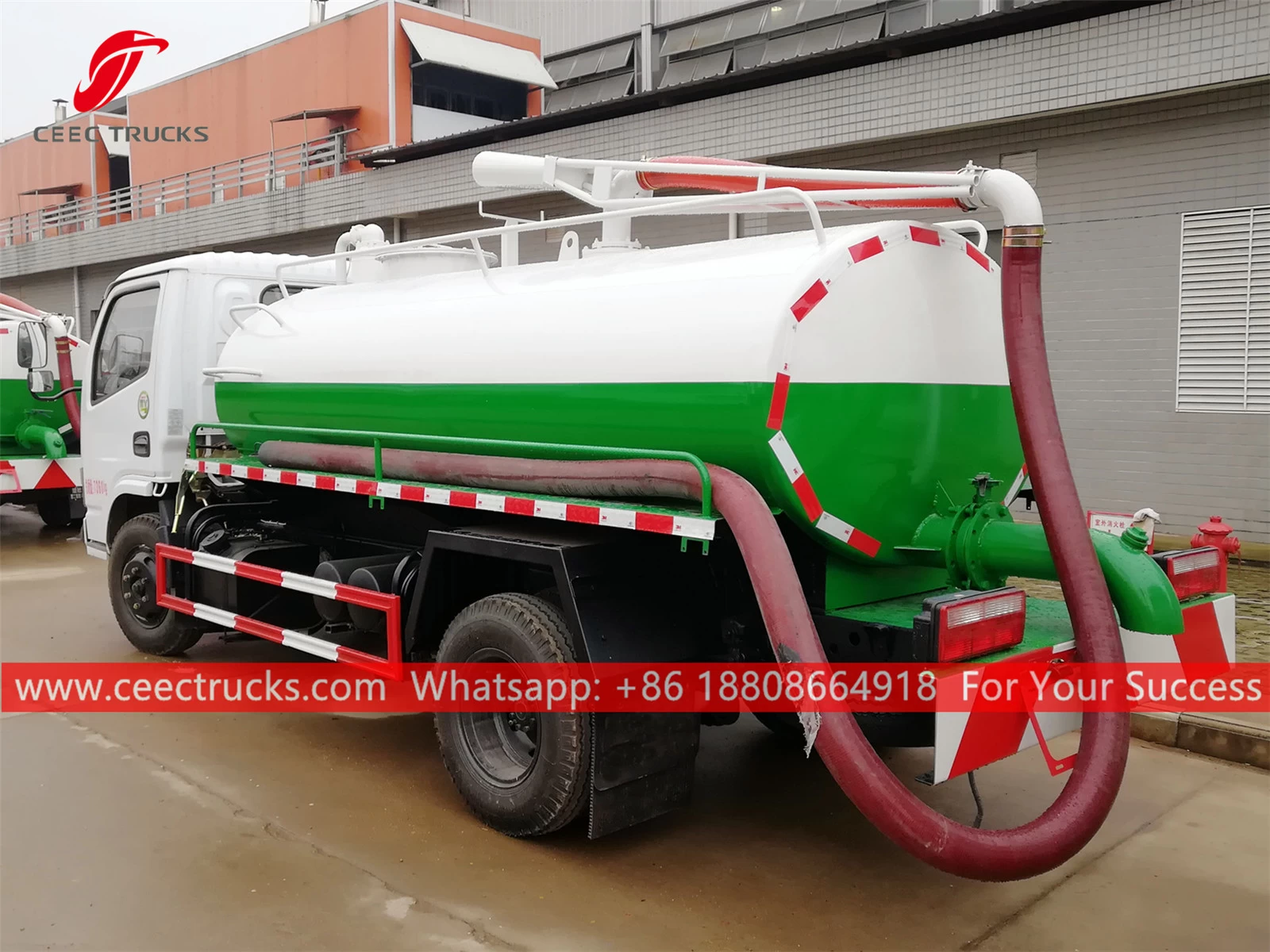

4,000 Litres Suction tanker DongFeng

Dongfeng 4cbm vacuum truck, Left Hand Drive model 4x2 chassis, 5-shift manual gearbox, CHAOCHAI 102HP diesel engine, painting and logos depend on requirement.



 Applications:



Vacuum Tank Truck DONGFENG (also called cesspit emptier vehicle, sewer cleaning truck, sewage tanker, sewer truck, cesspit emptier, gully emptier, vacuum truck, gully emptier, waste vacuum tanker, vacuum tanker, sewage truck) is used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.



CEEC TRUCKS Kitchen garbage truck truck which use WEILONG or Italy BP vacuum pump, for 10CBM or more recommend Double Pump for efficiently working.



The septic pump truck can be equipped with cabin Pneumatic Control for easy operation.


 Key Features:



---- DONGFENG chassis, perfect performance

---- CUMMINS / YUCHAI / CHAOCHAI technology engine option, super powerful, no overhaul within 100,000 km.

---- Vacuum Tanker body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Virious types of refuse container lifter are available.


 Specifications:



Vacuum Tanker truck DONGFENG (4 cbm)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

DONGFENG

Overall Dimension

5990 * 1980 * 2400 mm

GVW / Kerb Weight

7,360kg / 4,030kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

CHAOCHAI

Power

102 HP (75 KW)

Displacement

3707 ml

Emission Standard

Euro 5

Chassis

Drive Type

4X2, (left hand drive)

Transmission

Manual 5-shift speed levers with 1 reverse

Wheelbase/No. of axle

3308 mm / 2

Tire Specification

7.00-16

Tire Number

6 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Body capacity

4,000 Litres

Tanker Material

Carbon Steel

Suction Head pipeline

7 m

Vacuum Pump brand

WEILONG / Italy BP / Domestic Pump

Vacuum Pump advantage

High efficient, vacuum rate 93%,

quick suction and discharge, suction lift 6m

Hose

High quality, wire strengthened hose

Control panel

English or Your language

All standard accessories: Inlet pipeline, discharge nozzle, cabin pneumatic control box, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Standard carbon steel, stainless steel optional.

** Standard WEILONG vacuum pump, Italy vacuum pump optional
