ESCXX42-3LCD40
4.25Gbps
CWDM SFP Optical Transceiver, 40KM Reach
Features
Ø Data-rate of 4.25Gbps operation
Ø 18 CWDM DFB wavelengths laser and PIN or APD photodetector for 40KM
transmission
Ø Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Ø Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
Ø Compatible with RoHS
Ø +3.3V single power supply
Ø Operating case temperature: Standard : 0 to +70°C
Applications
Ø 1000 Base-LX Ethernet
Ø 4xFC at 4.25Gbps
Ø 2xFC at 2.125Gbps
Ø 1xFC at 1.0625Gbps
Description
ETU-LINK’s

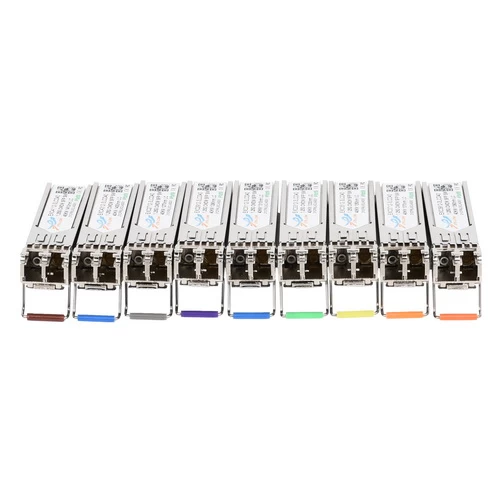

ESCXX42-3LCD40 Small Form Factor Pluggable (SFP) transceivers are compatible
with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The
transceiver consists of five sections: the LD driver, the limiting amplifier,
the digital diagnostic monitor, the DFB laser and the APD .The module data link
up to 40KM in 9/125um single mode fiber.
The optical output can be disabled by a TTL logic high-level input of Tx
Disable, and the system also can disable the module via I2C. Tx Fault is
provided to indicate that degradation of the laser. Loss of signal (LOS) output
is provided to indicate the loss of an input optical signal of receiver or the
link status with partner. The system can also get the LOS (or Link)/Disable/Fault
information via I2C register access.
