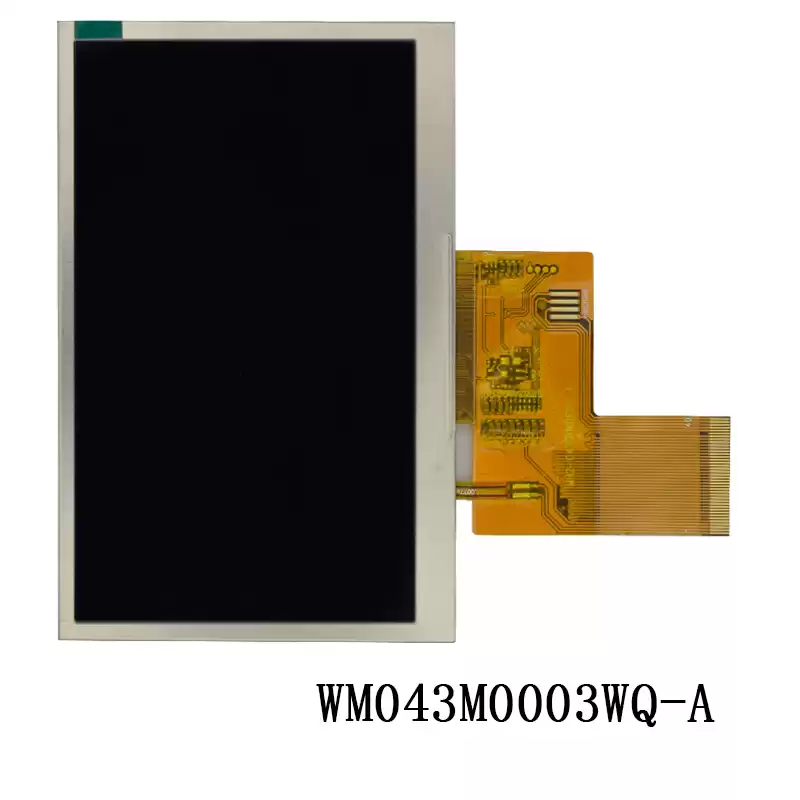

4.3 Inch ips 480(RGB)*272 lcd module

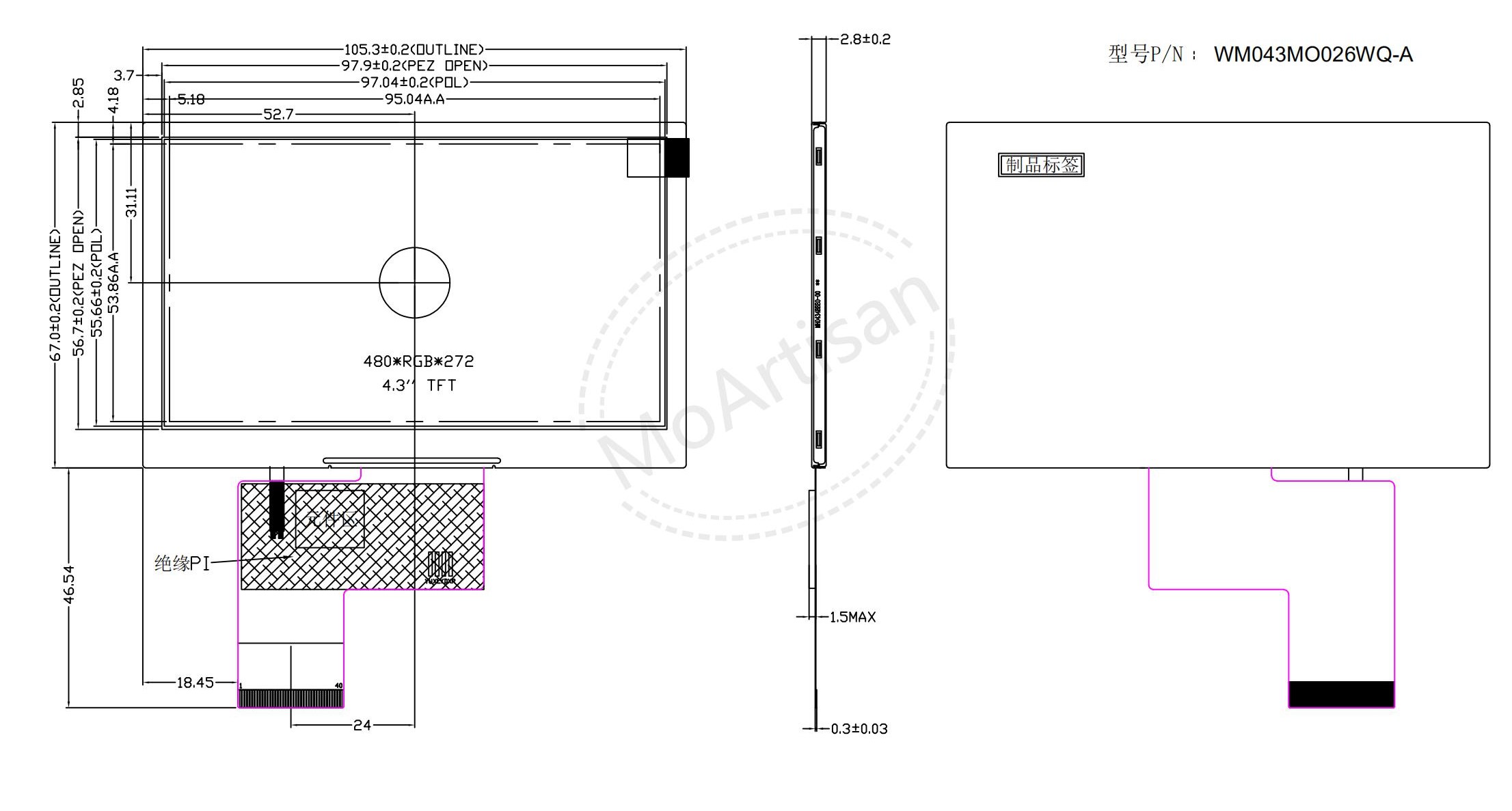

Production drawings
WM043MO026WQ-A/D Introduction
-
4.3 inch diagonally measured active display area.
-
WQVGA (480 horizontal by 272 vertical pixel) resolution.
-
operating survival for 240 hours at 85 degrees Celsius and 85 percent humidity.
-
standard productions have 600 and 1500 nits brightness for your choice.
-
40 PIN FPC, 24-bit RGB or CPU interface.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T
(Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
4.3
|
WQVGA, 480RGB272, IPS, landscape view LCD screen, high reliabilty
|
105.45*67.1*2.8
|
2*6
3*6
LED
(50K)
|
40 PIN FPC, 24-Bit, RGB/CPU
|
600 nits/800
1500 nits/800
|
Topa: -30~+80 Tstg: -30~+80
|
80/80/80/80
|
WM043MO026WQ-A
WM043MO026WQ-D
|
Production Applications
Automobile, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
It can be modified according to customer requirements.
Lead time for samples: 3~4 weeks.
FAQ:
Can this product WM043MO026WQ-A(D) be applied in the field of cars?Why is that?
ANSWER:
This product WM043MO026WQ-A(D) can be applied for car. My reasons are as follows.
All components are manufactured according to the requirements of vehicle industry.
It is operating survival for 240 hours at 85 degrees Celsius and 85 percent humidity.
