4.3 Inch TFT 480(RGB)*272 lcd module with 500 nits brightness and PCAP or RTP

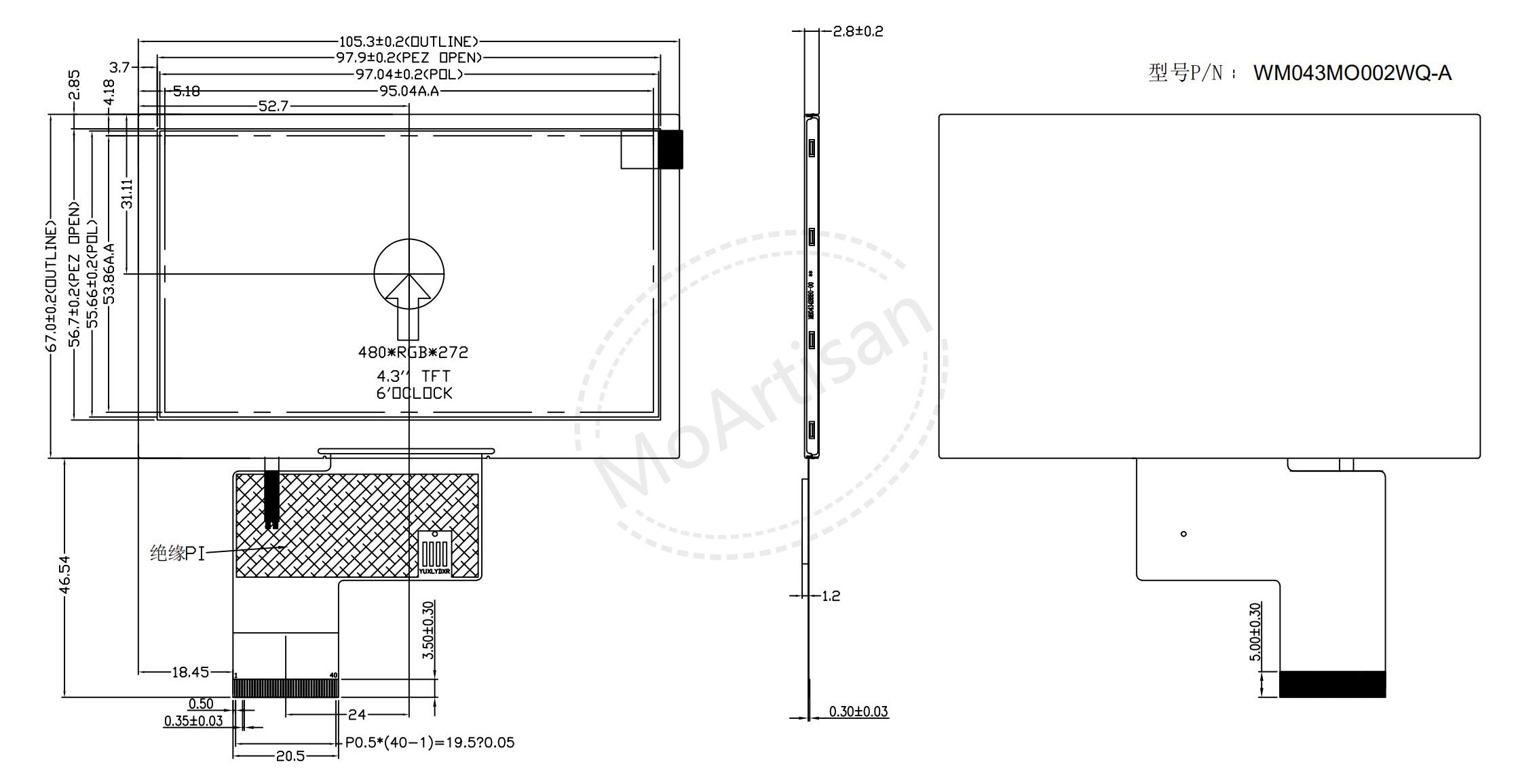

Production drawings
WM043MO002WQ-A Introduction
-
4.3 (16:9) inch diagonally measured
active display area.
-
WQVGA (480 horizontal by 272 vertical pixel)
resolution.
-
TN lcd module with 500 nits brightness.
-
40 PIN FPC, 24-bit RGB interface.
-

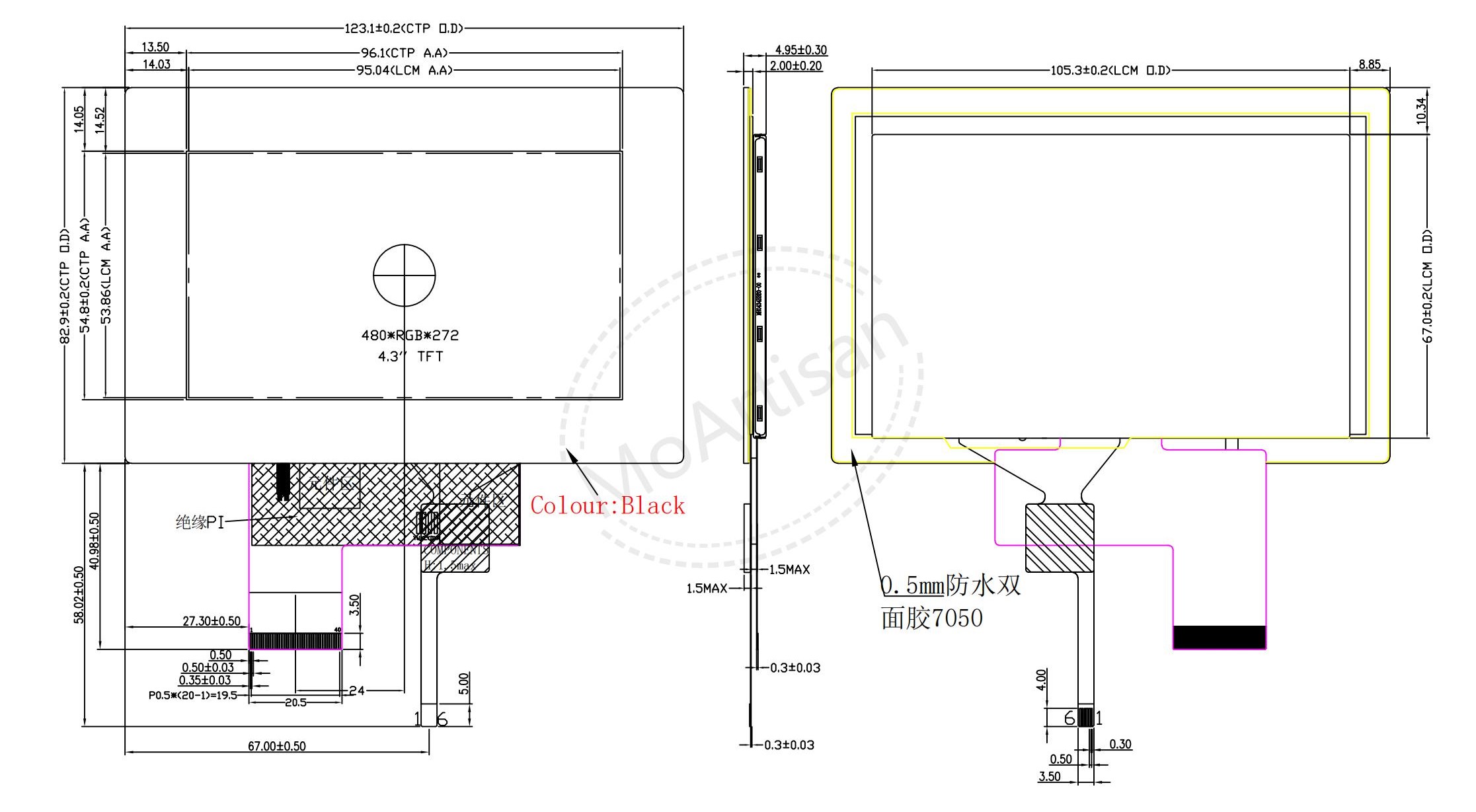

WM043MC002WQ-A is the module with a PCAP and it is laminated with OCA.
-

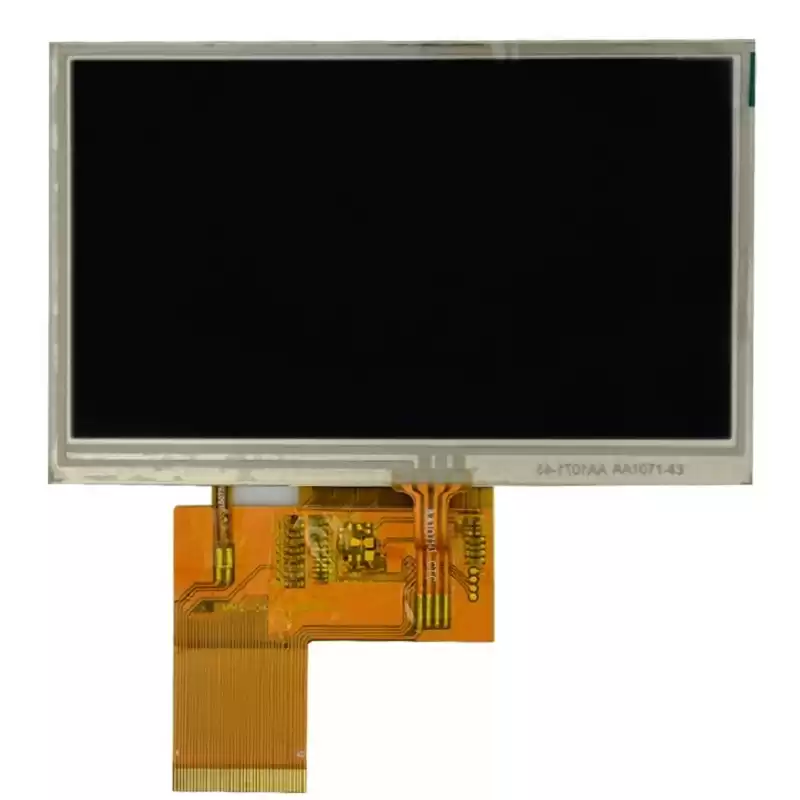

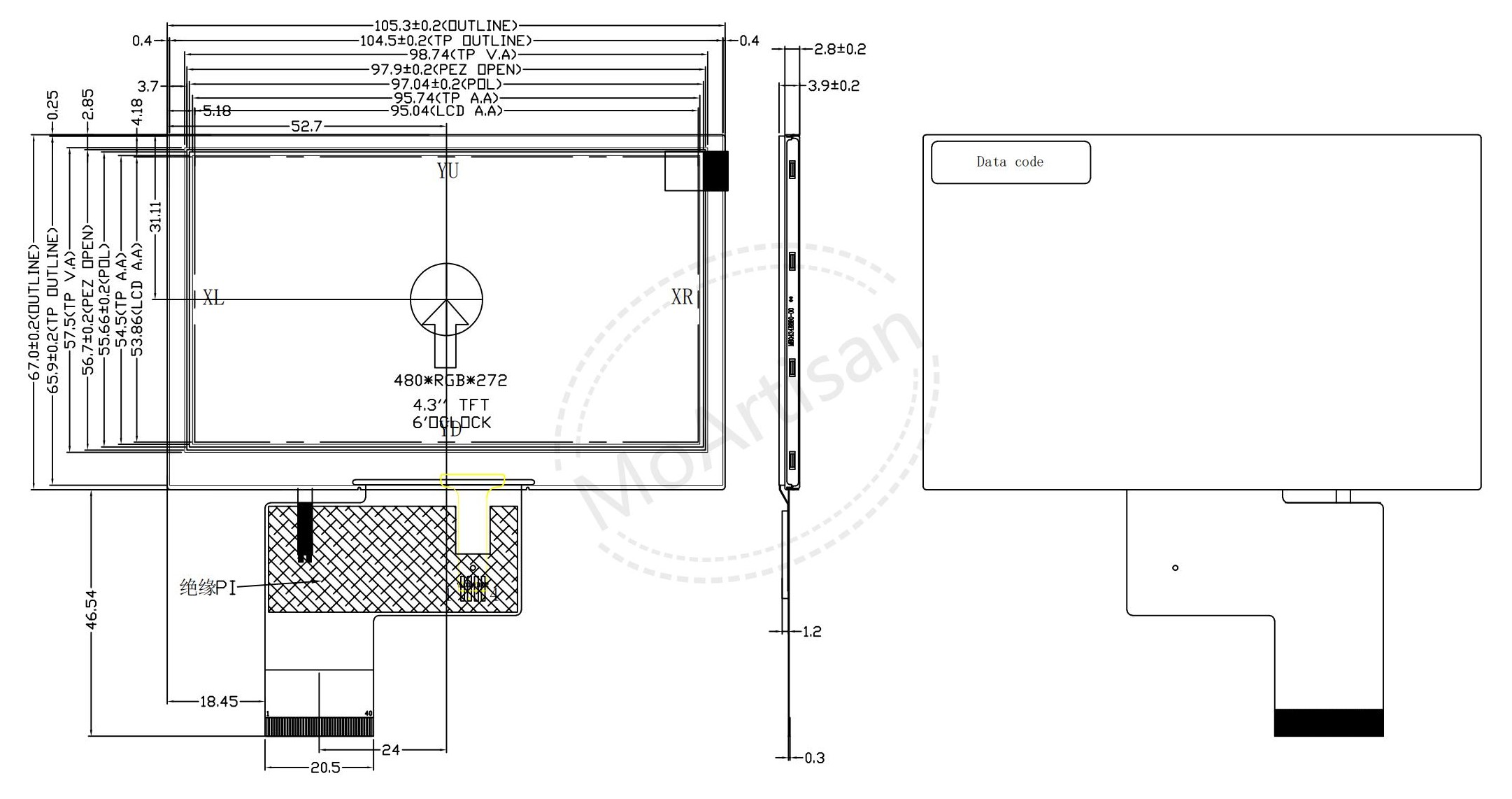

WM043MR002WQ-A is the modue with a RTP and it is adhered with frame double-sided adhere.
|
|
About Part Number WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
4.3
|
WQVGA, 480RGB*272, TN,
6-O'clock, landscape view screen
|
105.45x67.1x2.8
132.1*82.9*4.95
105.45*67.1*4.0
|
1X7 LED (50K)
|
40 PIN FPC, 24 Bit,RGB
|
500 nits/600
400 nits/600
400 nits/600
|
Topa: -20~+70
Tstg: -30~+80
|
60/70/75/75
|
WM043MO002WQ-A
WM043MC002WQ-A
WM043MR002WQ-A
|
Production Applications
GPS, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of production can be customized.
Lead time for samples: 3~4 weeks.
FAQ:
Why is the capacitive touch panel (PCAP) the same size as the resistance touch panel (RTP)?
ANSWER:
PCAP is the later technology, the man-machine experience effect is more excellent than the RTP, so some users want to use PCAP and 1:1 to replace the RTP.
For the users, it can be directly replaced with a capacitive touch panel without more changes.
