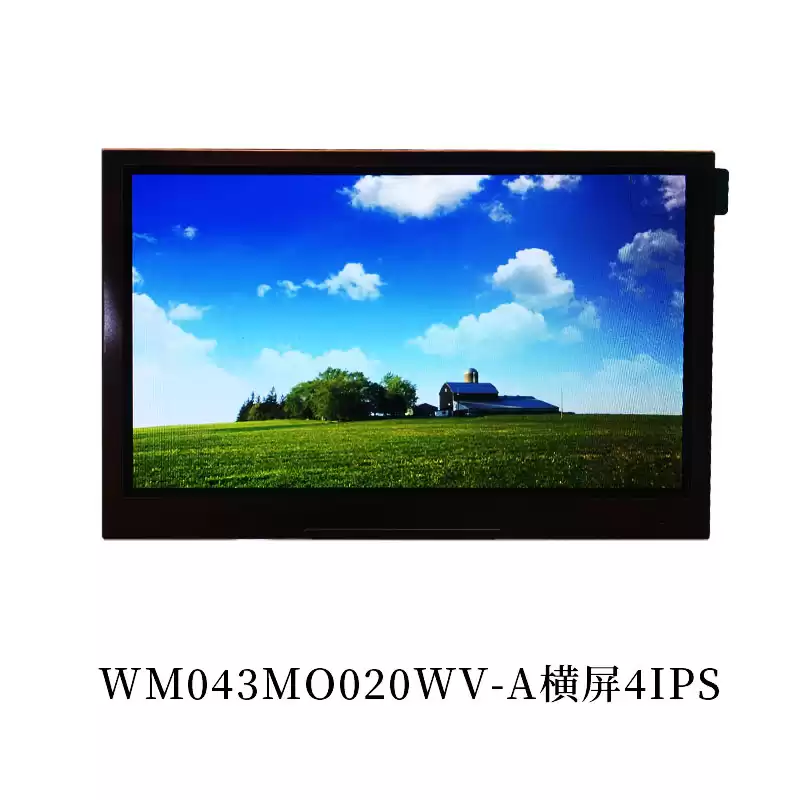

4.3 Inch IPS 800(RGB)*480 wide operating temperature lcd module

WM043MO020WV-A/B is a 4.3 inch IPS LCD module, high brightness and high reliability adapting for automobile, existing standard productions are 550 nits and 1100 nits brightness.



4.3 Inch ips 800(RGB)*480 wide operating temperature lcd module

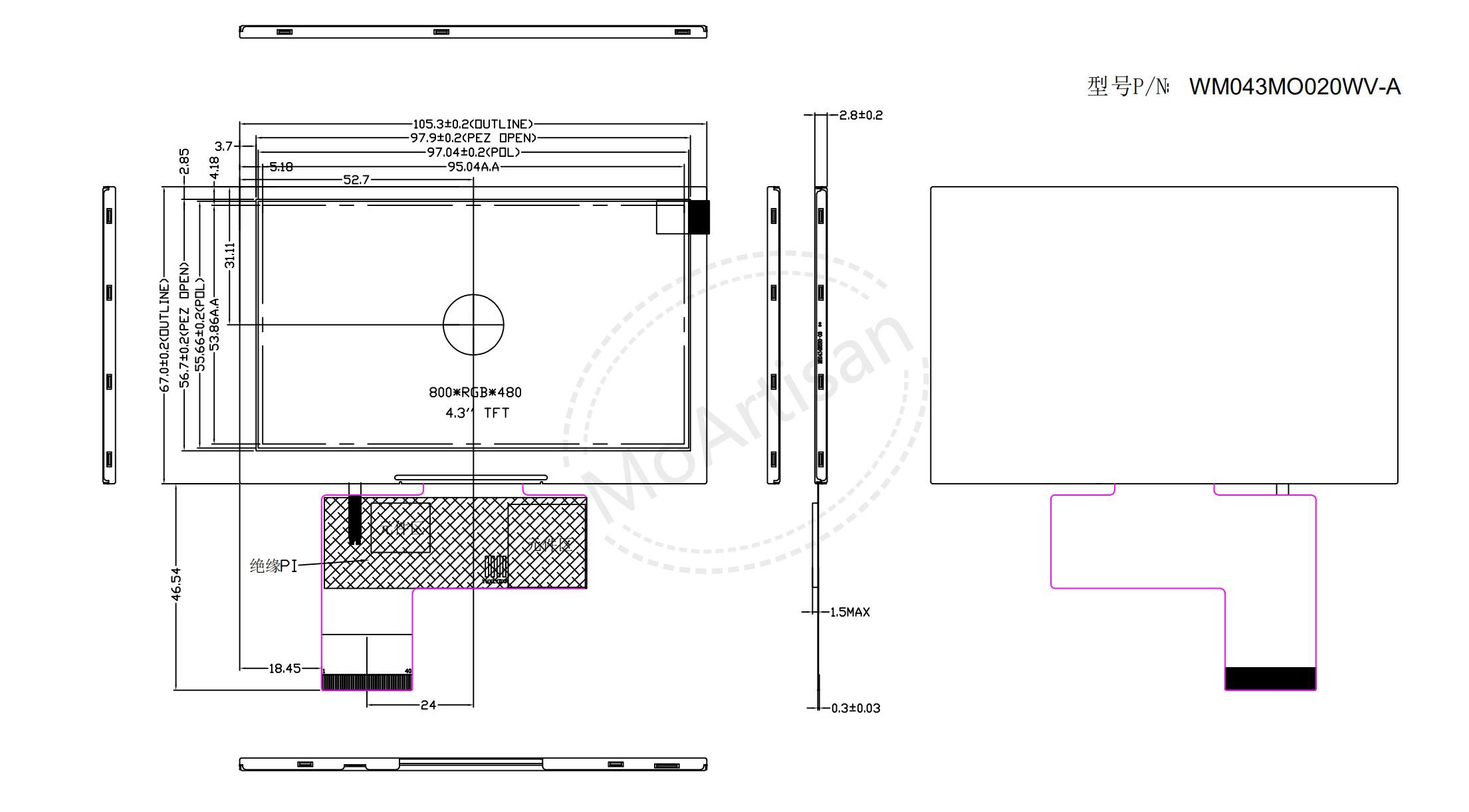

Production drawings

4.3 Inch ips 800(RGB)*480 wide operating temperature lcd module DRAWINGS


WM043MO020WV-A/B Introduction


  • 4.3 inch diagonally measured active display area.
  • WVGA (800 horizontal by 480 vertical pixel) resolution.
  • A/B version module adapt for automobile, 550 nits and 1100 nits brightness for each.
  • lcm module operating survival for 240 hours at 85 degrees Celsius and 85 percent humidity.
  • 40 PIN FPC, 24-bit RGB or CPU interface.



About Part Number WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module; MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…; 001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions


 Size

Description

LCM Outline

mm

LED L/T

(Hrs)

Interface

Brightness/CR

Temperature Range (°C)

Viewing Angle U/D/L/R

LCM P/N

4.3

WVGA, 800*RGB*480, IPS, landscape view LCD screen, high reliabilty

105.45*67.1*2.8

2*6

3*6

LED

(50K)

40 PIN FPC, 24-Bit, RGB/CPU

500 nits/800

1100 nits/800

Topa:   -30~+80 Tstg:   -30~+80

80/80/80/80

WM043MO020WV-A

WM043MO020WV-B


Production Applications

Automobile, Personal Navigation Device, Multimedia applications and Others AV system.


Production Customized

This kind of production can be customized.

Lead time for samples: 3~4 weeks.


FAQ:

Why do we choose double 85 experiment for the product life prediction?

ANSWER:

People are to rely on Arrhenius theory.

Arrhenius theory expresses the reaction rate as a function of temperature.

The variation characteristics of stress relaxation of materials are inferred from thermal aging.


According to the research of Arrhenius theory, the average failure time of the material reaches 1756,276 hours when the aging time of double 85 reaches 1000 hours and does not fail.


Therefore, people choose the double 85 aging test to verify or prove the life expectancy of the product.
