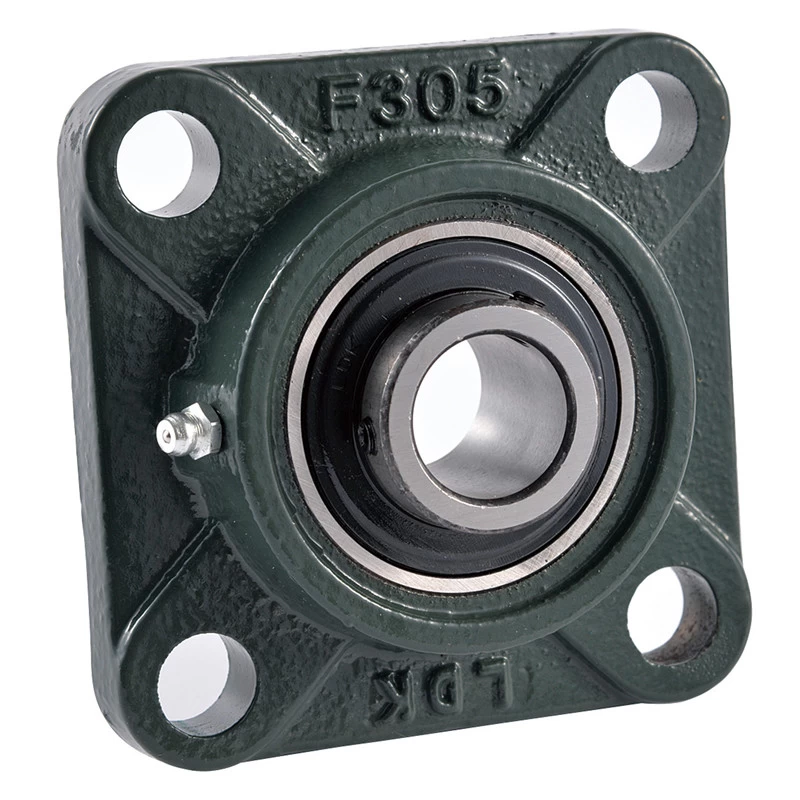

4-Bolt Flange Bearing Units UCF3

UCF300 Heavy duty,Wider inner ring bearing,Setscrew locking,Cast gray iron housing .

Cast ductile iron housing available upon request.

Facebook Twitter Pinterest LinkedIn 分享

Description

4-Bolt Flange Bearing housing UCF307

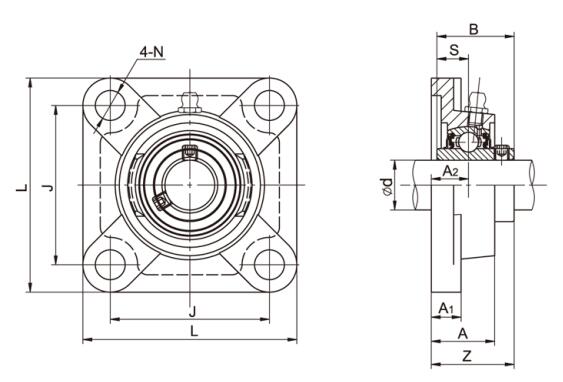

Unit No.	Shaft Dia d (mm)	Dimensions(mm)									Bolt size (mm)	Weight (kg)
Unit No.	Shaft Dia d (mm)	L	J	A2	A1	A	N	B	s	z	Bolt size (mm)	Weight (kg)
UCF305	25	110	80	16	13	29	16	38	15	39	M14	1.20
UCF306	30	125	95	18	15	32	16	43	17	44	M14	1.80
UCF307	35	135	100	20	16	36	19	48	19	49	M16	2.20
UCF308	40	150	112	23	17	40	19	52	19	56	M16	2.90
UCF309	45	160	125	25	18	44	19	57	22	61	M16	3.50
UCF310	50	175	132	28	19	48	23	61	22	67	M20	4.80
UCF311	55	185	140	30	20	52	23	66	25	71	M20	5.60
UCF312	60	193	150	33	22	56	23	71	26	78	M20	6.70
UCF313	65	208	166	33	22	58	23	75	30	78	M20	7.80
UCF314	70	226	178	36	25	61	25	78	33	81	M22	10.10
UCF315	75	236	184	39	25	66	25	82	32	89	M22	11.10
UCF316	80	250	196	38	27	68	31	86	34	90	M27	12.80
UCF317	85	260	204	44	27	74	31	96	40	100	M27	15.40
UCF318	90	280	216	44	30	76	35	96	40	100	M30	19.00
UCF319	95	290	228	59	30	94	35	103	41	121	M30	20.6
UCF320	100	310	242	59	32	94	38	108	42	125	M33	25.7
UCF321	105	310	242	59	32	94	38	112	44	128	M33	25.60
UCF322	110	340	266	60	35	96	41	117	46	131	M36	38
UCF324	120	370	290	65	40	110	41	126	51	140	M36	50
UCF326	130	410	320	65	45	115	41	135	54	146	M36	66
UCF328	140	450	350	75	55	125	41	145	59	141	M36	90
